1996 Eagle Summit BaseFACTORY OEM SERVICE PROCEDURE
Sensor-To-Rotor Gap Adjustment
- Raise and support vehicle. Remove tire and wheel assembly. Inspect sensor pole piece for damage. Repair if necessary. If sensor pole piece is okay, check wheel speed sensor-to-rotor gap.

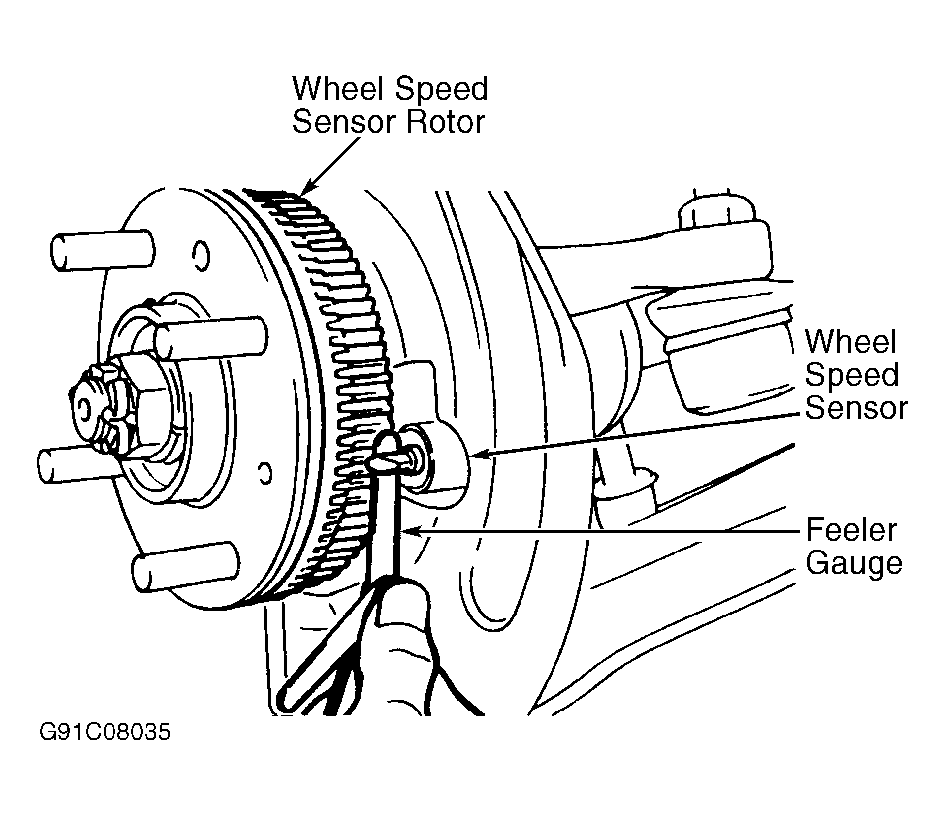

- Using a feeler gauge, check clearance between speed sensor pole and rotor tooth surface. SeeFig 1 or Fig 2 . Also, refer to the WHEEL SPEED SENSOR-TO-ROTOR GAP SPECIFICATIONS table. If clearance is not within specification, loosen sensor mounting bolt. Adjust sensor position until clearance is within specification. Tighten sensor mounting bolt.
WHEEL SPEED SENSOR-TO-ROTOR GAP SPECIFICATIONS
| Application | In. (mm) | ||
|---|---|---|---|
| Front | (1)* | ||
| Rear | .012-.035 (.3-.9) | ||
|
|||
