2006 Dodge and Ram Charger SEFACTORY OEM SERVICE PROCEDURE

Module-Steering Column Control: Assembly

Fig 1: Multi-Function From Circuit Board
GC0013246Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the Steering Control Module (SCM) onto the multi-function switch.

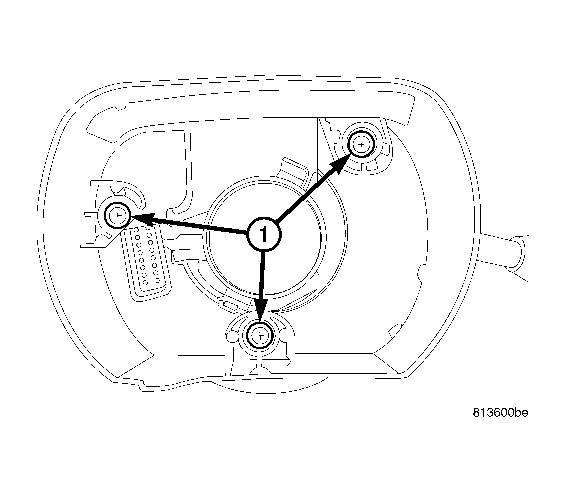

    Fig 2: Multi-Function Switch Rear
    GC0013252Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the multi-function switch and SCM in the SCCM Shroud and tighten the three screws (1) from the bottom.

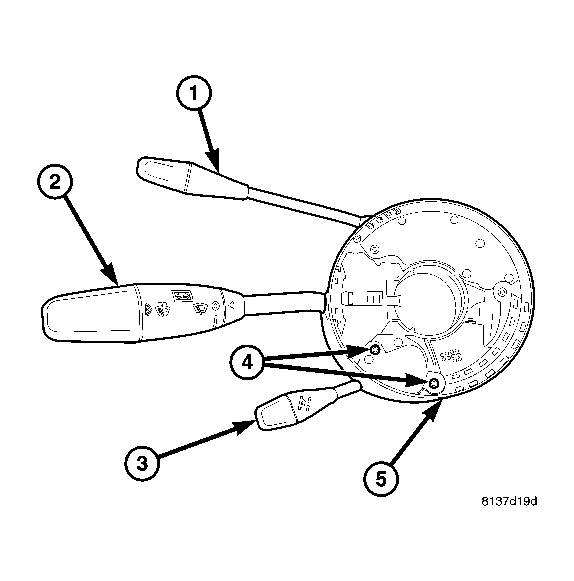

    Fig 3: Identifying SCCM Components
    GC0013245Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the steering column telescoping lever (3).

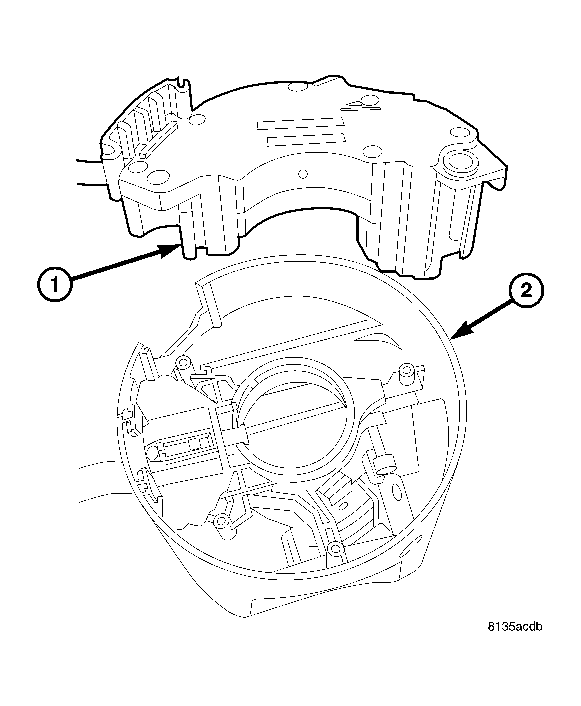

    Fig 4: Speed Control from SCCM
    GC0013251Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the speed control switch (1).

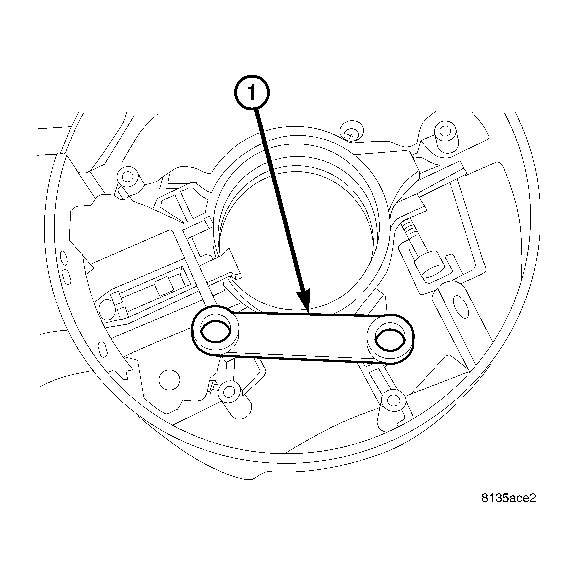

    Fig 5: Installing Strut
    GC0013249Courtesy of DAIMLERCHRYSLER CORP.
  5. If equipped with manual telescoping column  , install the strut (1).
    Fig 6: Identifying SCCM Components
    GC0013245Courtesy of DAIMLERCHRYSLER CORP.
  6. If equipped with electronic telescoping column  , install the electric tilt lever and switch (3).

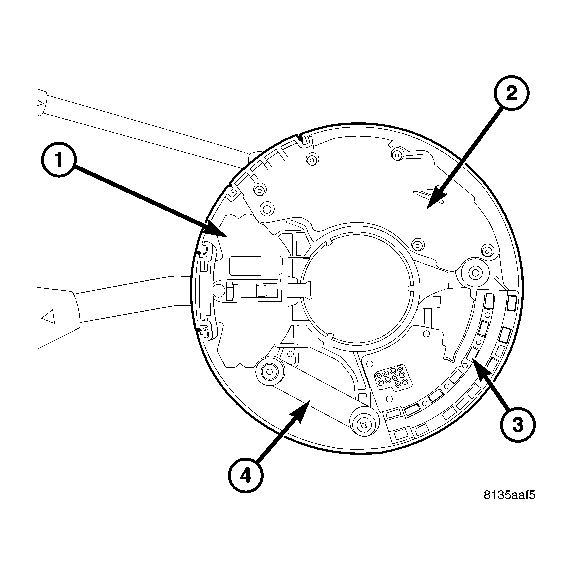

    Fig 7: Steering Angle Sensor Screw
    GC0013248Courtesy of DAIMLERCHRYSLER CORP.
  7. If equipped with ESP  , install the steering angle sensor and screw (3) located at the six o'clock position.

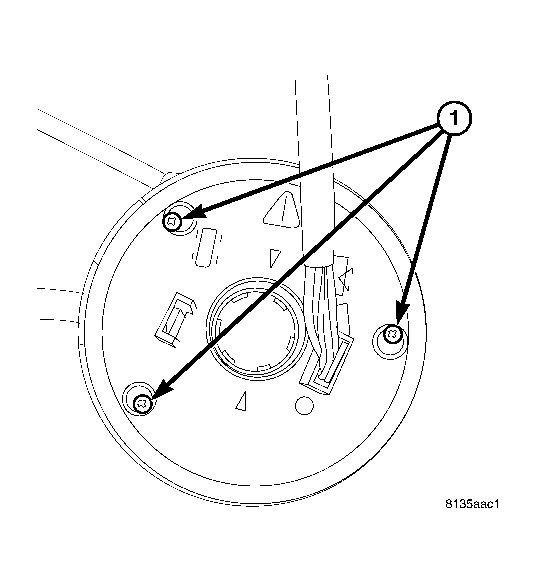

    Fig 8: Clockspring Screws
    GC0013247Courtesy of DAIMLERCHRYSLER CORP.
  8. Install the clockspring and screws (1) leaving one out so it will not unwind.
  9. Install the SCCM on the steering column, (Refer to STEERING/COLUMN/STEERING COLUMN CONTROL MODULE - INSTALLATION)  and tighten the one clockspring screw (1) that was left loose.
