2006 Dodge and Ram Charger SEFACTORY OEM SERVICE PROCEDURE
Module-Steering Column Control: Installation
- Install the SCCM (1) onto the steering column.

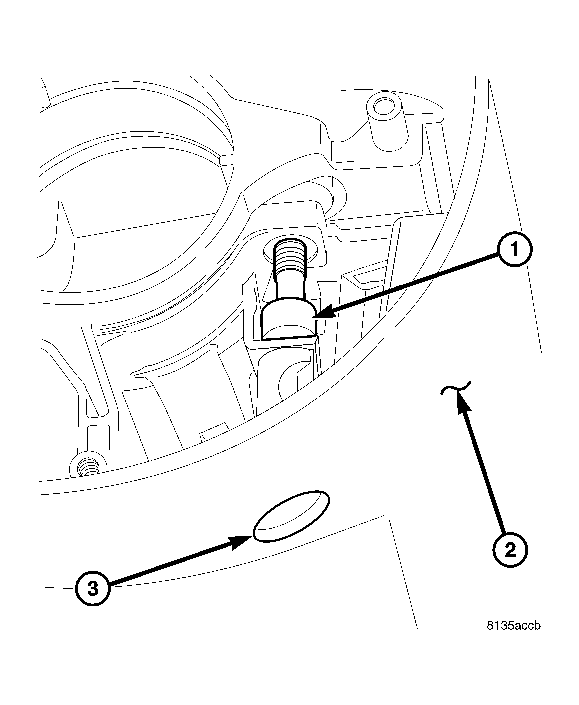

- Tighten the set screw (1) securing the SCCM (2).

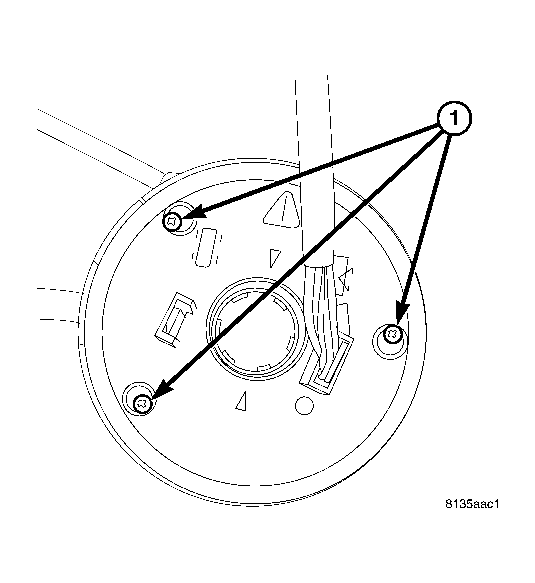

- Tighten clockspring screw(s) (1) that were backed out to keep the clockspring from unwinding.

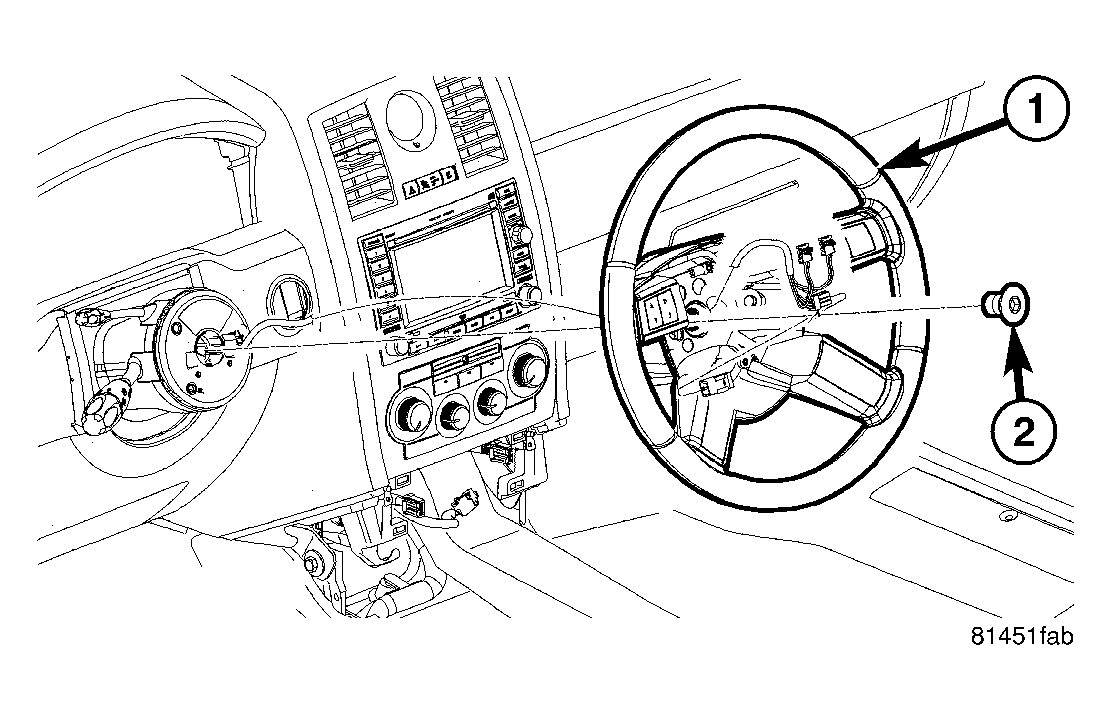

- Align the spline on the steering wheel hub to shaft and install the steering wheel (1).
- Install a NEW retaining bolt (2). Torque the bolt to 70 N.m (52 ft. lbs.).

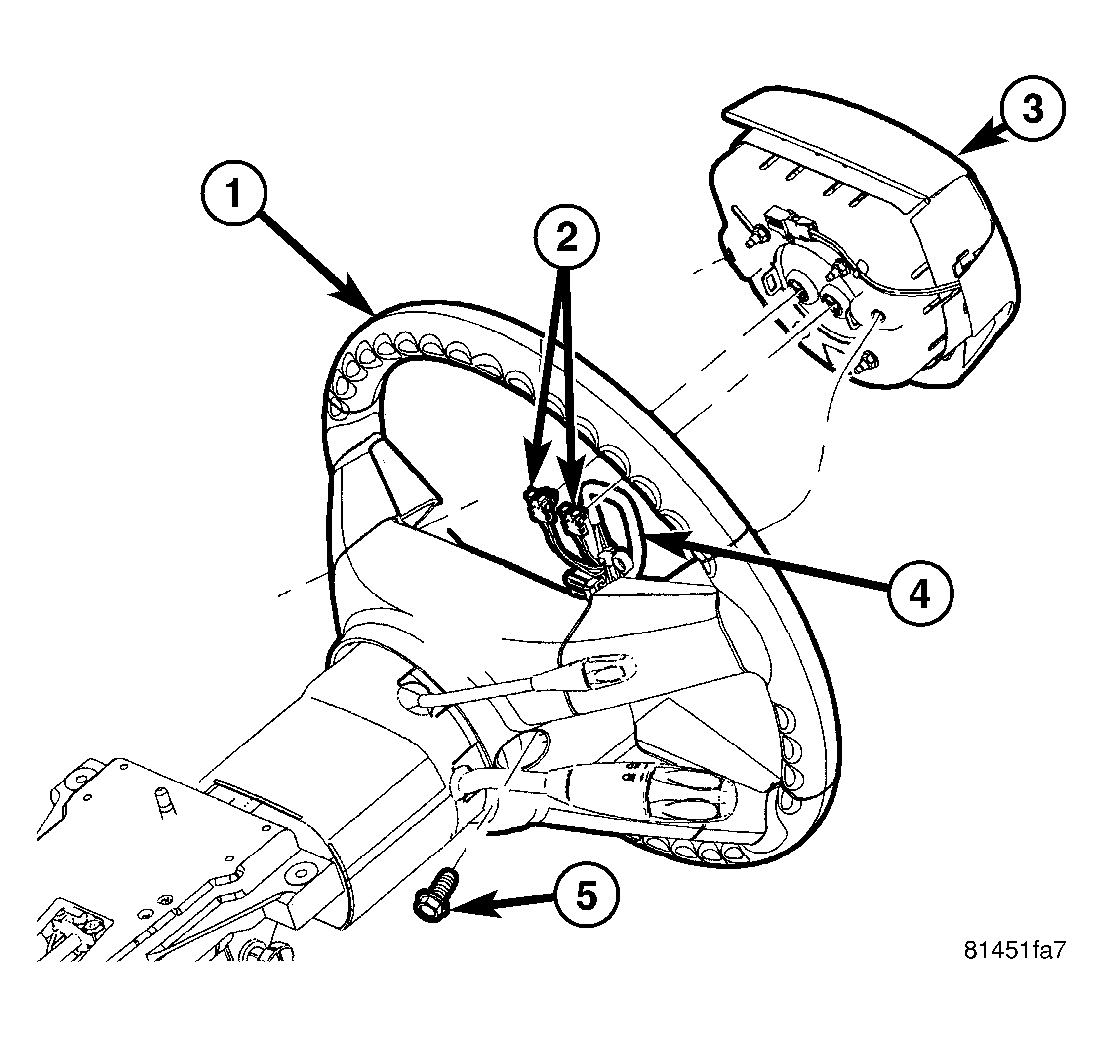

- Install the driver airbag (3) (Refer to ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - INSTALLATION) .
- Connect the battery negative cable. If equipped with Electronic Stability Program (ESP), the steering angle sensor must be calibrated (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE) .
