2008 Chrysler Sebring Convertible V6-2.7LFACTORY OEM SERVICE PROCEDURE
Intake Manifold
INTAKE MANIFOLD
Lower Intake Manifold
- Tighten in sequence shown, to 12 Nm (105 in. lbs.)
Upper Intake Manifold
- Tighten in sequence shown, to 12 Nm (105 in. lbs.)

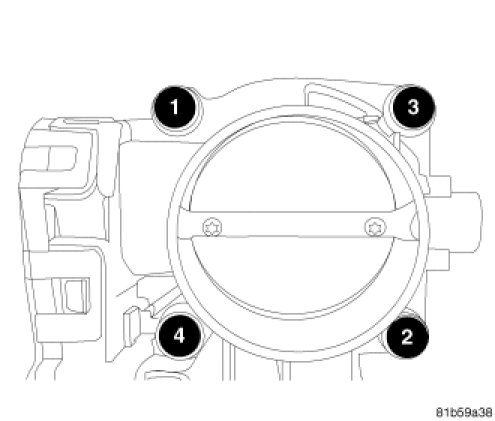

THROTTLE BODY
CAUTION: The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.
Tighten the three bolts (1), (2), (4) and one stud (3) in a mandatory torque criss - cross pattern sequence to 5.5 Nm (50 in. lbs.)
Lower Intake Manifold
- Tighten in sequence shown, to 12 Nm (105 in. lbs.)
Upper Intake Manifold
- Tighten in sequence shown, to 12 Nm (105 in. lbs.)
THROTTLE BODY
CAUTION: The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.
Tighten the three bolts (1), (2), (4) and one stud (3) in a mandatory torque criss - cross pattern sequence to 5.5 Nm (50 in. lbs.)
