2008 Chrysler Sebring Convertible V6-2.7LFACTORY OEM SERVICE PROCEDURE
Sensor-Transmission Range
Component ID: 422

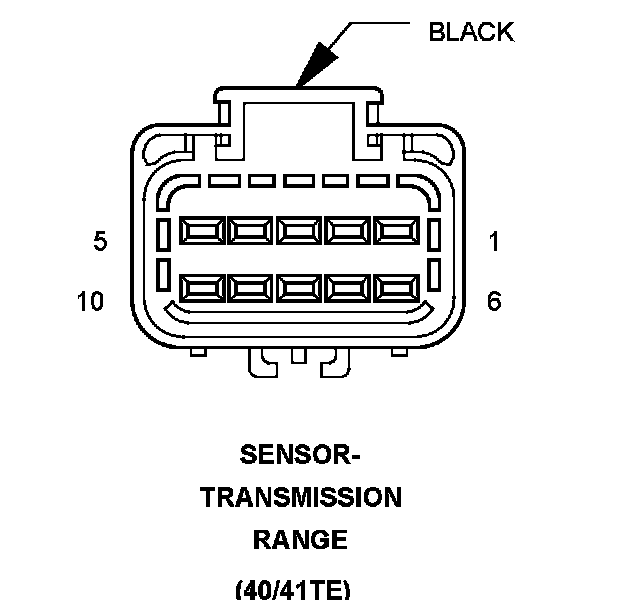

Component : SENSOR-TRANSMISSION RANGE
Connector:
Name : SENSOR-TRANSMISSION RANGE
Color : BLACK
# of pins : 10
Qualifier : (40/41TE)
Pin Circuit Description
1 - -
2 - -
3 T13 20DG/VT SENSOR GROUND
4 T54 20DG/GY TRANSMISSION TEMPERATURE SIGNAL
4 T54 18DG/OR TRANSMISSION TEMPERATURE SIGNAL
5 - -
6 - -
7 T1 20DG/LB TRS T1 SIGNAL
7 T1 18DG/LB TRS T1 SIGNAL
8 T3 20DG/DB TRS T3 SIGNAL
8 T3 18DG/DB TRS T3 SIGNAL
9 T42 20DG/YL TRS T42 SIGNAL
9 T42 18DG/YL TRS T42 SIGNAL
10 T41 20YL/DB TRS T41 SIGNAL
10 T41 18YL/DB TRS T41 SIGNAL
Component Location - 21
Component Location - 29
