2008 Chrysler Sebring Convertible V6-2.7LFACTORY OEM SERVICE PROCEDURE

Main Relay (Computer/Fuel System): Diagrams




Component ID: 250
Component : RELAY-ASD/MAIN

Connector:
Name : RELAY-ASD/MAIN
Color :
# of pins : 0

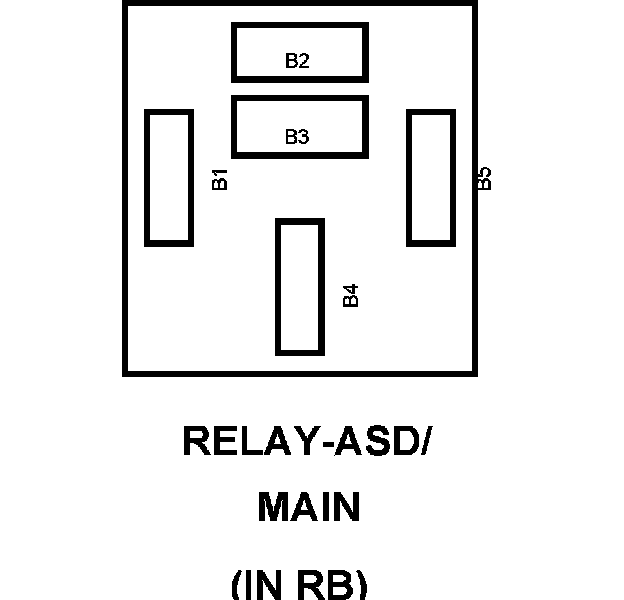

Factory service manual diagram




B1 A935 20RD FUSED B(+)
B2 K542 12BR ASD/MAIN RELAY OUTPUT
B3 - -
B4 A14 12RD/YL FUSED B(+)
B5 K51 20BR/WT ASD/MAIN RELAY CONTROL
