2008 Chrysler Sebring Convertible V6-2.7LFACTORY OEM SERVICE PROCEDURE

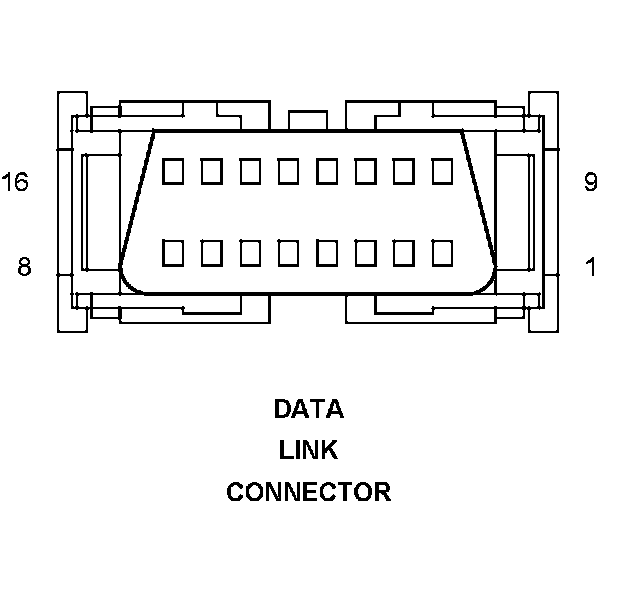

Data Link Connector: Locations
Component ID: 83
Component : DATA LINK CONNECTOR
Connector:
Name : DATA LINK CONNECTOR
Color :
# of pins : 16
Pin Circuit Description
1 - -
2 - -
3 - -
4 Z912 18BK GROUND
5 Z912 18BK GROUND
6 D72 20WT/LB DIAGNOSTIC CAN C (+)
7 - -
8 F202 18PK/WT IGNITION SWITCH OUTPUT (RUN-START)
9 - -
10 - -
11 - -
12 - -
13 - -
14 D71 20WT/DB DIAGNOSTIC CAN C (-)
15 - -
16 A933 20RD/VT FUSED B(+)

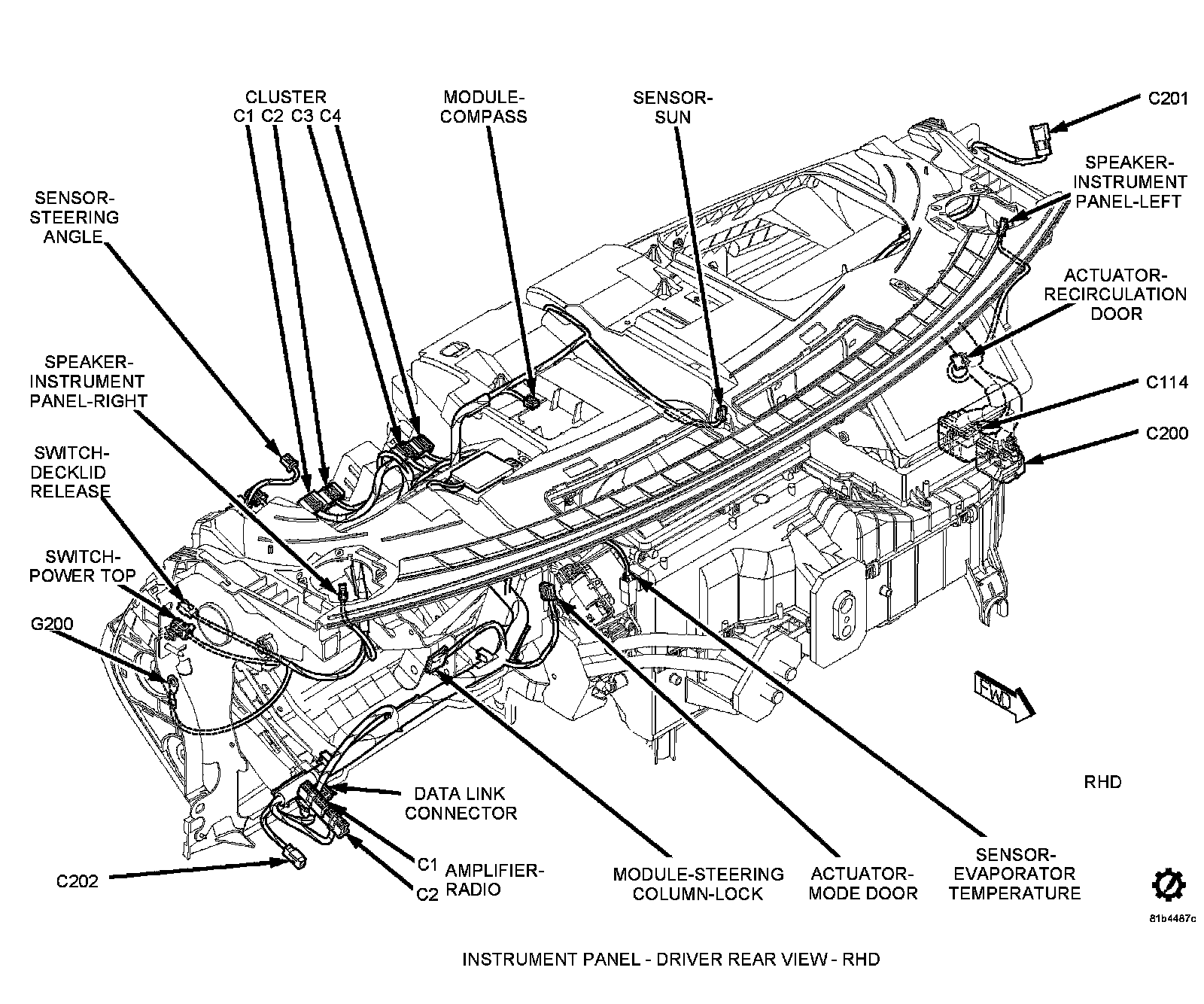

Component Location - 36
Component Location - 39
Component Location - 41
Component Location - 37
Component Location - 42
