2008 Chrysler Sebring Convertible V6-2.7LFACTORY OEM SERVICE PROCEDURE
Seat Temperature Control Module
Component ID: 217
Component : MODULE-HEATED SEATS

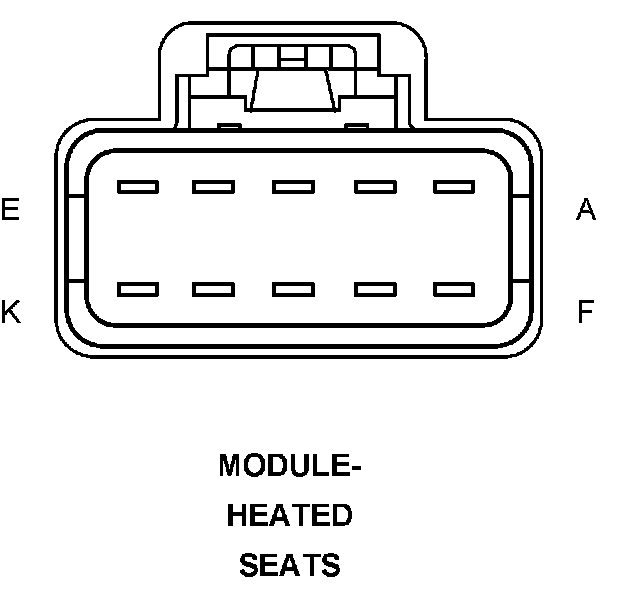

Connector:
Name : MODULE-HEATED SEATS
Color :
# of pins : 10
A - -
B - -
C - -
D P187 18LG/BR LEFT SEAT HEATER B(+) DRIVER
E F937 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN)
F Z914 16BK GROUND
G - -
H - -
J D506 22WT/DG LIN BUS
K P188 18LG/VT RIGHT SEAT HEATER B(+) DRIVER

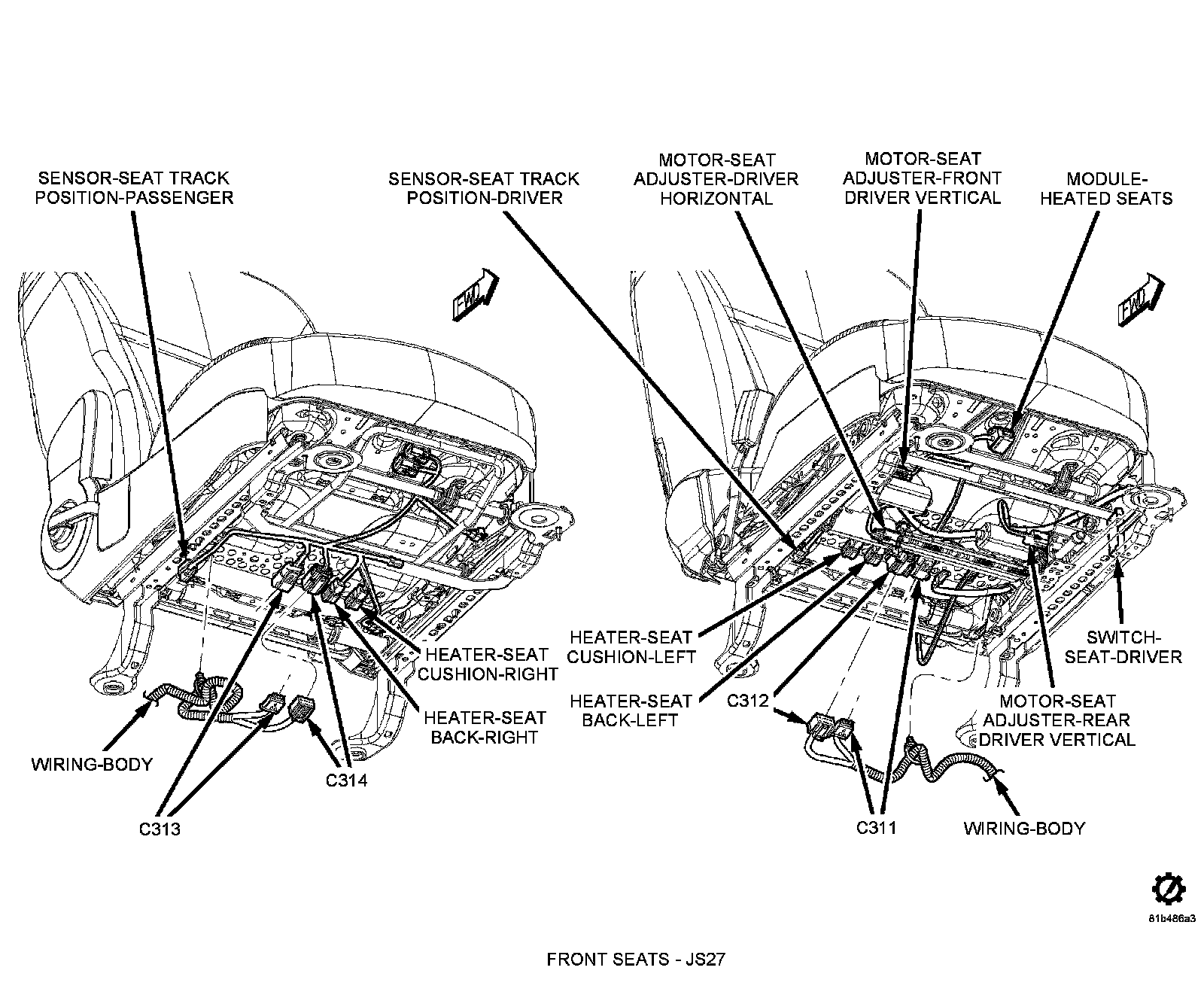

Component Location - 66
