Component ID: 205
Component : MODULE-ANTI-LOCK BRAKES

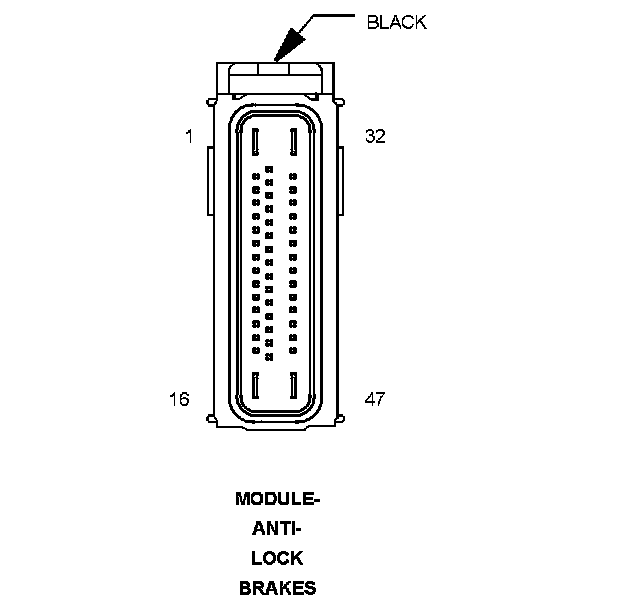

Connector:
Name : MODULE-ANTI-LOCK BRAKES
Color : BLACK
# of pins : 47

Pin Circuit Description
1 A921 12RD FUSED B(+) (PUMP)
2 - -
3 - -
4 - -
5 - -
6 - -
7 - -
8 F202 18PK/WT IGNITION SWITCH OUTPUT (RUN-START)
9 - -
10 D24 20WT/DG FLASH ABS
11 - -
12 D65 20WT/LG CAN C BUS (+)
13 D64 20WT/LB CAN C BUS (-)
14 - -
15 - -
16 Z905 14BK GROUND
17 - -
18 D465 20WT/DB DYNAMICS SENSOR HIGH DATA LINK
19 D464 20WT/YL DYNAMICS SENSOR LOW DATA LINK
20 - -
21 - -
22 G4 20VT/LB DYNAMICS SENSOR SUPPLY
23 - -
24 - -
25 - -
26 - -
27 - -
28 - -
29 G94 20VT/DB DYNAMICS SENSOR GROUND
30 - -
31 - -
32 A922 14RD FUSED B(+) (VALVE)
33 B6 20WT/DB RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
34 B7 20WT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
35 - -
36 B4 20LG LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
37 B3 20LG/DB LEFT REAR WHEEL SPEED SENSOR SIGNAL
38 - -
39 - -
40 - -
41 - -
42 B1 20YL/DB RIGHT REAR WHEEL SPEED SENSOR SIGNAL
43 B2 20YL RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
44 - -
45 B9 20RD LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY
46 B8 20RD/DB LEFT FRONT WHEEL SPEED SENSOR SIGNAL
47 Z905 12BK GROUND

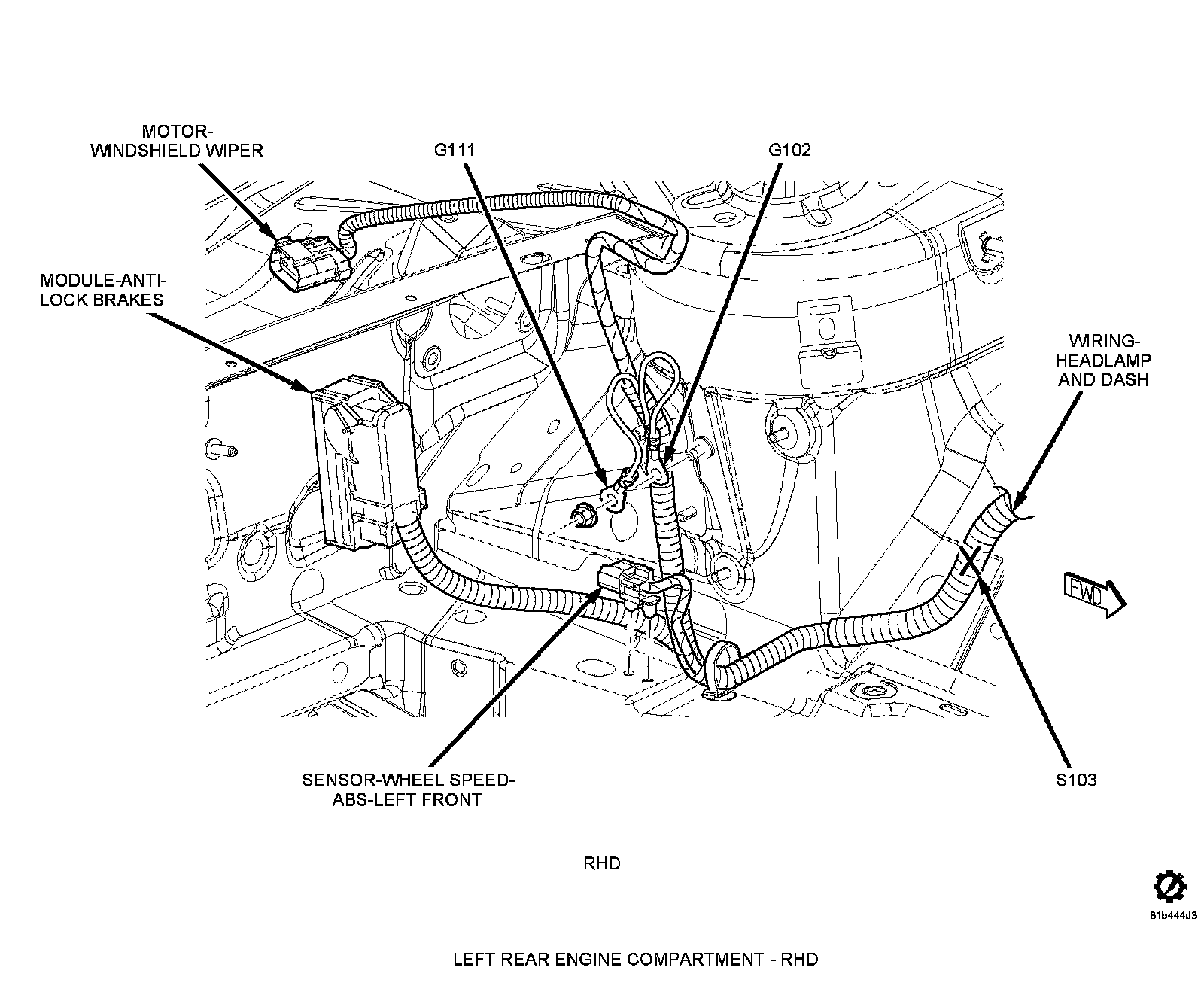

Component Location - 8

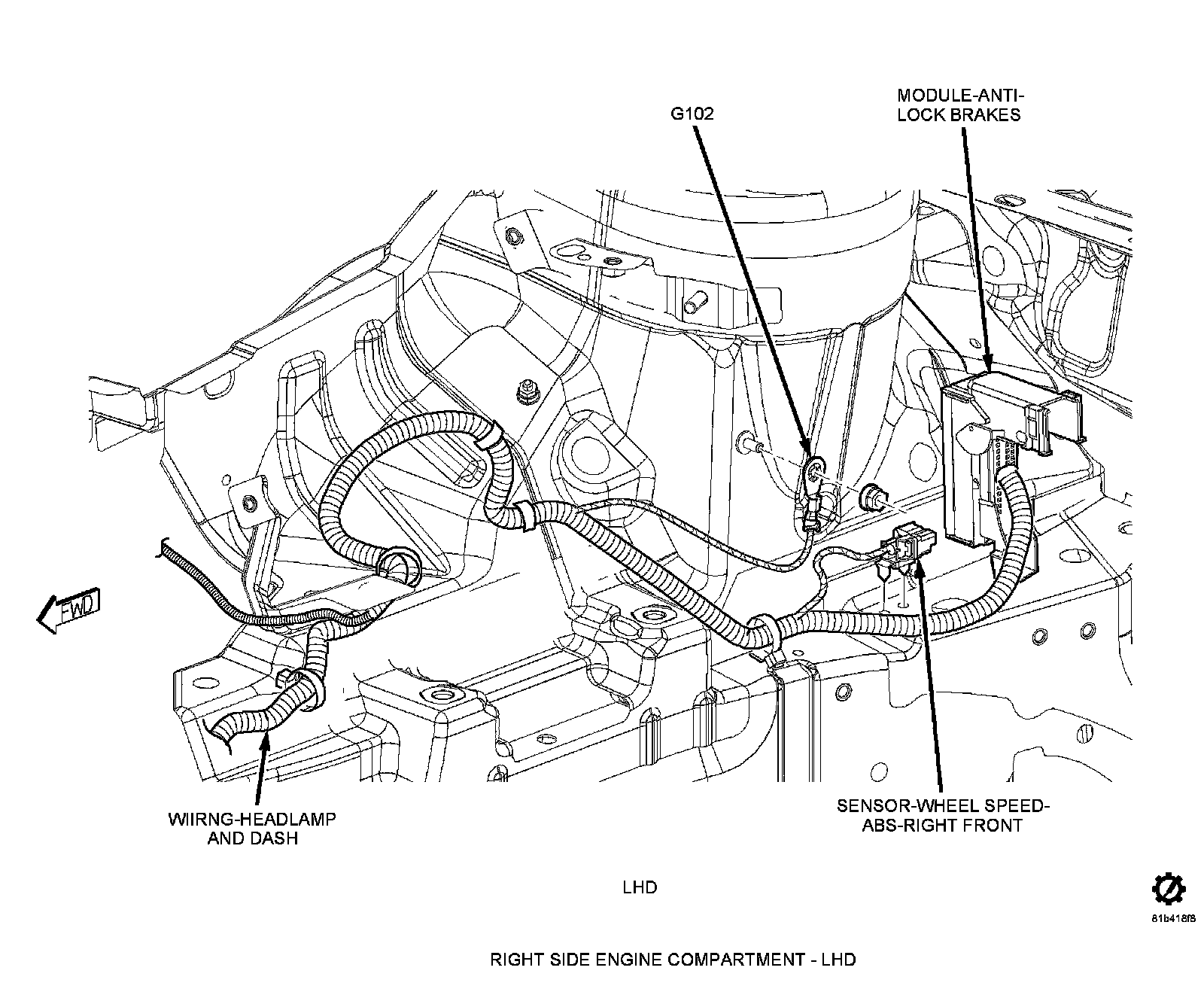

Component Location - 20
