Module-Door-Driver

Component ID: 209
Component : MODULE-DOOR-DRIVER

Connector:

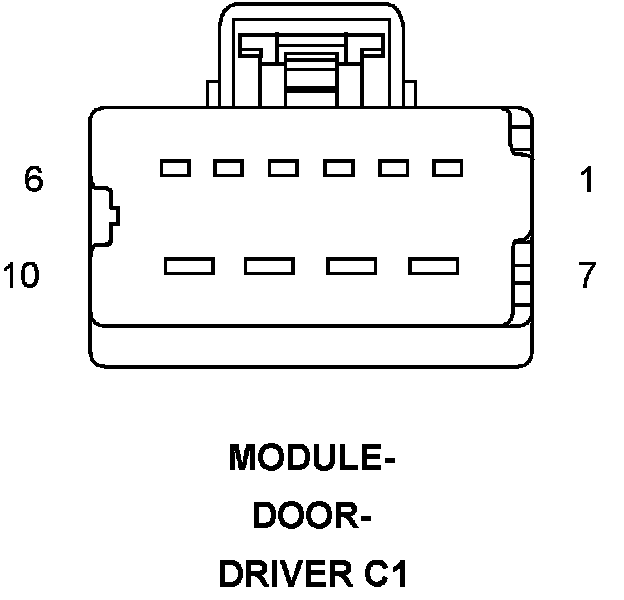

Name : MODULE-DOOR-DRIVER C1
Color :
# of pins : 10




Pin Circuit Description
1 Q301 20OR/WT DRIVER WINDOW HALL SENSOR A SIGNAL
2 Q991 20BK/OR DRIVER WINDOW HALL SENSOR RETURN
3 Q303 20WT/OR DRIVER WINDOW HALL SENSOR B SIGNAL
4 A937 14RD FUSED B(+)
5 Q24 20OR/DG MASTER SWITCH RIGHT REAR WINDOW MUX
6 Q23 20OR/LB MASTER SWITCH LEFT REAR WINDOW MUX
7 A937 14RD FUSED B(+)
8 Z908 14BK GROUND
9 Q321 14OR/DB DRIVER WINDOW EXPRESS DOWN DRIVER
10 Q311 14OR/LB DRIVER WINDOW EXPRESS UP DRIVER

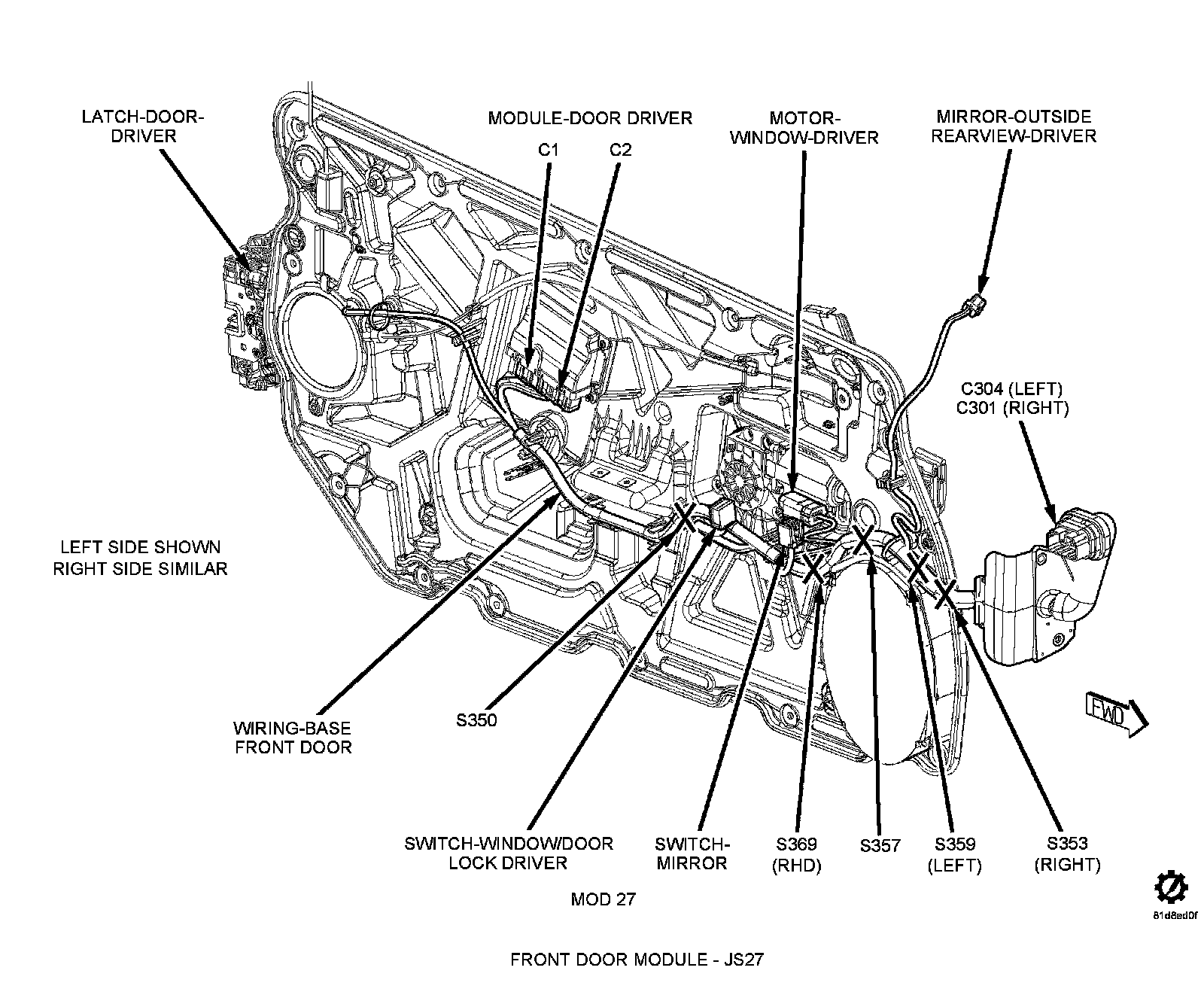

Component Location - 70






Connector:

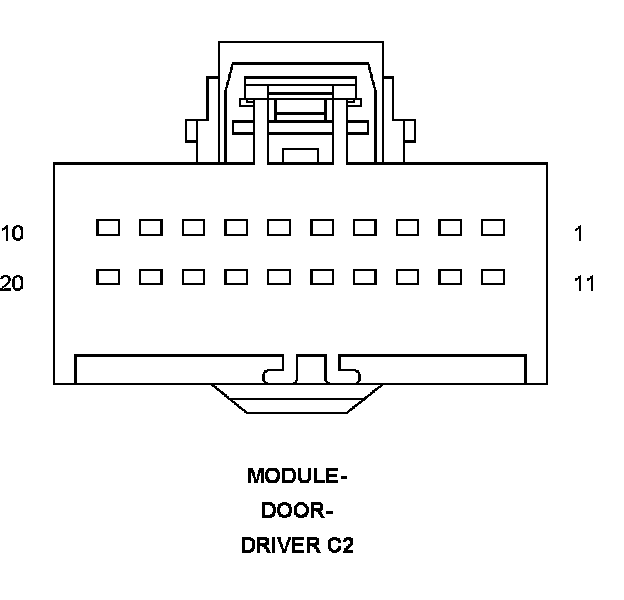

Name : MODULE-DOOR-DRIVER C2
Color :
# of pins : 20




Pin Circuit Description
1 D54 20WT CAN B BUS (-)
2 D55 20WT/OR CAN B BUS (+)
3 Q15 20OR/PK WINDOW LOCK OUT SWITCH OUTPUT
4 Q994 20BK/BR DRIVER EXPRESS WINDOW SWITCH RETURN
5 G755 20VT/BR LEFT DOOR SECONDARY AJAR SWITCH SENSE
5 G745 20VT/WT RIGHT DOOR SECONDARY AJAR SWITCH SENSE
6 Q59 20OR/YL DRIVER WINDOW DROP SWITCH SENSE
7 - -
8 - -
9 - -
10 - -
11 Q305 20OR DRIVER WINDOW HALL SENSOR SUPPLY
12 Z908 20BK GROUND
13 Q221 20GY/OR MASTER SWITCH LEFT FRONT WINDOW MUX
14 Q222 20OR/GY MASTER SWITCH RIGHT FRONT WINDOW MUX
15 - -
16 G75 20VT LEFT FRONT DOOR AJAR SWITCH SENSE
16 G74 20VT/WT RIGHT FRONT DOOR AJAR SWITCH SENSE
17 - -
18 - -
19 - -
20 - -

Component Location - 70
