2008 Chrysler Sebring Convertible V6-2.7LFACTORY OEM SERVICE PROCEDURE
Installation
LEFT HAND DRIVE
NOTE: Make sure the remote start antenna is positioned the same way noted during the removal procedure.

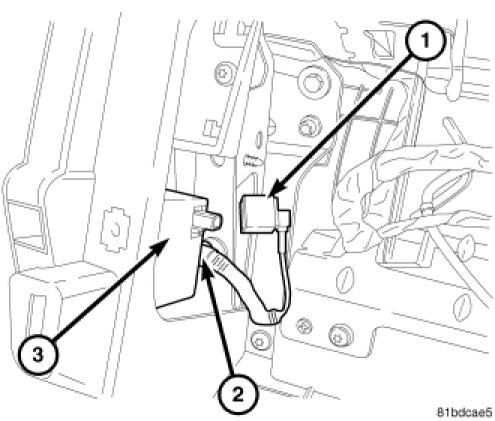

1. Install the remote start antenna (2) and screws (1) to instrument panel assembly. Tighten to 2.5 Nm (22 in. lbs.).
2. Route the remote start coaxial cable in the position noted during the removal procedure.
3. Install the coaxial cable mounting clip at the steering column reinforcement bracket.
4. Install the mounting clip (2).
5. Connect remote start antenna coaxial cable connector (1) to skreem module (3).
6. Install instrument cluster.Instrument Cluster - Installation
7. Install radio. Installation

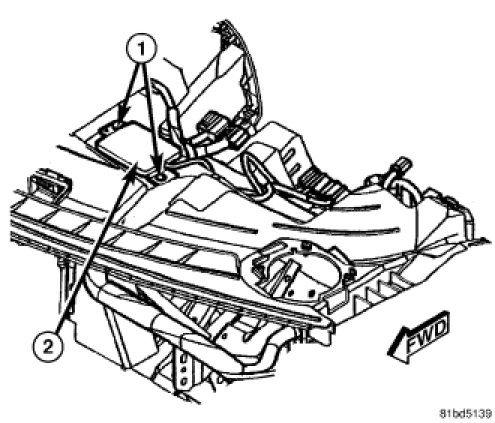

8. Install the instrument panel top pad. Instrument Panel Pad - Installation
9. Connect negative battery cable. Tighten to 5 Nm (45 in. lbs.)
