2008 Chrysler Sebring Convertible V6-2.7LFACTORY OEM SERVICE PROCEDURE
Keyless Entry Module: Testing and Inspection
KEYLESS ENTRY MODULE

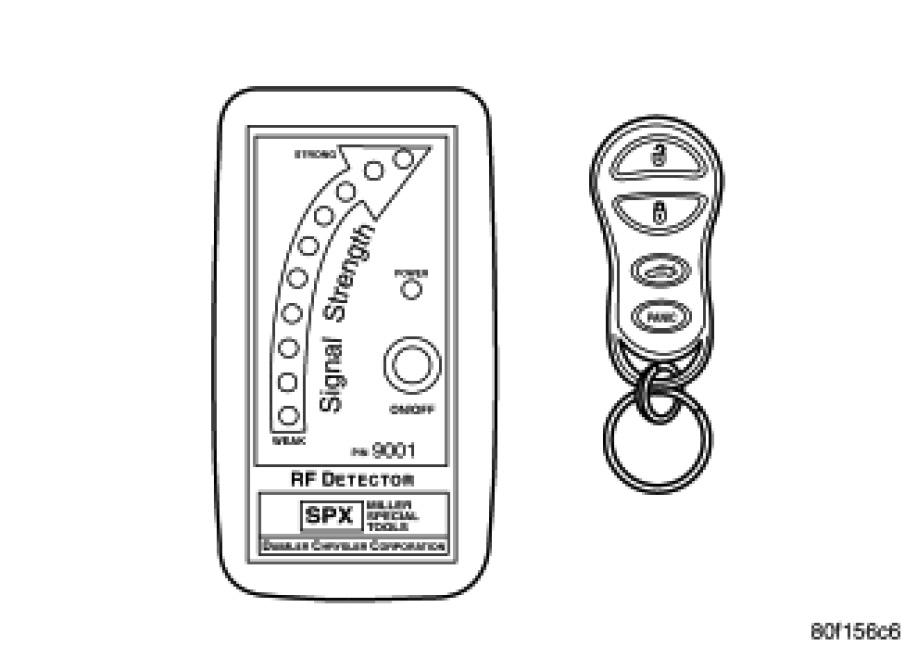

Using special tool 9001, first test to ensure that the transmitter is functioning. Typical testing distance is 2.5 centimeters (1 inch) for Asian transmitters and 30.5 centimeters (12 inches) for all others, press any transmitter button, then test each button individually. The tool will beep if a radio signal strength that lights five or more LED's is detected. Repeat this test three times. If transmitter fails any of the test refer to appropriate testing.
