2008 Chrysler Crossfire 2D Convertible, StandardFACTORY OEM SERVICE PROCEDURE
Throttle Position Sensor

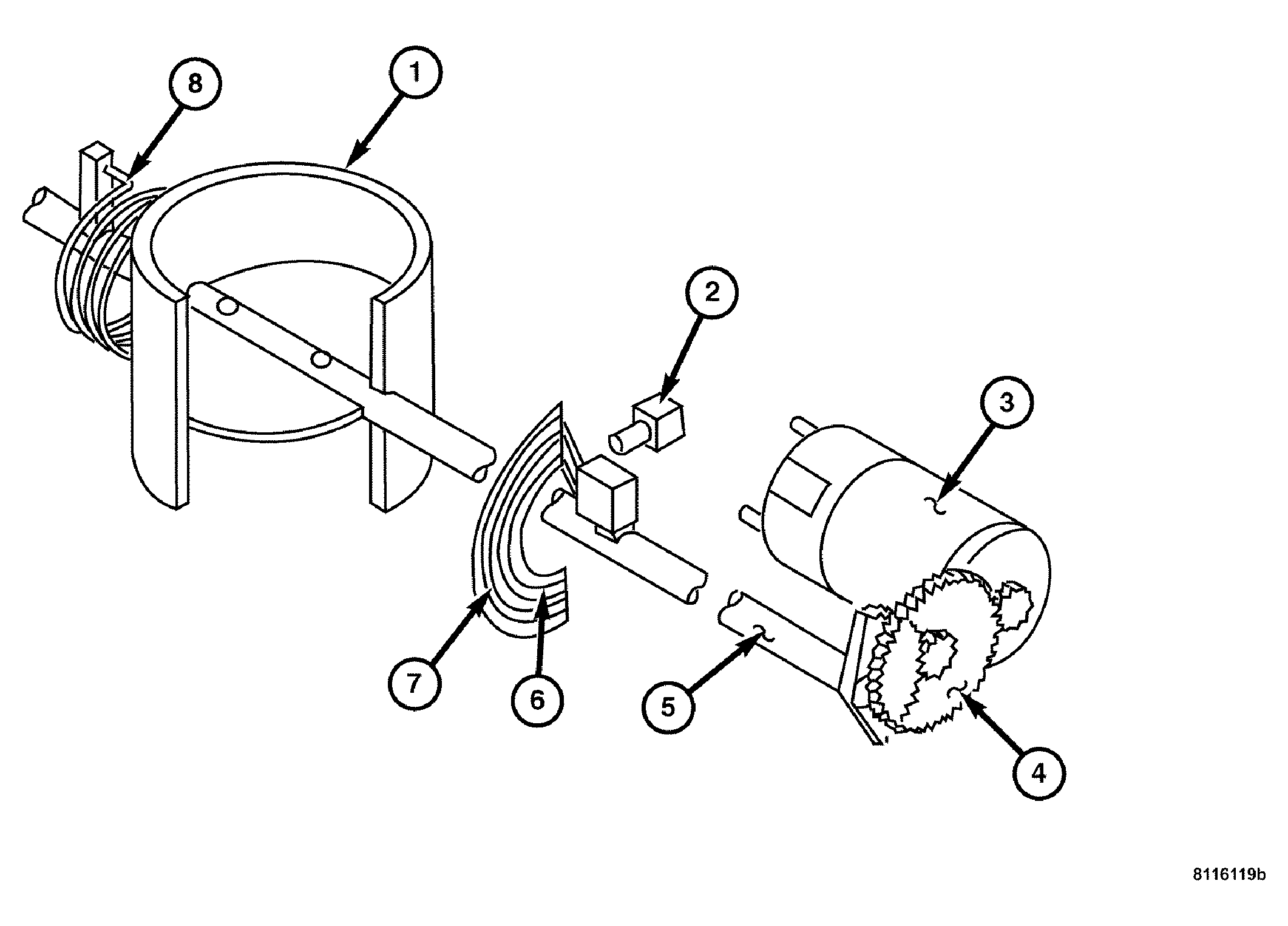

| 1 - THROTTLE VALVE |
| 2 - MECHANICAL STOP SPRING CAPSULE |
| 3 - ELECTRONIC THROTTLE CONTROL |
| 4 - GEAR |
| 5 - THROTTLE VALVE DRIVE SHAFT |
| 6 - THROTTLE VALVE ACTUAL VALUE (POTENTIOMETER 1) |
| 7 - THROTTLE VALVE ACTUAL VALUE (POTENTIOMETER 2) |
| 8 - SPRING |
The Throttle Position Sensor (TPS) is a part of the Throttle Body.
The TPS cannot be serviced separately. Refer to REMOVAL .
