2007 Chrysler 300 BaseFACTORY OEM SERVICE PROCEDURE

Column Service Information: Shaft-Intermediate: Installation

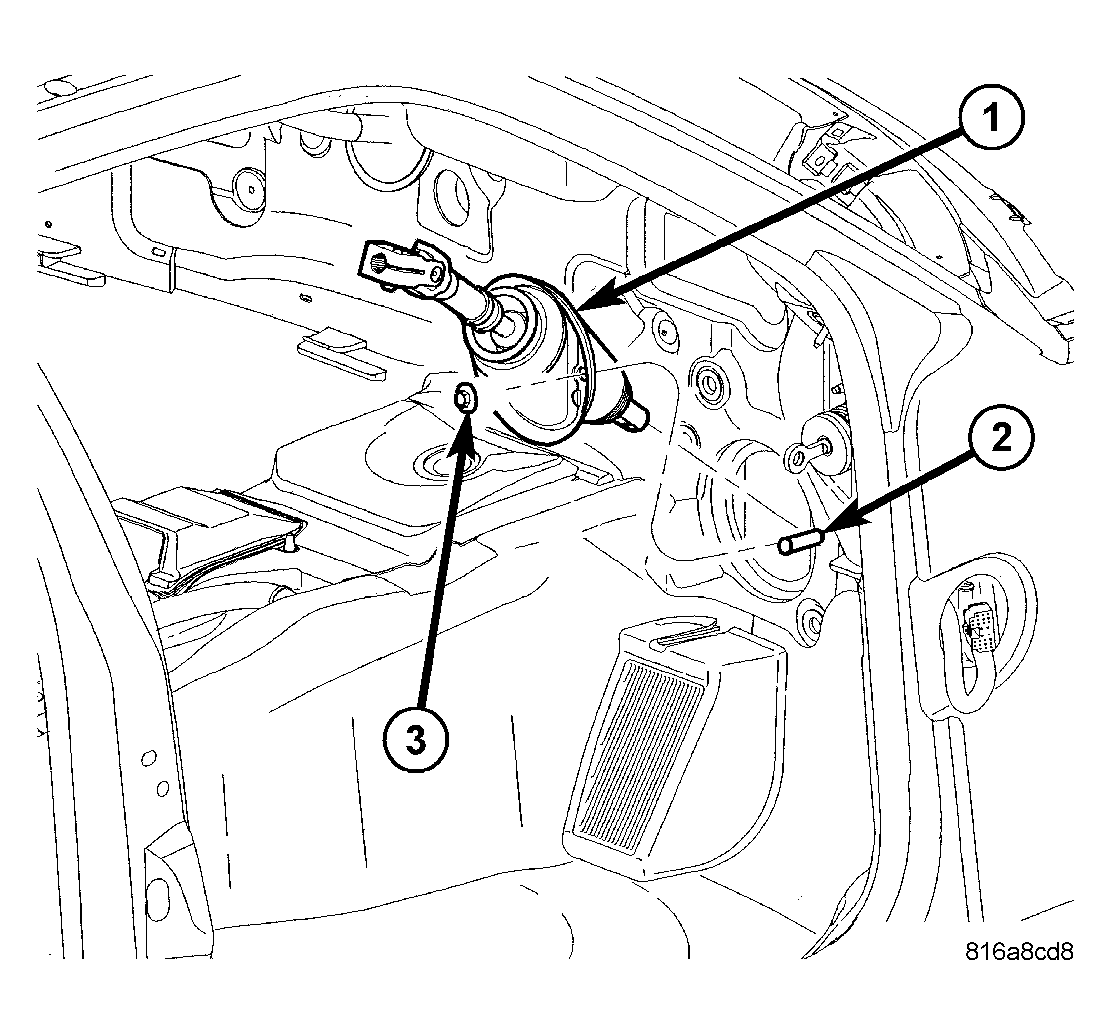

Fig 1: Intermediate Shaft To Dash Attachment
GC0039593Courtesy of CHRYSLER LLC
  1. Guide the gear end of the intermediate shaft (1) through the hole in the dash panel from the passenger compartment side.
  2. Push the seal over the studs on the dash panel.

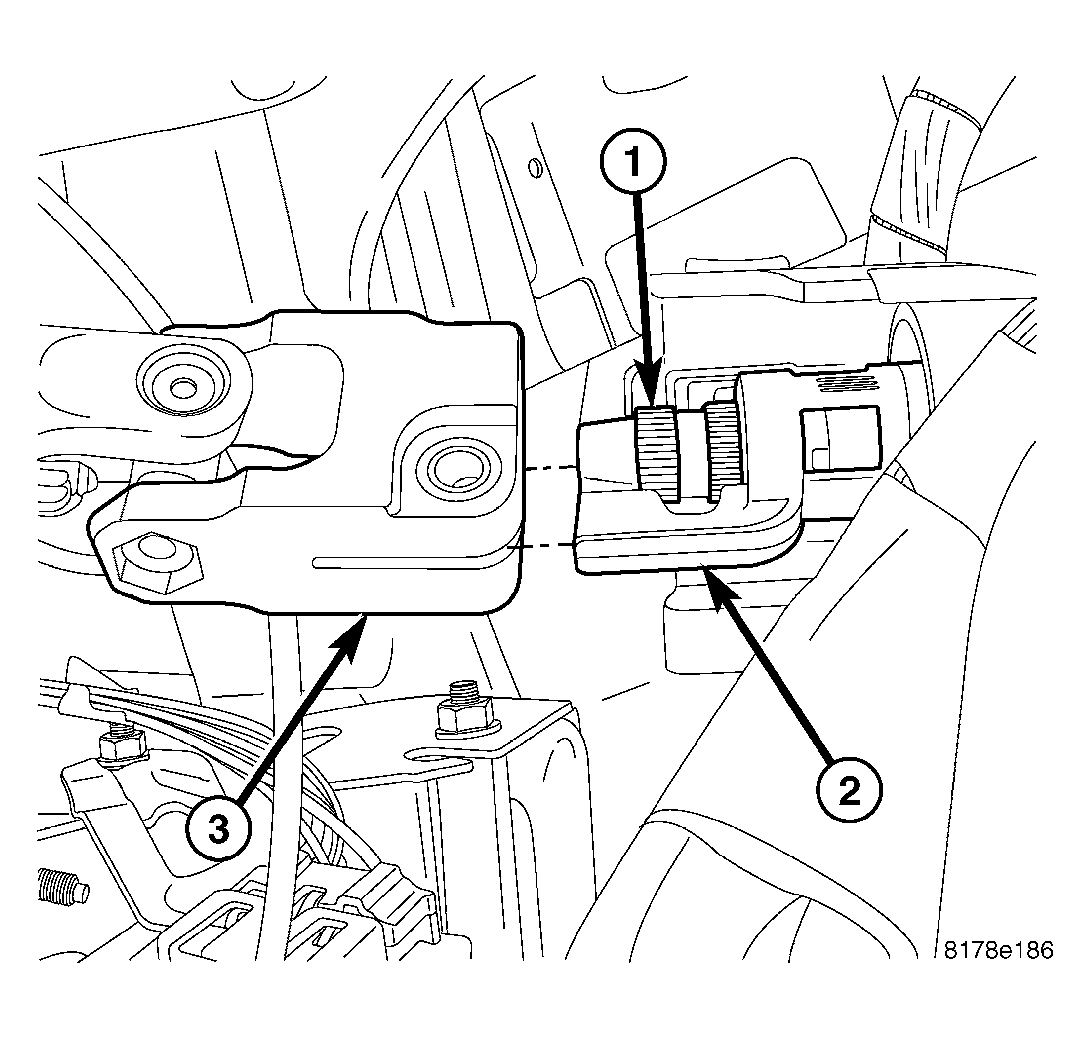

    Fig 2: Plastic Fin On RHD Column Shaft
    GC0039592Courtesy of CHRYSLER LLC
  3. Align the intermediate shaft upper coupling (3) with the steering column shaft plastic alignment fin (2), then carefully slide the intermediate shaft onto the column shaft (1).

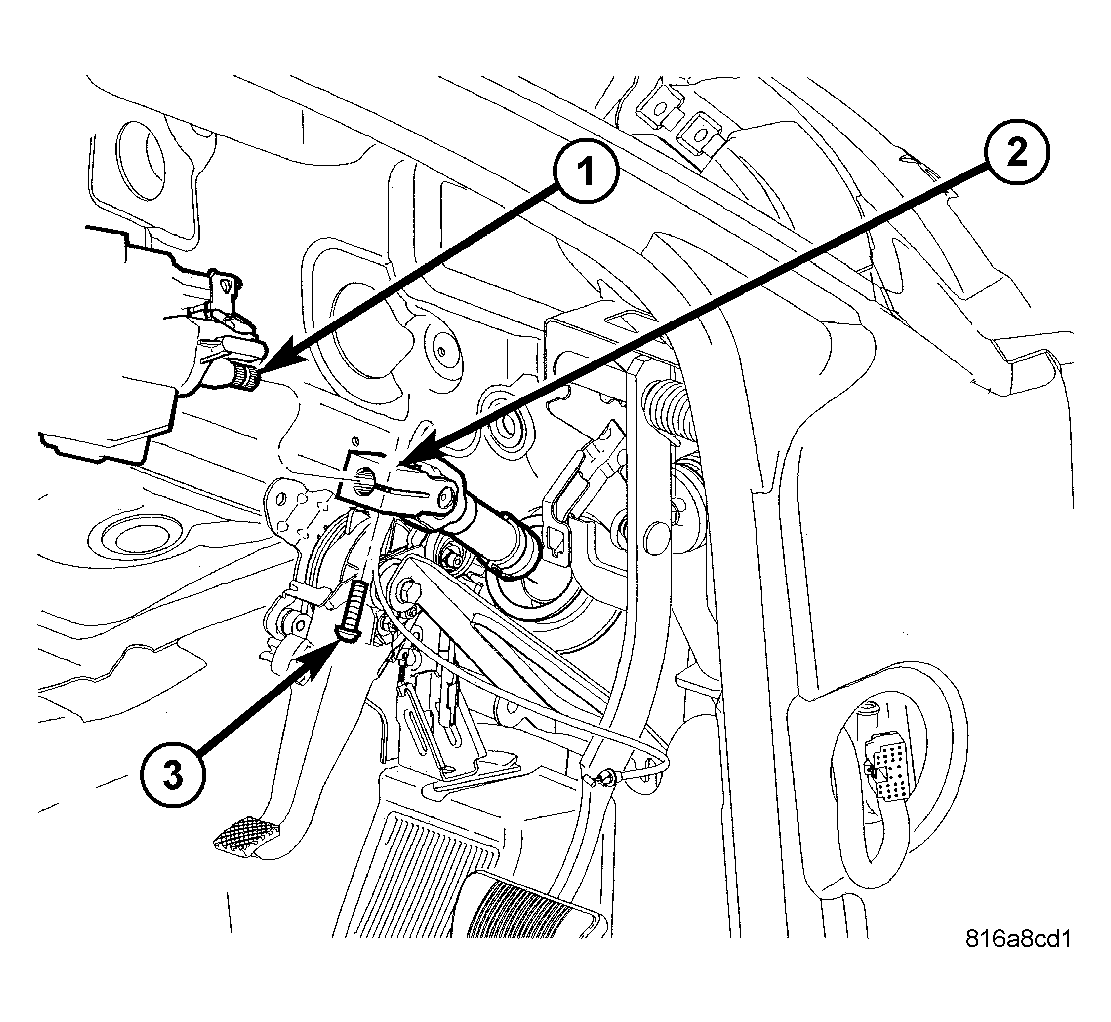

    Fig 3: Column To Intermediate Shaft Attachment
    GC0039590Courtesy of CHRYSLER LLC
  4. Install a NEW  steering intermediate shaft pinch bolt (3). Tighten the pinch bolt to 31 N.m (23 ft. lbs.).
    Fig 4: Intermediate Shaft To Dash Attachment
    GC0039593Courtesy of CHRYSLER LLC
  5. Install the two intermediate shaft dash seal mounting nuts and tighten to 7 N.m (62 in. lbs.).
  6. Raise and support the vehicle. Refer to STANDARD PROCEDURE .

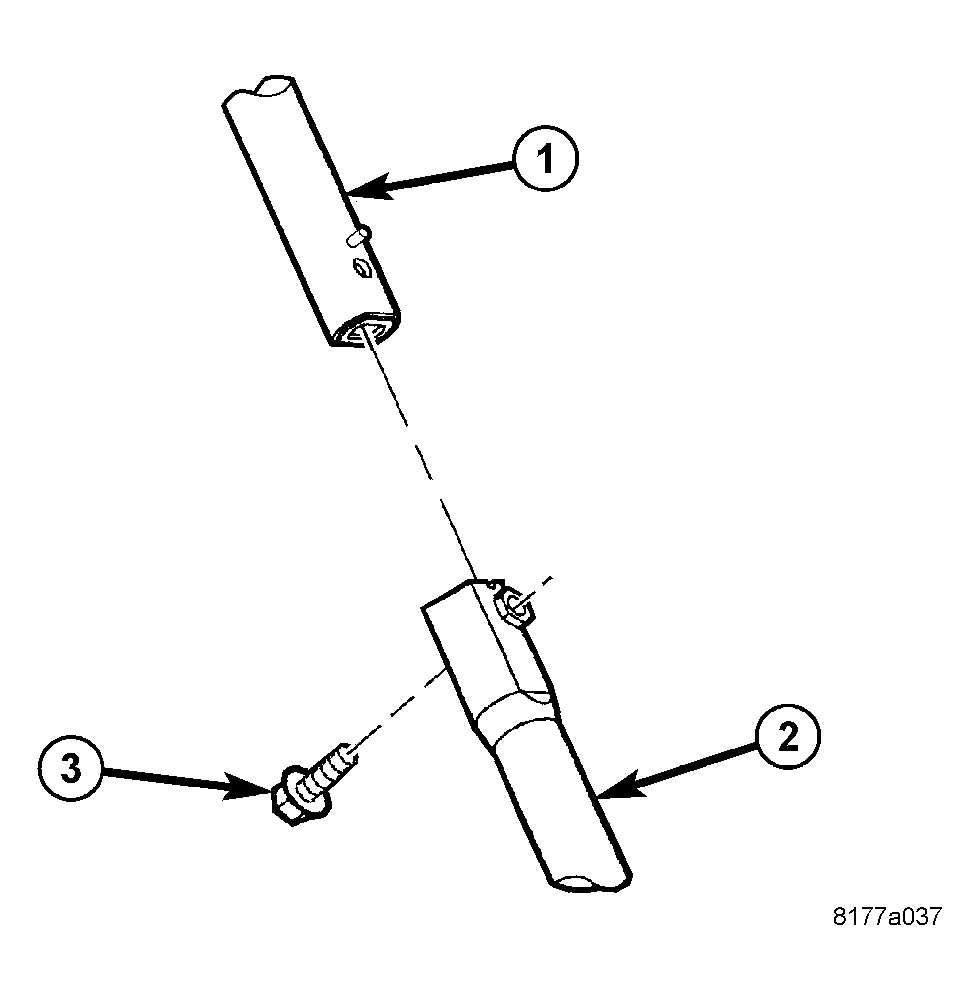

    Fig 5: Coupling Pinch Bolt At Intermediate Shaft
    GC0039594Courtesy of CHRYSLER LLC
  7. Align the pin on the intermediate shaft (1) with the nut in the lower coupling shaft (2) and slide the intermediate shaft into the lower coupling.
  8. Install a NEW  steering coupling pinch bolt (3) at the intermediate shaft. Tighten the pinch bolt to 31 N.m (23 ft. lbs.).
  9. Lower the vehicle.
  10. Remove the steering wheel holder.
  11. Check operation of the steering column for binding or noises.
