2002 Chrysler Neon LE, AutomaticFACTORY OEM SERVICE PROCEDURE

Valve Body: Assembly

NOTE: If valve body assembly is reconditioned, the TCM Quick Learn Procedure must be performed. Refer to DIAGNOSIS - 41TE article.
  1. Install valves and springs as shown in (Figure).
  2. Install regulator valve spring retainer. (Fig 1).

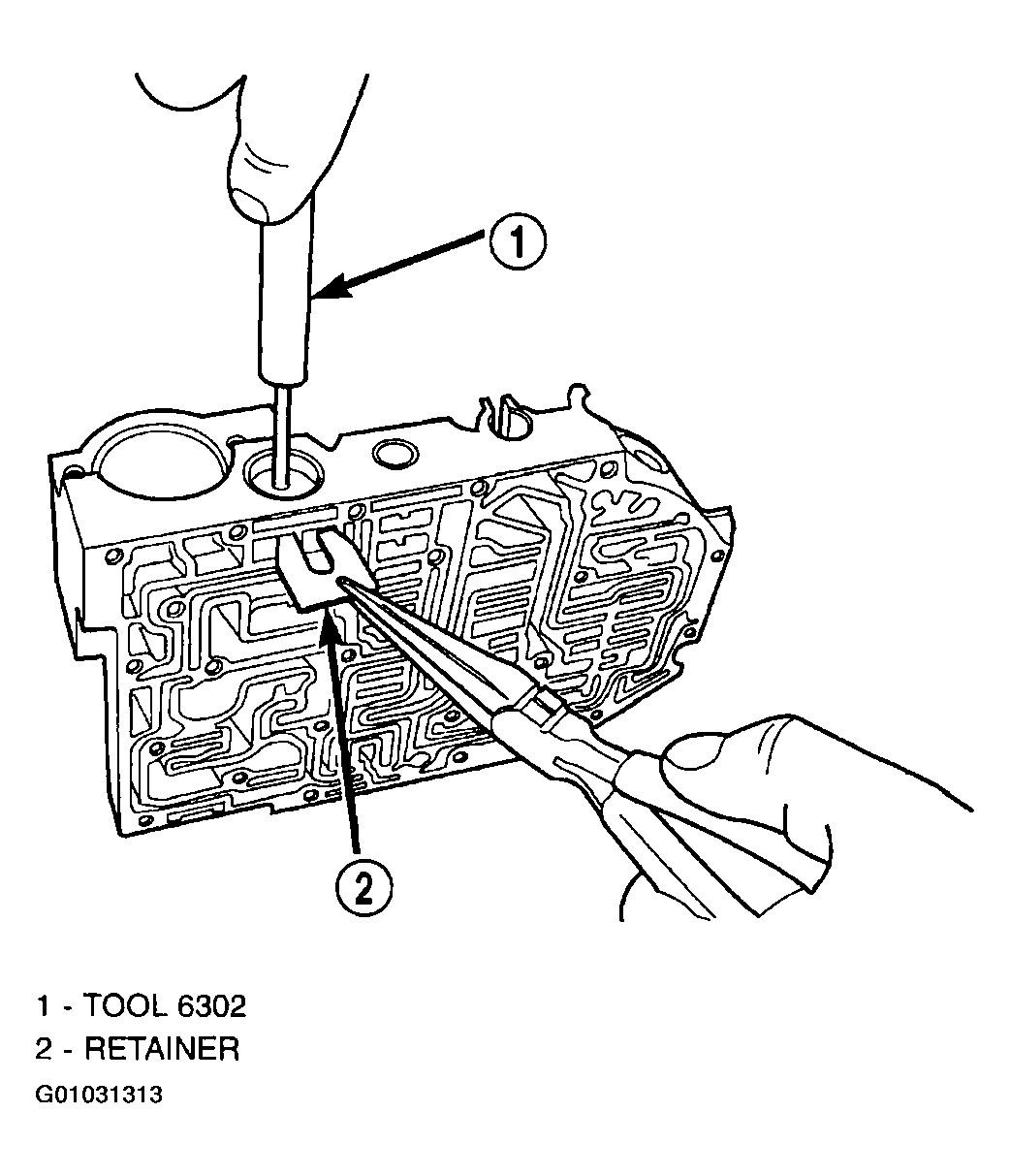

    Fig 1: Installing Regulator Valve Spring Retainer Using Tool 6302
    G01031313Courtesy of DAIMLERCHRYSLER CORP.
  3. Install dual retainer plate using Tool 6301. (Fig 2).

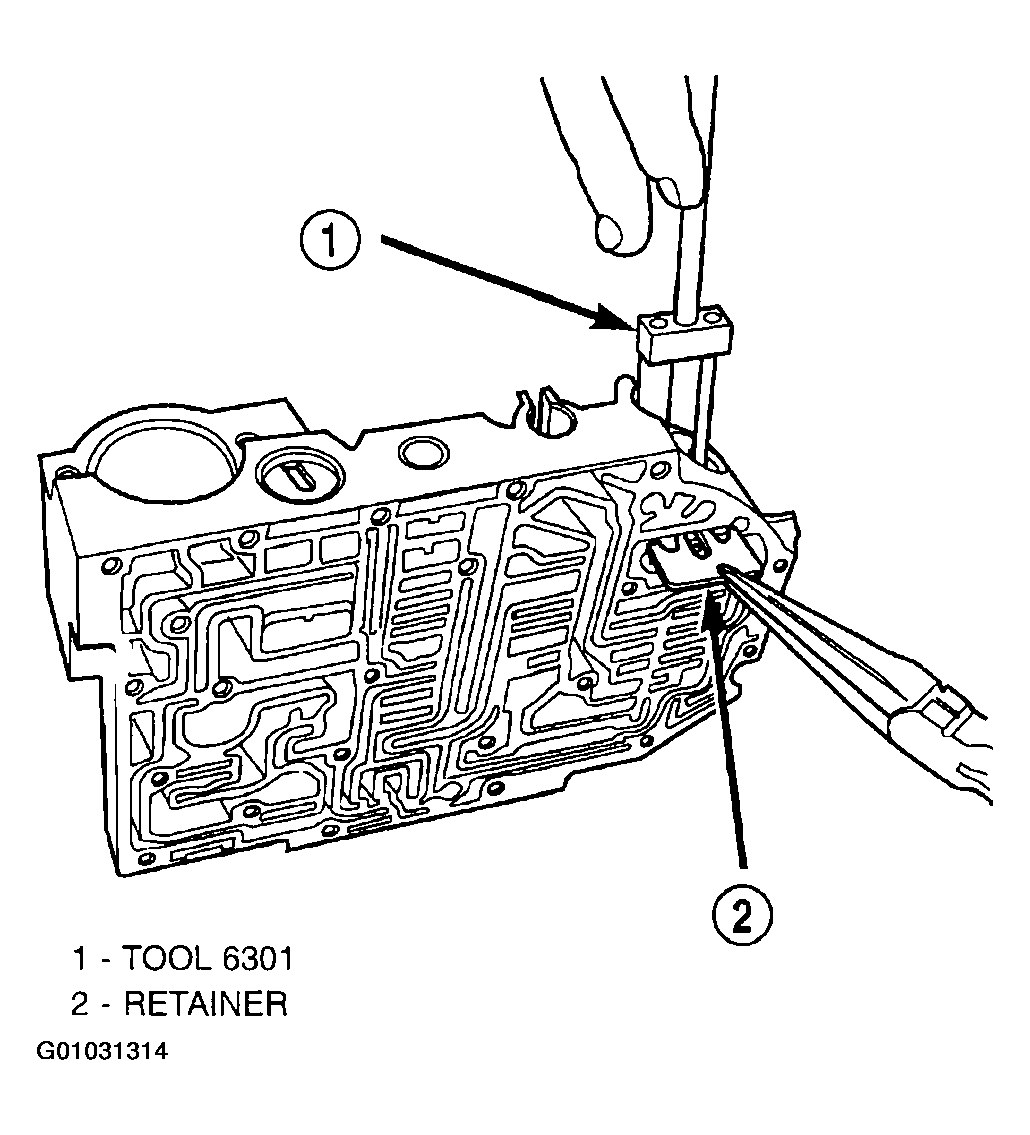

    Fig 2: Installing Dual Retainer Plate Using Tool 6301
    G01031314Courtesy of DAIMLERCHRYSLER CORP.
  4. Verify that all retainers are installed as shown in (Fig 3). Retainers should be flush or below valve body surface.

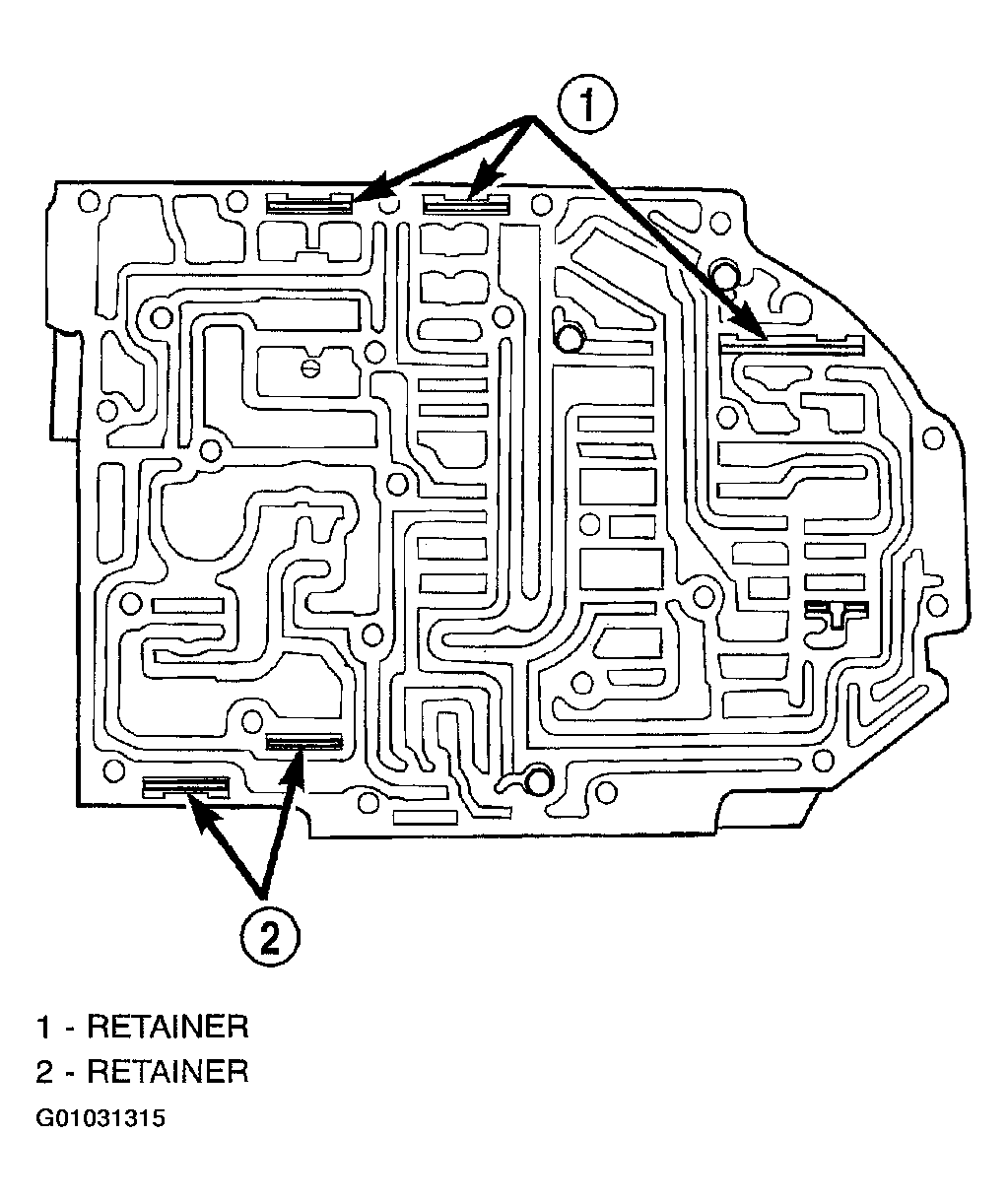

    Fig 3: Identifying Valve Retainer Location
    G01031315Courtesy of DAIMLERCHRYSLER CORP.
  5. Install check balls into position as shown in (Fig 4). If necessary, secure them with petrolatum or transmission assembly gel for assembly ease.

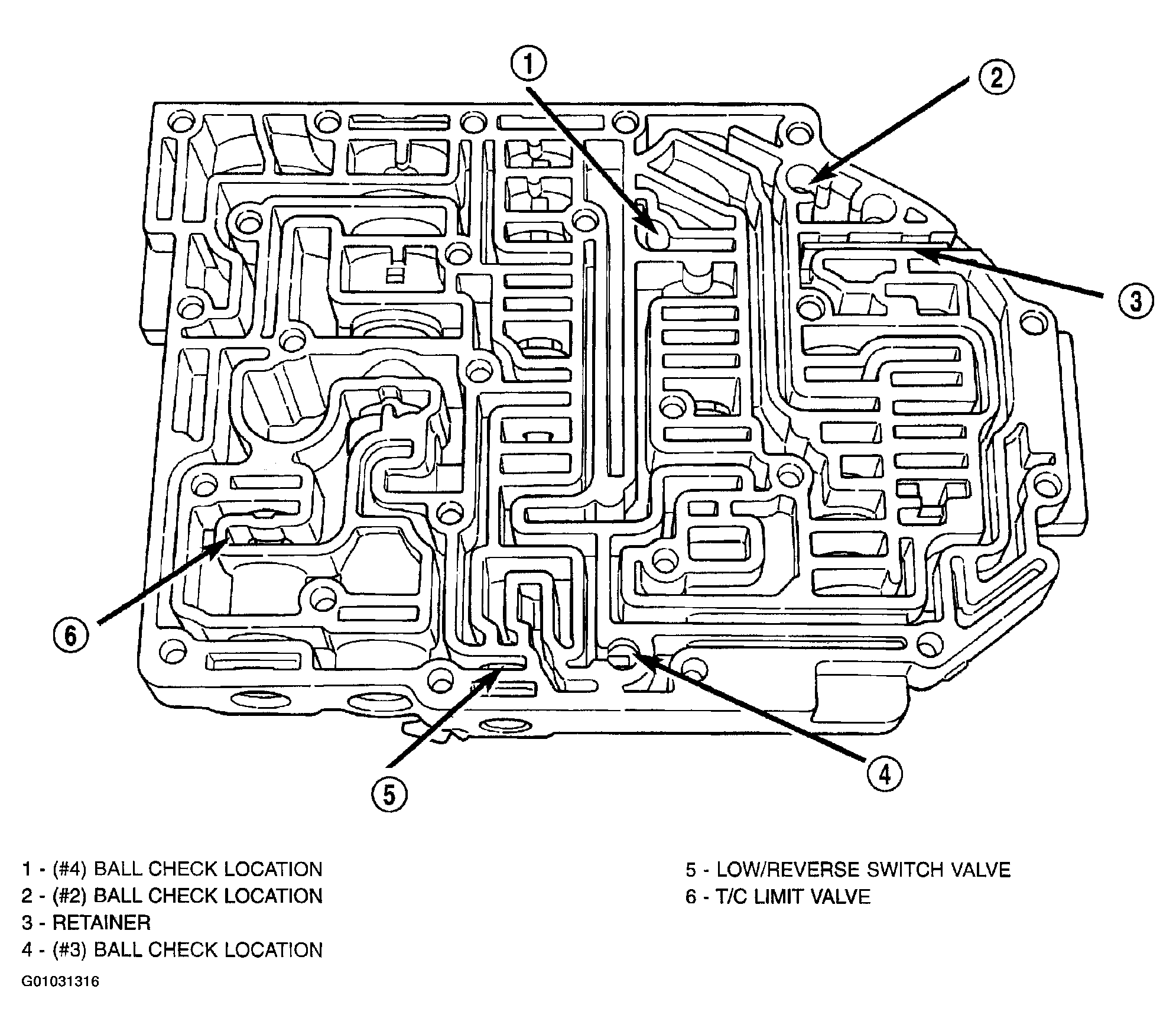

    Fig 4: Identifying Check Ball Locations
    G01031316Courtesy of DAIMLERCHRYSLER CORP.
  6. Install thermal valve into transfer plate. (Fig 5).

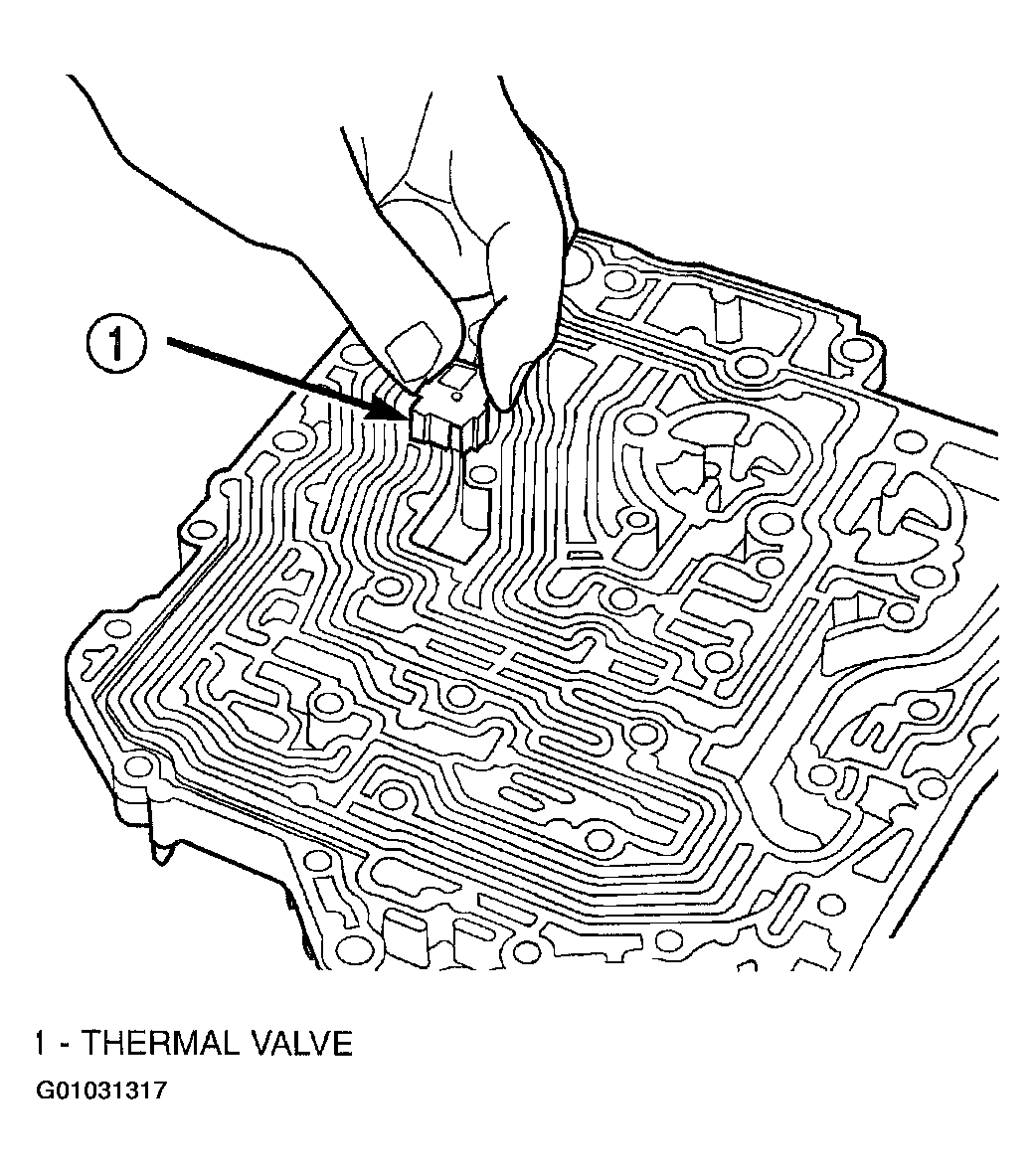

    Fig 5: Installing Thermal Valve
    G01031317Courtesy of DAIMLERCHRYSLER CORP.
  7. Install separator plate to valve body. (Fig 6).

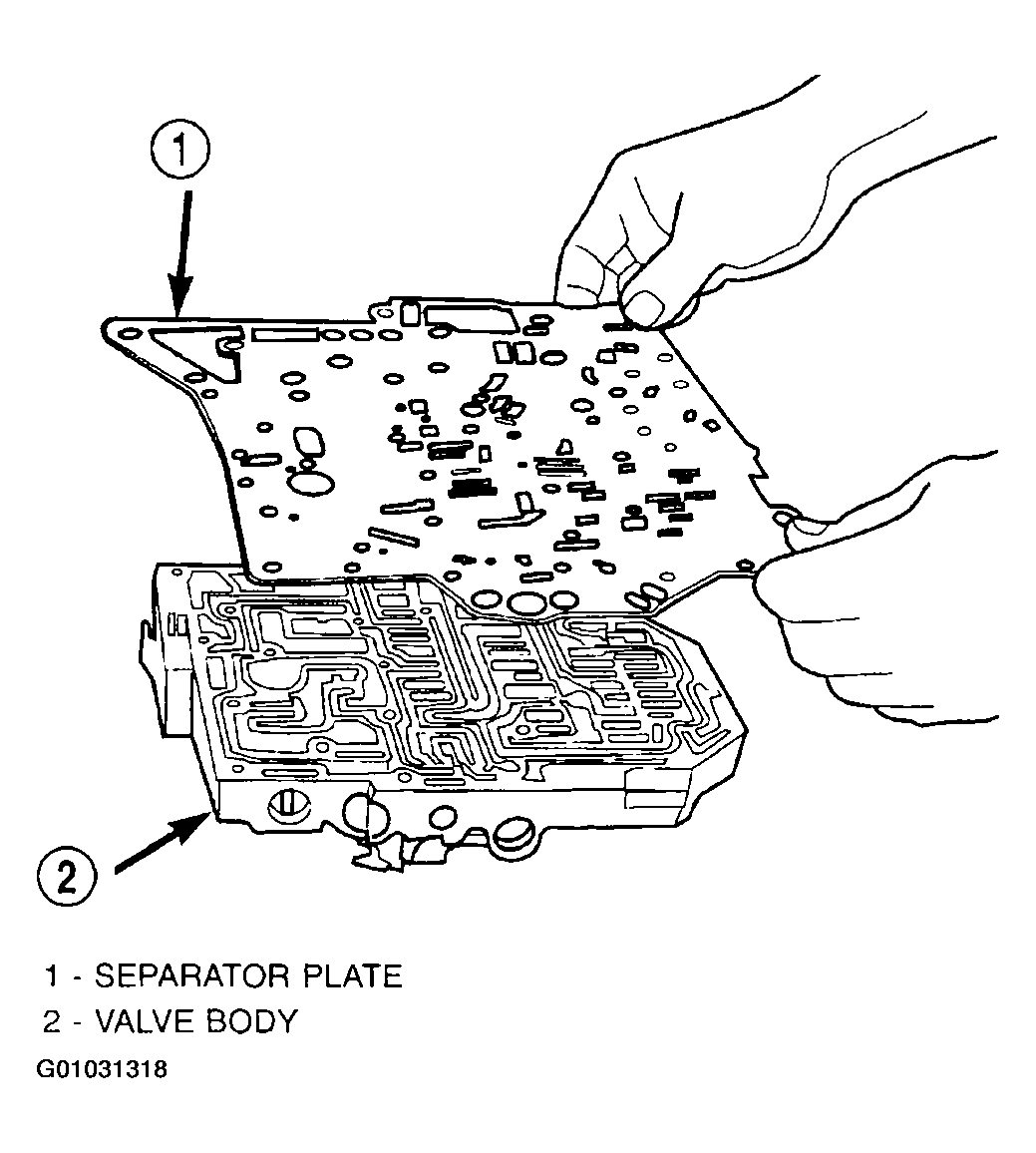

    Fig 6: Installing Separator Plate
    G01031318Courtesy of DAIMLERCHRYSLER CORP.
  8. Install the overdrive clutch (#5) check valve to separator plate. (Fig 7).

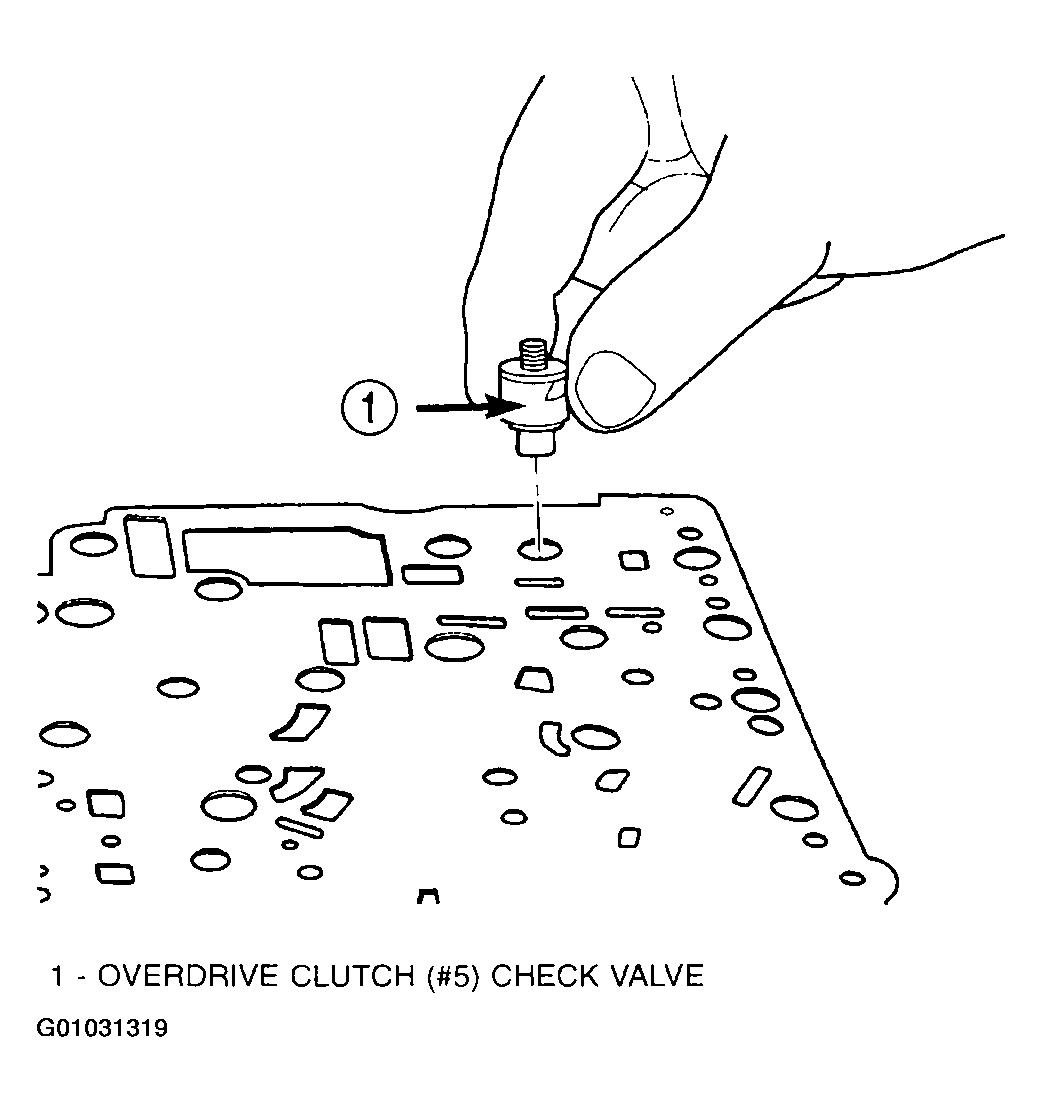

    Fig 7: Installing Overdrive Clutch (#5) Check Valve
    G01031319Courtesy of DAIMLERCHRYSLER CORP.
  9. Install oil screen to separator plate. (Fig 8).

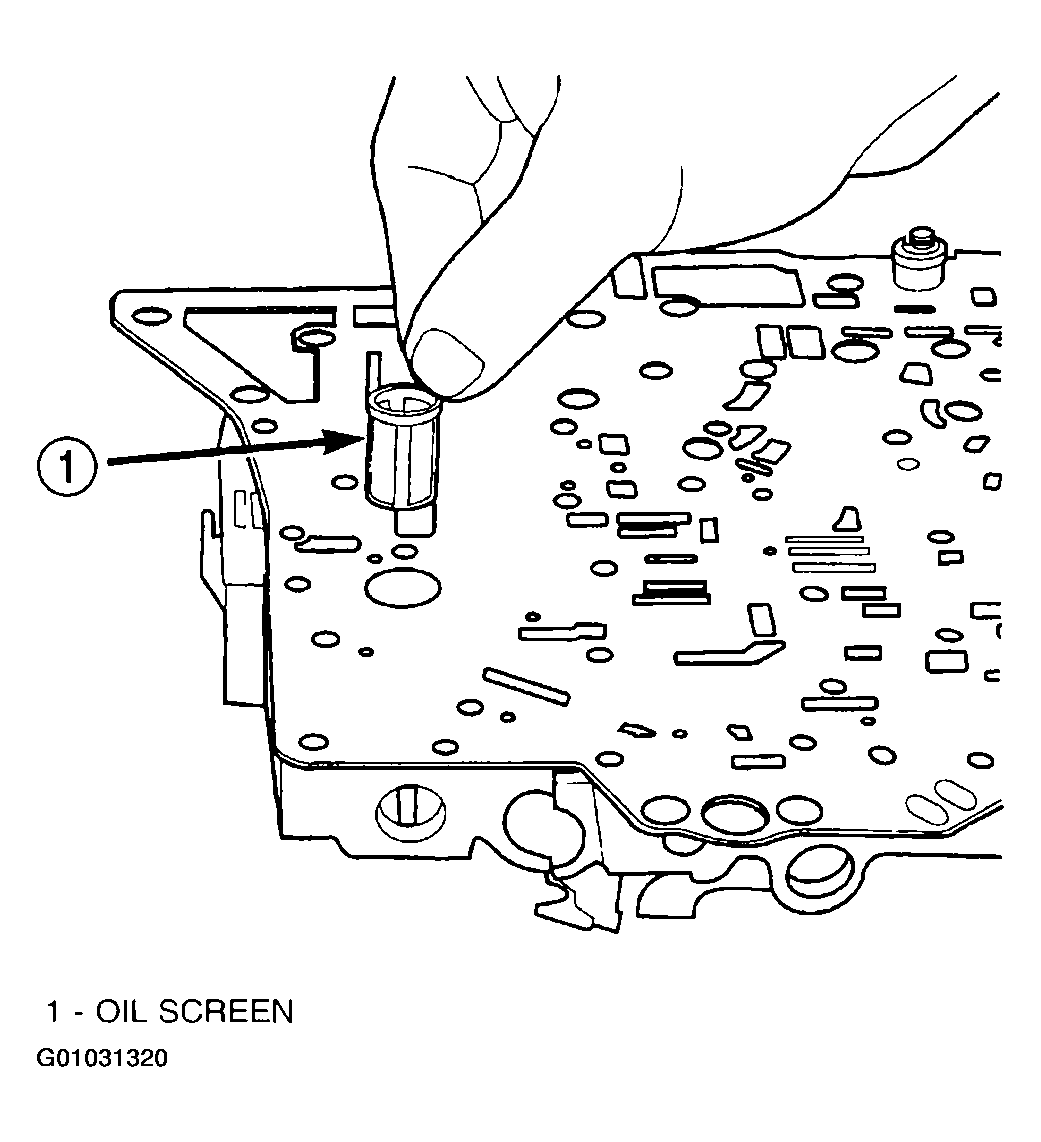

    Fig 8: Installing Oil Screen
    G01031320Courtesy of DAIMLERCHRYSLER CORP.
  10. Install transfer plate to valve body and separator plate. Make sure oil screen and #5 check valve do not bind. (Fig 9).

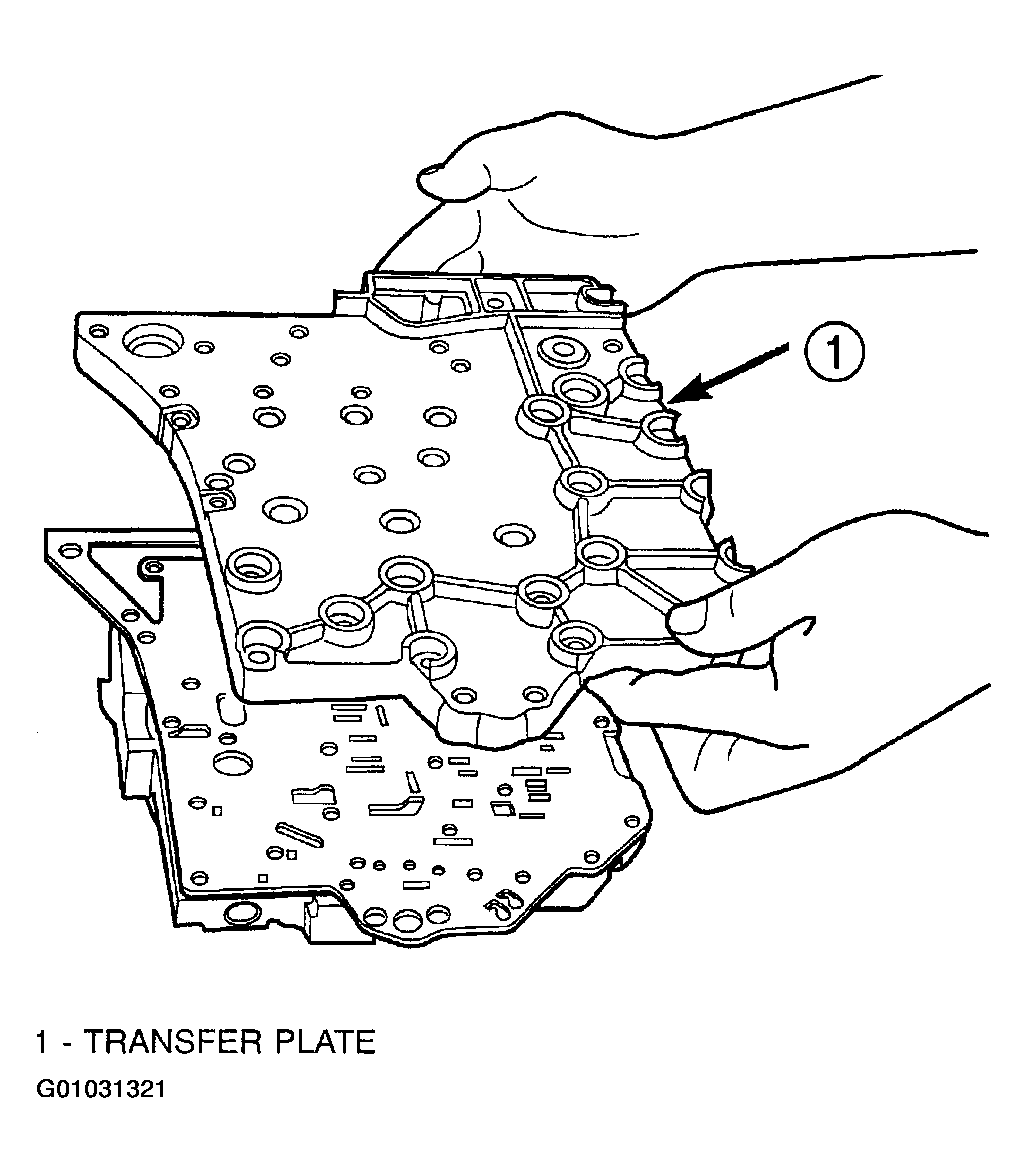

    Fig 9: Installing Transfer Plate
    G01031321Courtesy of DAIMLERCHRYSLER CORP.
  11. Install twenty-four transfer plate to valve body screws and torque to 5 N.m (45 in. lbs.). (Fig 10).

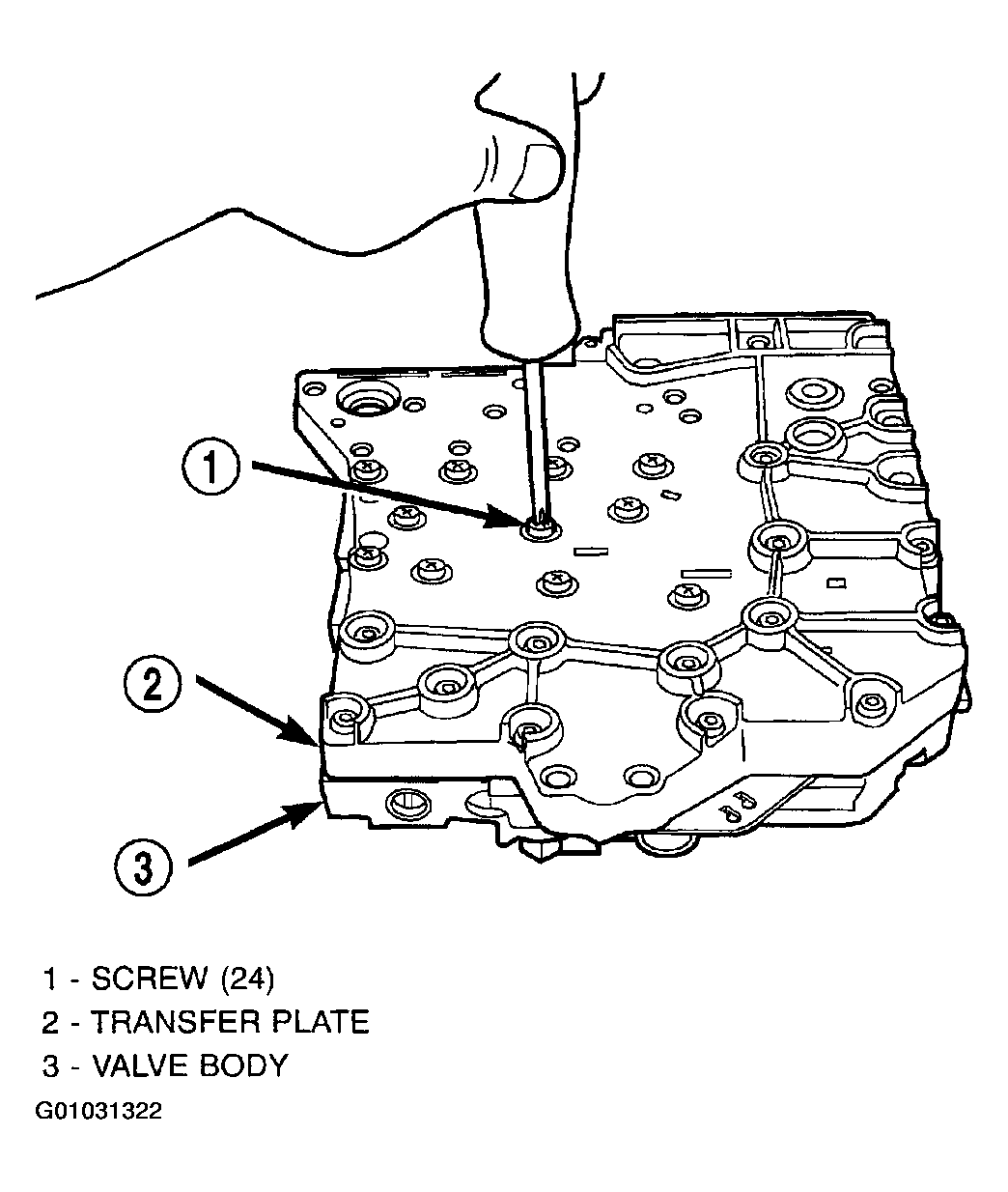

    Fig 10: Installing Valve Body To Transfer Plate Screws
    G01031322Courtesy of DAIMLERCHRYSLER CORP.
  12. Install 2/4 Accumulator components as shown in (Fig 11).

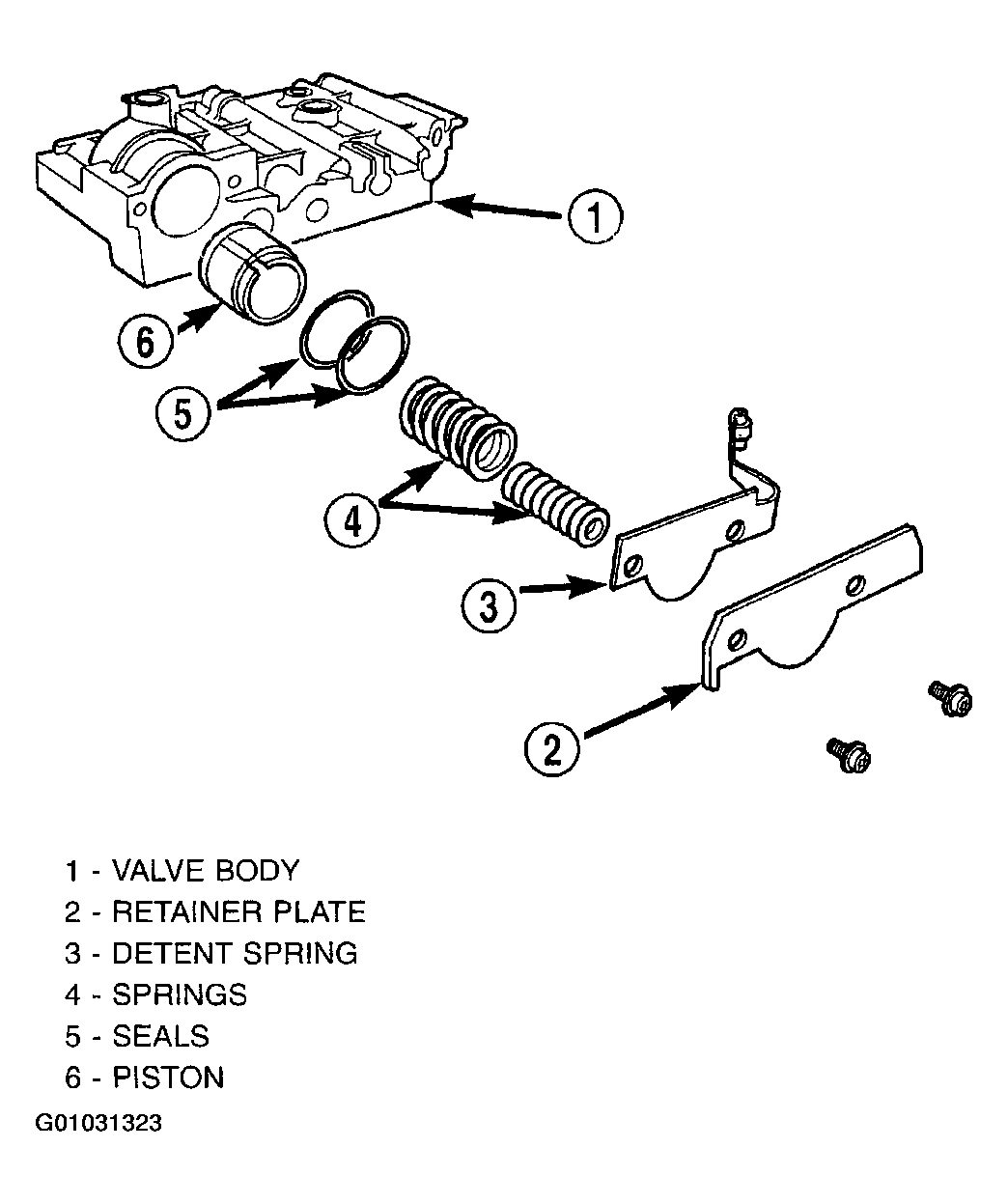

    Fig 11: Installing 2/4 Accumulator Assembly Components
    G01031323Courtesy of DAIMLERCHRYSLER CORP.
  13. Torque 2/4 accumulator retainer to 5 N.m (45 in. lbs.). (Fig 12).

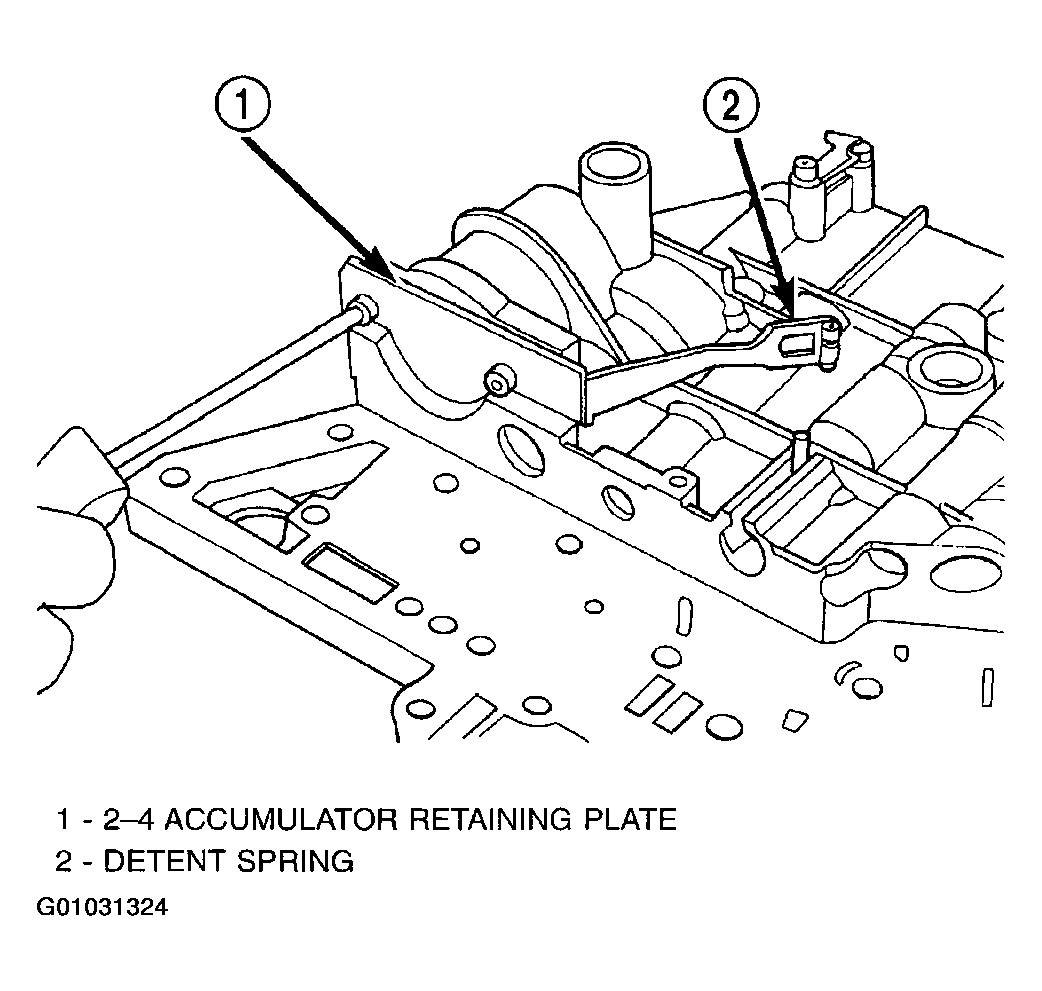

    Fig 12: Installing 2/4 Accumulator Retaining Plate
    G01031324Courtesy of DAIMLERCHRYSLER CORP.
  14. Install manual shaft/rooster comb and transmission range sensor. (Fig 13).

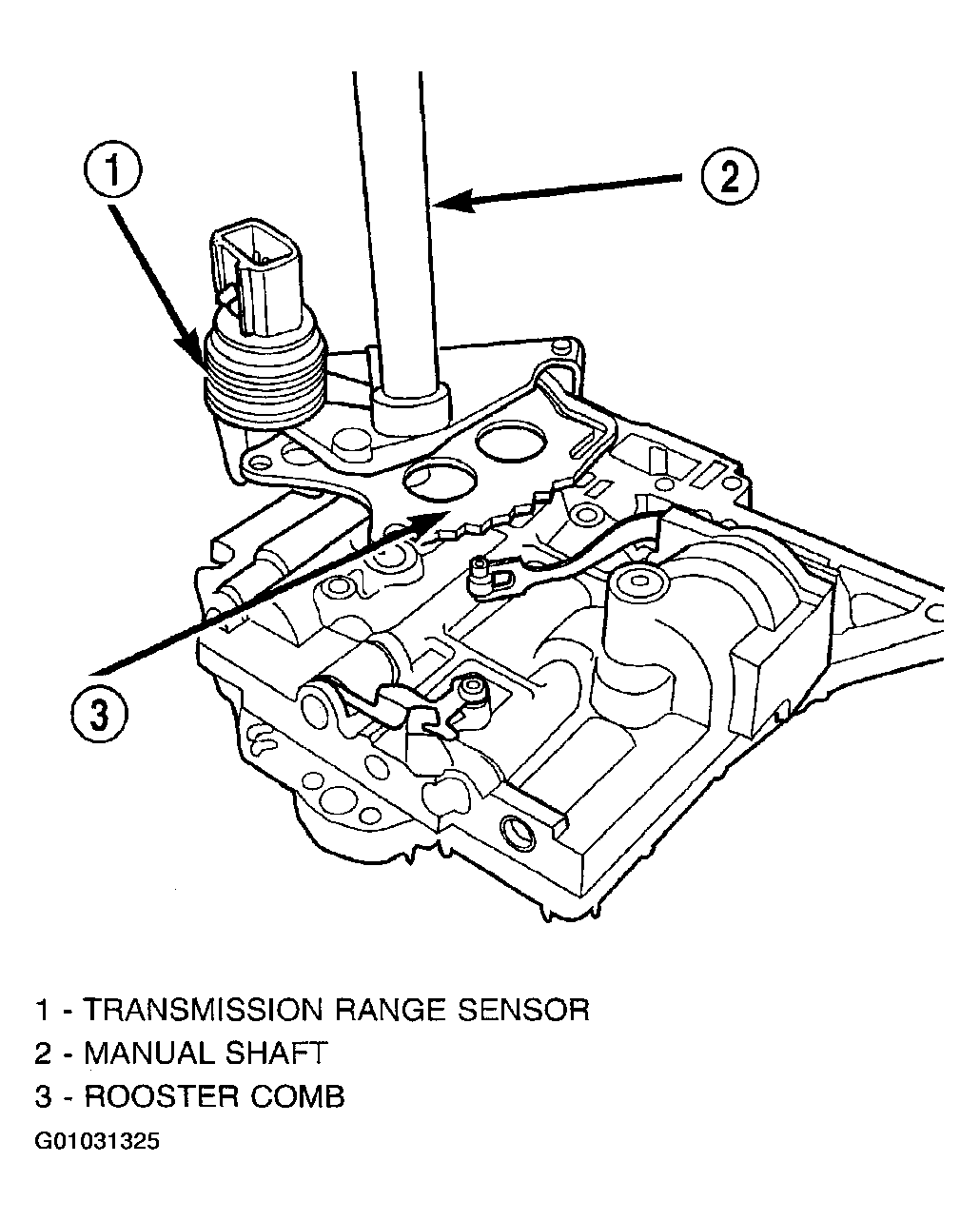

    Fig 13: Installing Manual Shaft/Rooster Comb & Transmission Range Sensor
    G01031325Courtesy of DAIMLERCHRYSLER CORP.
  15. Make sure manual valve control pin is contained within the rooster comb slot. (Fig 14). Install Transmission Range Sensor retaining screw and torque to 5 N.m (45 in. lbs.).

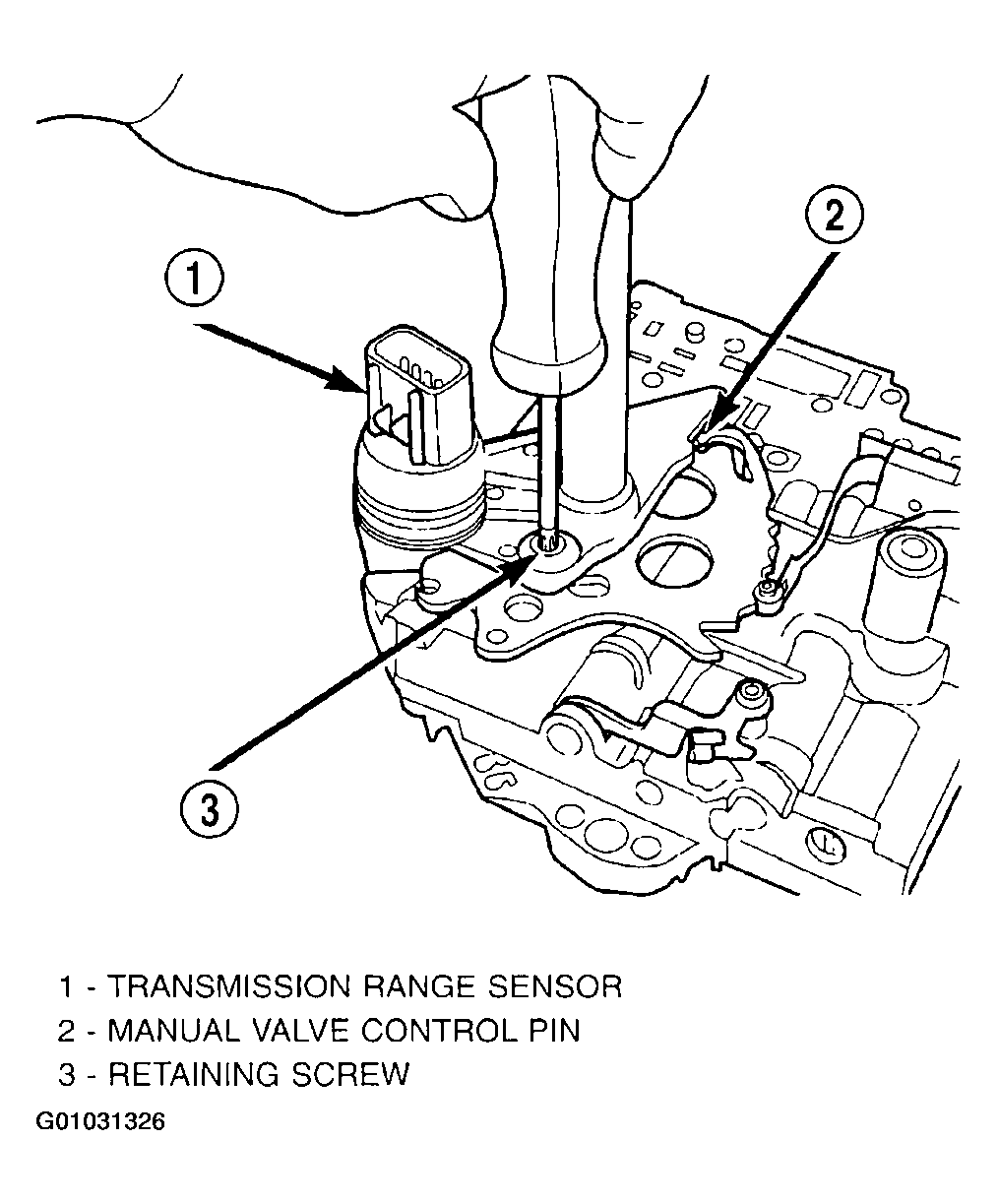

    Fig 14: Installing Transmission Range Sensor Retaining Screw
    G01031326Courtesy of DAIMLERCHRYSLER CORP.
  16. Install manual shaft seal. (Fig 15).

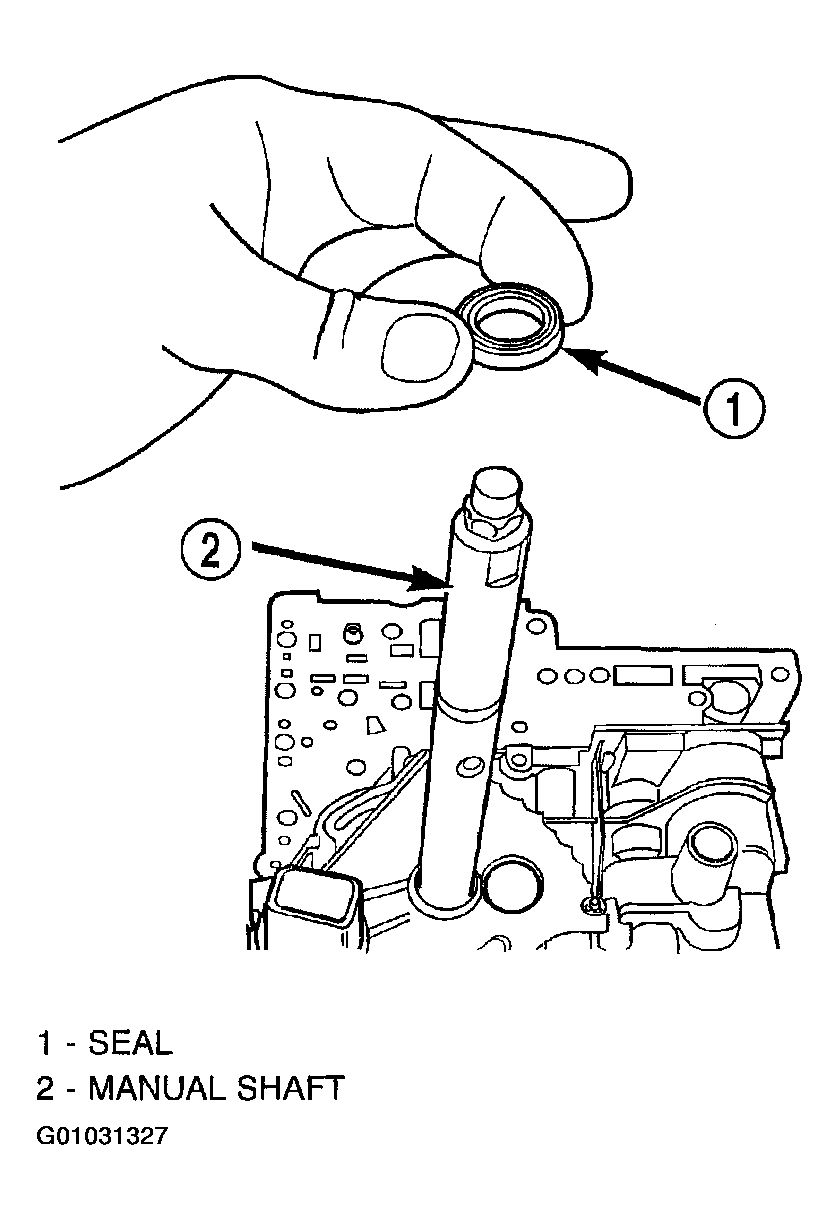

    Fig 15: Installing Manual Shaft Seal
    G01031327Courtesy of DAIMLERCHRYSLER CORP.
