2002 Chrysler Neon LE, AutomaticFACTORY OEM SERVICE PROCEDURE

Transmission Range Sensor: Removal

Remove valve body assembly from transaxle. (Refer to REMOVAL ).
Remove transmission range sensor retaining screw and remove sensor from valve body. (Fig 1).

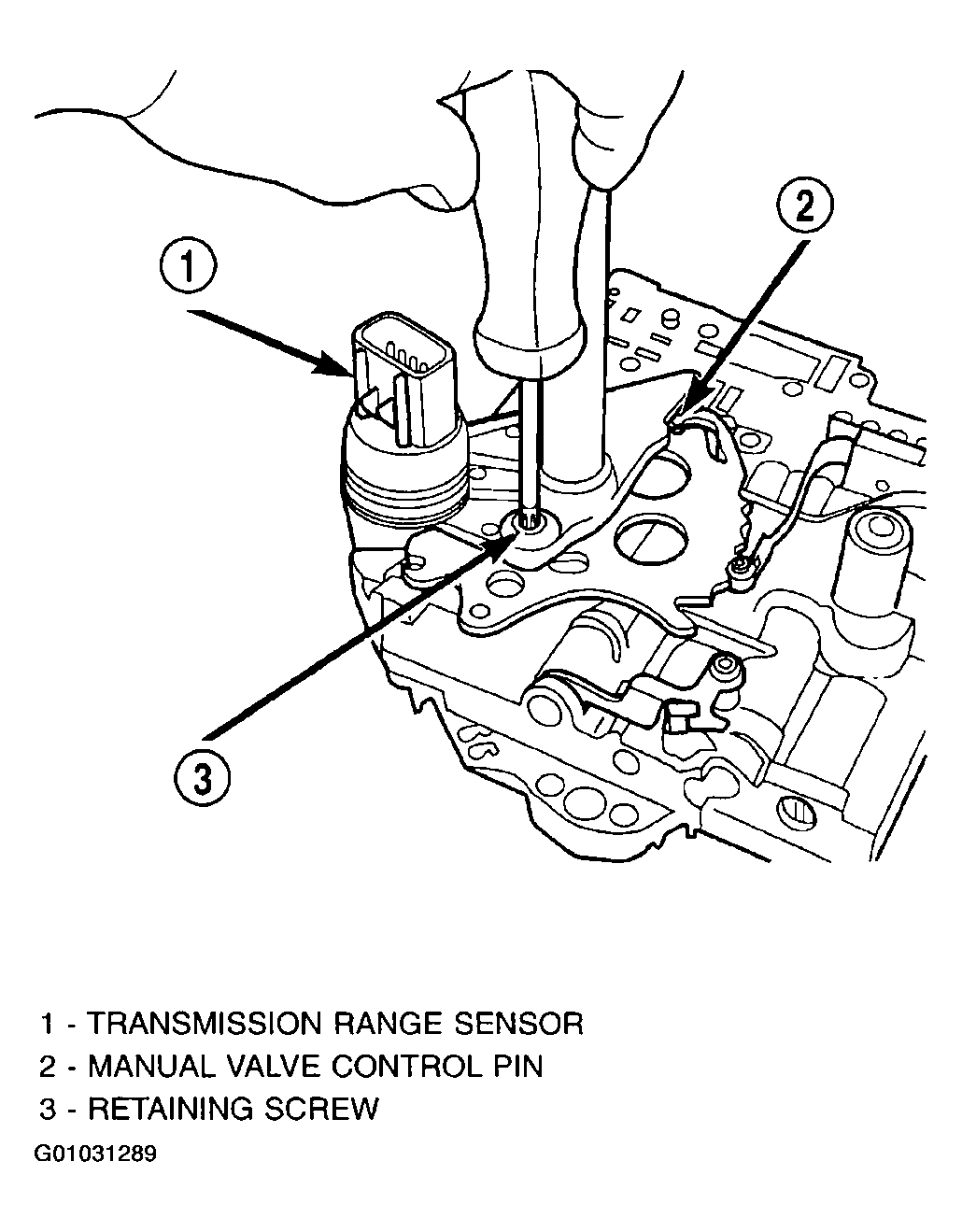

Fig 1: Removing Transmission Range Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Remove TRS from manual shaft.
