2002 Chrysler Neon LE, AutomaticFACTORY OEM SERVICE PROCEDURE

Speed Sensor - Output: Removal

Disconnect battery negative cable.
Raise vehicle on hoist.
Disconnect output speed sensor connector.
Unscrew and remove output speed sensor. (Fig 1).

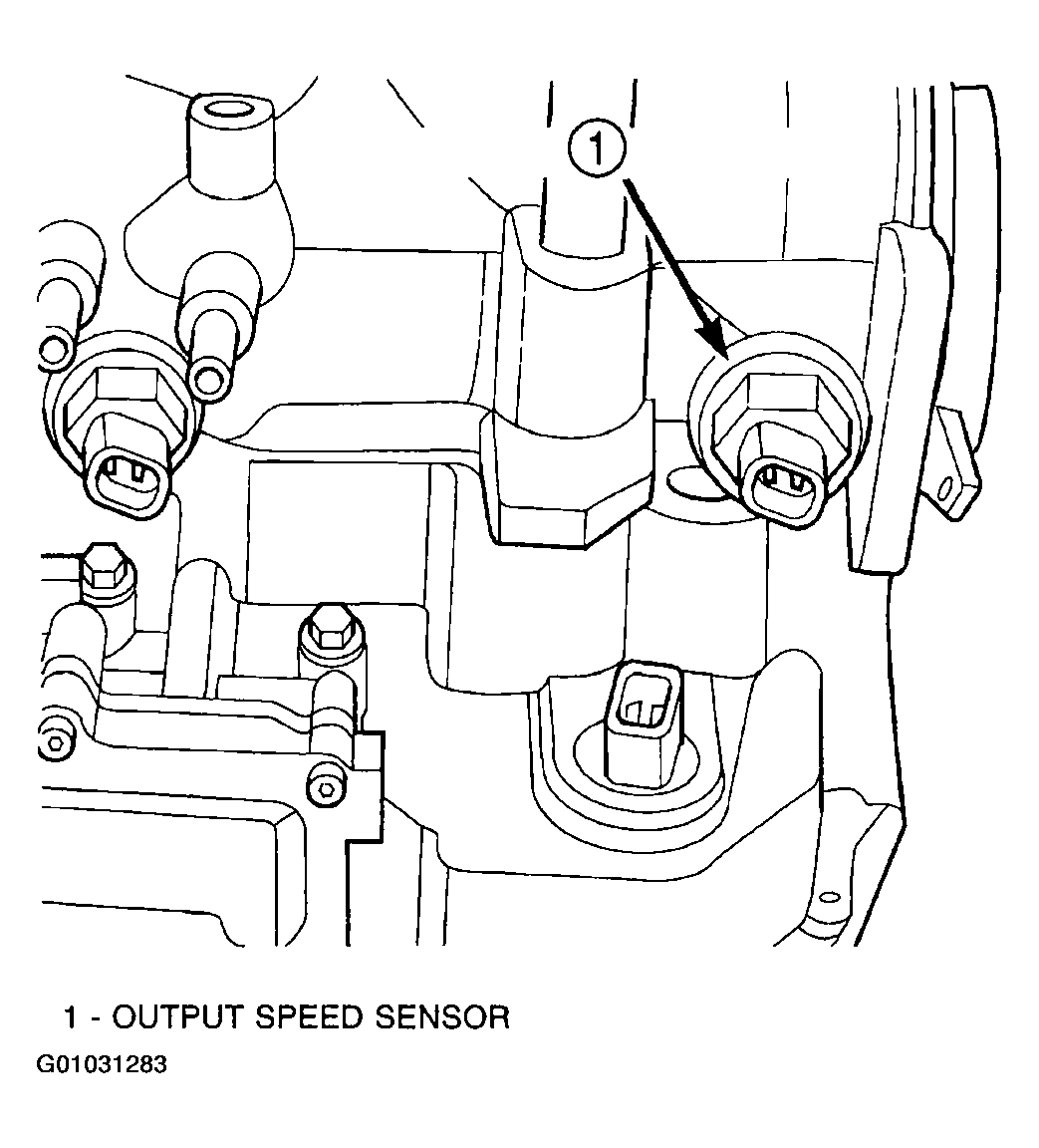

Fig 1: Identifying Output Speed Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Inspect speed sensor "O" ring and replace if necessary. (Fig 2).

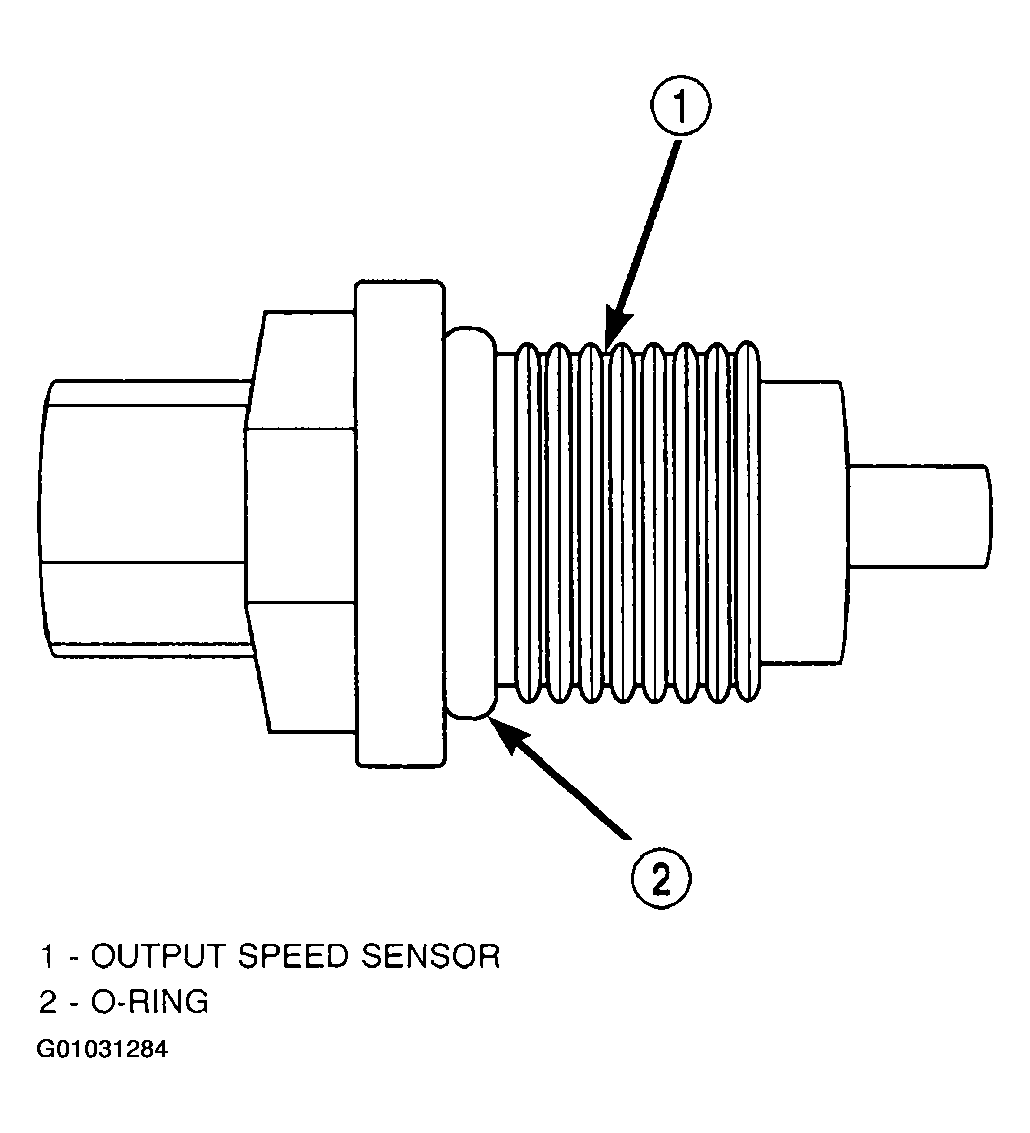

Fig 2: Locating "O" Ring
Courtesy of DAIMLERCHRYSLER CORP.
