2002 Chrysler Neon LE, AutomaticFACTORY OEM SERVICE PROCEDURE

Shift Interlock Mechanism: Removal

Remove the steering column lower cover. (Fig 1).

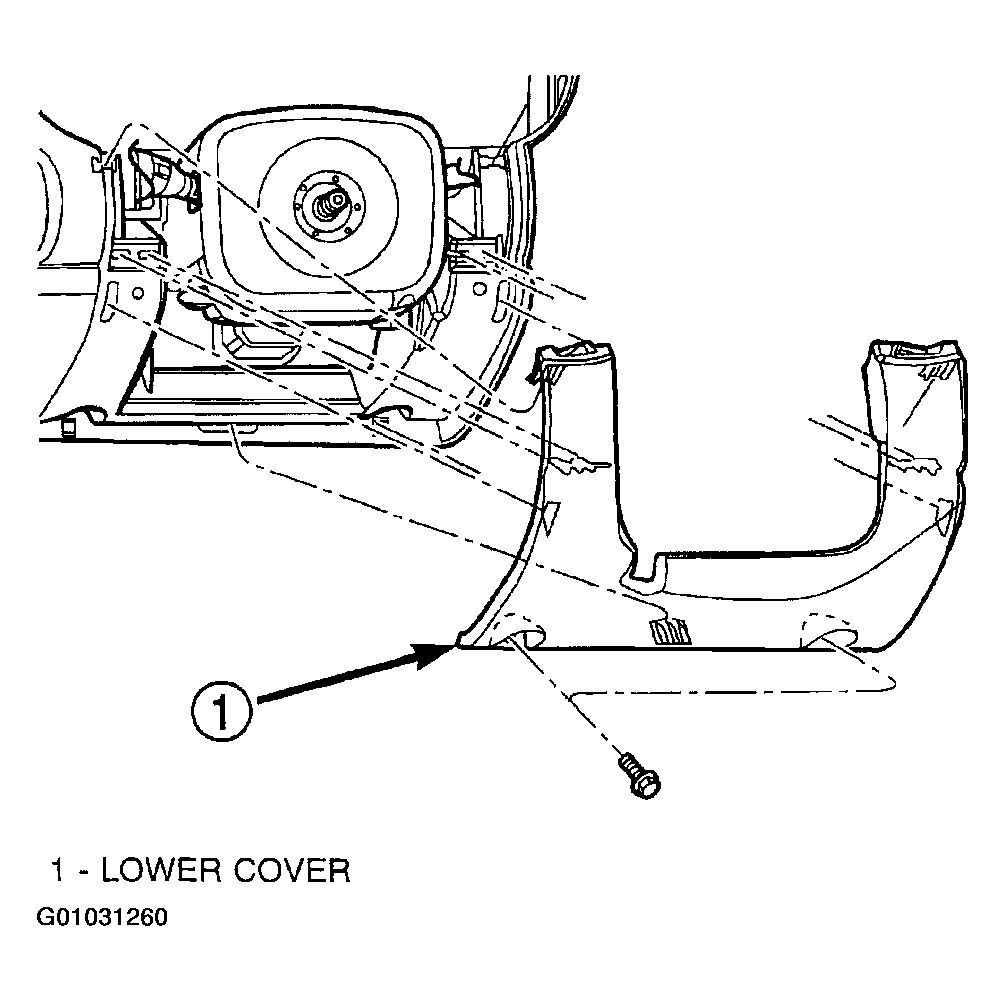

Fig 1: Removing/Installing Steering Column Lower Cover
Courtesy of DAIMLERCHRYSLER CORP.
Remove the steering column upper and lower shrouds. (Fig 2).

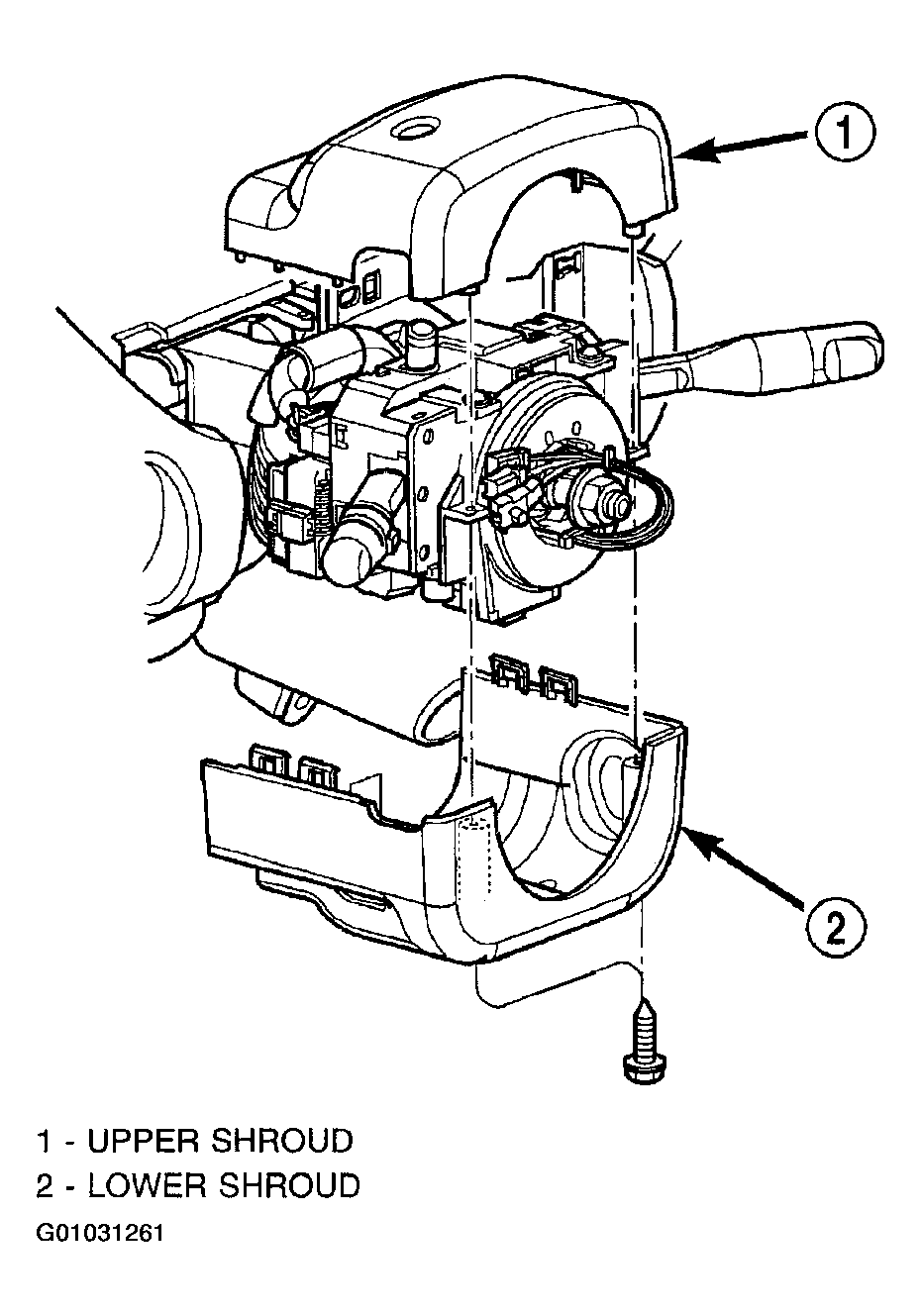

Fig 2: Removing/Installing Steering Column Shrouds
Courtesy of DAIMLERCHRYSLER CORP.
Turn the ignition key to the "OFF" or "ON/RUN" position. (Fig 3).

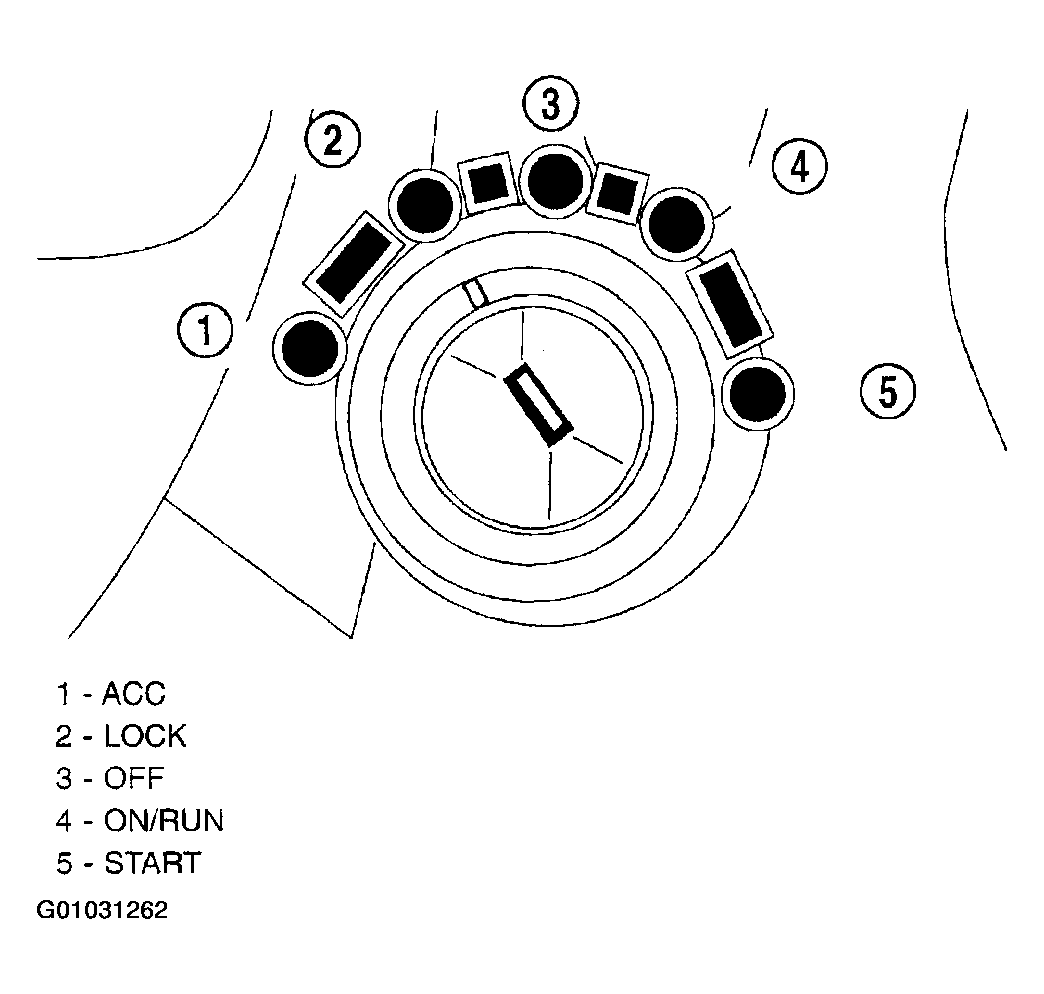

Fig 3: Identifying Ignition Key Positions
Courtesy of DAIMLERCHRYSLER CORP.
Grasp the interlock cable and connector firmly. Remove the interlock cable. (Fig 4).

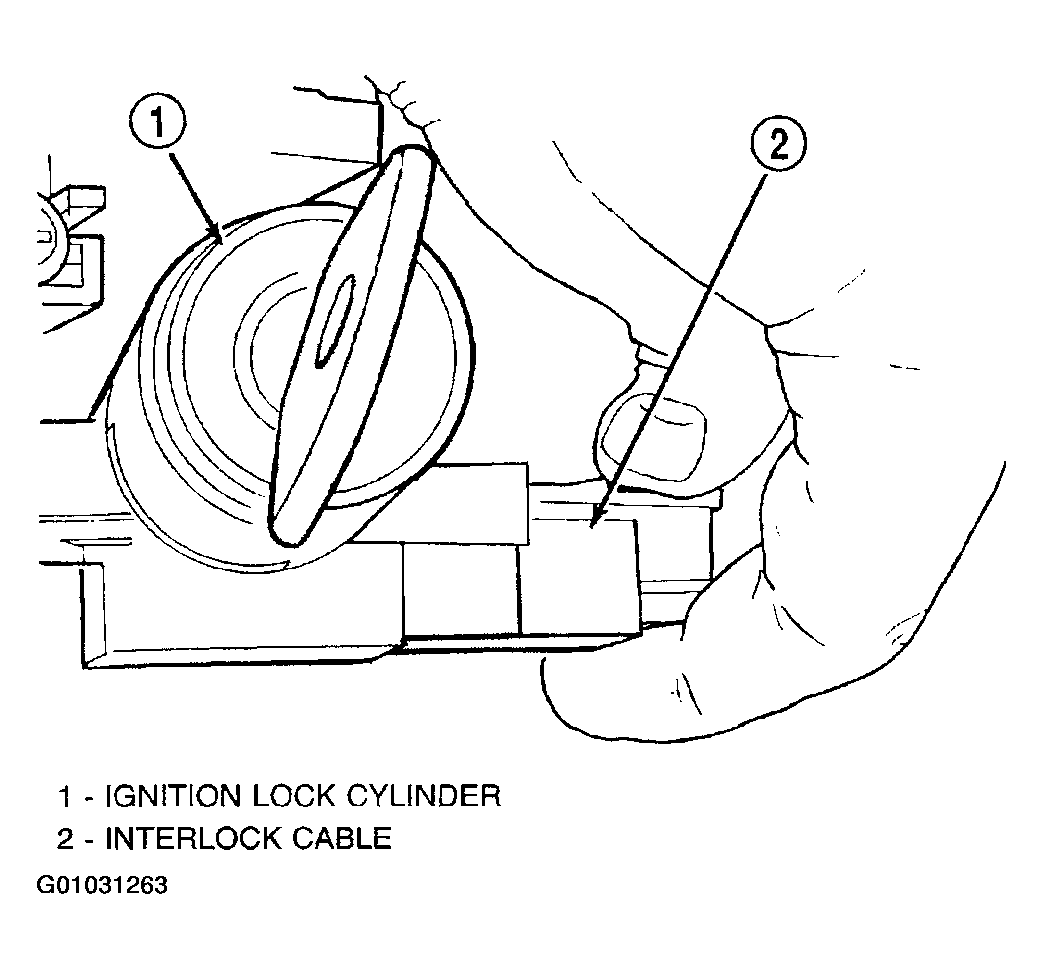

Fig 4: Removing Interlock Cable
Courtesy of DAIMLERCHRYSLER CORP.
Remove the two interlock mechanism-to-steering column attaching screws. (Fig 5). Remove the interlock housing.

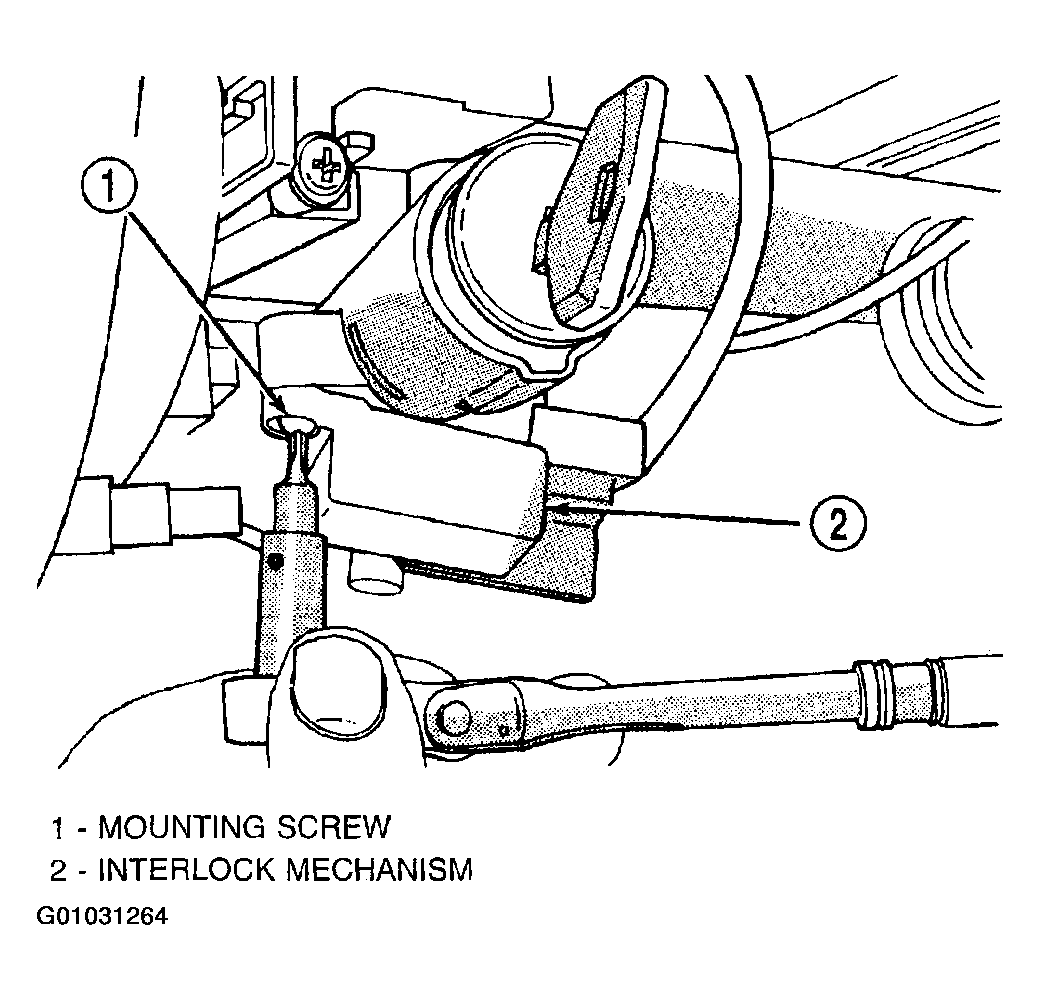

Fig 5: Removing Interlock Mechanism
Courtesy of DAIMLERCHRYSLER CORP.
