2002 Chrysler Neon LE, AutomaticFACTORY OEM SERVICE PROCEDURE

Input Clutch Assembly: Disassembly

Mount input clutch assembly to Input Clutch Pressure Fixture (Tool 8391).
Tap down reverse clutch reaction plate to release pressure from snap ring. (Fig 1).

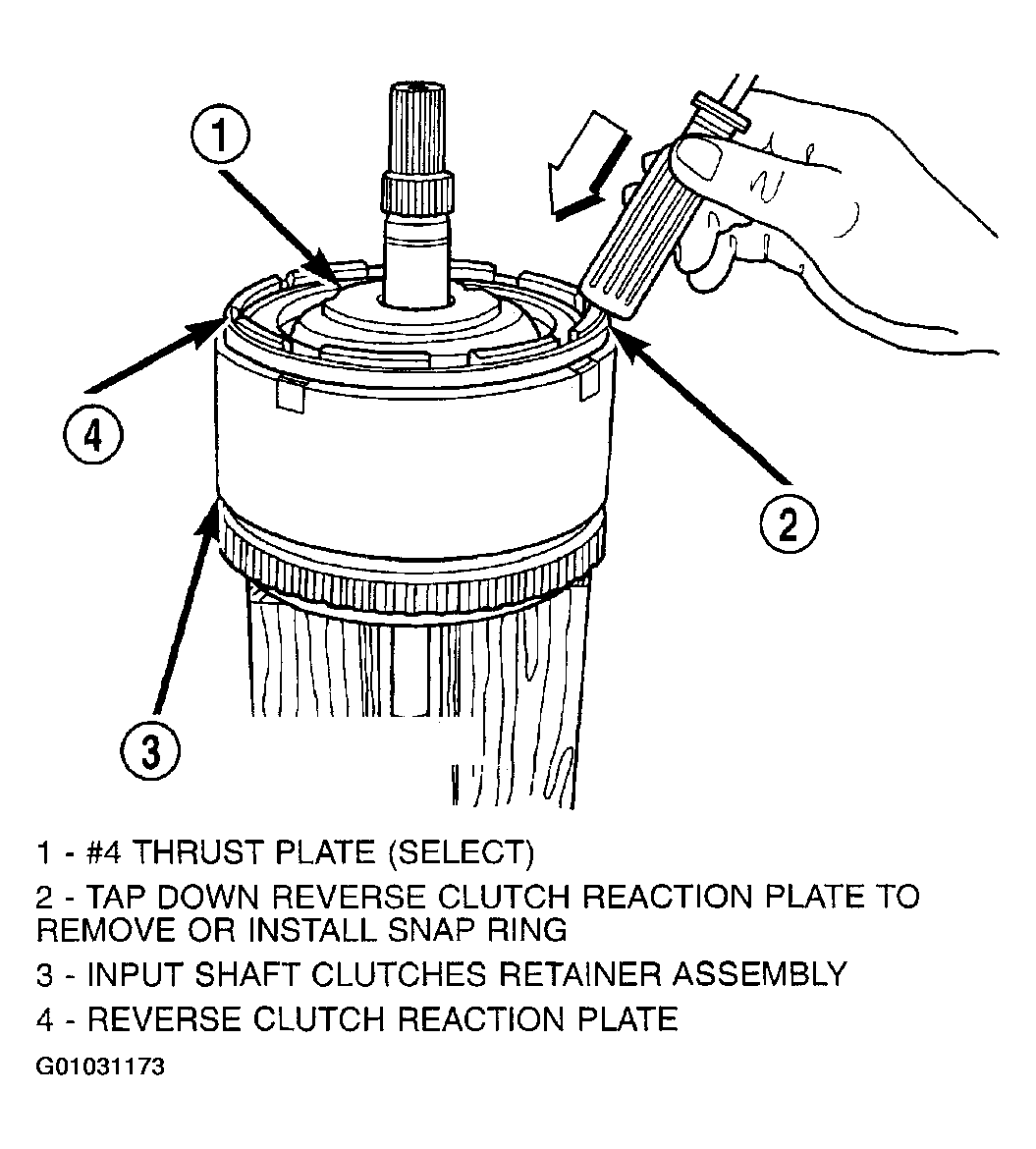

Fig 1: Tapping Reaction Plate
Courtesy of DAIMLERCHRYSLER CORP.
Remove reverse clutch snap ring. (Fig 2).

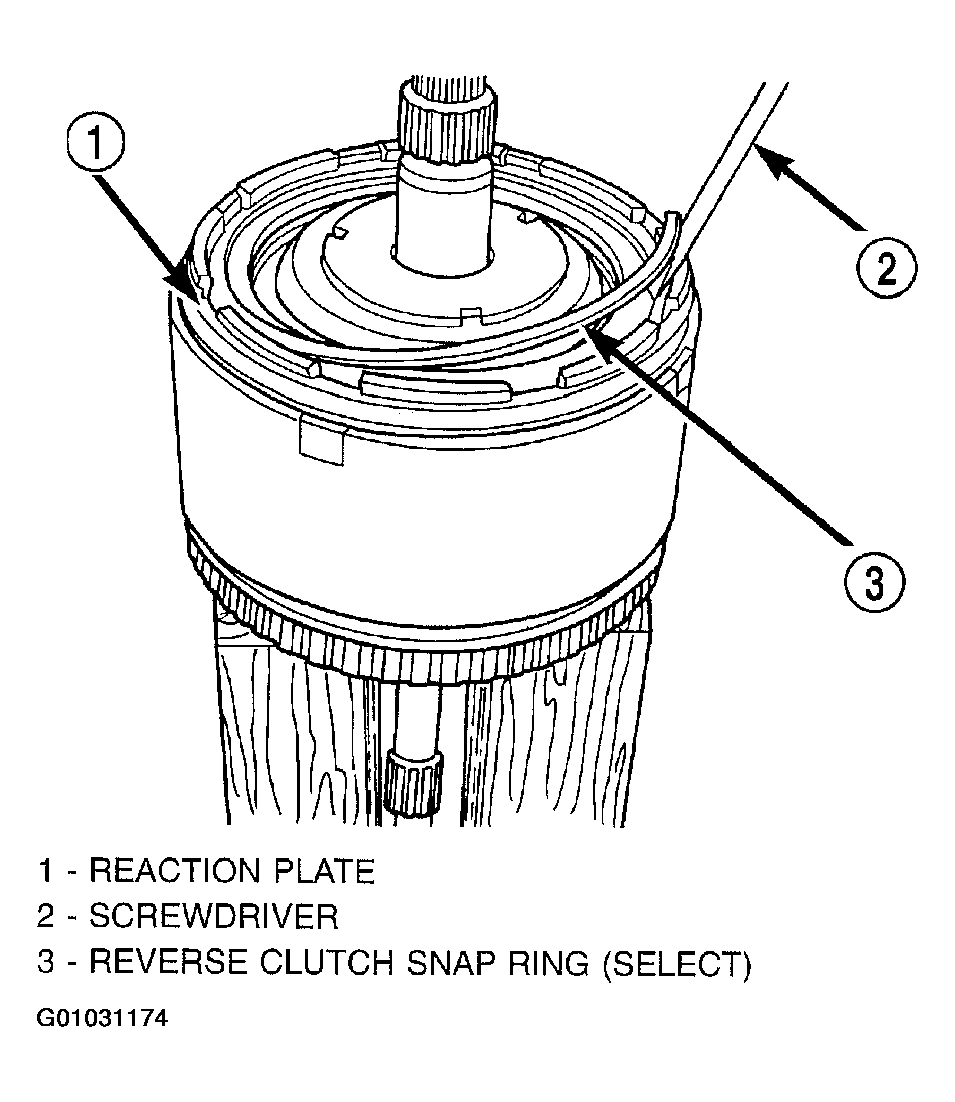

Fig 2: Removing Reverse Clutch Snap Ring
Courtesy of DAIMLERCHRYSLER CORP.
Pry up and remove reverse clutch reaction plate. (Fig 3 and Fig 4 ).

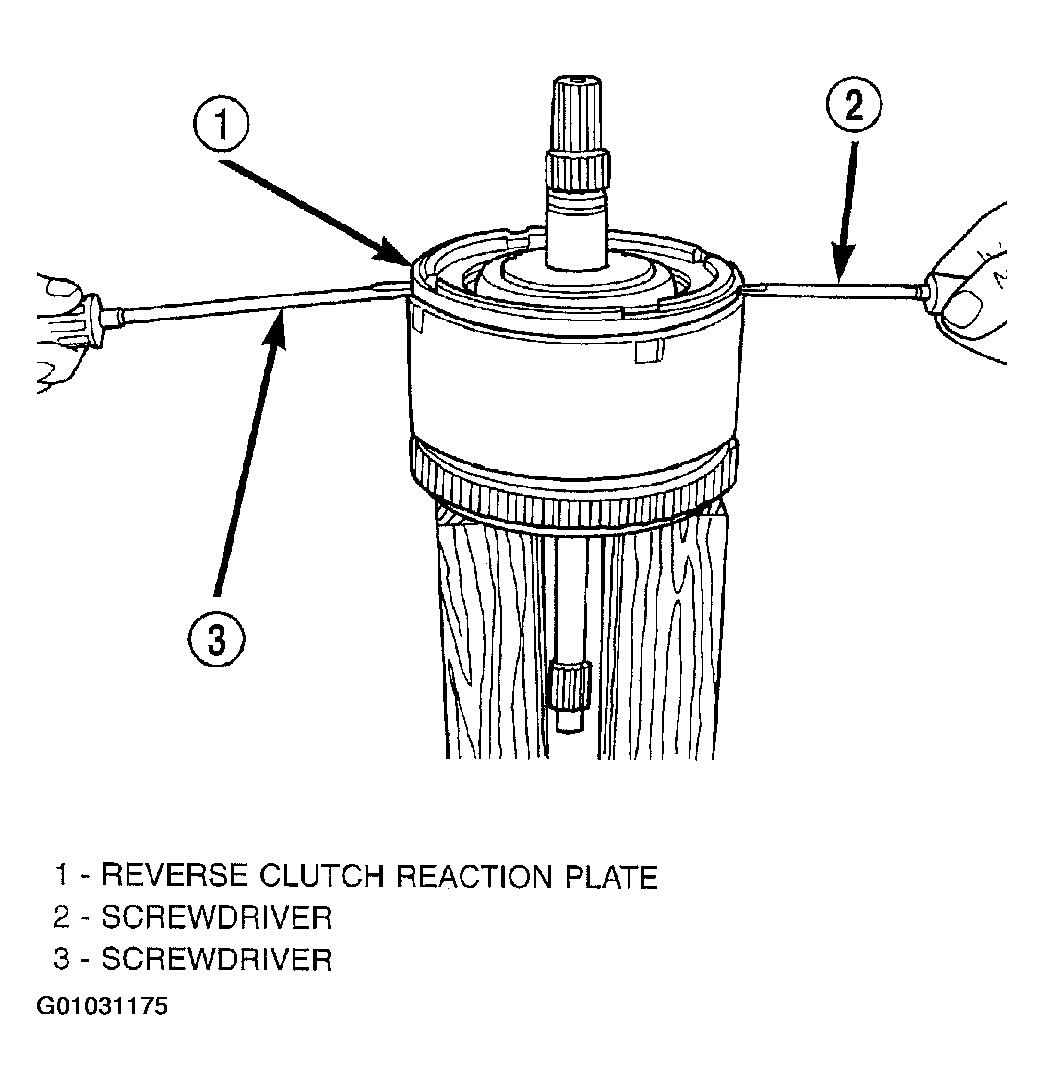

Fig 3: Prying Up Reverse Clutch Reaction Plate
Courtesy of DAIMLERCHRYSLER CORP.
