2000 Chrysler Intrepid BaseFACTORY OEM SERVICE PROCEDURE
Rocker Arms: Removal
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, and 2003 Chrysler Concorde. However, it is still accessible from the selected car via links, so may be relevant.
- Remove cylinder head cover(s). (Refer to REMOVAL ).CAUTION: Always rotate engine by turning the crankshaft. Failure to do so will result in valve and/or piston damage.
- Rotate engine until the cam lobe is on its base circle (heel), on the rocker arm being removed.CAUTION: Depress valve spring only enough to remove rocker arm.

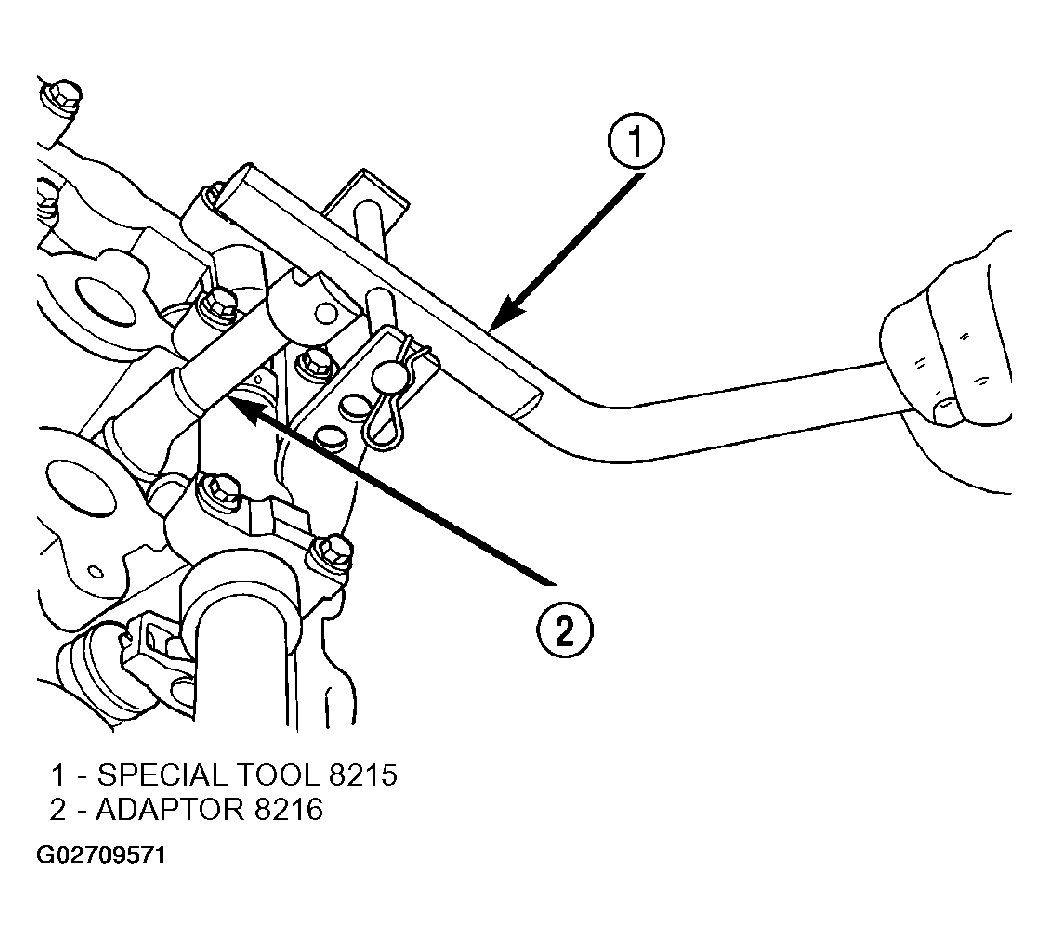

- Using Special Tools 8215 and 8216 Adaptor, depress valve spring only enough to release tension on rocker arm (Fig 1).
- Remove rocker arm from cylinder head.CAUTION: If rocker arms are to be reused, identify position of rocker arms for reassembly in their original positions.
- Repeat procedure for each rocker arm removed.
- Inspect the rocker arm for wear or damage. (Refer to INSPECTION ).
