1994 Chrysler LHSFACTORY OEM SERVICE PROCEDURE

Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector Figure
ABS Relay Fig. Fig 1
Brake Fluid Level Switch No. 1 Fig. Fig 2
Brake Fluid Level Switch No. 2 Fig. Fig 3
CCD Data Link Fig. Fig 4
Controller Anti-Lock Brake (CAB) Fig. Fig 5
Electronic Message Center Fig. Fig 6
Mechanical Message Center Fig. Fig 7
Pedal Travel Sensor Fig. Fig 8
Pump/Motor (Harness End) Fig. Fig 9
Pump/Motor Relay Fig. Fig 10
Traction Control System Switch Fig. Fig 11
Wheel Speed Sensors Fig. Fig 12
Fig 1: Identifying ABS Relay Connector Terminals
G93F40860Courtesy of CHRYSLER CORP.
ABS RELAY CONNECTOR

Terminal Wire Color Function
A (86) WHT Ignition Switch Output
B (30) BRN/WHT Relay Output
C (85) ORG/BLK Relay Control
D (87) RED/DK GRN Fused Battery Feed
E (87a) BLK Ground

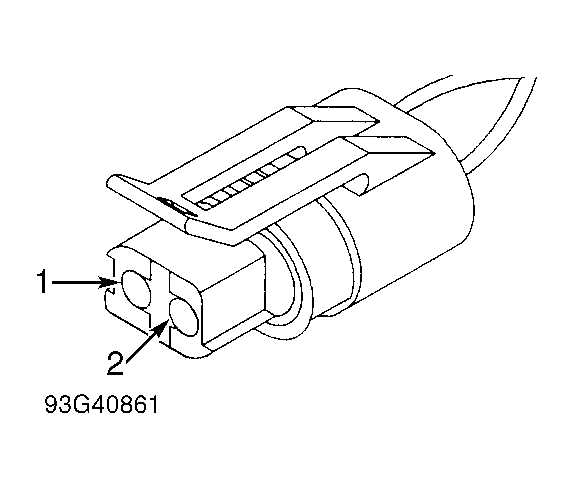

Fig 2: Identifying Brake Fluid Level Switch No. 1 Connector Terminals
G93G40861Courtesy of CHRYSLER CORP.
BRAKE FLUID LEVEL SWITCH NO. 1 CONNECTOR

Terminal Wire Color Function
1 BLK Ground
2 GRY/BLK Brake Warning Light Driver

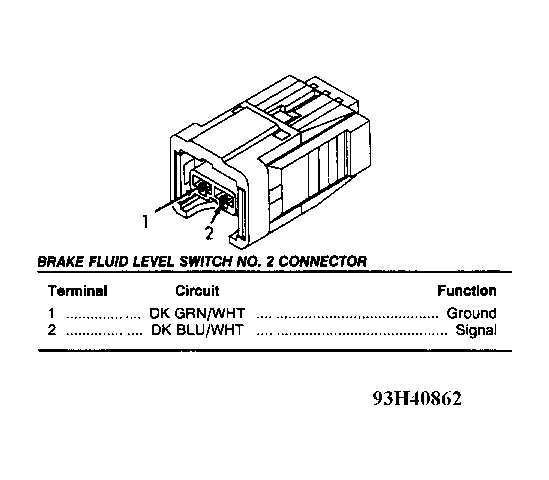

Fig 3: Identifying Brake Fluid Level Switch No. 2 Connector Terminals
G93H40862Courtesy of CHRYSLER CORP.
BRAKE FLUID LEVEL SWITCH NO. 2 CONNECTOR

Terminal Wire Color Function
1 DK GRN/WHT Ground
2 DK BLU/WHT Signal

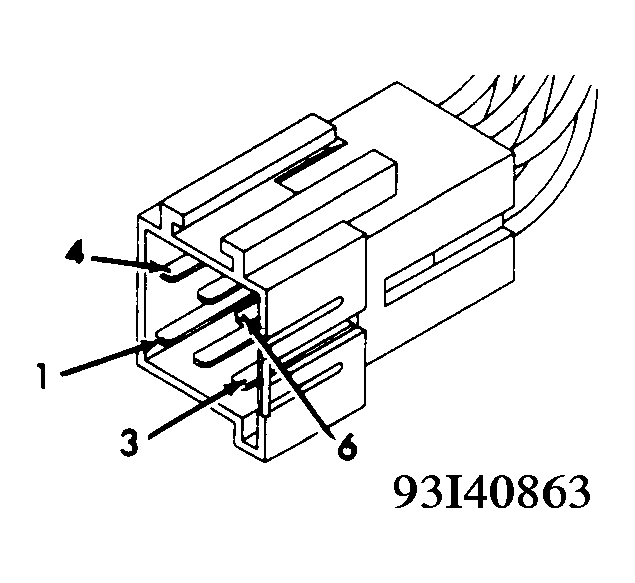

Fig 4: Identifying CCD Data Link Connector Terminals
G93I40863Courtesy of CHRYSLER CORP.
CCD DATA LINK CONNECTOR

Terminal Wire Color Function
1 LT GRN SCI Receive
2 PNK Battery Positive Voltage
3 WHT/BLK CCD Bus (-)
4 VIO/BRN CCD Bus (+)
5 PNK SCI Transmit
6 BLK/LT GRN Ground

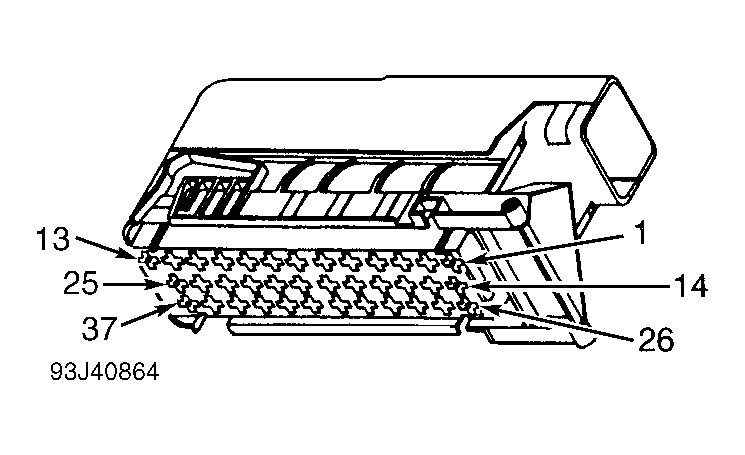

Fig 5: Identifying Controller Anti-Lock Brake (CAB) Connector Terminals
G93J40864Courtesy of CHRYSLER CORP.
CONTROLLER ANTI-LOCK BRAKE (CAB) CONNECTOR

Terminal Wire Color Function
1 WHT RF WSS (+)
2   Not Used
3 GRY Pump/Motor Relay Control
4 LT BLU/BLK LTCS Warning Light Driver
5 VIO/BRN CCD Bus (+)
6 WHT/DK BLU RF WSS (-)
7 RED/DK GRN Fused Battery Feed
8 VIO/WHT Pump/Motor Speed Sensor (+)
9 RED/YEL LTCS Switch Sense
10 RED/WHT Pedal Travel Sensor Signal
11 BLK Ground
12 BLK Ground
13 BRN/WHT ABS Main Relay Output
14   Not Used
15 RED LF WSS (+)
16 LT GRN/ORG ABS Amber Light Driver
17 DK GRN/WHT Low Brake Fluid Sw. 2 Ground
18 GRY/BLK Red Brake Light Driver
19 LT GRN/DK BLU LR WSS (-)
20 GRY/BLK LTCS Active Light Driver
21 YEL/WHT Pump/Motor Speed Sensor (-)
22 WHT/TAN Stoplight Switch Output
23   Not Used
24 BLK Ground
25 BRN/WHT ABS Main Relay Output
26   Not Used
27 WHT/BLK CCD Bus (-)
28 LT GRN LR WSS (+)
29 YEL RR WSS (+)
30 RED/DK BLU LF WSS (-)
31 YEL/DK BLU RR WSS (-)
32 ORG/BLK ABS Main Relay Control
33 WHT Fused Ignition Feed
34   Not Used
35 DK BLU/WHT Low Brake Fluid Sw.
36 PNK Pedal Travel Sensor Ground No. 2
37 BRN/WHT ABS Main Relay Output

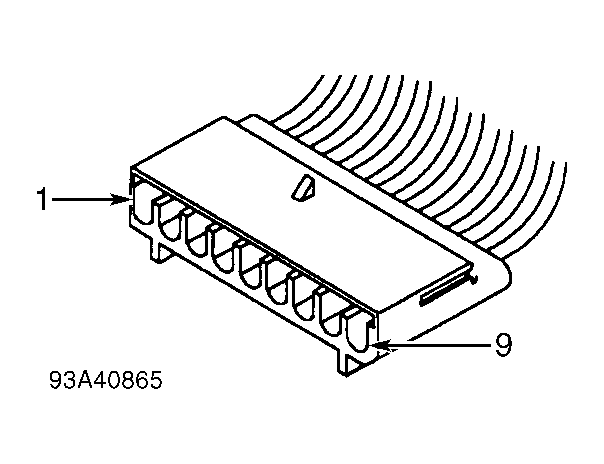

Fig 6: Identifying Electronic Message Center Connector Terminals
G93A40865Courtesy of CHRYSLER CORP.
ELECTRONIC MESSAGE CENTER CONNECTOR

Terminal Wire Color Function
1 PNK/BLK Door Ajar Light Driver
2 GRY/BLK TLCS Active Light Driver
3 LT BLU/BLK TLCS Warning Light Driver
4 DK BLU/WHT Fused Ignition Feed
5   Not Used
6 RED Washer Fluid Light Driver
7 PNK Fused Battery Feed
8 LT GRN/ORG ABS Warning Light Driver
9 TAN/BLK Trunk Ajar Switch Sense

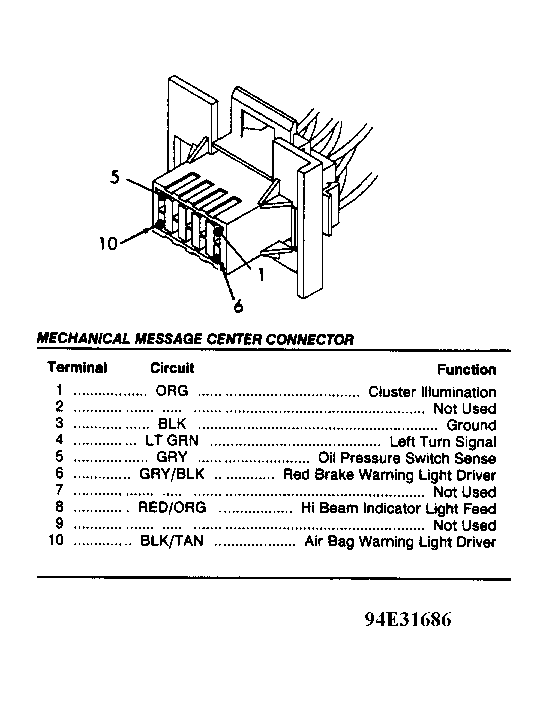

Fig 7: Identifying Mechanical Message Center Connector Terminals
G94E31686Courtesy of CHRYSLER CORP.
MECHANICAL MESSAGE CENTER CONNECTOR

Terminal Wire Color Function
1 ORG Cluster Illumination
2   Not Used
3 BLK Ground
4 LT GRN Left Turn Signal
5 GRY Oil Pressure Switch Sense
6 GRY/BLK Red Brake Warning Light Driver
7   Not Used
8 RED/ORG Hi Beam Indicator Light Feed
9   Not Used
10 BLK/TAN Air Bag Warning Light Driver

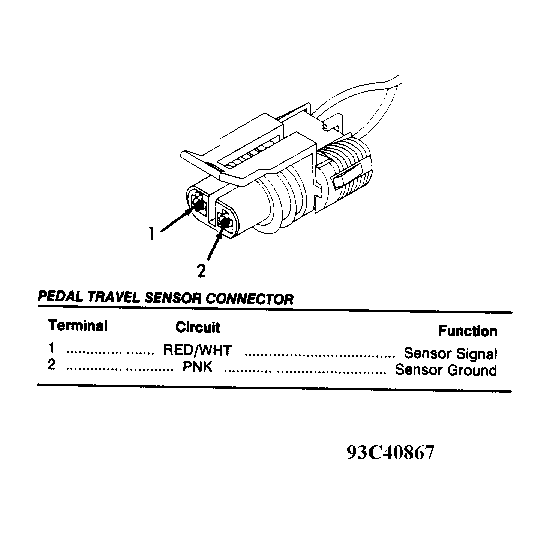

Fig 8: Identifying Pedal Travel Sensor Connector Terminals
G93C40867Courtesy of CHRYSLER CORP.
PEDAL TRAVEL SENSOR CONNECTOR

Terminal Wire Color Function
1 RED/WHT Sensor Signal
2 PNK Sensor Ground

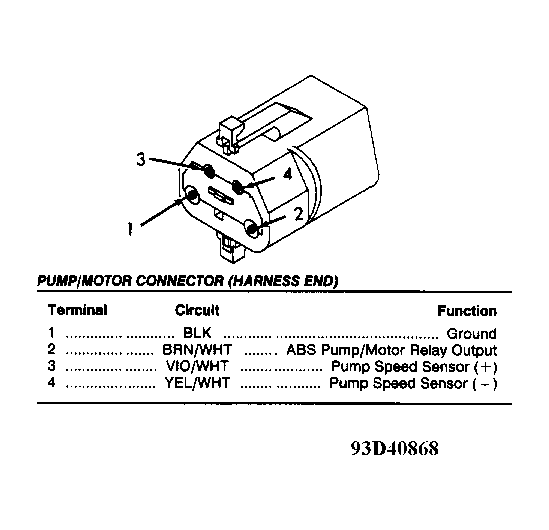

Fig 9: Identifying ABS Pump/Motor Connector Terminals (Harness End)
G93D40868Courtesy of CHRYSLER CORP.
PUMP/MOTOR CONNECTOR

Terminal Wire Color Function
1 BLK Ground
2 BRN/WHT ABS Pump/Motor Relay Output
3 VIO/WHT Pump Speed Sensor (+)
4 YEL/WHT Pump Speed Sensor (-)

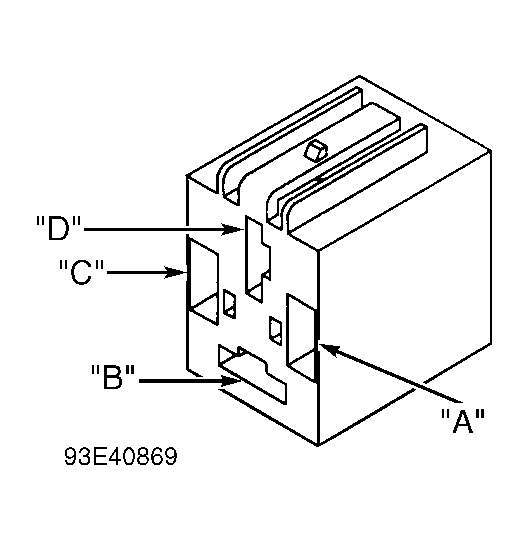

Fig 10: Identifying Pump/Motor Relay Connector Terminals
G93E40869Courtesy of CHRYSLER CORP.
PUMP/MOTOR RELAY CONNECTOR

Terminal Wire Color Function
A GRY Relay Control
B BRN/WHT Relay Output
C BRN/WHT ABS Main Relay Output
D DK BLU Fused Battery Feed

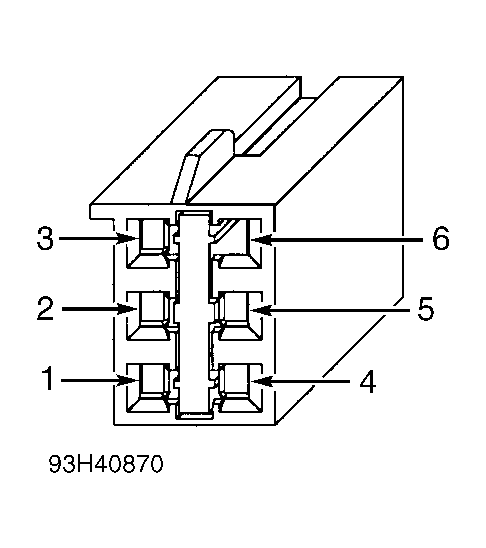

Fig 11: Identifying Traction Control System Switch Connector Terminals
G93H40870Courtesy of CHRYSLER CORP.
TRACTION CONTROL SYSTEM SWITCH CONNECTOR

Terminal Wire Color Function
1 BLK Ground
2 RED/YEL TLCS Switch Sense
3 ORG H/L Switch Dim Light
4 DK GRN RF Keyless Program Enable
5   Not Used
6   Not Used

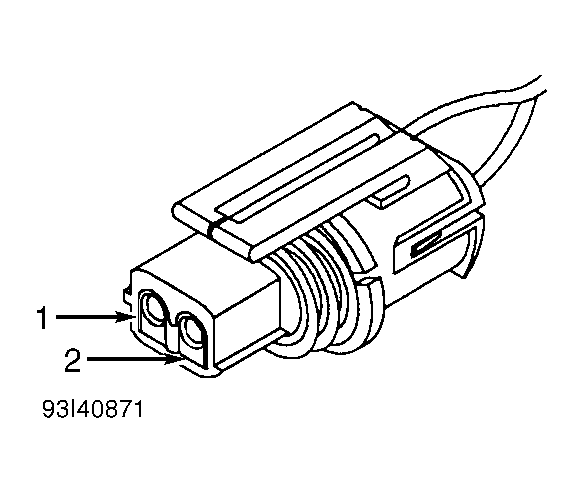

Fig 12: Identifying Wheel Speed Sensor Connector Terminals
G93I40871Courtesy of CHRYSLER CORP.
LEFT FRONT WHEEL SPEED SENSOR CONNECTOR

Terminal Wire Color Function
1 RED/DK BLU Sensor (-)
2 RED Sensor (+)
LEFT REAR WHEEL SPEED SENSOR CONNECTOR

Terminal Wire Color Function
1 LT GRN/DK BLU Sensor (-)
2 LT GRN Sensor (+)
RIGHT FRONT WHEEL SPEED SENSOR CONNECTOR

Terminal Wire Color Function
1 WHT/DK BLU Sensor (-)
2 WHT Sensor (+)
RIGHT REAR WHEEL SPEED SENSOR CONNECTOR

Terminal Wire Color Function
1 YEL/DK BLU Sensor (-)
2 YEL Sensor (+)
BRAKELIGHT SWITCH CONNECTOR

Terminal Wire Color Function
1 YEL/RED Ignition 12-Volt Feed
2 WHT/TAN (1)
3 WHT/PNK Brake Switch Sense
4 DK BLU/RED Speed Control Relay Output
5 PNK/DK BLU Battery (+) Voltage
6 BLK/LT GRN System Ground
(1) Signal to brakelights
