Installation Procedure
Front Floor Rear Console Side Trim Panel- Left Side (2) - Install
- Front Floor Console Side Trim Panel Bolt (1) - Install and tighten [4x] - Fastener Specifications
Front Floor Console Rear Trim Lower Panel (2) - Install
- Front Floor Console Cup Holder Bolt (1) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connector.

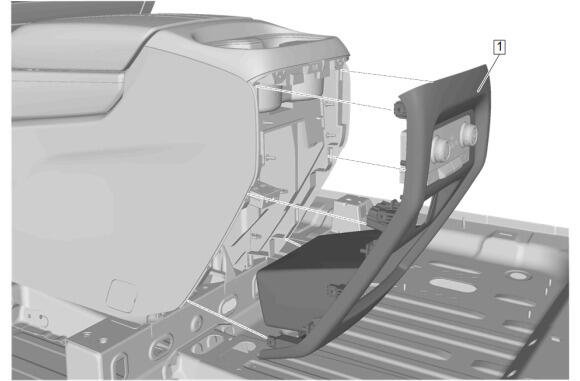

- Front Floor Console Rear Trim Panel (1) - Install

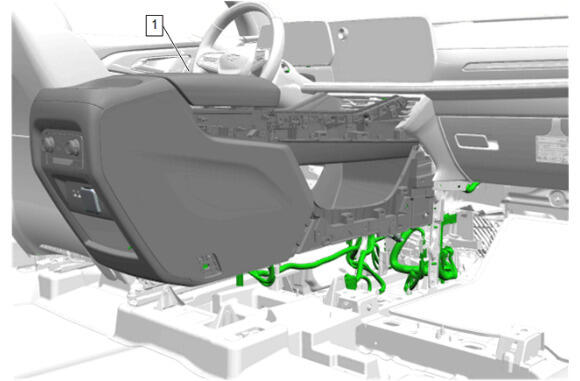

Front Floor Console (1) - Install - Front Floor Console Removal and Installation
Refer to Fastener Caution .
Refer to Fastener Caution .
