2024 Chevrolet Traverse LS, FWDFACTORY OEM SERVICE PROCEDURE
Fastener Specifications

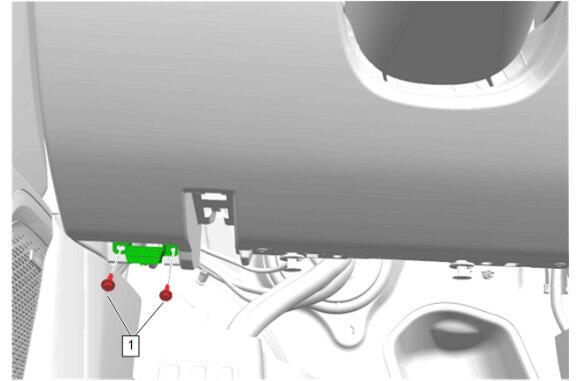

Data Link Connector Bolt
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Data Link Connector Bolt | - | - | 2.5 N.m (22 lb in) | Front Floor Console Extension Panel Replacement (Left Side) , or Front Floor Console Extension Panel Replacement (Right Side) |

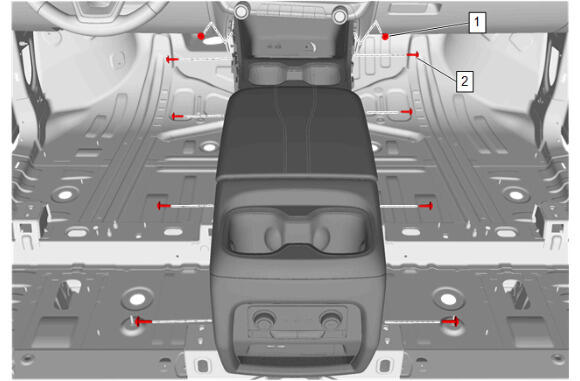

Front Floor Console Assembly
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Console Extension Panel Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Front Floor Console Removal and Installation |
| 2 | Front Floor Console Bolt [8x] | - | - | 9 N.m (80 lb in) | Front Floor Console Removal and Installation |

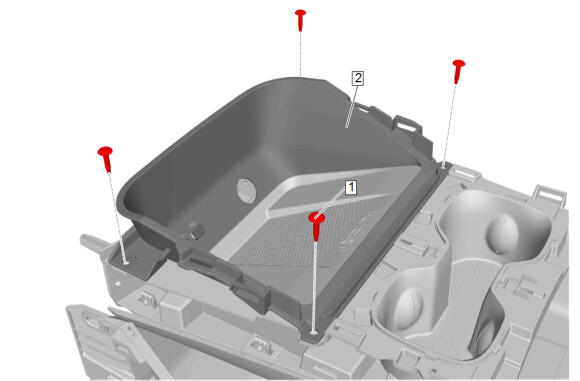

Front Floor Console Compartment Front Trim Panel
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Console Compartment Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Front Floor Console Stowage Tray Replacement |

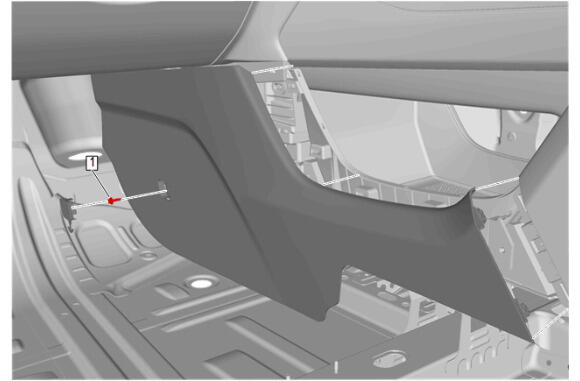

Front Floor Console Extension Panel
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Console Extension Panel Bolt | - | - | 2.5 N.m (22 lb in) | Front Floor Console Extension Panel Replacement (Left Side) , or Front Floor Console Extension Panel Replacement (Right Side) |

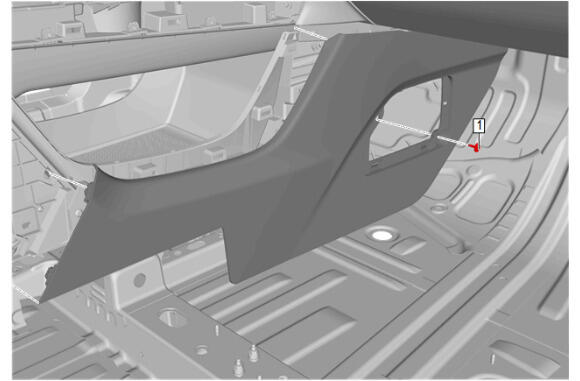

Front Floor Console Extension Panel - Right Side
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Console Extension Panel Bolt | - | - | 2.5 N.m (22 lb in) | Front Floor Console Extension Panel Replacement (Left Side) , or Front Floor Console Extension Panel Replacement (Right Side) |

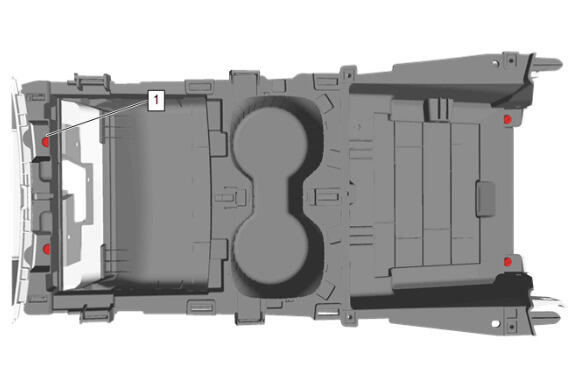

Front Floor Console Front Compartment
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Console Compartment Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Front Floor Console Front Compartment Replacement |

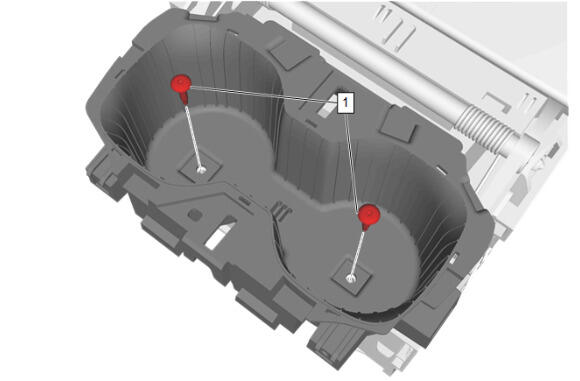

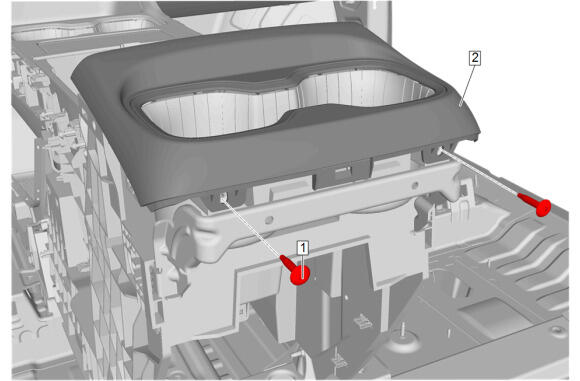

Front Floor Console Rear Cup Holder
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Console Cup Holder Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Front Floor Console Rear Cup Holder Replacement |
Front Floor Console Rear Trim Lower Panel
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Console Cup Holder Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Front Floor Console Rear Cup Holder Replacement |

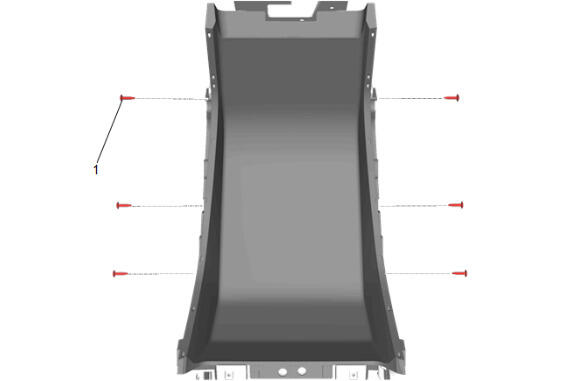

Front Floor Console Stowage Tray
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Console Stowage Tray Bolt [6x] | - | - | 2.5 N.m (22 lb in) | Front Floor Console Stowage Tray Replacement |

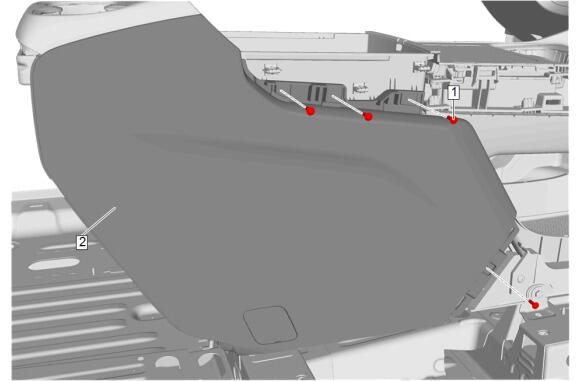

Front Floor Rear Console Side Trim Panel - Left Side
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Console Side Trim Panel Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Front Floor Rear Console Side Trim Panel Replacement (Left Side) , or Front Floor Rear Console Side Trim Panel Replacement (Right Side) |

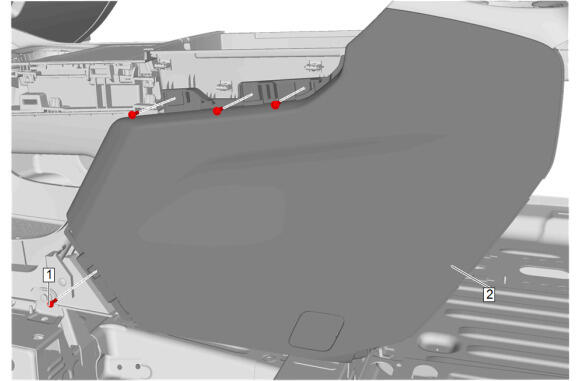

Front Floor Rear Console Side Trim Panel - Right Side
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Console Side Trim Panel Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Front Floor Rear Console Side Trim Panel Replacement (Left Side) , or Front Floor Rear Console Side Trim Panel Replacement (Right Side) |

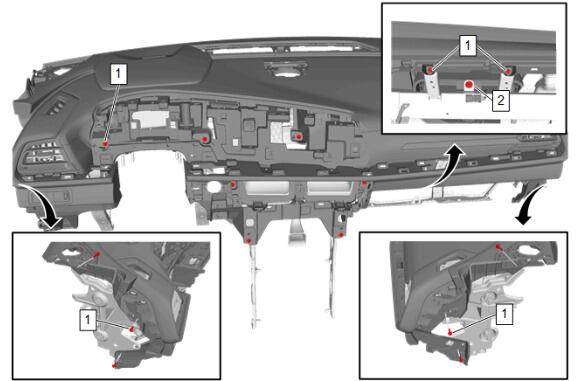

Instrument Panel Assembly
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Bolt [15x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Removal and Installation |
| 2 | Instrument Panel Airbag Bolt | - | - | 9 N.m (80 lb in) | Instrument Panel Removal and Installation |

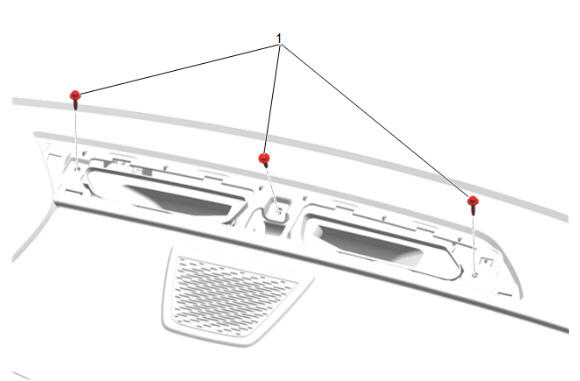

Instrument Panel Assembly
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Removal and Installation |

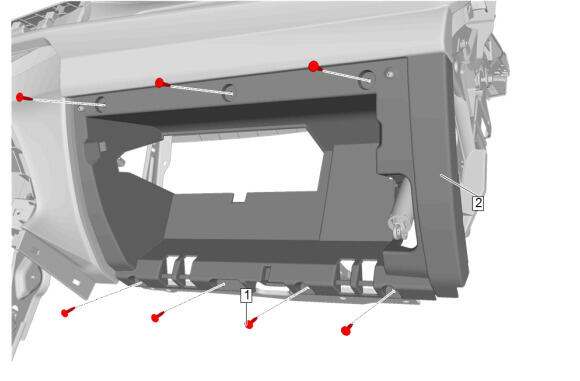

Instrument Panel Compartment Door Opening Frame
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Compartment Bolt [7x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Compartment Door Opening Frame Replacement |

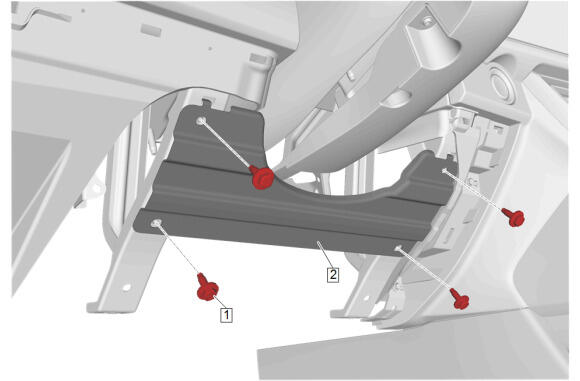

Instrument Panel Knee Bolster
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Knee Bolster Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Knee Bolster Replacement |

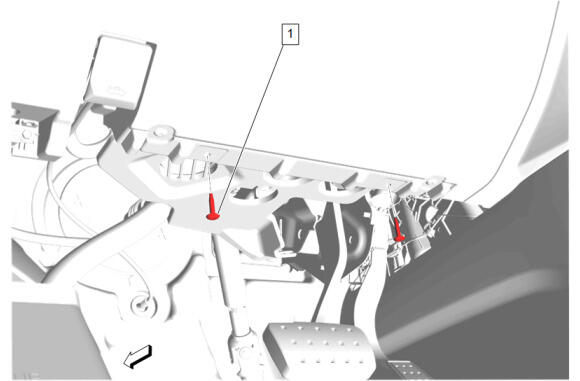

Instrument Panel Knee Bolster Deflector
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Knee Bolster Deflector Bolt [4x] | - | - | 9 N.m (80 lb in) | Instrument Panel Knee Bolster Deflector Replacement |

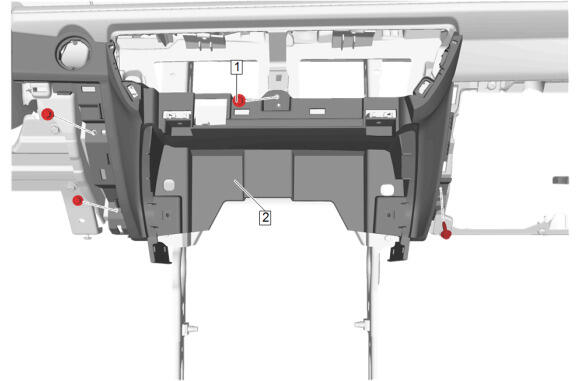

Instrument Panel Lower Center Trim Panel
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Lower Trim Panel Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Lower Center Trim Panel Replacement |
Instrument Panel Lower Trim Panel Insulator
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Lower Trim Panel Insulator Bolt [2x] | - | - | 2.0 N.m (18 lb in) | Regulatory Emergency Call Backup Speaker Replacement |

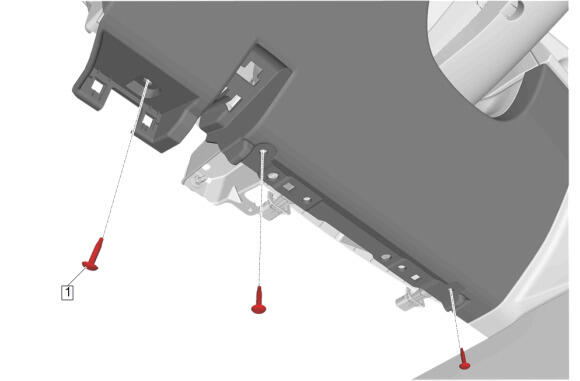

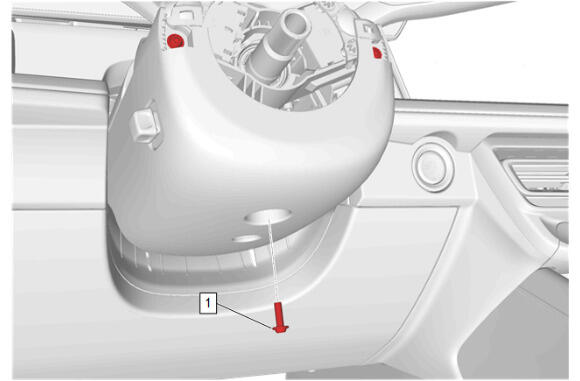

Instrument Panel Steering Column Lower Trim Cover
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Steering Column Lower Trim Cover Bolt [3x] | - | - | 2.5 N.m (22 lb in) | Instrument Panel Steering Column Lower Trim Cover Replacement (+UKL) , or Instrument Panel Steering Column Lower Trim Cover Replacement (-UKL) |

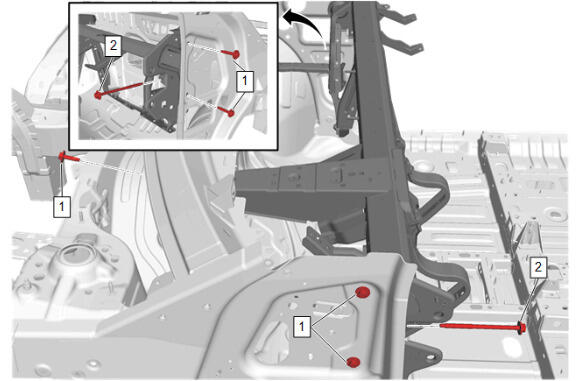

Instrument Panel Tie Bar
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Tie Bar Bolt [5x] | - | - | 22 N.m (16 lb ft) | Instrument Panel Tie Bar Replacement |
| 2 | Instrument Panel Tie Bar Bolt [2x] | - | - | 12 N.m (106 lb in) | Instrument Panel Tie Bar Replacement |

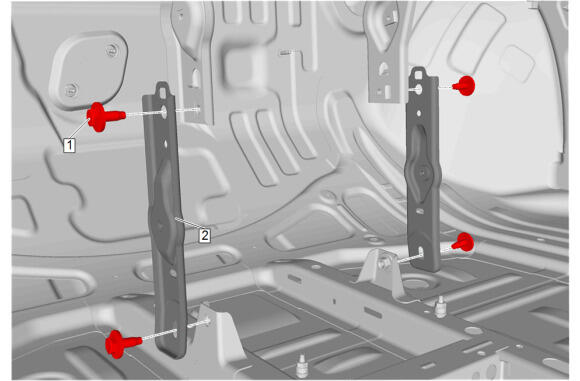

Instrument Panel Tie Bar Brace
| Callout | Component Name [Component Quantity] | Single Use Fastener / Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Instrument Panel Tie Bar Brace Bolt [4x] | - | - | 22 N.m (16 lb ft) | Instrument Panel Tie Bar Brace Replacement |
