2014 Chevrolet SSFACTORY OEM SERVICE PROCEDURE

Communication Interface Module Bracket Replacement

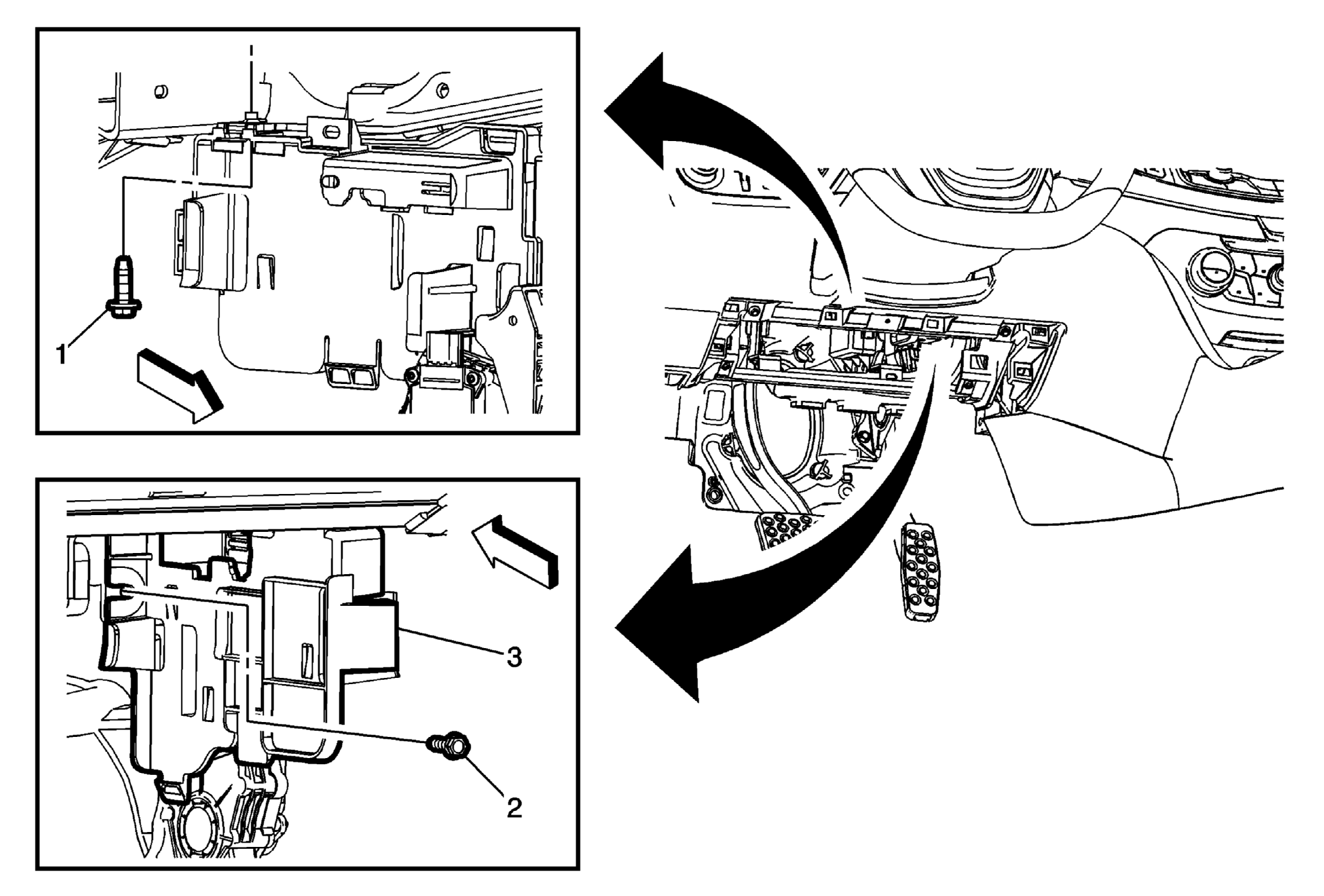

Fig 1: Communication Interface Module Bracket & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower airbag - driver side. Refer to Instrument Panel Lower Airbag Replacement - Driver Side Remove the instrument panel lower trim panel insulator panel. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Left Side . Remove the communication interface module battery to access the bracket fastener. Refer to Communication Interface Module Battery Replacement .
1	Communication Interface Module Bracket Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Communication Interface Module Bracket Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Communication Interface Module Bracket Procedure Transfer components, as necessary.
