2014 Chevrolet SSFACTORY OEM SERVICE PROCEDURE

Communication Interface Module Battery Replacement

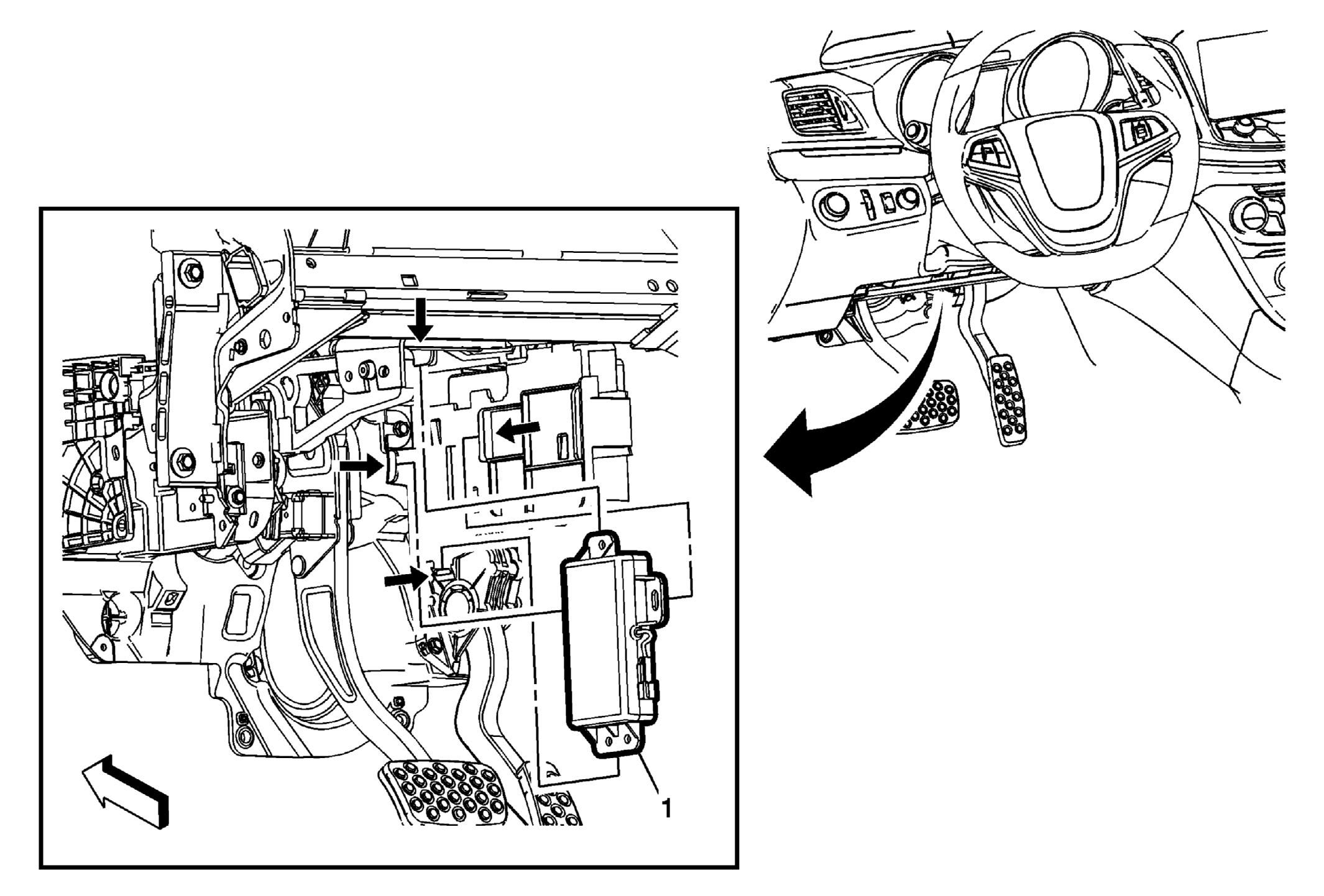

Fig 1: Communication Interface Module Battery

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the instrument panel lower airbag - drivers side. Refer to Instrument Panel Lower Airbag Replacement - Driver Side .
Remove the instrument panel lower trim panel insulator - left side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Left Side .

Communication Interface Module Battery

Procedure

Disconnect the electrical connector.
Reprogramming of the module may be necessary after losing battery power.
For programming and set up procedures, refer to Control Module References .
