2013 Chevrolet Corvette Base, 2D Convertible, Standard Trans, Trans Mfr CD 6L85M/MM6FACTORY OEM SERVICE PROCEDURE

Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LS7 or LS9) , Battery Negative Cable Disconnection and Connection (LS3) .
  2. Disconnect the positive battery cable from the battery.
  3. Remove the rear compartment carpet. Refer to Rear Compartment Floor Panel Carpet Replacement (Convertible) , Rear Compartment Floor Panel Carpet Replacement (Coupe) .
  4. Remove the passenger rear compartment front side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .
  5. Remove the right door sill plate. Refer to Door Sill Plate Replacement .
  6. Lift up the carpet to access the battery cables.

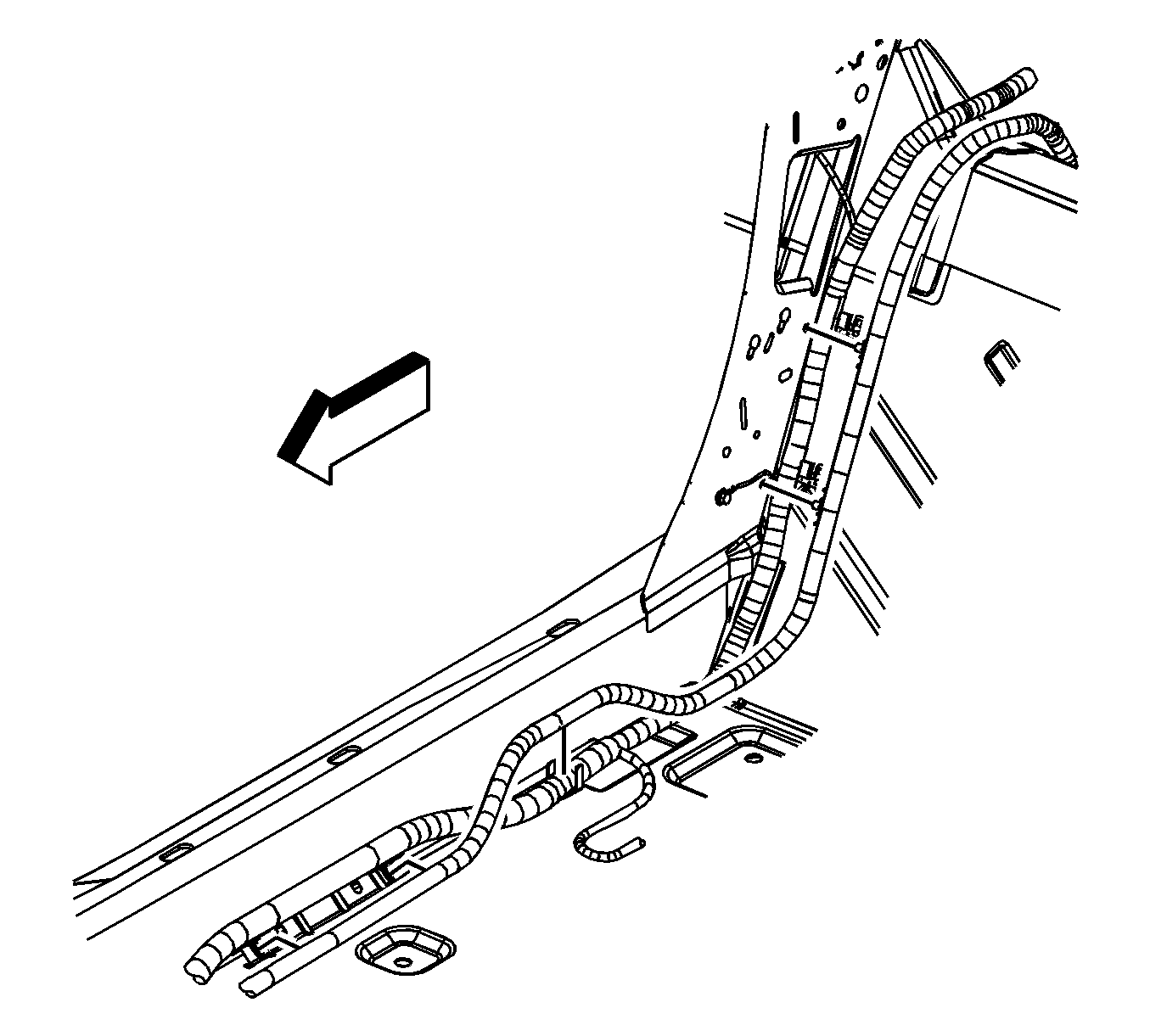

    7. Fig 1: View Of Positive Battery Cable Retainers
    GM1672703Courtesy of GENERAL MOTORS COMPANY
  7. Remove the positive battery cable retainers.

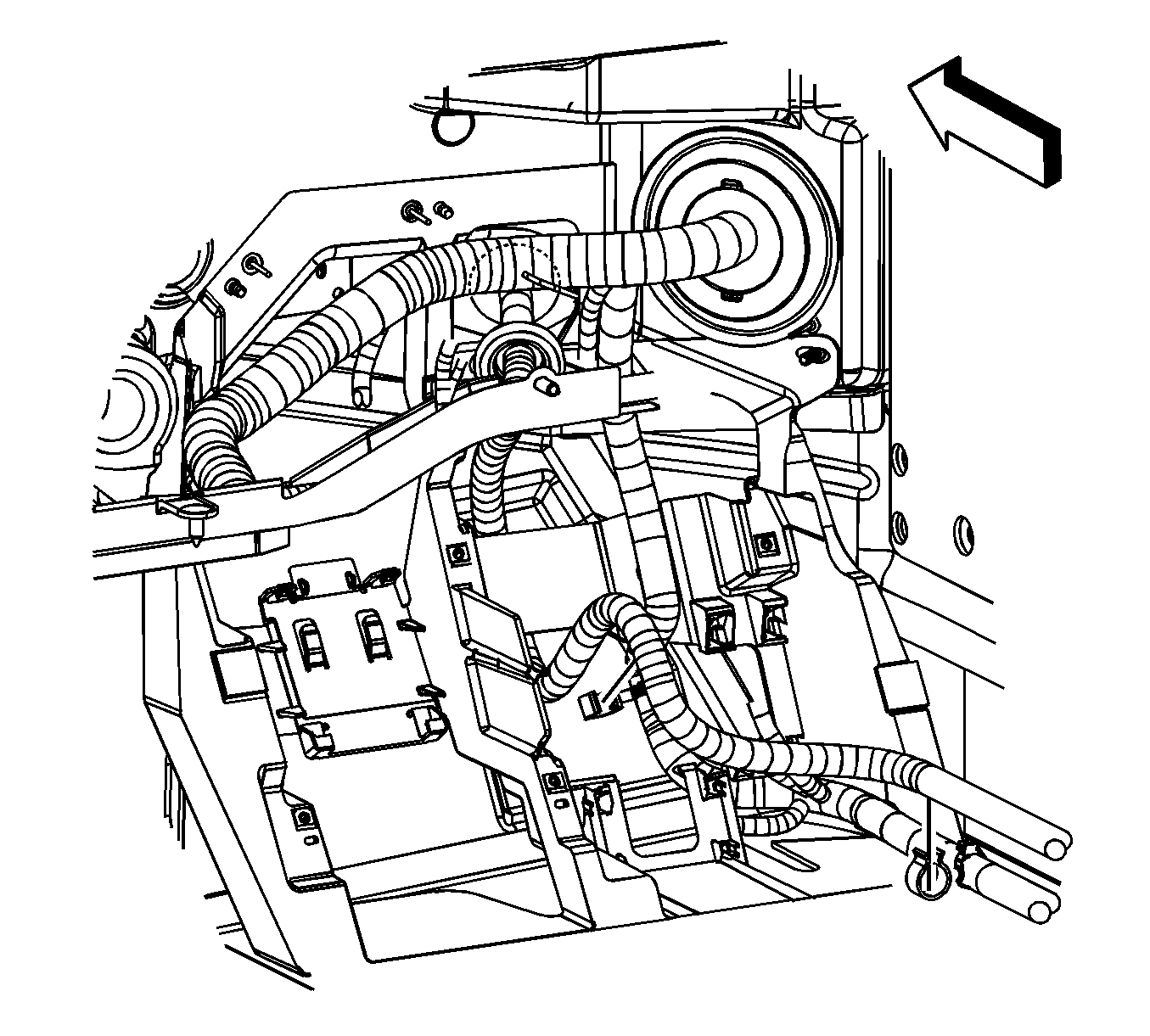

    8. Fig 2: View Of Positive Cable & Grommet
    GM1672702Courtesy of GENERAL MOTORS COMPANY
  8. Open the carpet on the fuse/relay center.

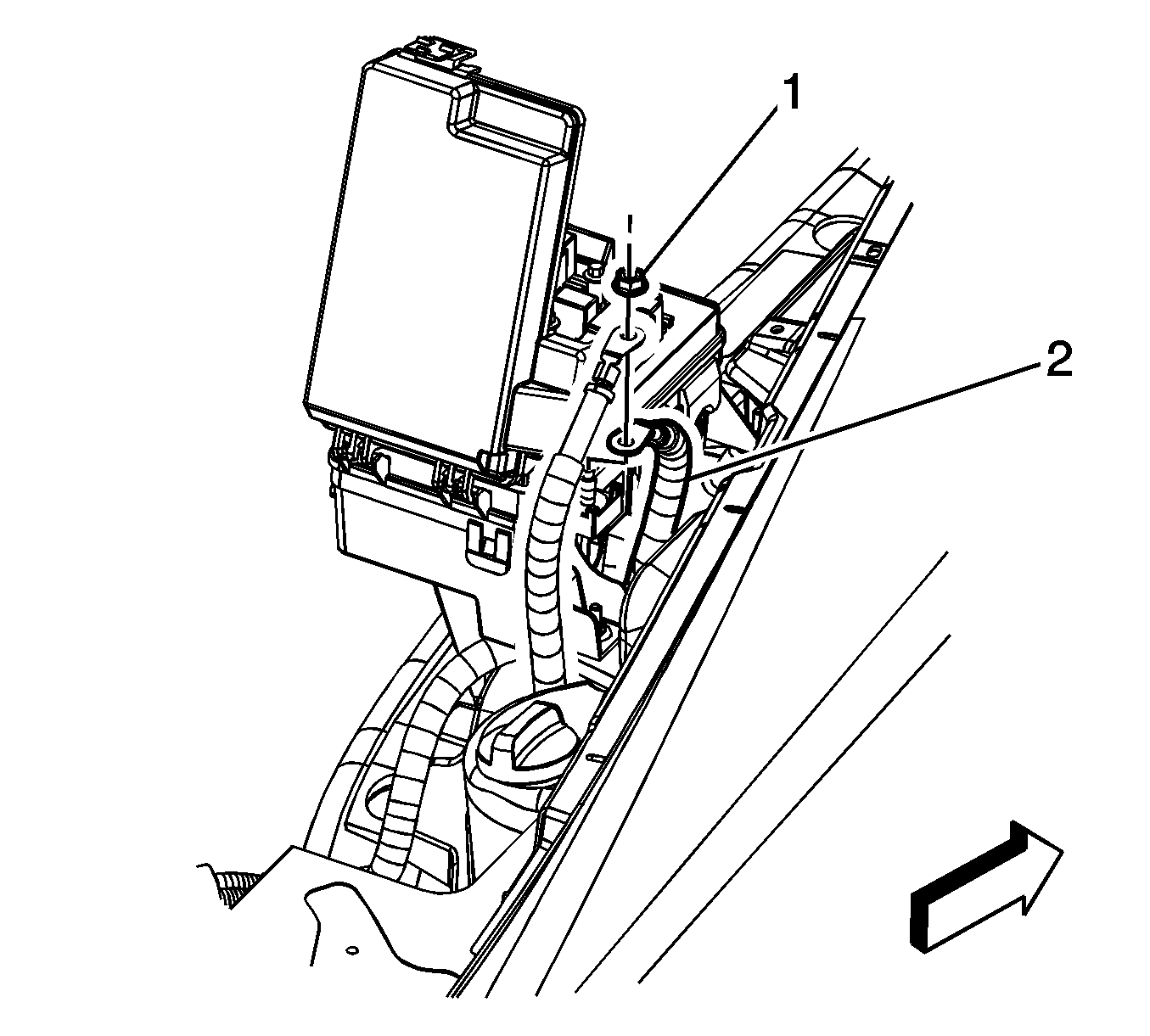

    9. Fig 3: View Of Positive Battery Cable Lead & Nut
    GM1704615Courtesy of GENERAL MOTORS COMPANY
  9. Remove the positive battery cable nut (1) from the fuse/relay center stud.
  10. Remove the positive battery cable lead (2) from the fuse/relay center stud.
  11. Remove the positive battery cable grommet from the dash panel.
  12. Pull the positive cable through the dash panel.
  13. Remove the positive battery cable.
