2011 Chevrolet CapriceFACTORY OEM SERVICE PROCEDURE
Communication Interface Module Bracket Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

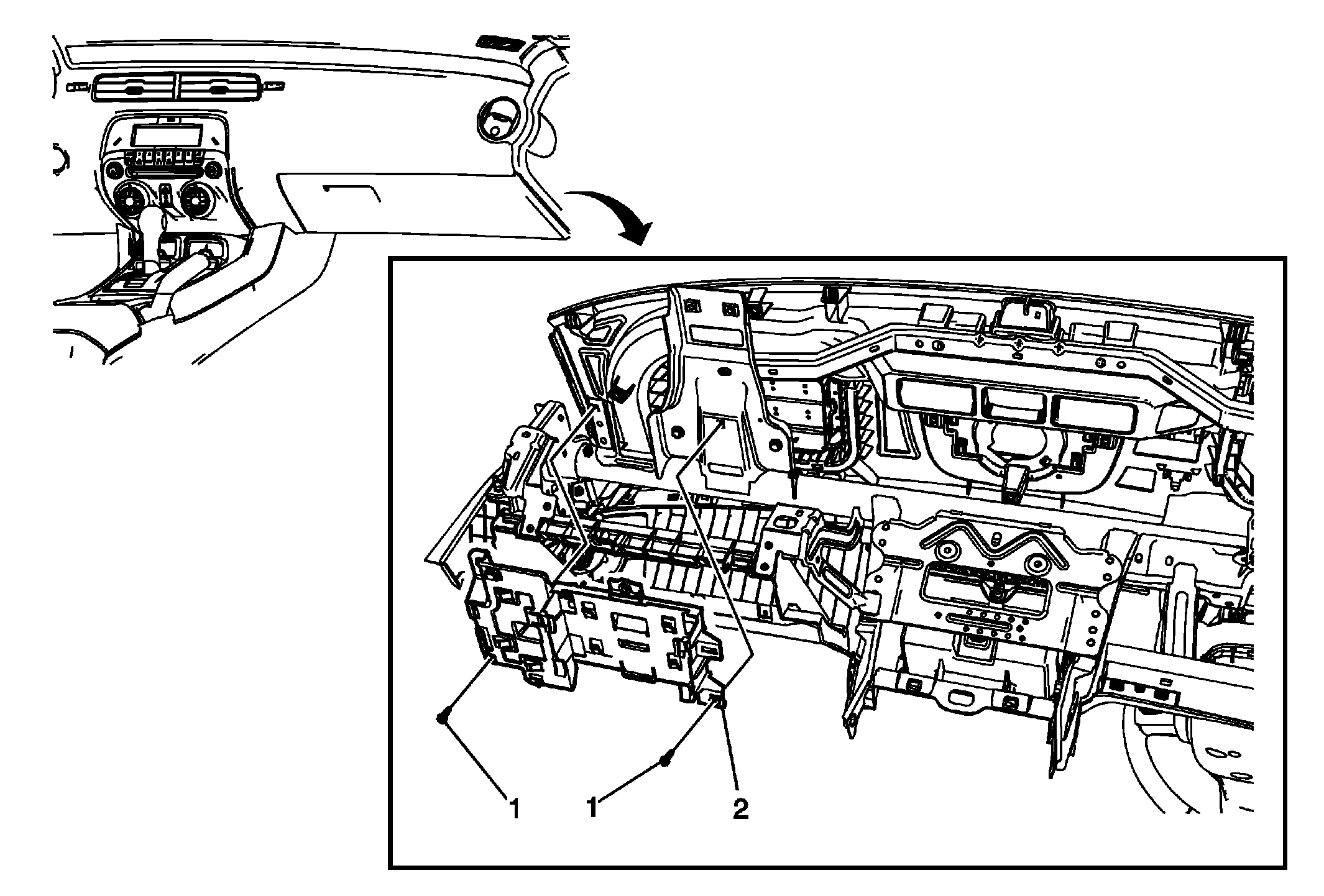

| Callout | Component Name |
|---|---|
|
Preliminary Procedure
|
|
| 1 | Communication Interface Module Bracket Bolt Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 2 | Communication Interface Module Bracket |
