2011 Chevrolet CapriceFACTORY OEM SERVICE PROCEDURE

Communication Interface Module Battery Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

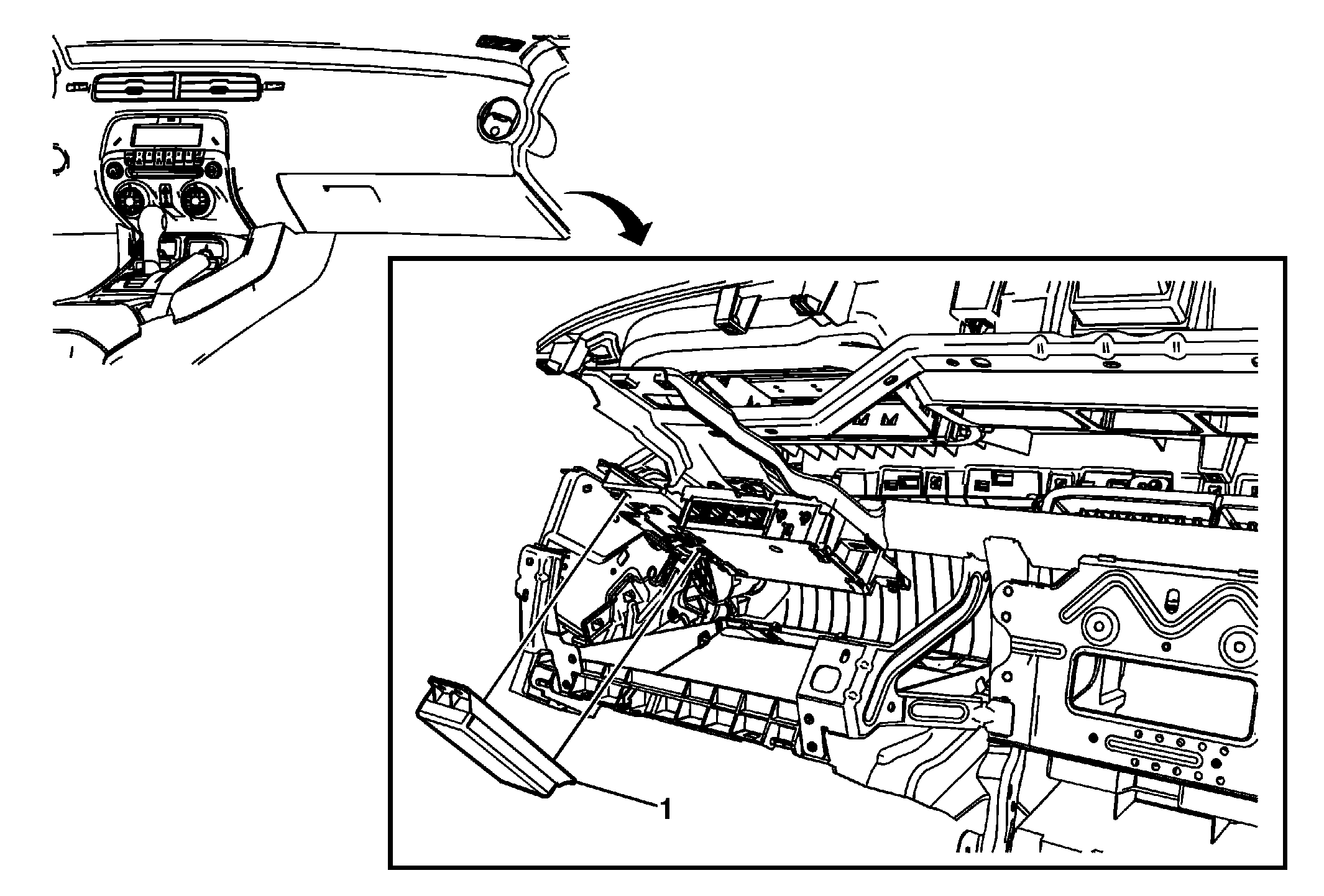

Fig 1: Communication Interface Module Battery

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .

Communication Interface Module Battery

Procedure

Disconnect the electrical connector.
Reprogramming of the Module may be necessary after losing battery power.
For programming and set up procedures, refer to Control Module References .
