HOMESERVICE MANUALSCHEVROLET2010COLORADO 4WD V8-5.3LREPAIR AND DIAGNOSISDIAGRAMSCONNECTOR VIEWSENTERTAINMENT SYSTEM CONTROL MODULE
2010 Chevrolet Colorado 4WD V8-5.3L
Entertainment System Control Module
2010 Chevrolet Colorado 4WD V8-5.3LSECTION Entertainment System Control Module
Component Connector End Views

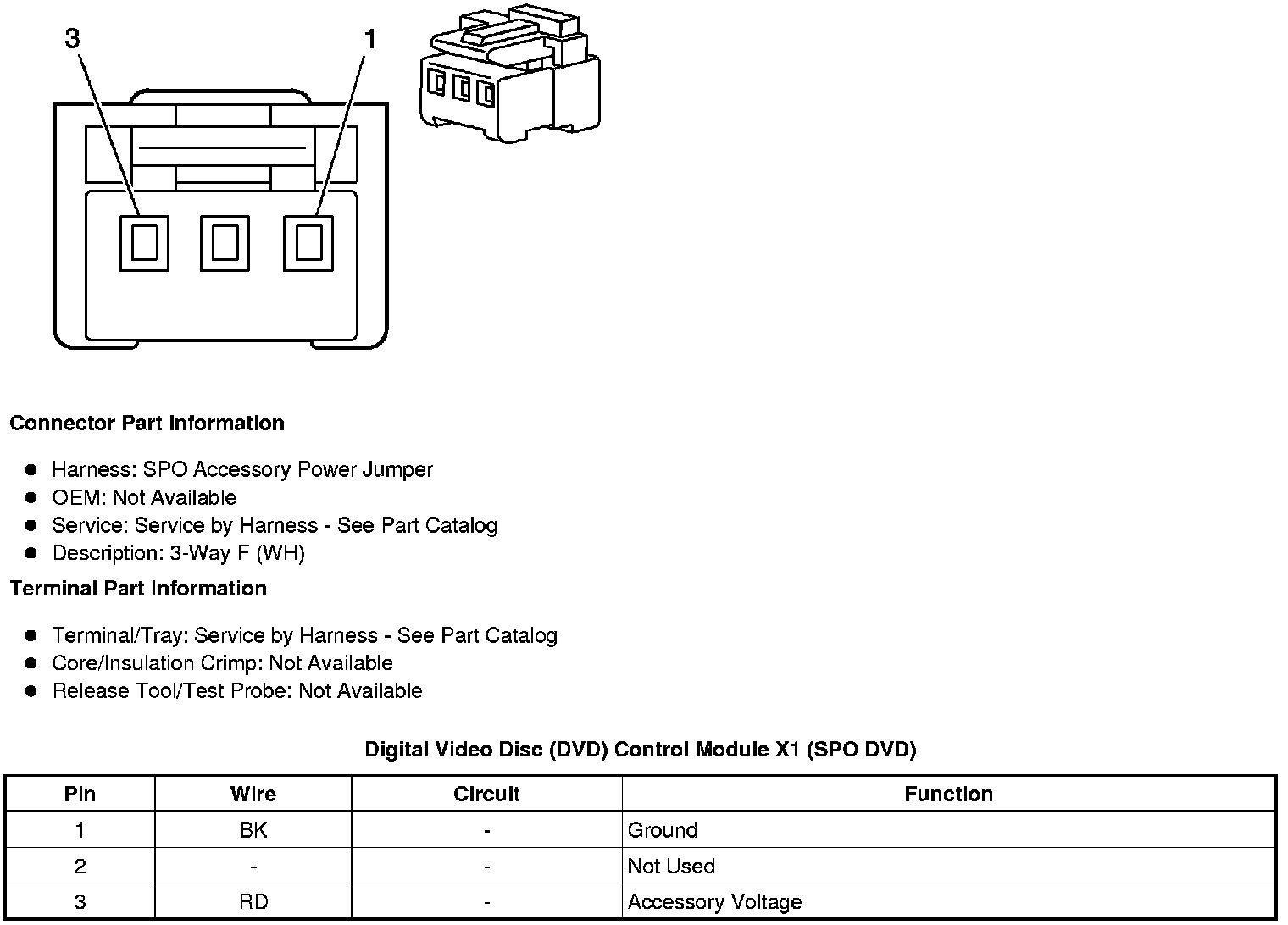

Digital Video Disc (DVD) Control Module X1 (SPO DVD)
Digital Video Disc (DVD) Control Module X2 (SPO DVD)
Digital Video Disc (DVD) Control Module X3 (SPO DVD)
Digital Video Disc (DVD) Control Module X4 (SPO DVD)

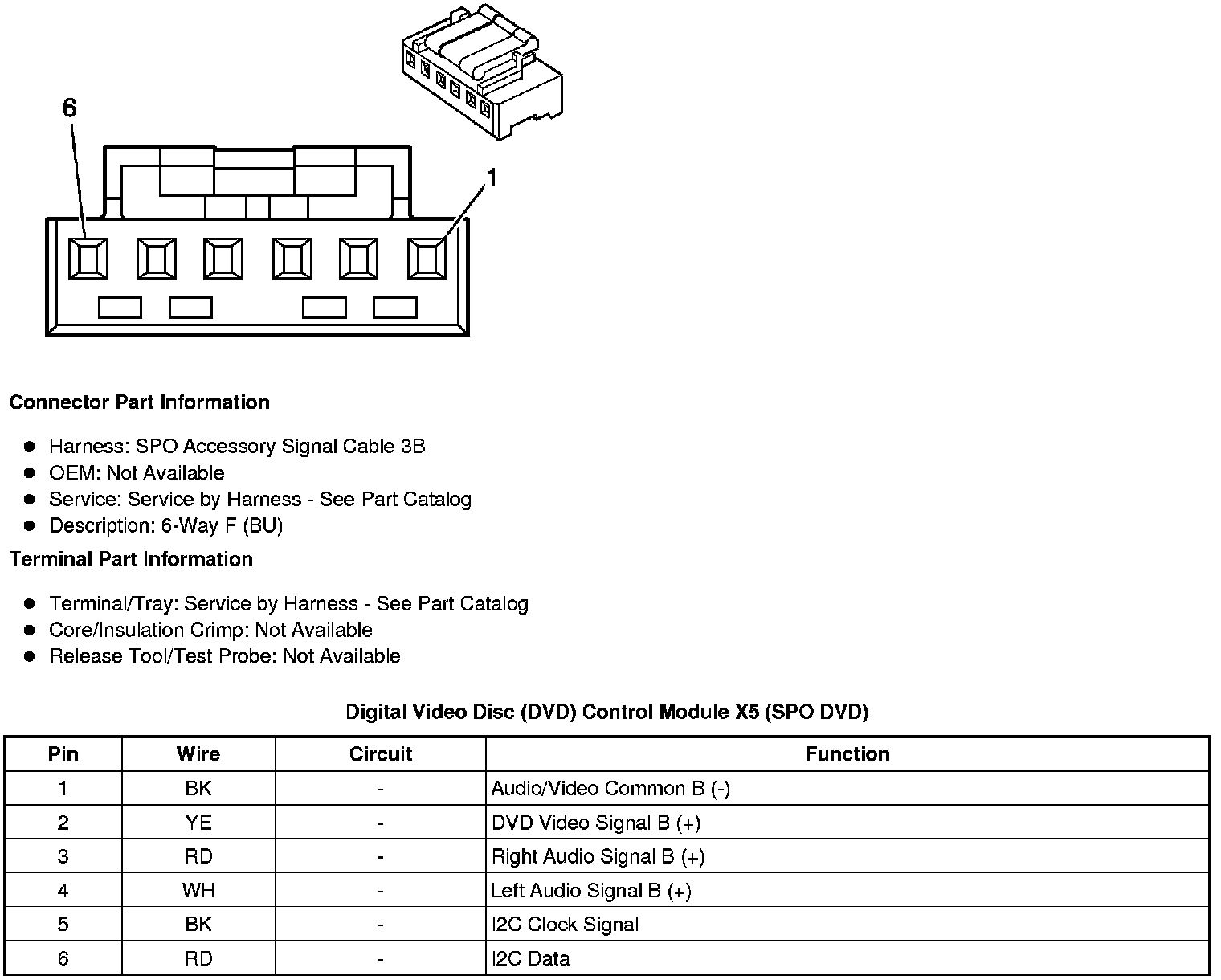

Digital Video Disc (DVD) Control Module X5 (SPO DVD)

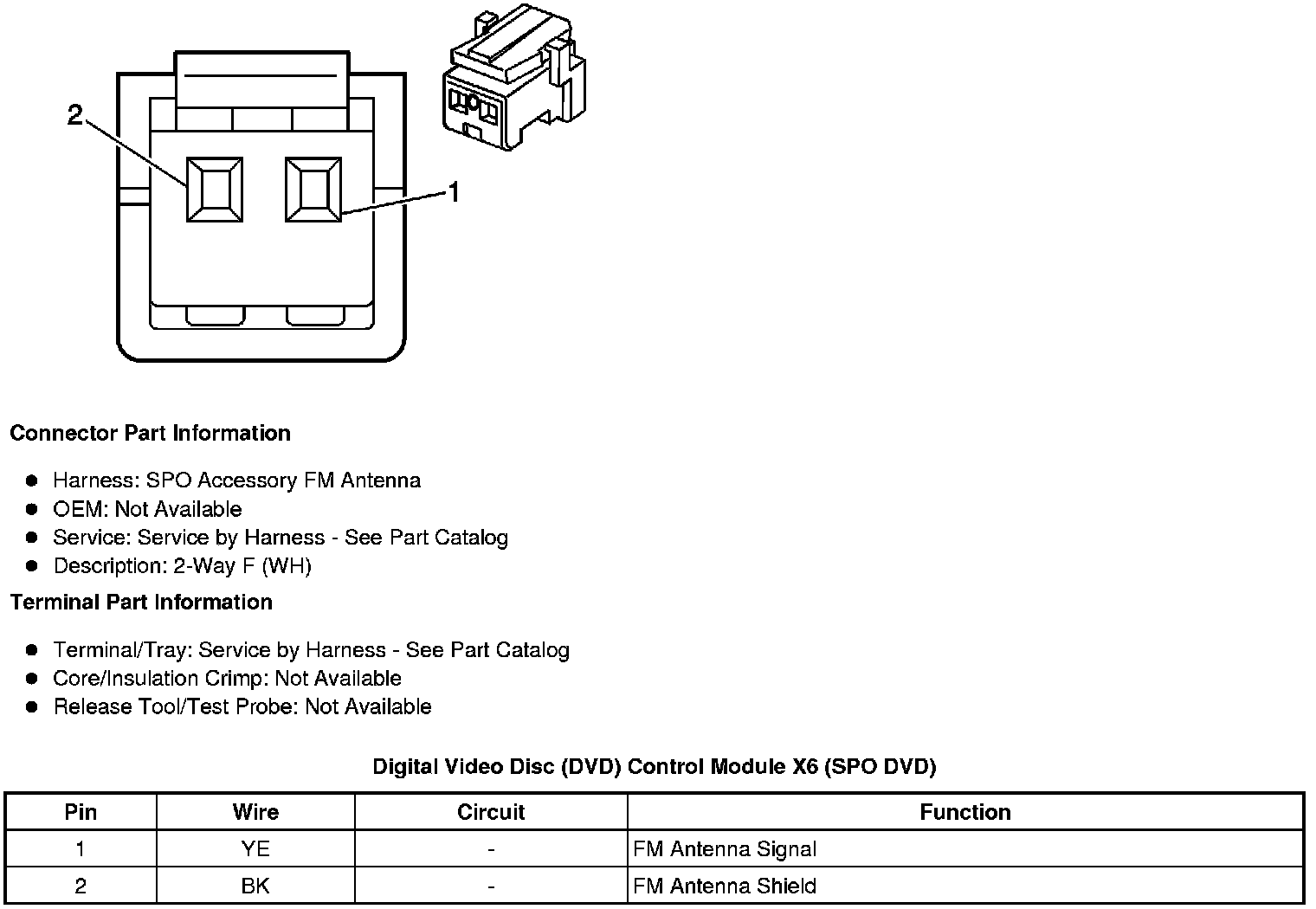

Digital Video Disc (DVD) Control Module X6 (SPO DVD)
