2008 Chevrolet Uplander V6-3.9L
Fuel Level Sensor: Service and Repair
2008 Chevrolet Uplander V6-3.9LSECTION Service and Repair
Fuel Level Sensor Replacement
Removal Procedure
1. Remove the fuel tank module. Refer to Fuel Tank Module Replacement (Short Wheel Base) (Fuel Tank Module Replacement (Short Wheel Base))Fuel Tank Module Replacement (Long Wheel Base) (Fuel Tank Module Replacement (Long Wheel Base)).

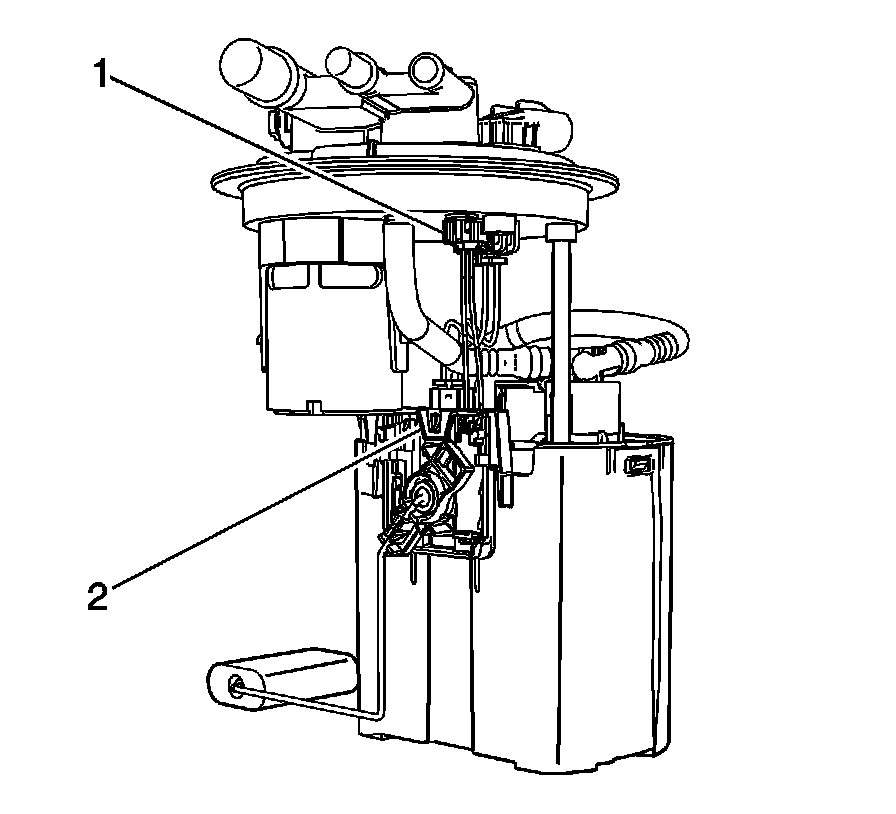

2. Disconnect the fuel level sensor electrical connector (1) from under the cover.
3. Gently lift up the retainer (2) and slide the sensor down off of the bucket.
Installation Procedure
1. Slide the NEW sensor up along the bucket until the retainer (2) is engaged.
2. Connect the fuel level sensor electrical connector (1) under the cover.
3. Install the fuel tank module. Refer to Fuel Tank Module Replacement (Short Wheel Base) (Fuel Tank Module Replacement (Short Wheel Base))Fuel Tank Module Replacement (Long Wheel Base) (Fuel Tank Module Replacement (Long Wheel Base)).
