2003 Chevrolet Express 1/2 Ton Van V6-4.3L VIN XFACTORY OEM SERVICE PROCEDURE
Wiper Motor Module Replacement
WIPER MOTOR MODULE REPLACEMENT
REMOVAL PROCEDURE
1. Remove the wiper motor fuse. The wiper motor fuse is located in the instrument panel electrical center.
2. Remove the wiper arm assemblies.

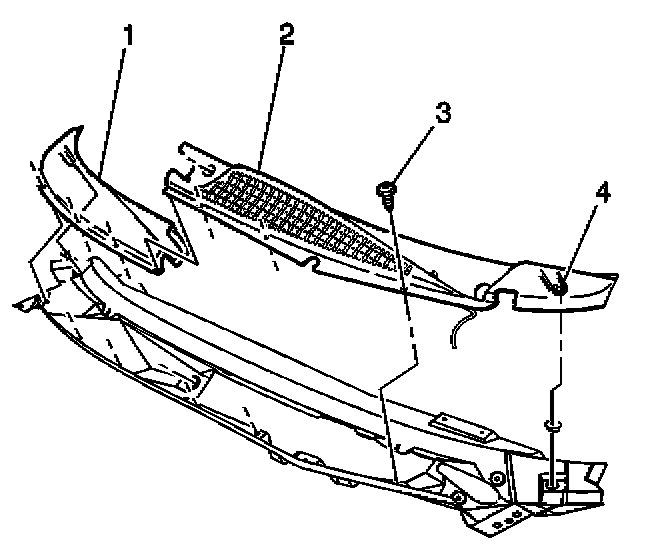

3. Remove the air inlet grille (1,2).

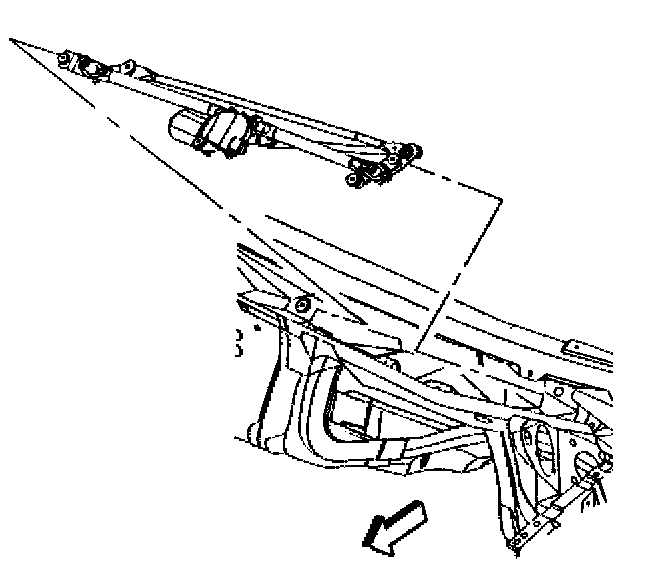

4. Remove the wiper motor module mounting bolts.
5. Disconnect the wiper motor electrical connector.
6. Remove the wiper motor module from the vehicle.
INSTALLATION PROCEDURE

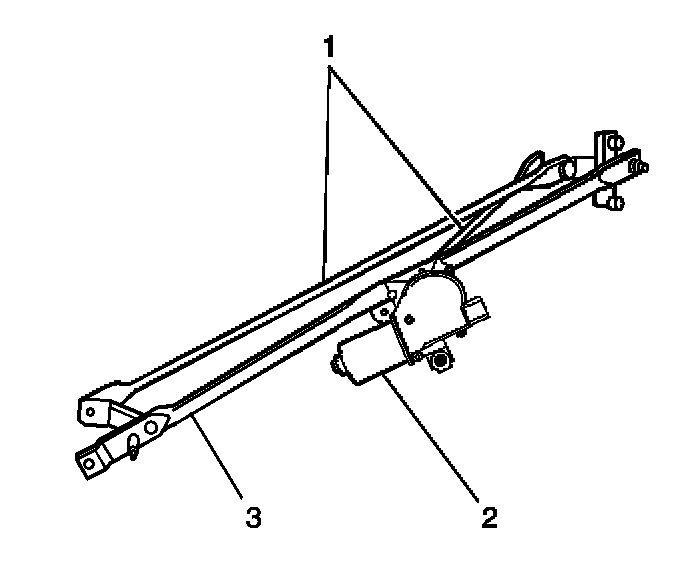

1. Place the wiper motor module (3) into the vehicle.
2. Connect the wiper motor module electrical connector.
3. Align the wiper motor module studs to the cowl vent.
4. Install the nuts.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the nuts to 10 N.m (89 lb in).

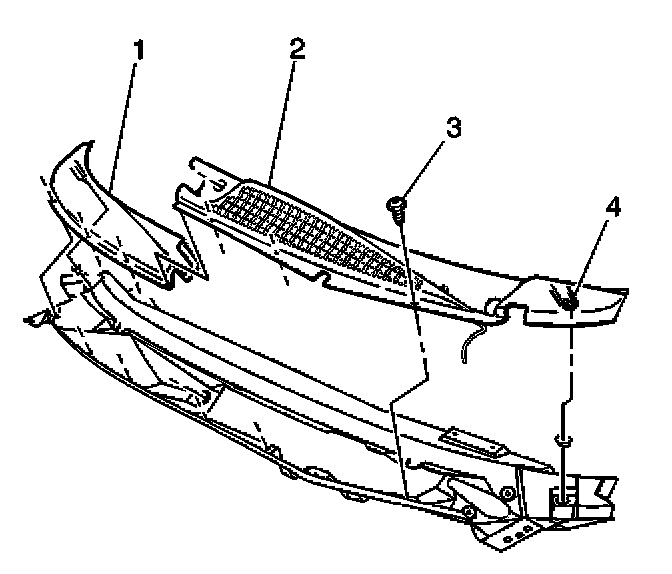

5. Install the air inlet grille (1,2).
6. Install the wiper arm assemblies.
7. Install the wiper motor fuse.
REMOVAL PROCEDURE
1. Remove the wiper motor fuse. The wiper motor fuse is located in the instrument panel electrical center.
2. Remove the wiper arm assemblies.
3. Remove the air inlet grille (1,2).
4. Remove the wiper motor module mounting bolts.
5. Disconnect the wiper motor electrical connector.
6. Remove the wiper motor module from the vehicle.
INSTALLATION PROCEDURE
1. Place the wiper motor module (3) into the vehicle.
2. Connect the wiper motor module electrical connector.
3. Align the wiper motor module studs to the cowl vent.
4. Install the nuts.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the nuts to 10 N.m (89 lb in).
5. Install the air inlet grille (1,2).
6. Install the wiper arm assemblies.
7. Install the wiper motor fuse.
