2003 Chevrolet Express 1/2 Ton Van V6-4.3L VIN XFACTORY OEM SERVICE PROCEDURE

Rear Door Window Glass: Service and Repair



Hinged Rear Window Replacement

Removal Procedure

1. Remove the rear door trim panel.
Caution: Refer to Glass and Sheet Metal Handling Caution in Cautions and Notices.
2. Use safety glasses and gloves.

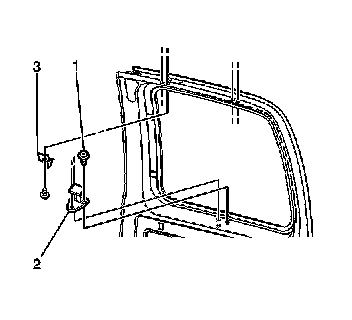

Factory service manual diagram



3. Remove the screws (1) that retain the latch to the door.
4. Remove the screws that retain the hinge (3) to the door.
5. Remove the window assembly from the vehicle.



Installation Procedure

1. Install the window assembly to the vehicle.

Factory service manual diagram




Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws that retain the hinge (3) to the door.

Tighten the screws to 3 N.m (27 lb in).

3. Install the screws (1) that retain the latch to the door.

Tighten the screws to 3 N.m (27 lb in).

4. Install the rear door trim panel.
