2003 Chevrolet Express 1/2 Ton Van V6-4.3L VIN XFACTORY OEM SERVICE PROCEDURE

Body Wiring Harness Junction Block Replacement

BODY WIRING HARNESS JUNCTION BLOCK REPLACEMENT

REMOVAL PROCEDURE

Caution: Refer to SIR Caution in Service Precautions.

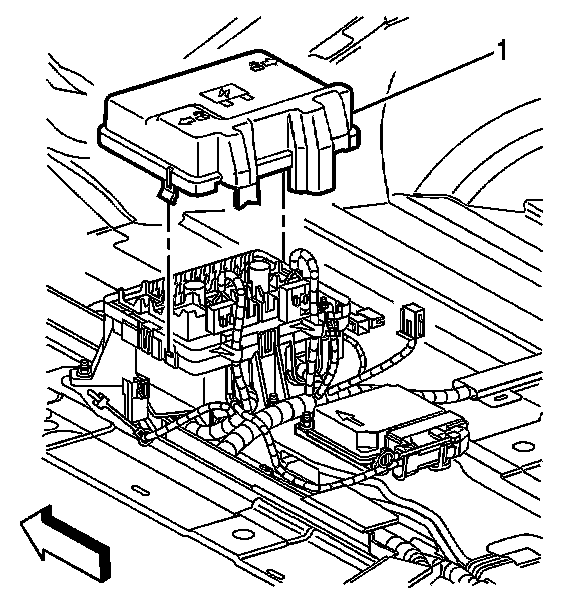

Factory service manual diagram



1. Disconnect the battery negative cable.
2. Remove the drivers seat.
3. Remove the junction block cover (1).

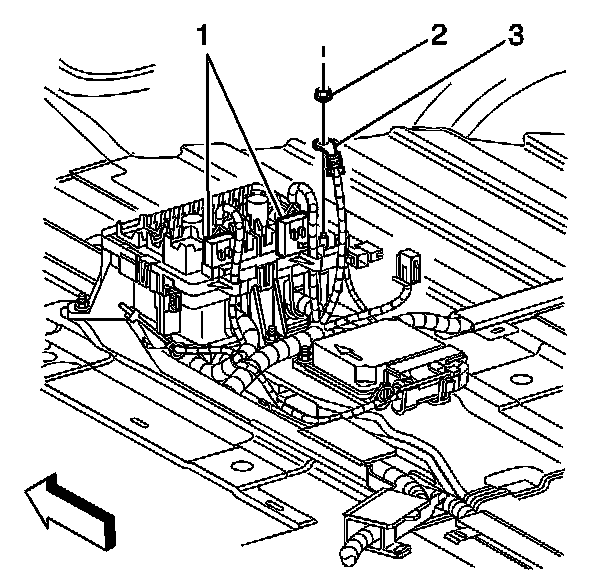

Factory service manual diagram



4. Remove the positive battery cable nut (2) from the junction block.
5. Remove the positive battery cable (3) from the junction block.
6. Disconnect the electrical connectors (1) from the junction block, if equipped with YF7.

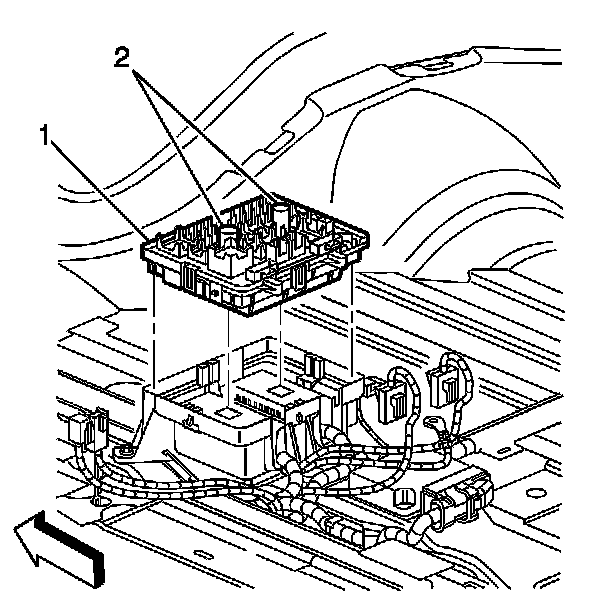

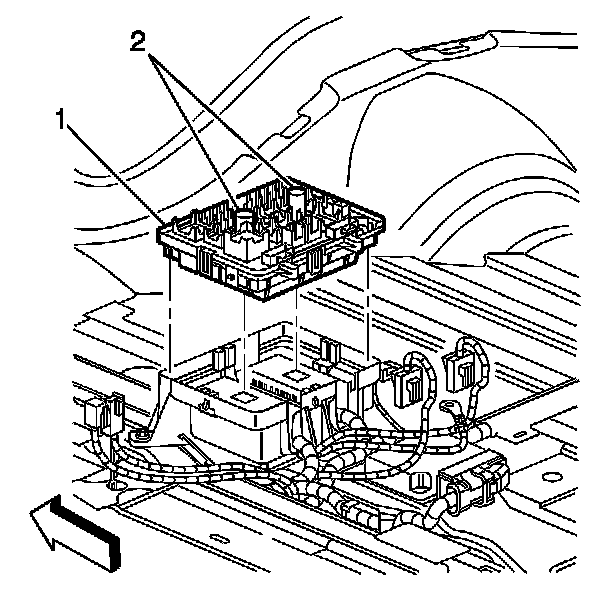

Factory service manual diagram



7. Completely loosen the junction block caged bolts (2).
8. Release the tabs that retain the junction block (1) to the junction block base.
9. Remove the junction block (1) from the block base.

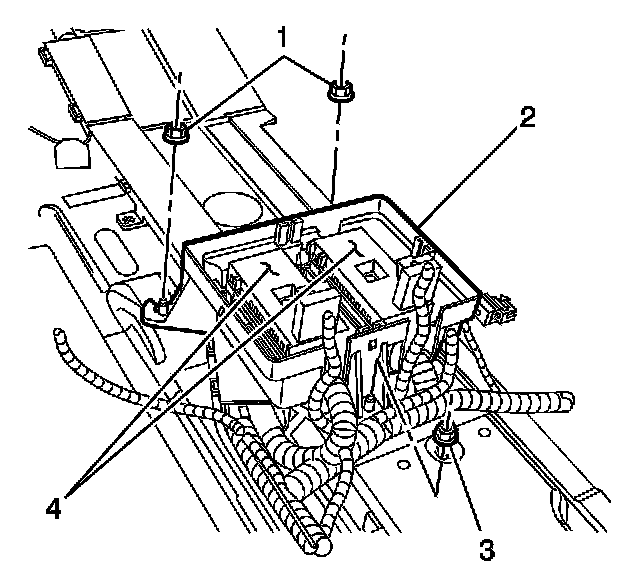

Factory service manual diagram



10. Remove the junction block base nuts (1, 3).
11. Remove the wiring harness (4) from the junction block base (2).
12. Remove the junction block base (4) from the floor.

INSTALLATION PROCEDURE

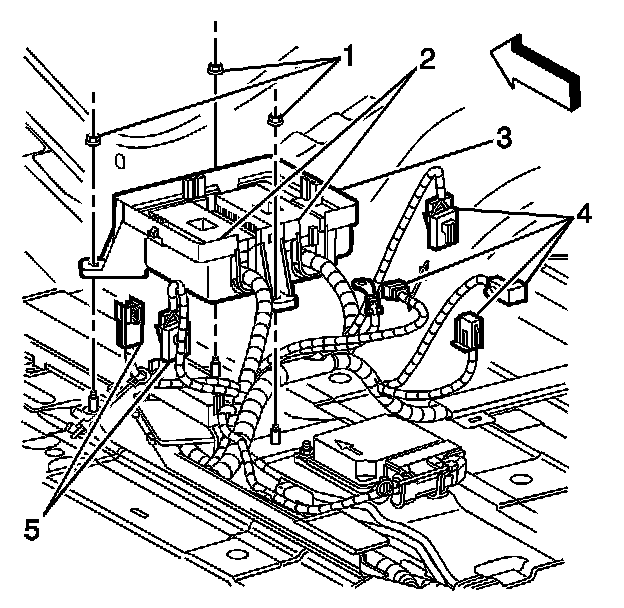

Factory service manual diagram



1. Install the wiring harness (2) to the junction block base (3).
2. Install the junction block base (3) to the floor studs. Ensure the remaining electrical connections (4, 5) are not captured under the junction block base after installations the floor studs.

NOTE: Refer to Fastener Notice in Service Precautions.

Factory service manual diagram



3. Install the junction block base nuts (1) to the floor studs.

Tighten
Tighten the block base nuts to 5 N.m (44 lb in).

4. Install the junction block (1) to the junction block base. Ensure the retaining tabs are fully seated.

Tighten
Tighten the bolts (2) to 5 N.m (44 lb in).

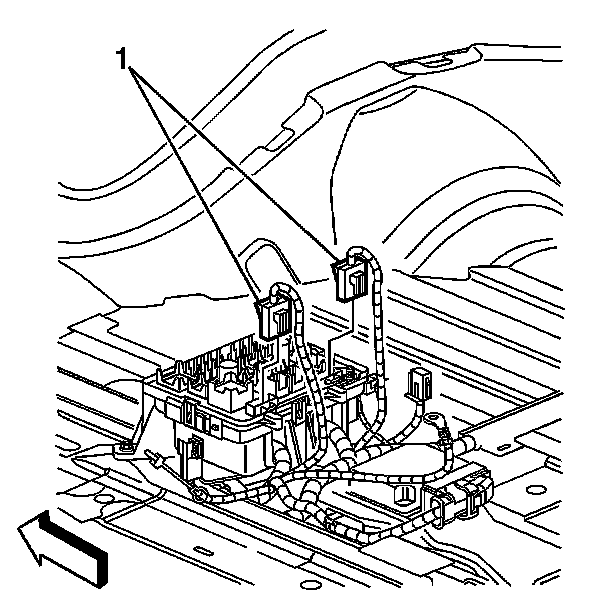

Factory service manual diagram



5. Connect the electrical connectors (1), if equipped with YF7.

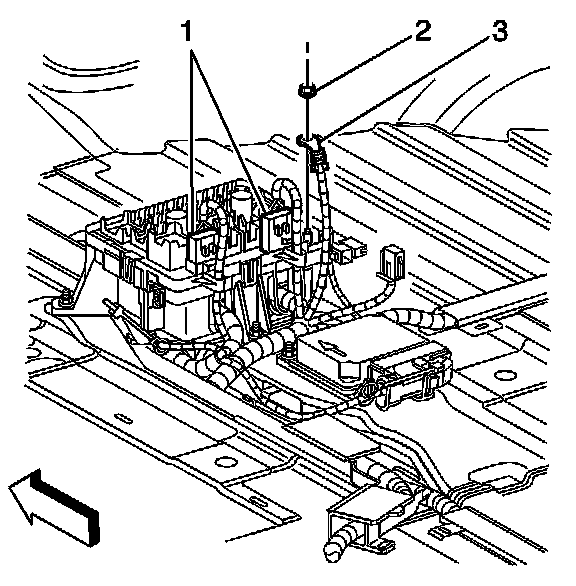

Factory service manual diagram



6. Connect the positive battery cable (3) to the junction block.
7. Install the positive battery cable nut (2).

Tighten
Tighten the nut to (2) to 10 N.m (88 lb in).

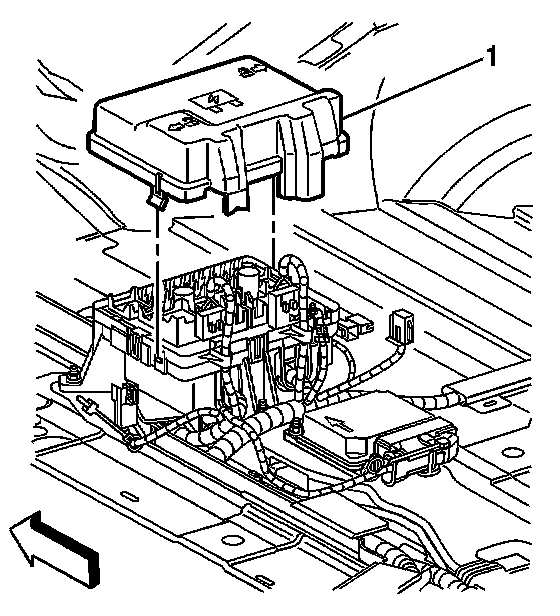

Factory service manual diagram



8. Install the junction block cover (1).
9. Install the drivers seat.
10. Connect the battery negative cable.
