2003 Chevrolet Express 1/2 Ton Van V6-4.3L VIN XFACTORY OEM SERVICE PROCEDURE
Audible Warning Device Control Module: Service and Repair
MULTIFUNCTION ALARM MODULE REPLACEMENT
REMOVAL PROCEDURE

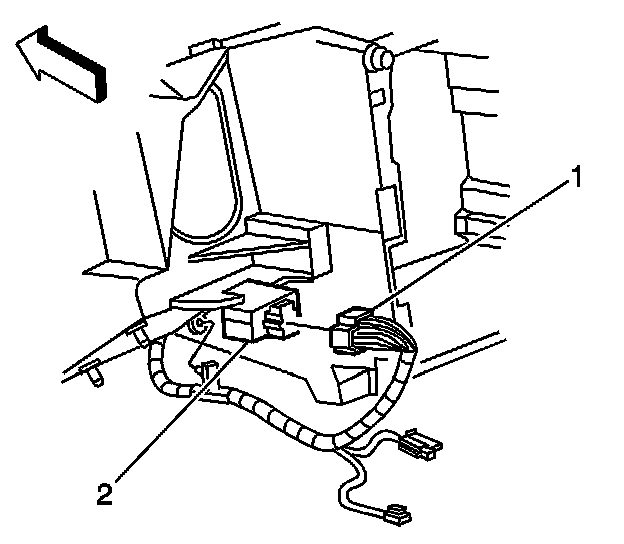

1. Remove the drivers side knee bolster.
2. Disconnect the multi-function audio alarm module (2) electrical connector (1).
3. Remove the multi-function audio alarm module (2) from the vehicle.
INSTALLATION PROCEDURE
1. Install the multi-function audio alarm module (2) to the mag beam.
2. Connect the electrical connector (1) to the multi-function audio alarm module (2).
3. Install the drivers side knee bolster.
REMOVAL PROCEDURE

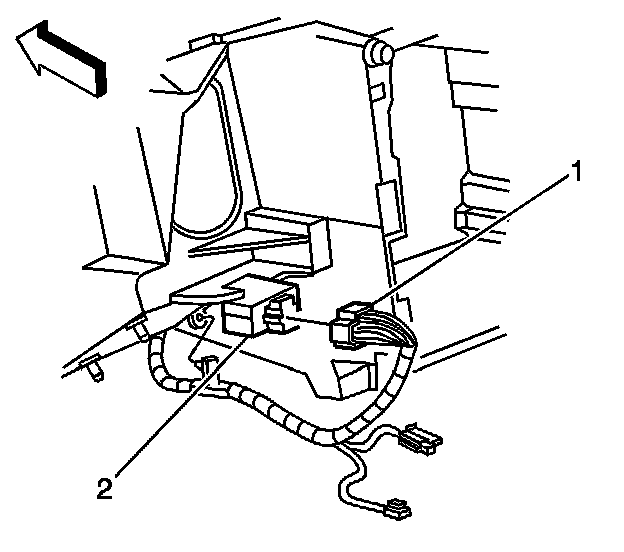

1. Remove the drivers side knee bolster.
2. Disconnect the multi-function audio alarm module (2) electrical connector (1).
3. Remove the multi-function audio alarm module (2) from the vehicle.
INSTALLATION PROCEDURE
1. Install the multi-function audio alarm module (2) to the mag beam.
2. Connect the electrical connector (1) to the multi-function audio alarm module (2).
3. Install the drivers side knee bolster.
