2003 Chevrolet Express 1/2 Ton Van V6-4.3L VIN XFACTORY OEM SERVICE PROCEDURE
Body Control Module: Service and Repair
BODY CONTROL MODULE REPLACEMENT
REMOVAL PROCEDURE
1. Remove the right side knee bolster trim panel.

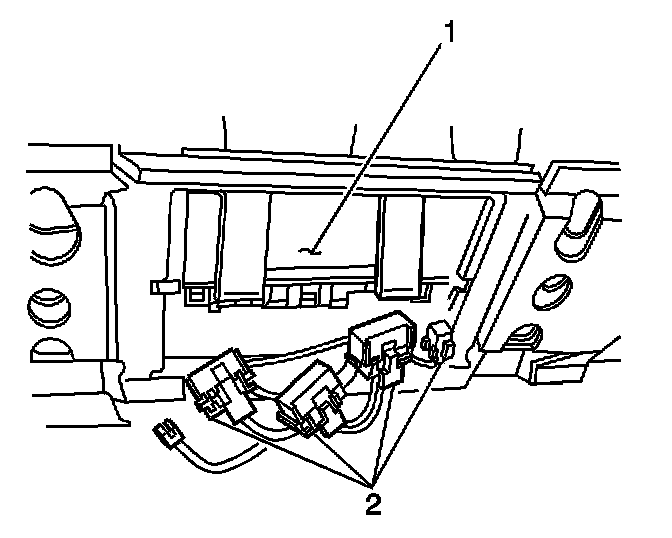

2. Disconnect the electrical connectors (2) from the Body Control Module (BCM) (1).

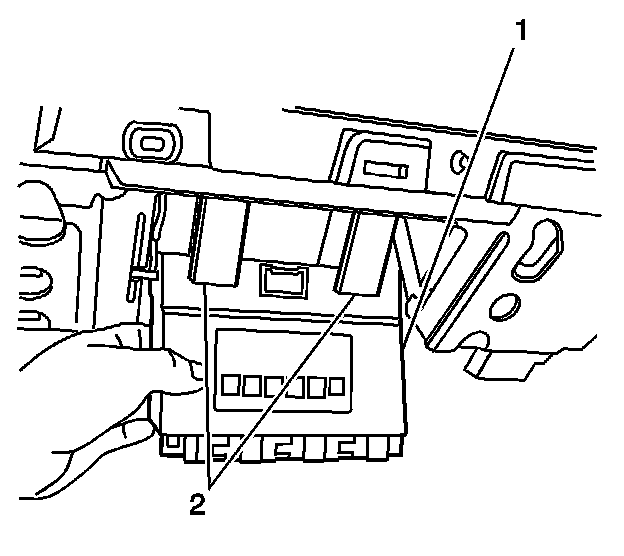

3. Release the tabs (2) retaining the BCM (1) to the bracket.
4. Remove the BCM (1) from the vehicle.
INSTALLATION PROCEDURE

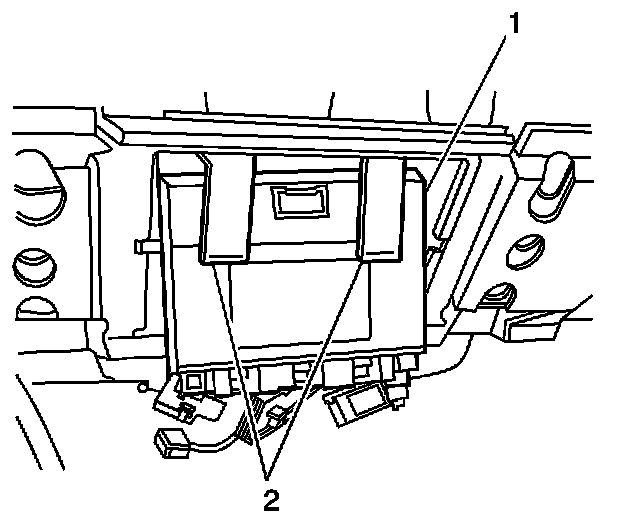

1. Install the BCM (1) into the bracket.
Ensure the BCM (1) is engaged in the bracket, under the retaining tabs (2).
2. Connect the electrical connectors (2) to the BCM (1).
3. Install the right side knee bolster trim panel.
4. If the BCM has been replaced the module will need to be programed.
Program the BCM. Programming and Relearning
REMOVAL PROCEDURE
1. Remove the right side knee bolster trim panel.
2. Disconnect the electrical connectors (2) from the Body Control Module (BCM) (1).
3. Release the tabs (2) retaining the BCM (1) to the bracket.
4. Remove the BCM (1) from the vehicle.
INSTALLATION PROCEDURE
1. Install the BCM (1) into the bracket.
Ensure the BCM (1) is engaged in the bracket, under the retaining tabs (2).
2. Connect the electrical connectors (2) to the BCM (1).
3. Install the right side knee bolster trim panel.
4. If the BCM has been replaced the module will need to be programed.
Program the BCM. Programming and Relearning
