2003 Chevrolet Express 1/2 Ton Van V6-4.3L VIN XFACTORY OEM SERVICE PROCEDURE

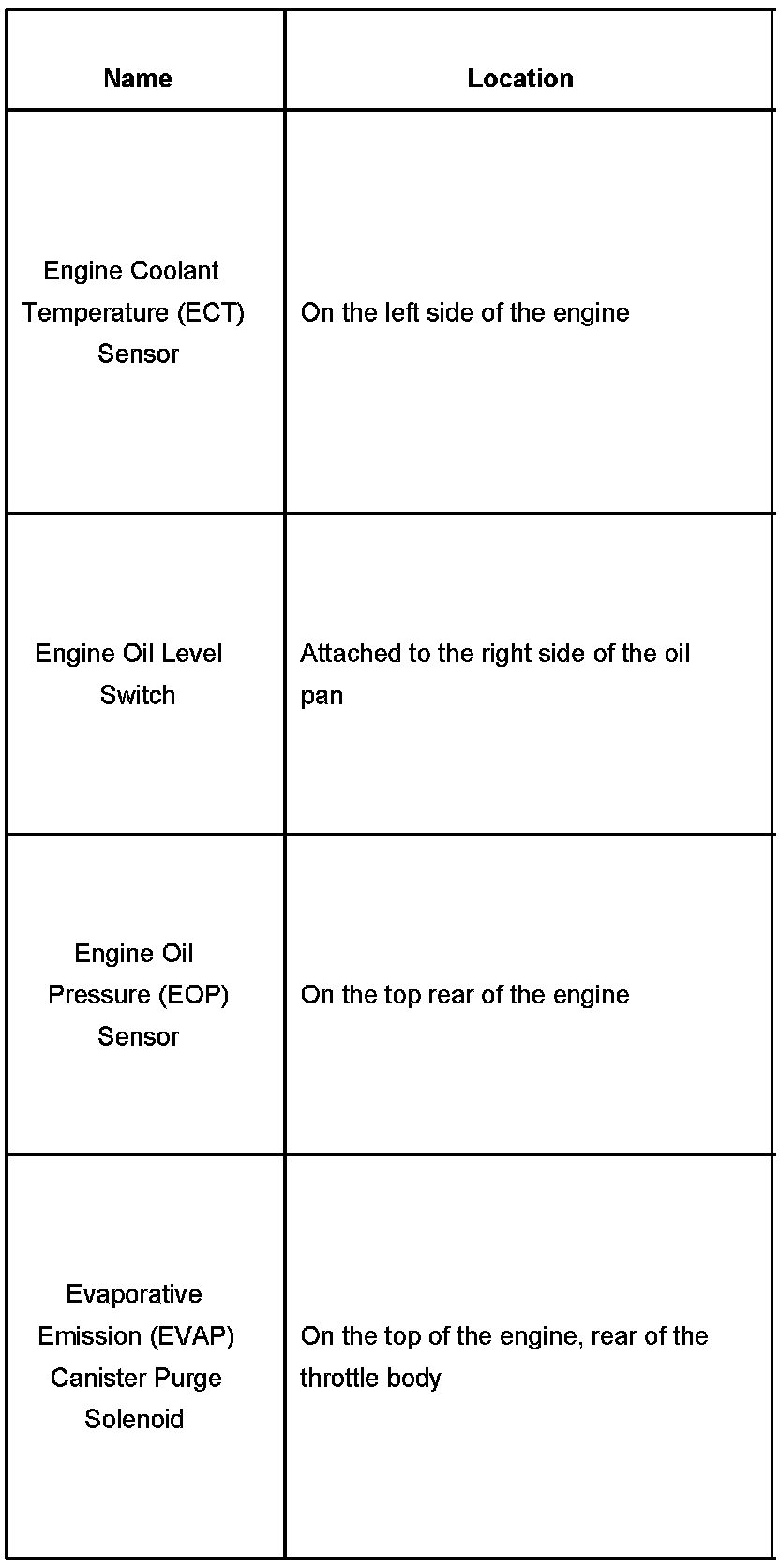

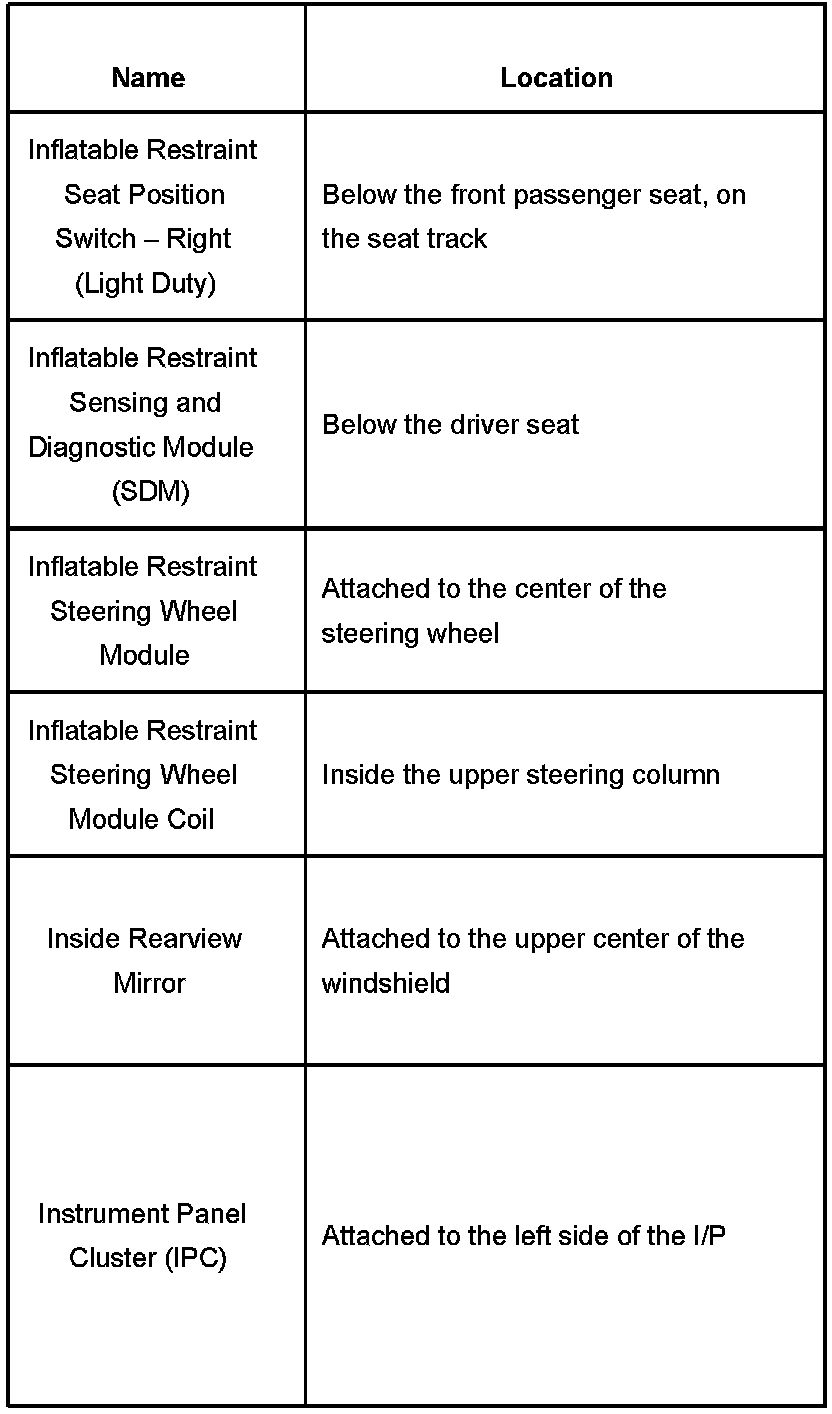

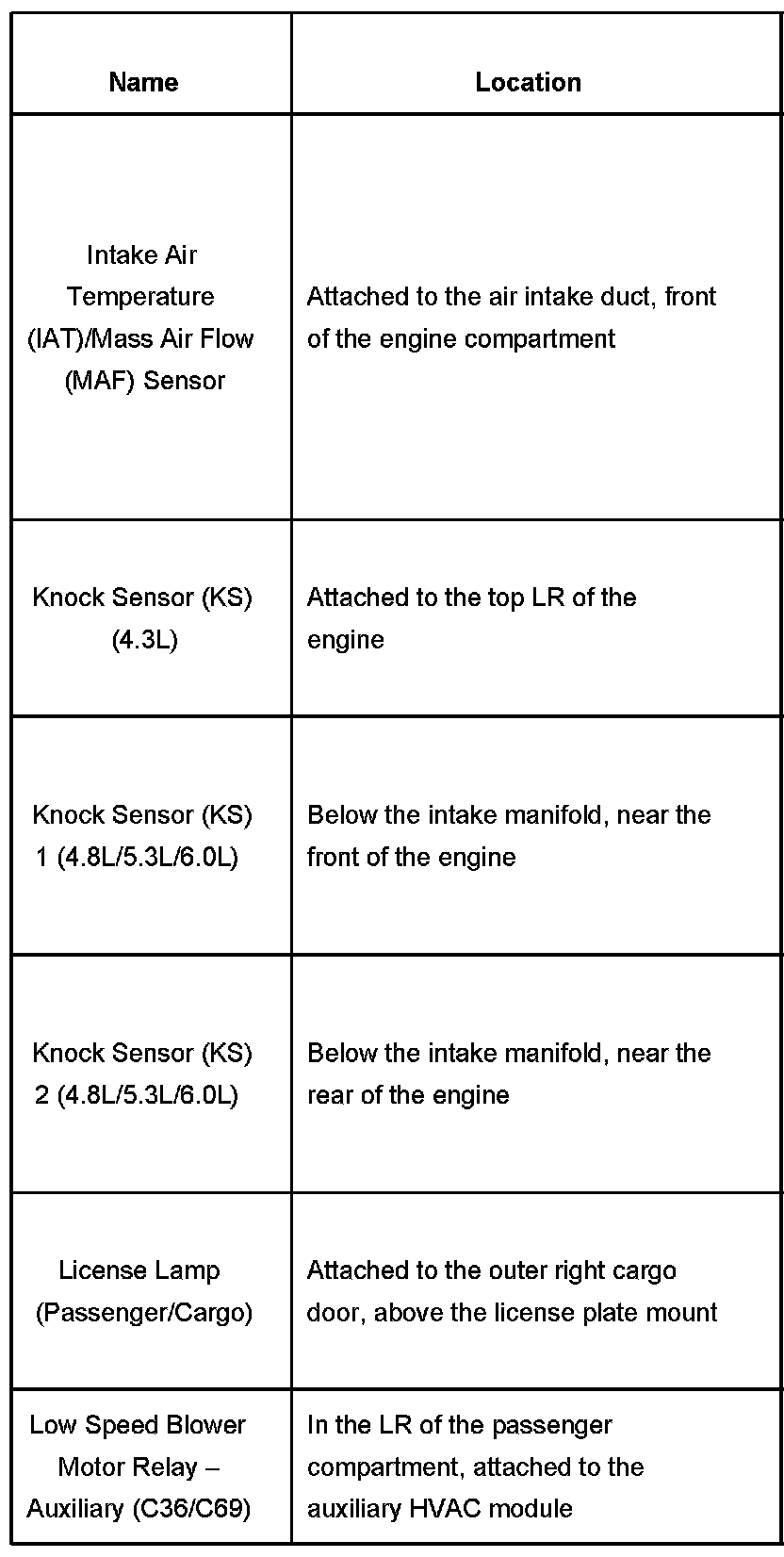

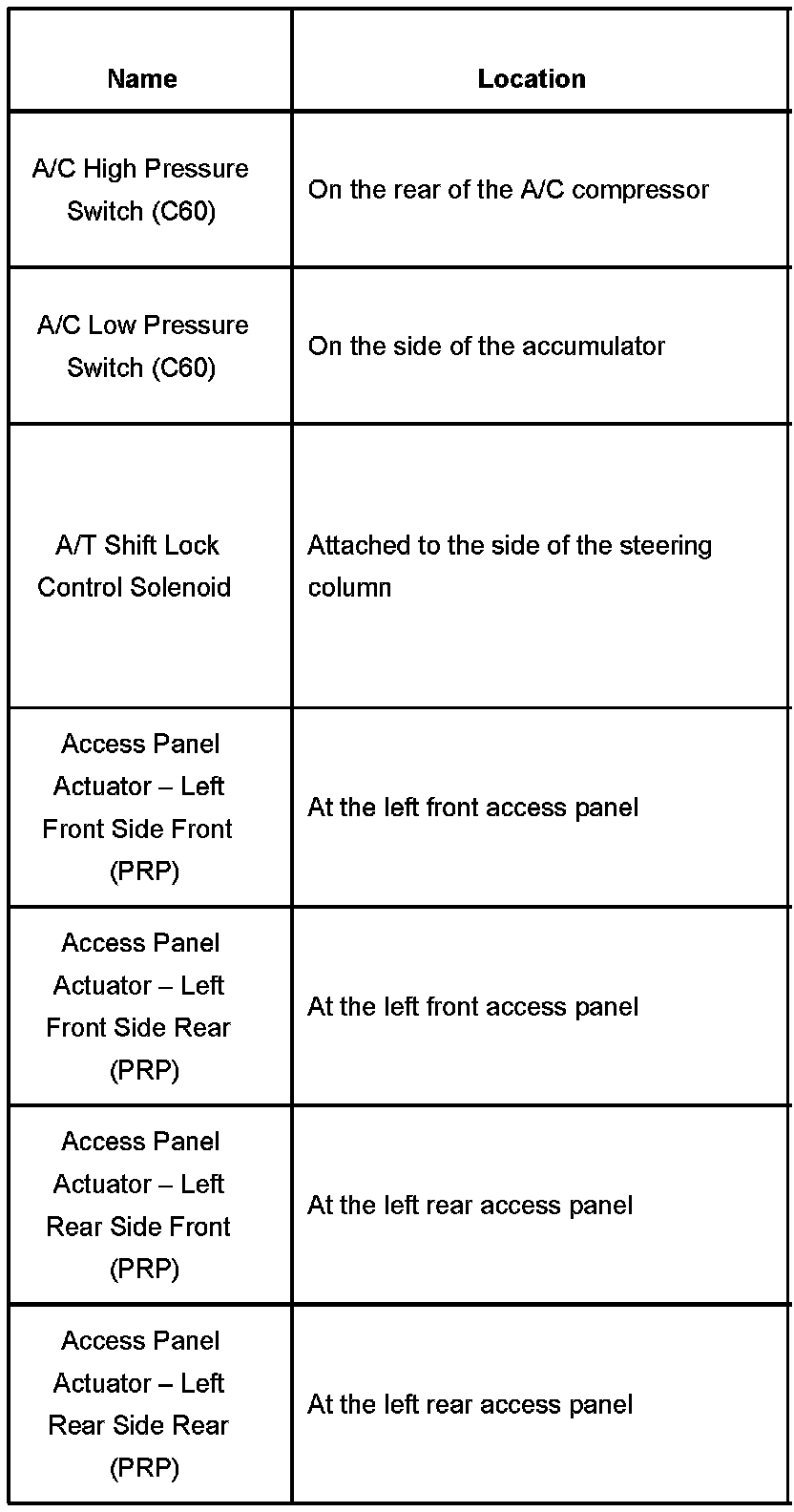

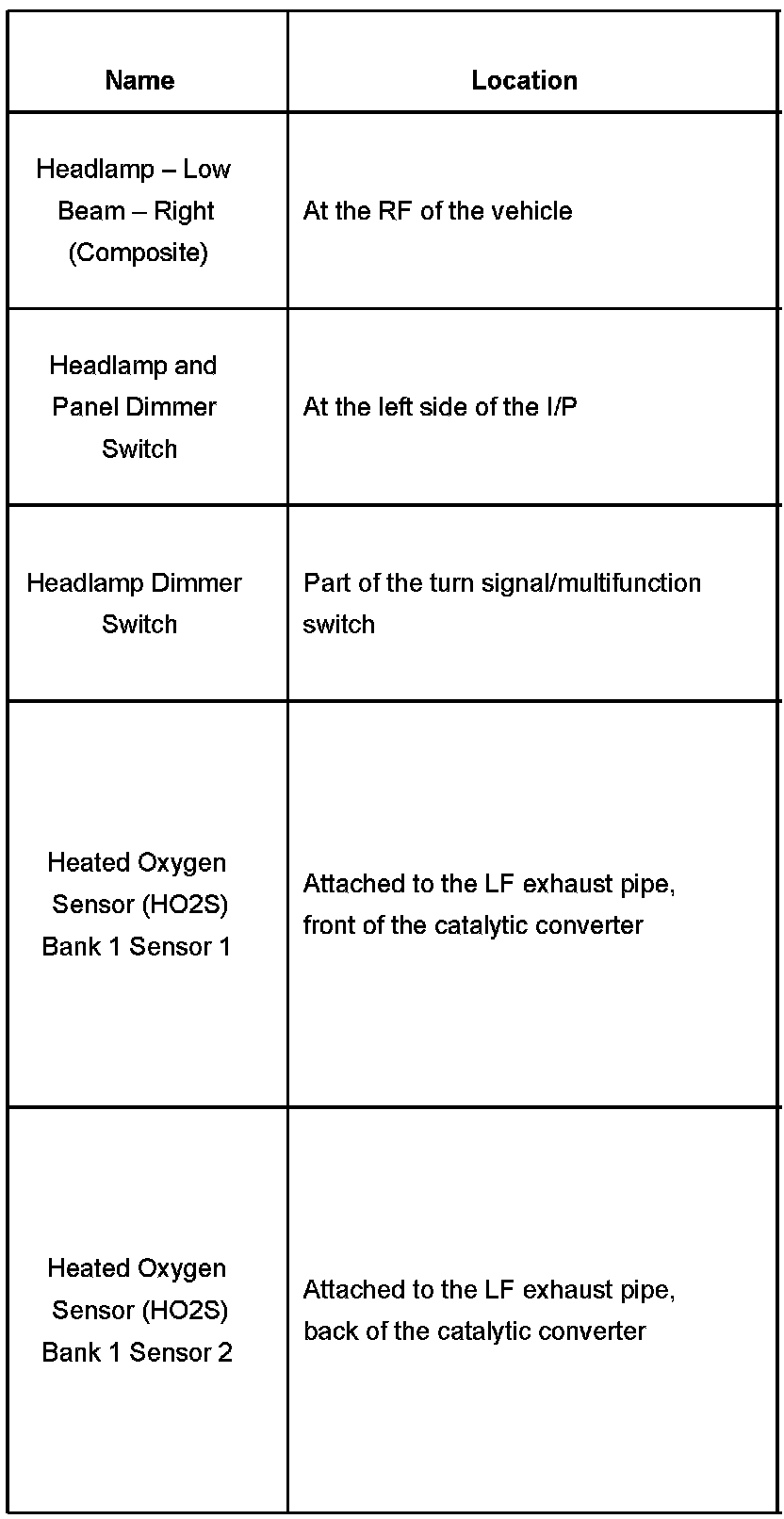

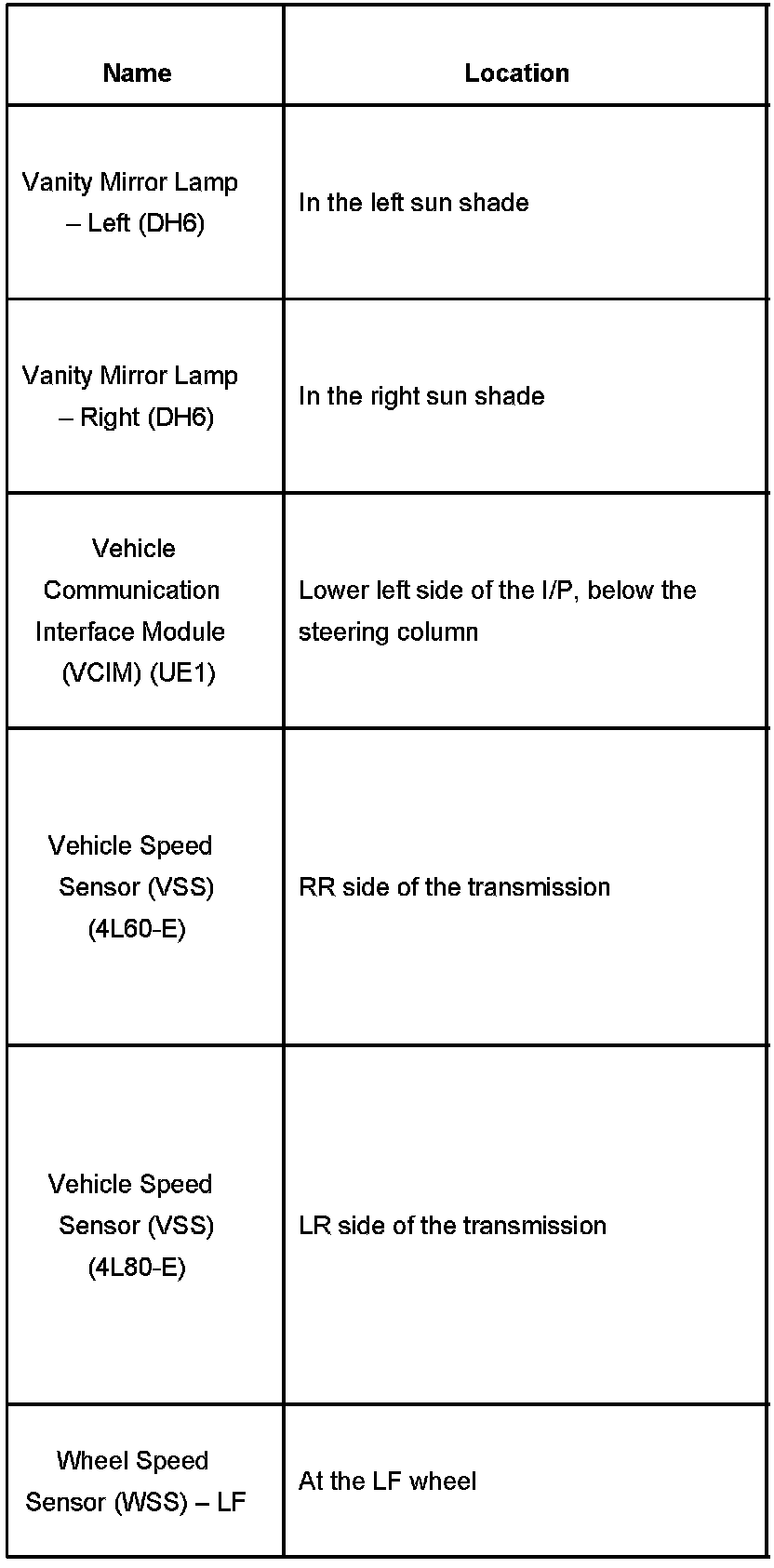

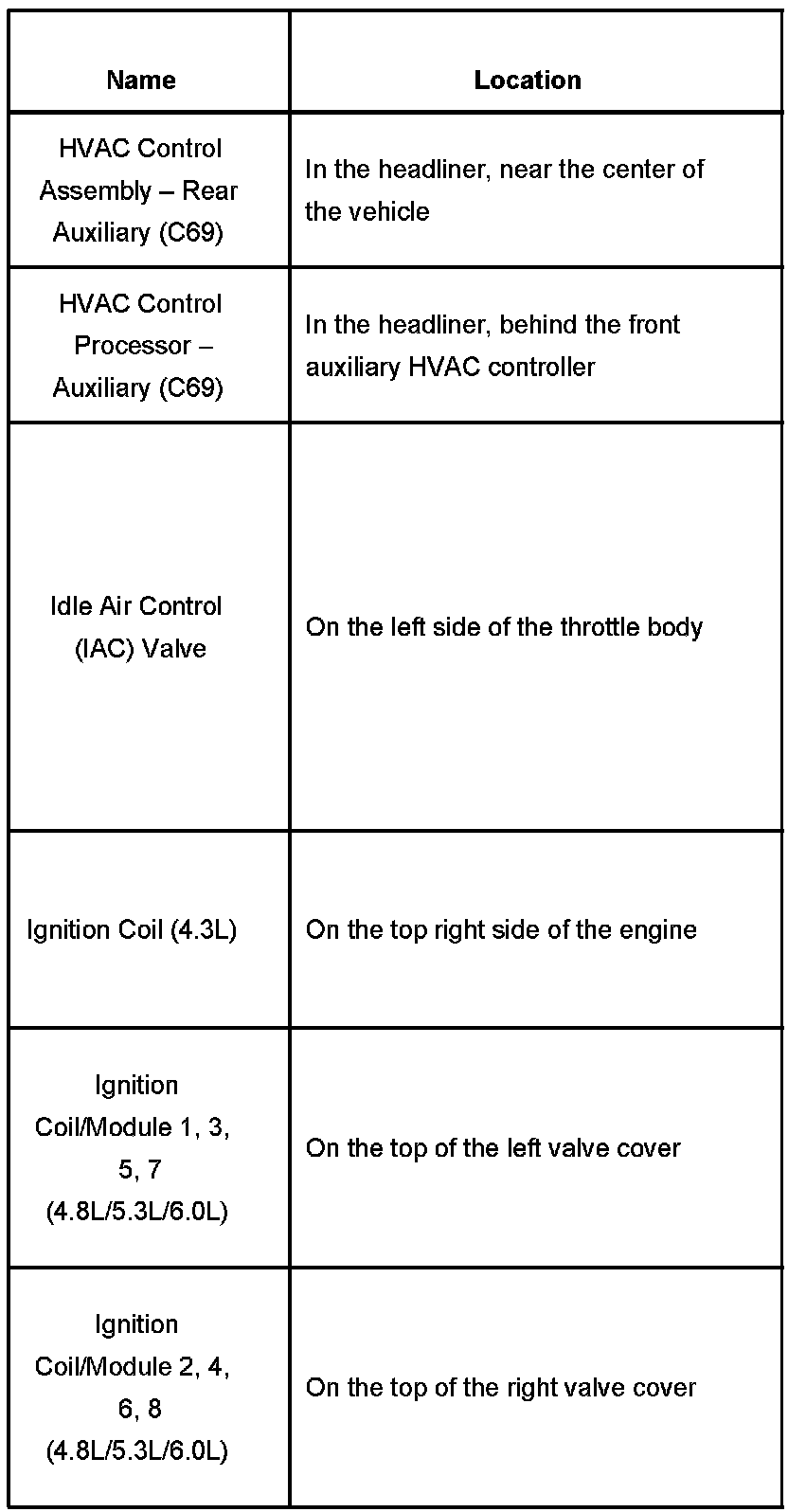

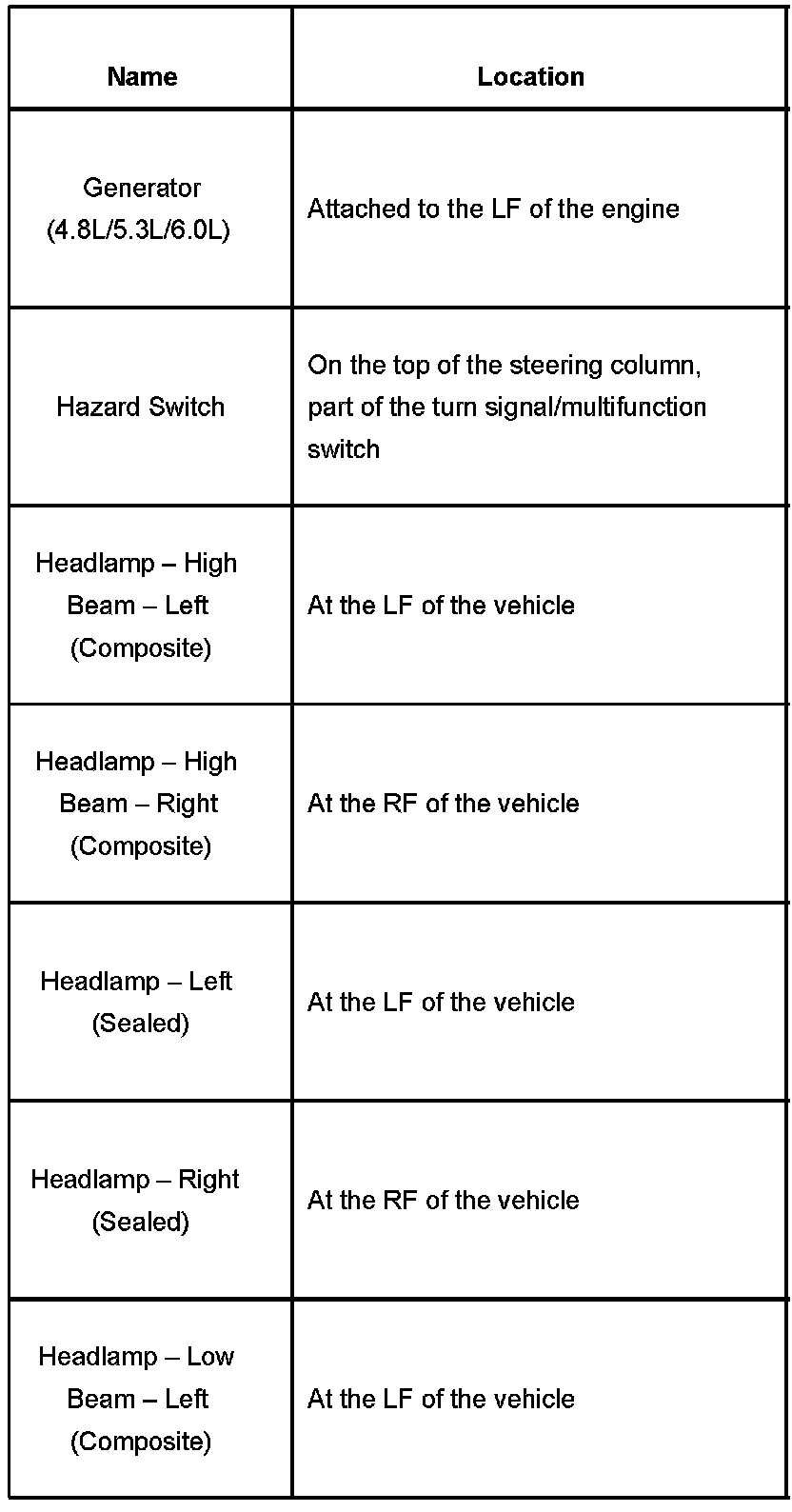

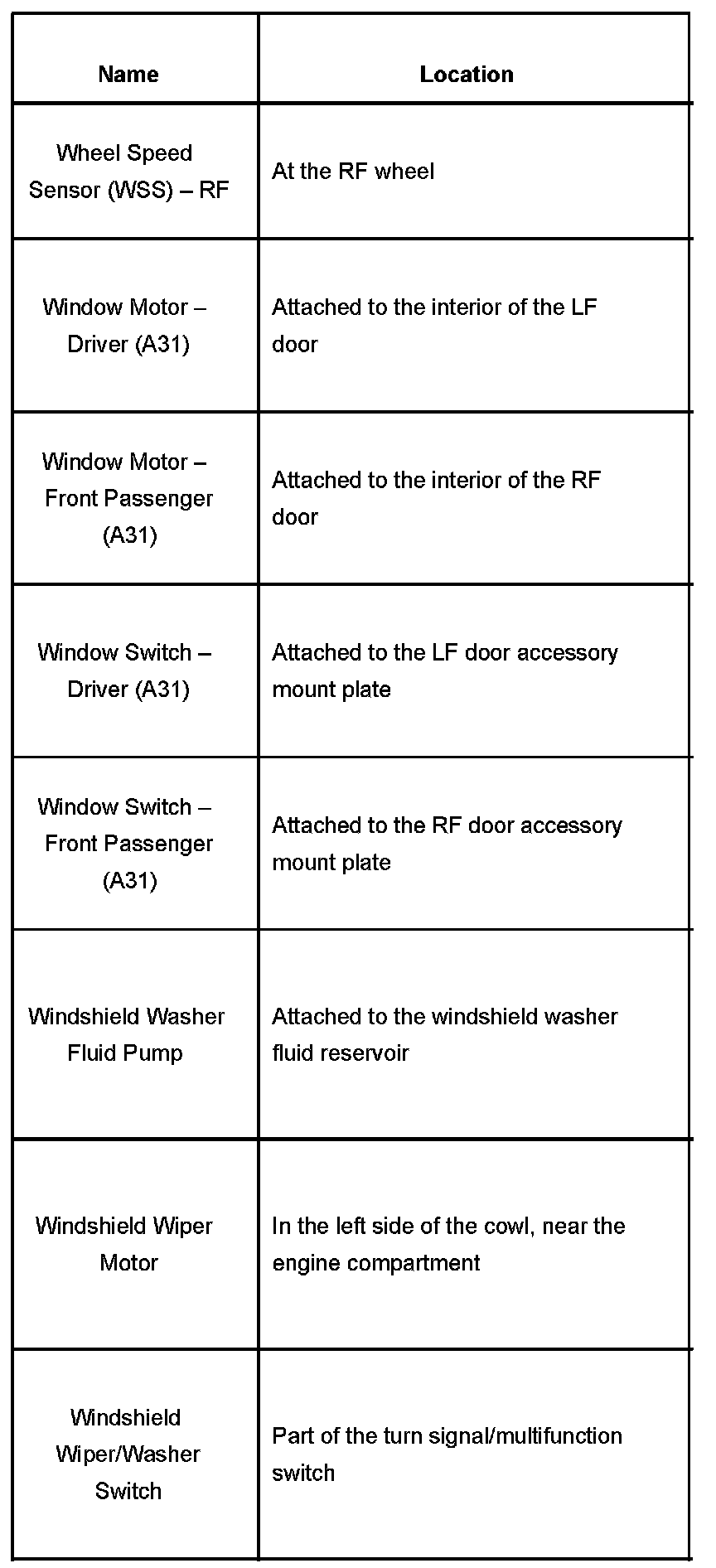

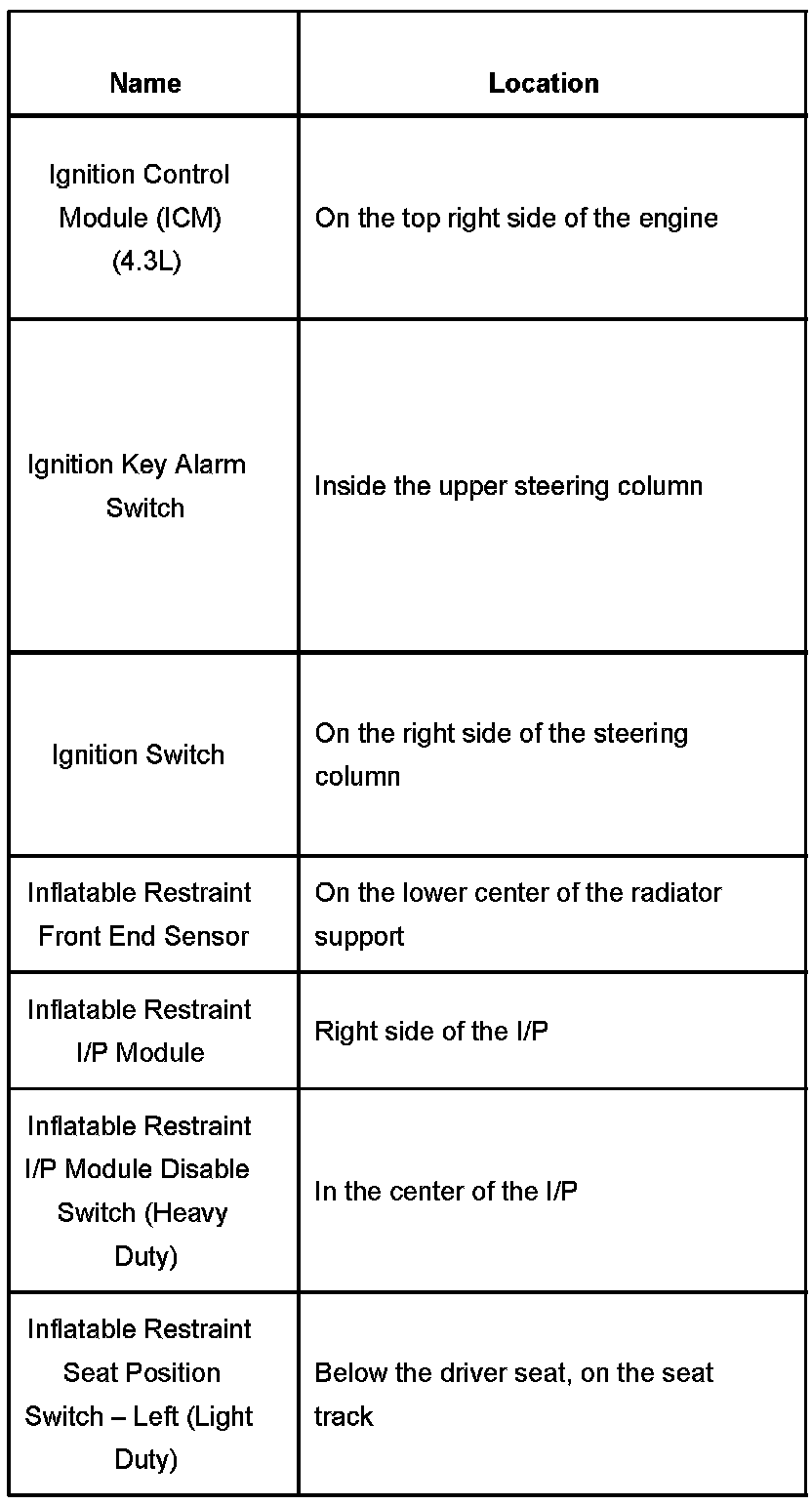

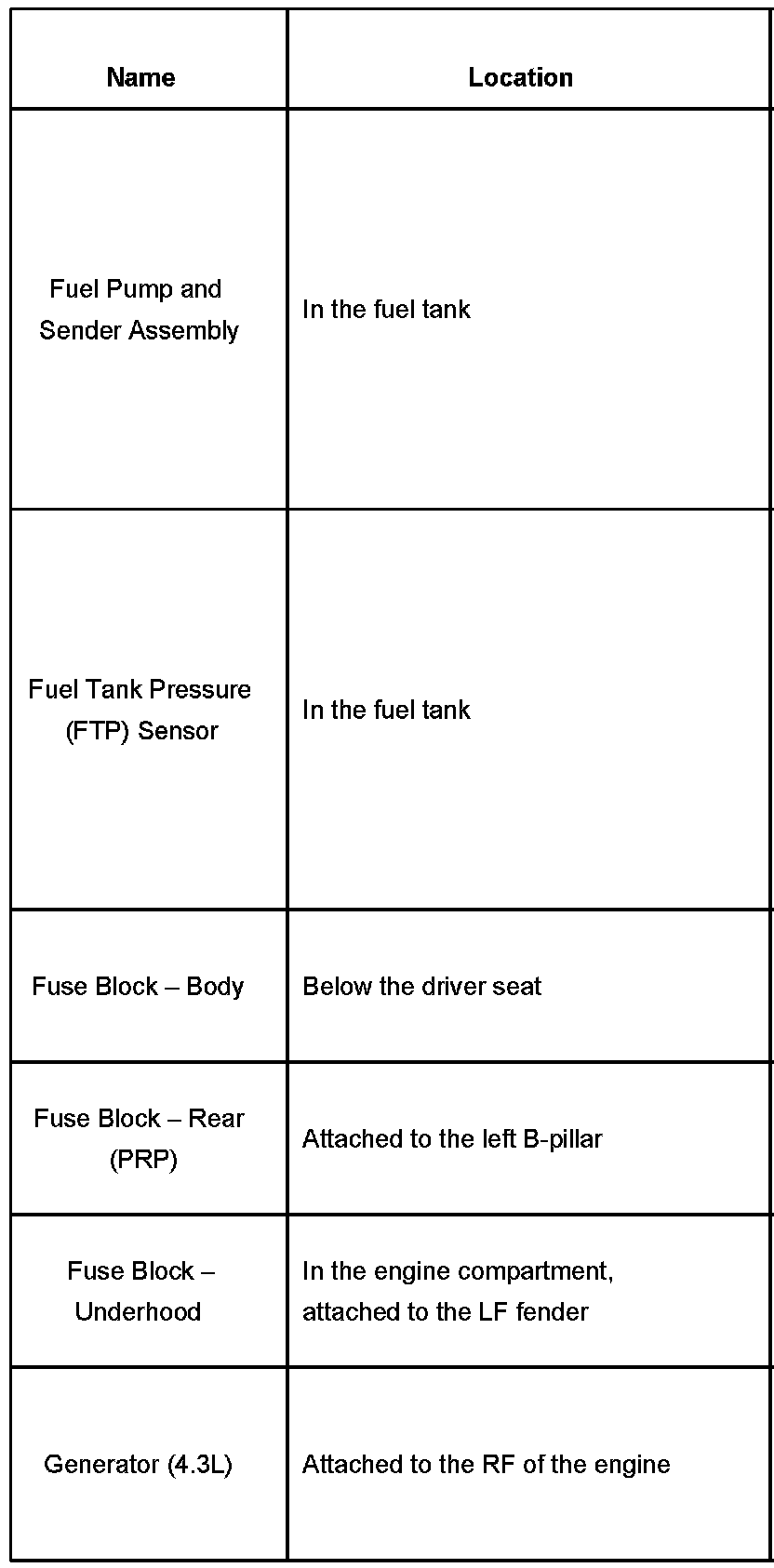

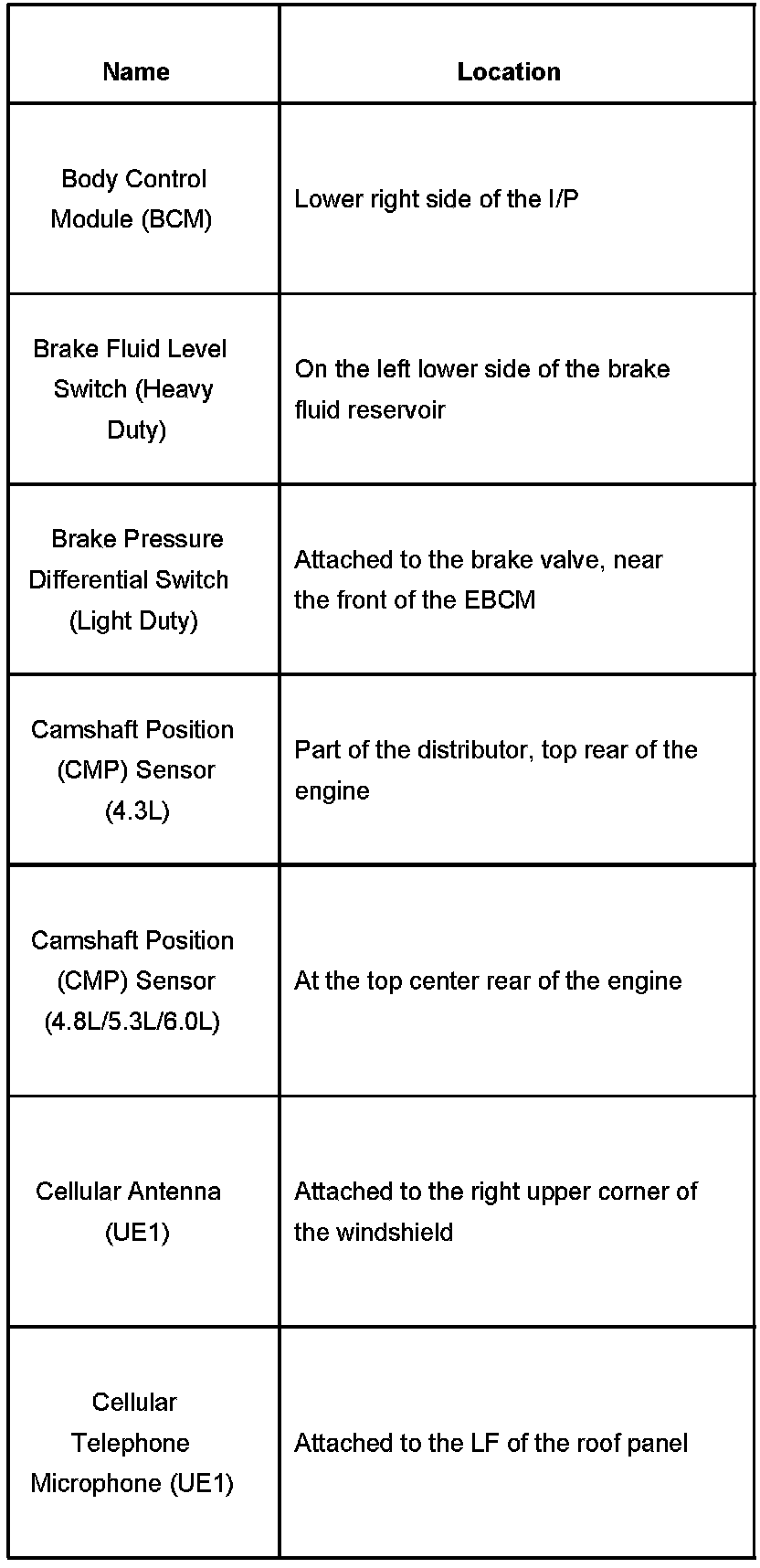

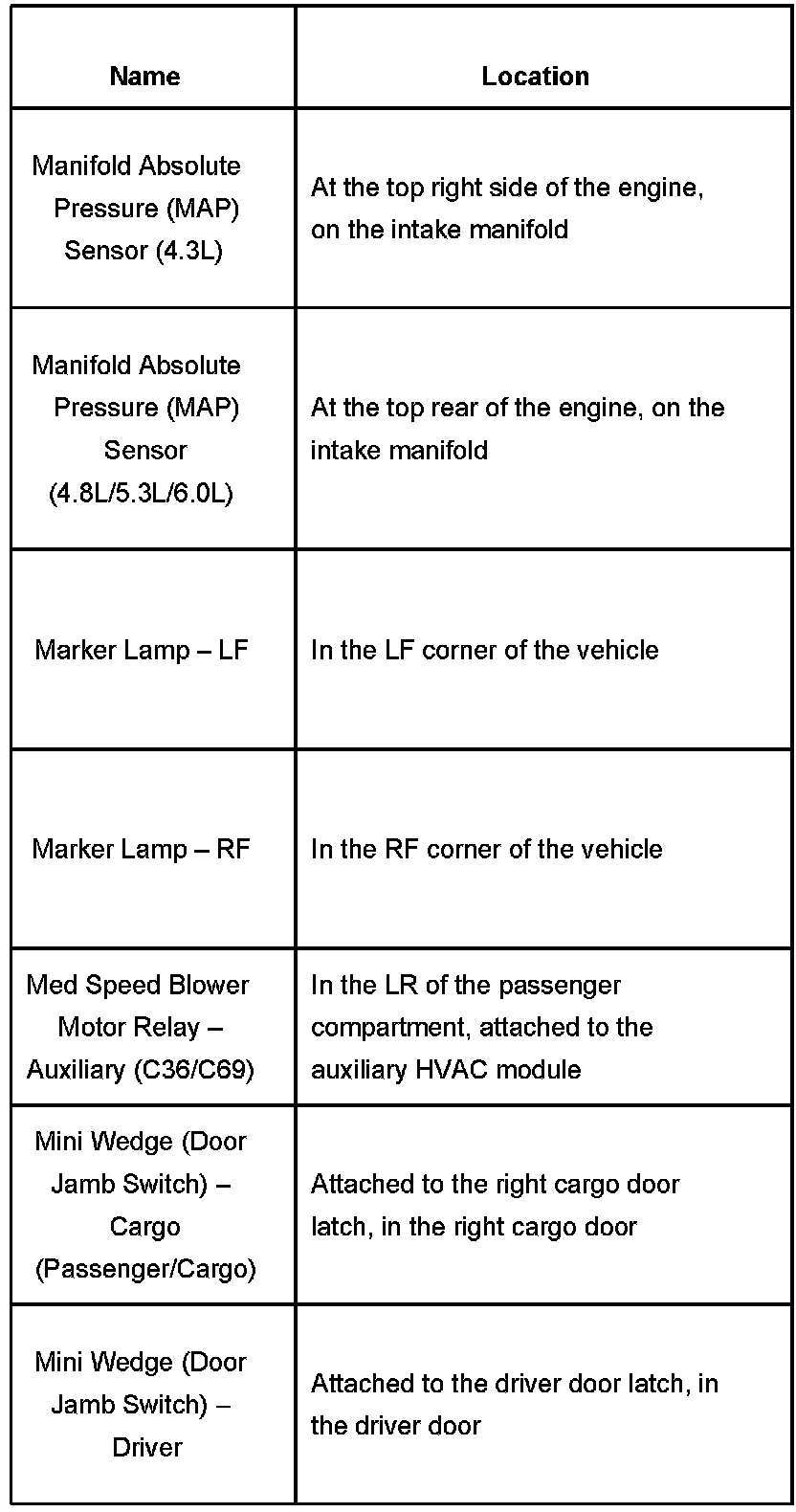

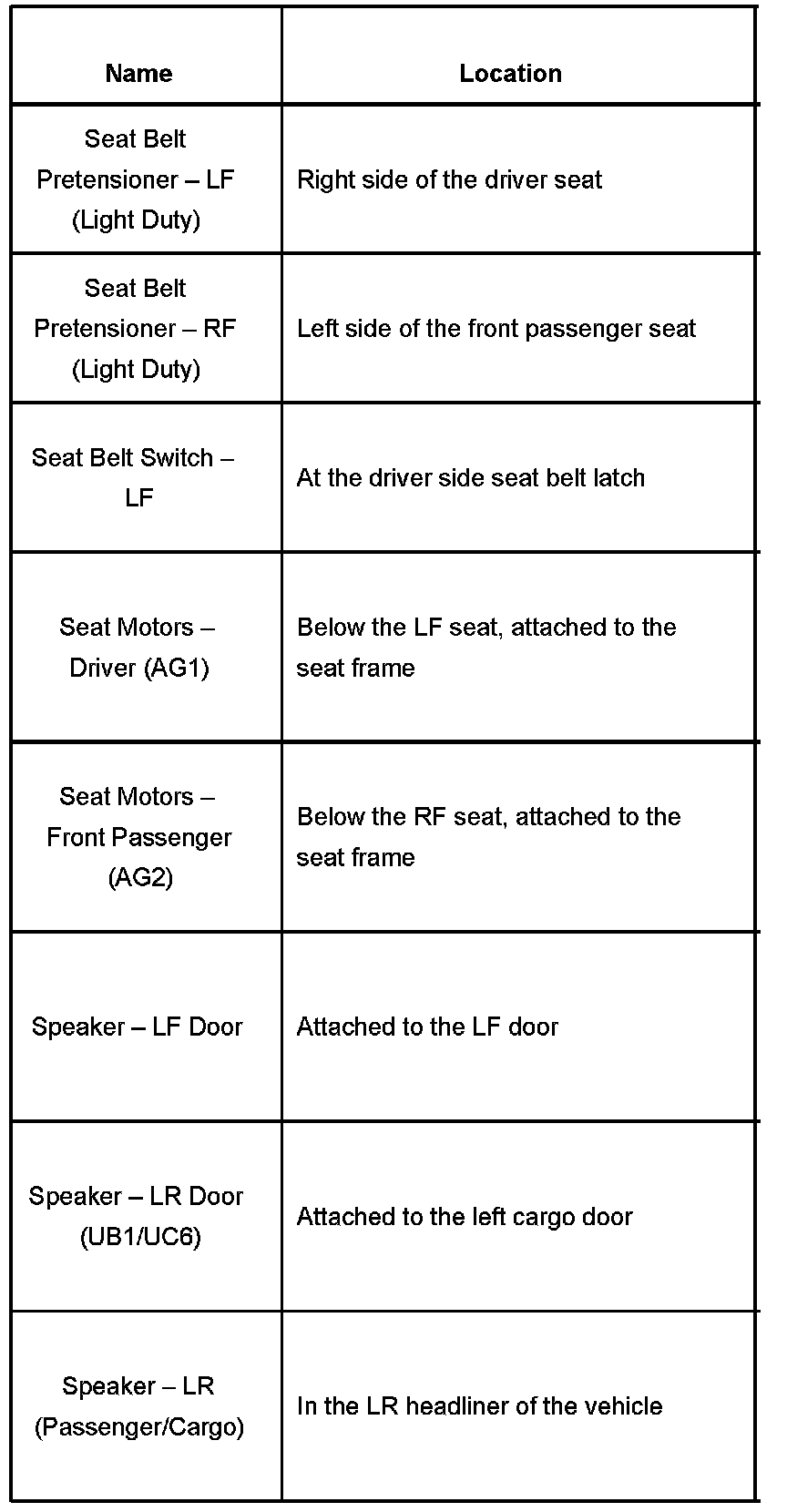

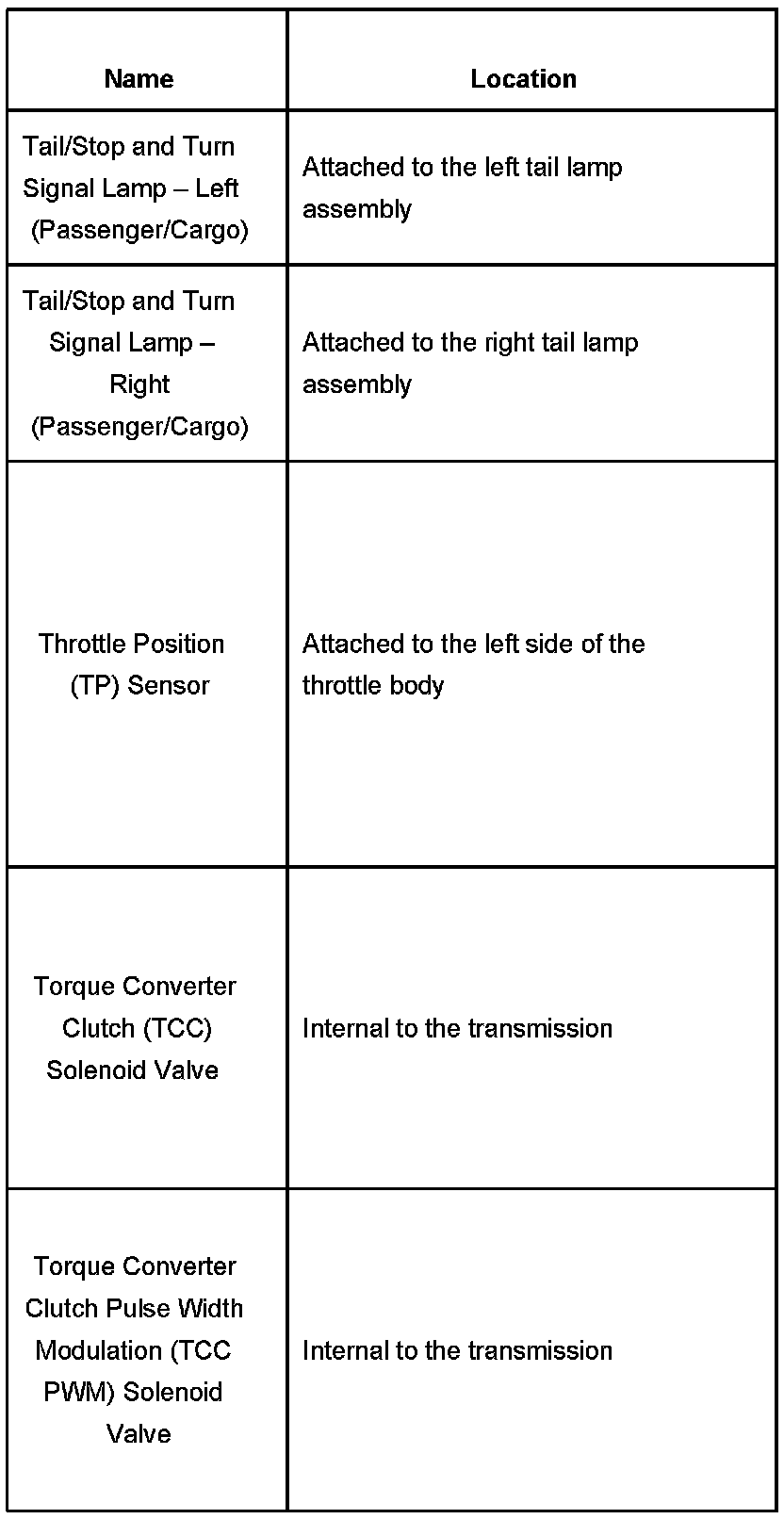

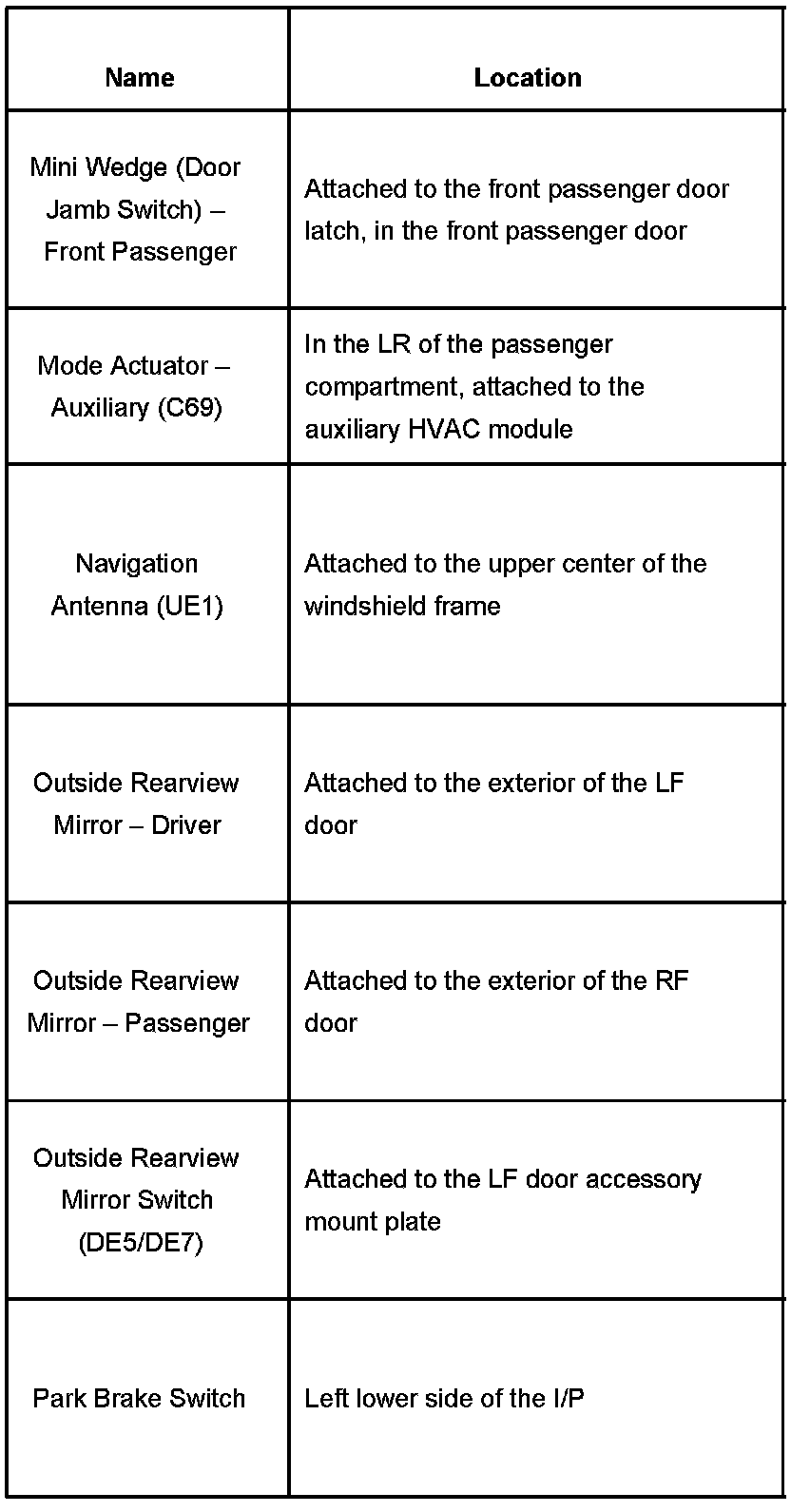

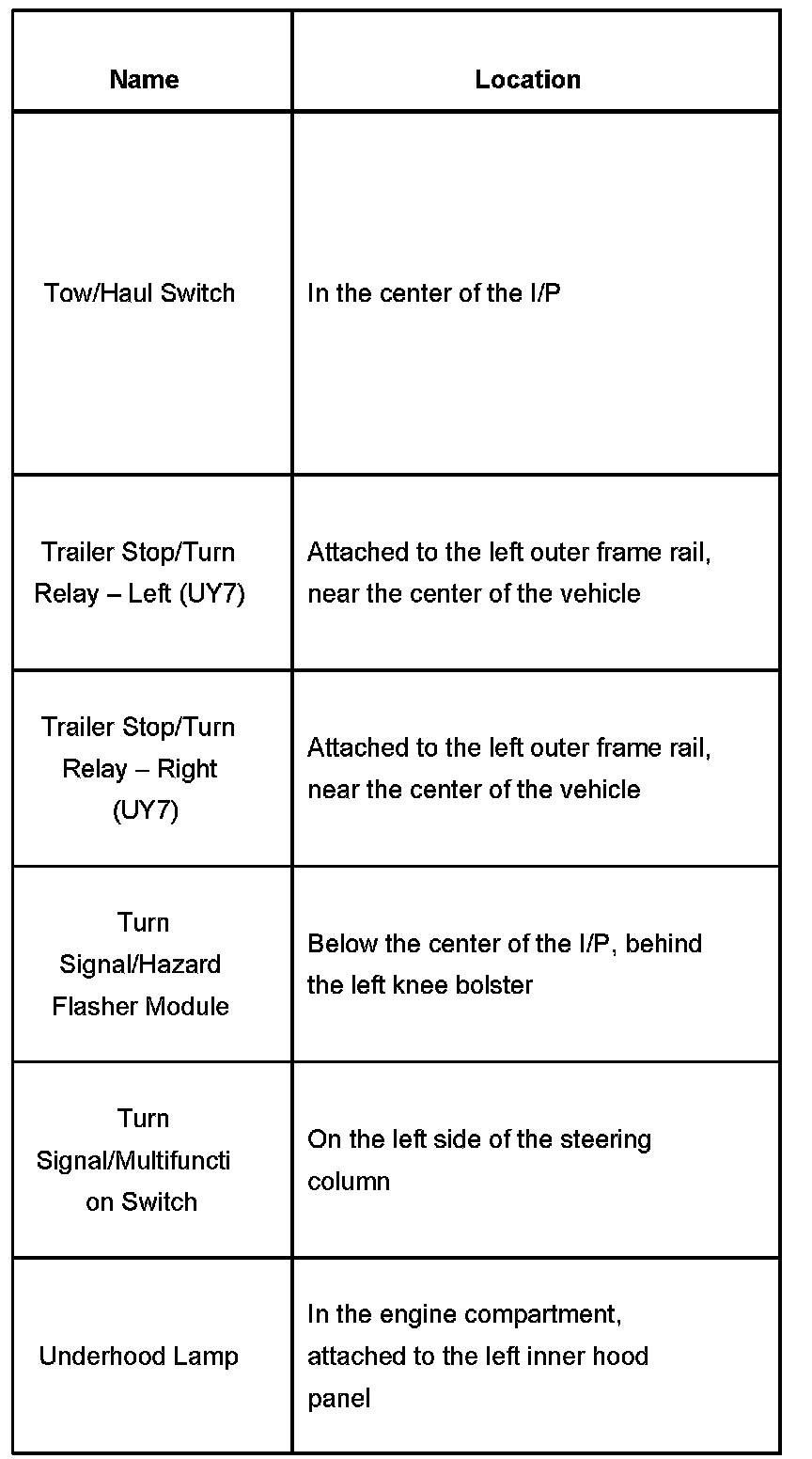

Component Locations

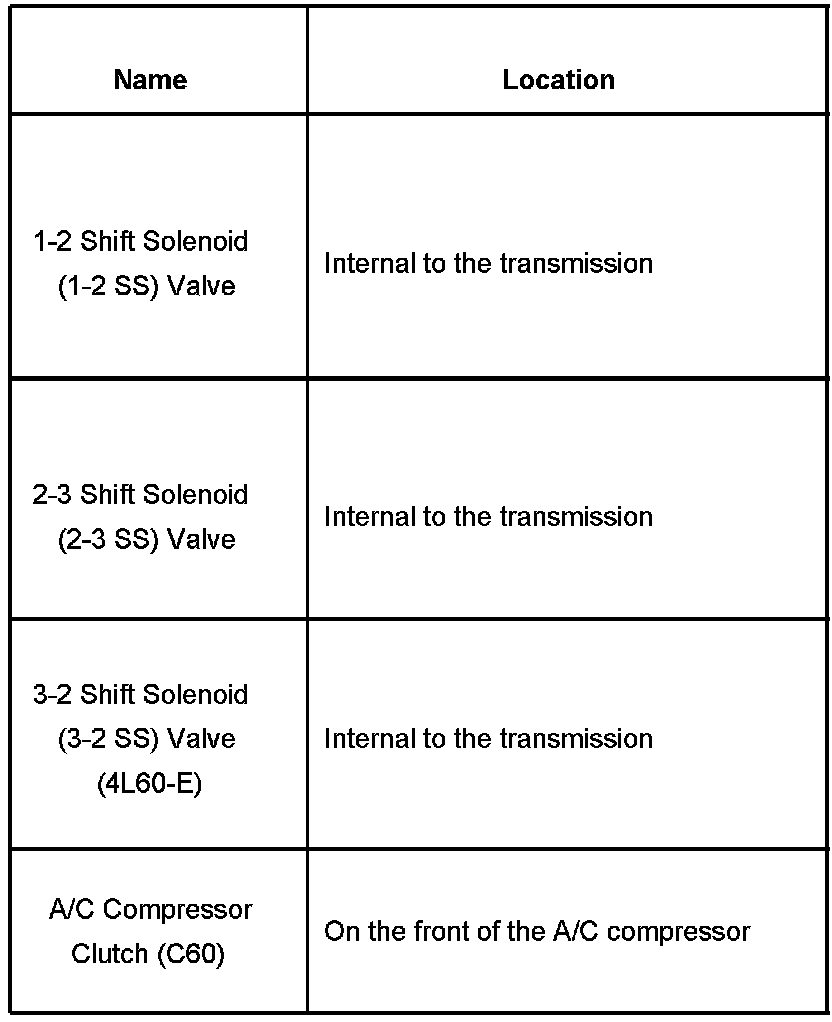

1-2 Sh - A/C:
A/C - Ac:
AC - Au:
Au - Bl:
Bo - Ce:
Ce - Cr:
Cr - Do:

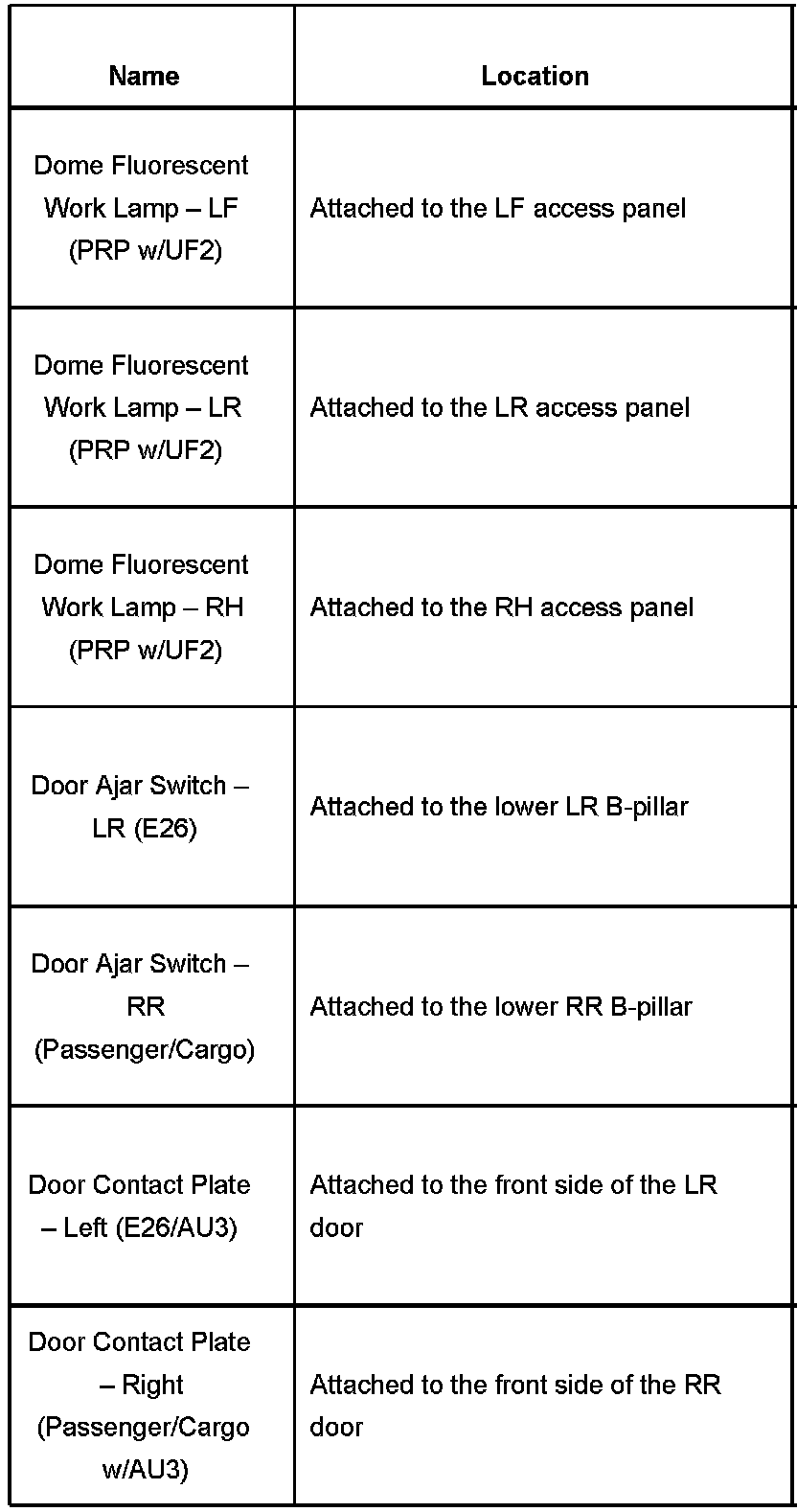

Dom - Doo:

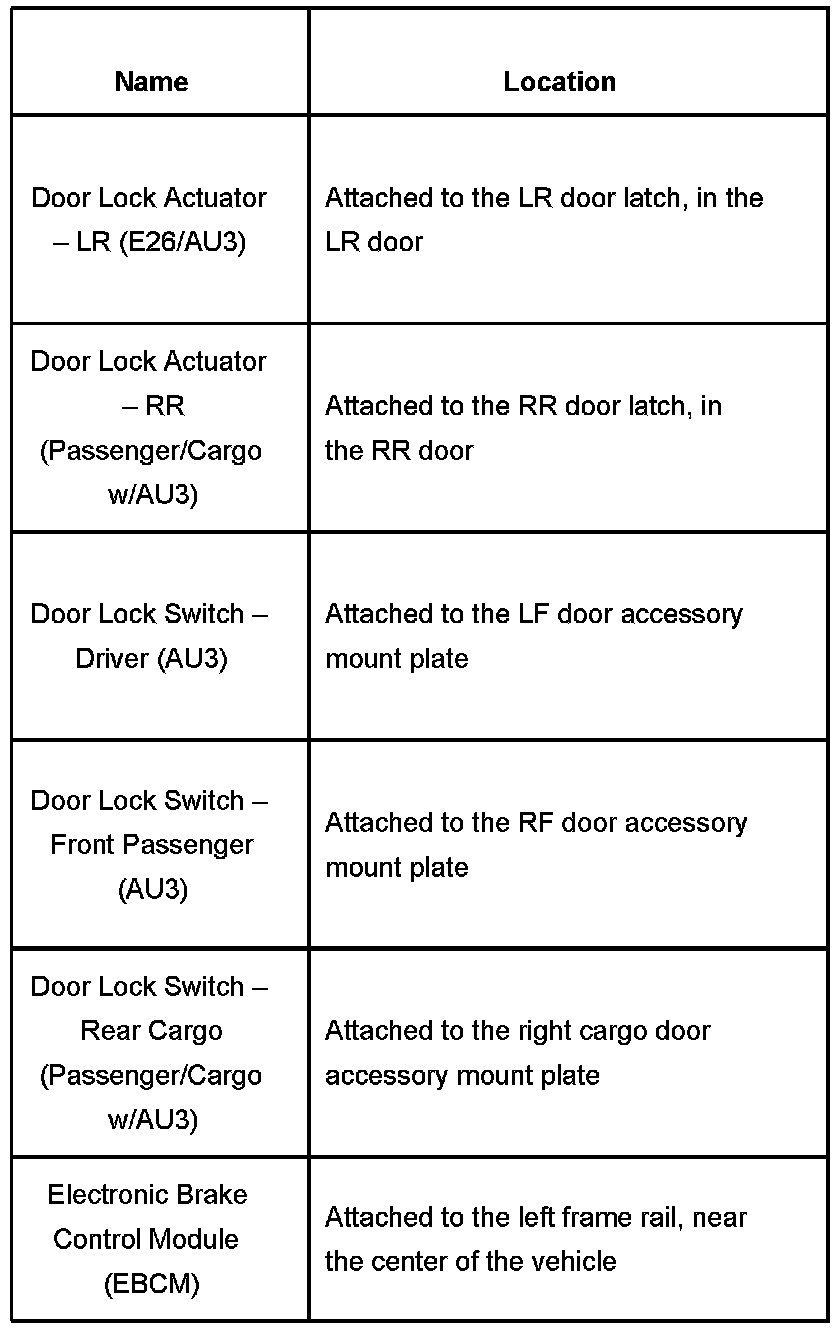

Do - El:

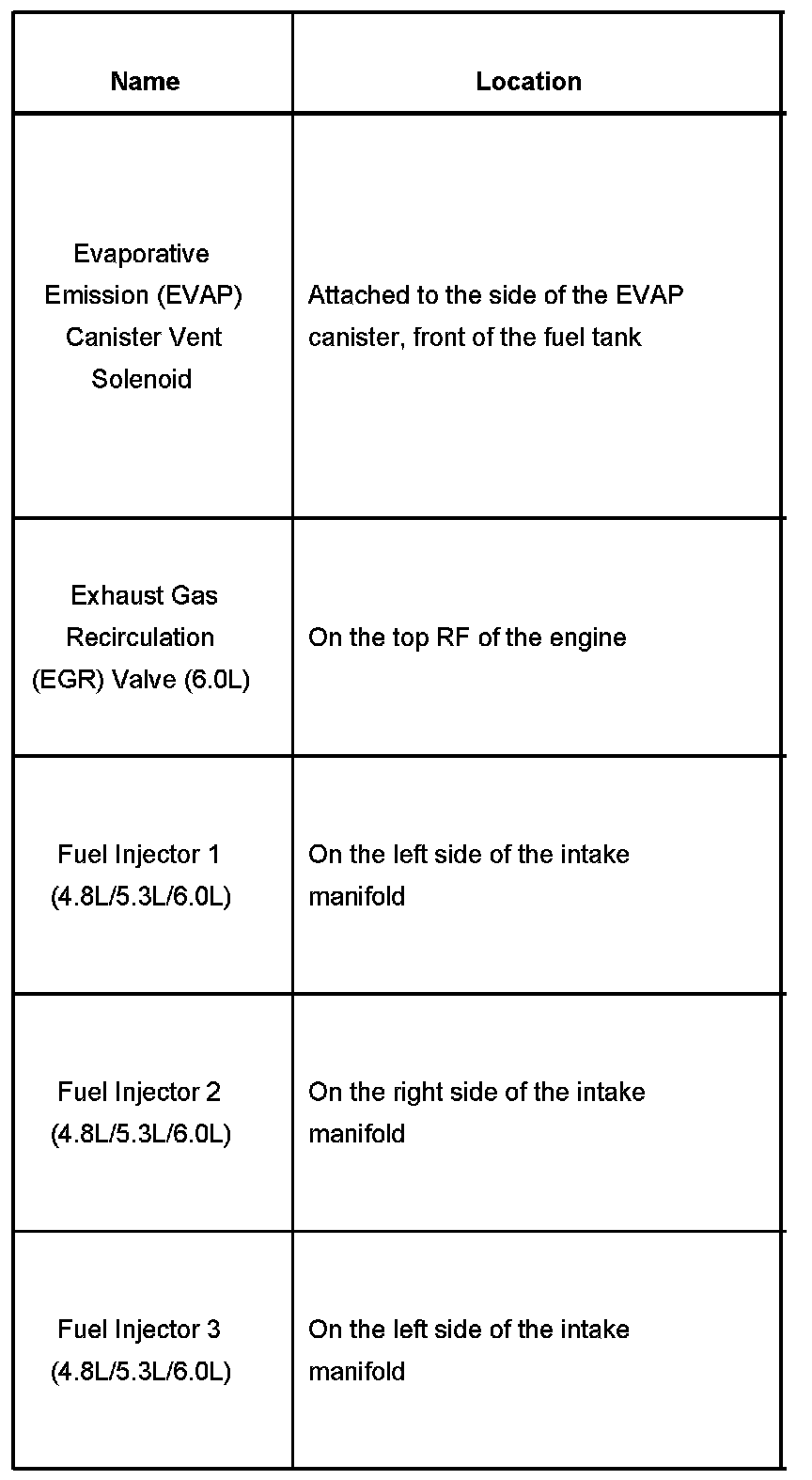

En - Ev:
Ev - Fu:

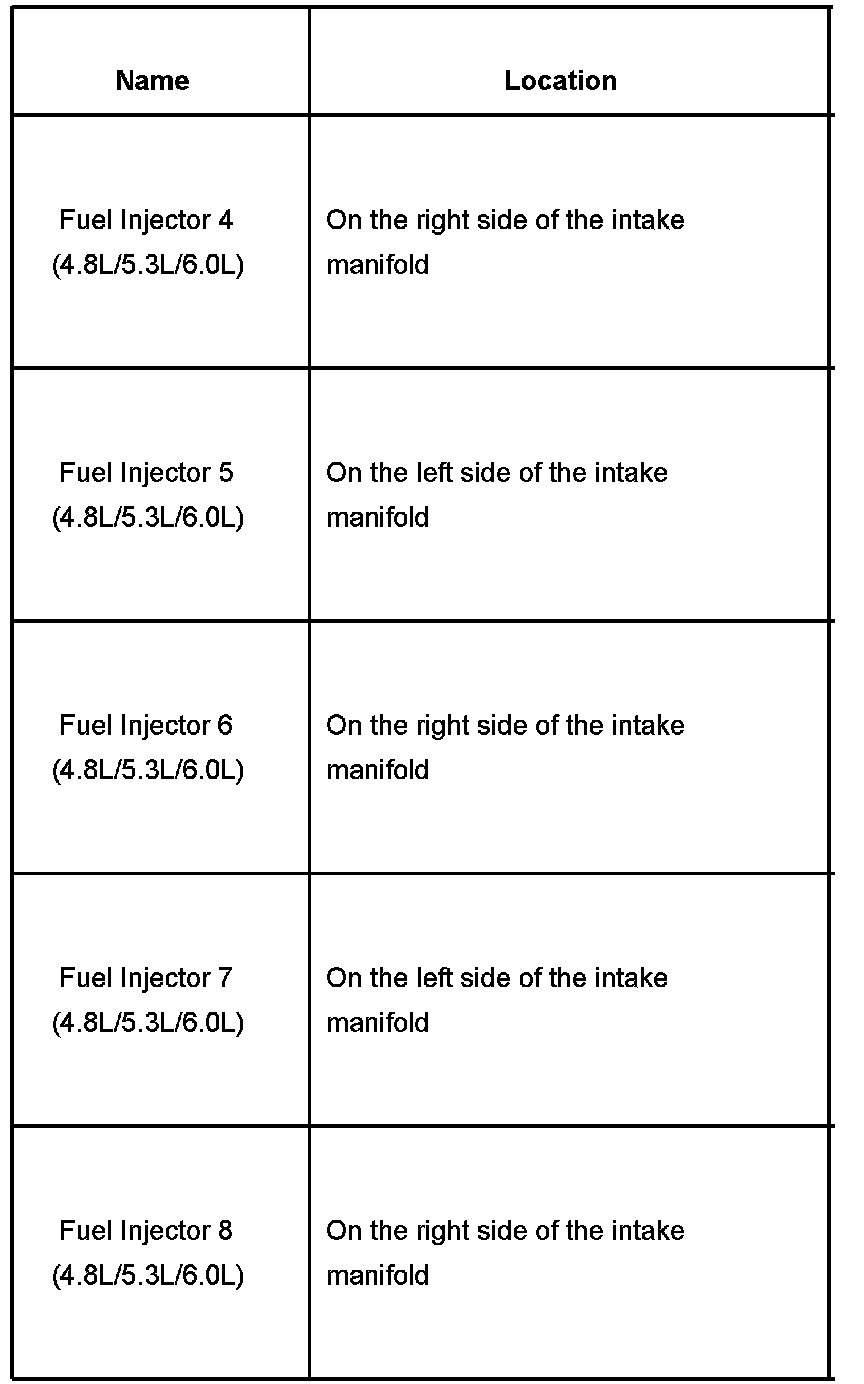

Fu 4 - Fu 8:
Fu - Ge:

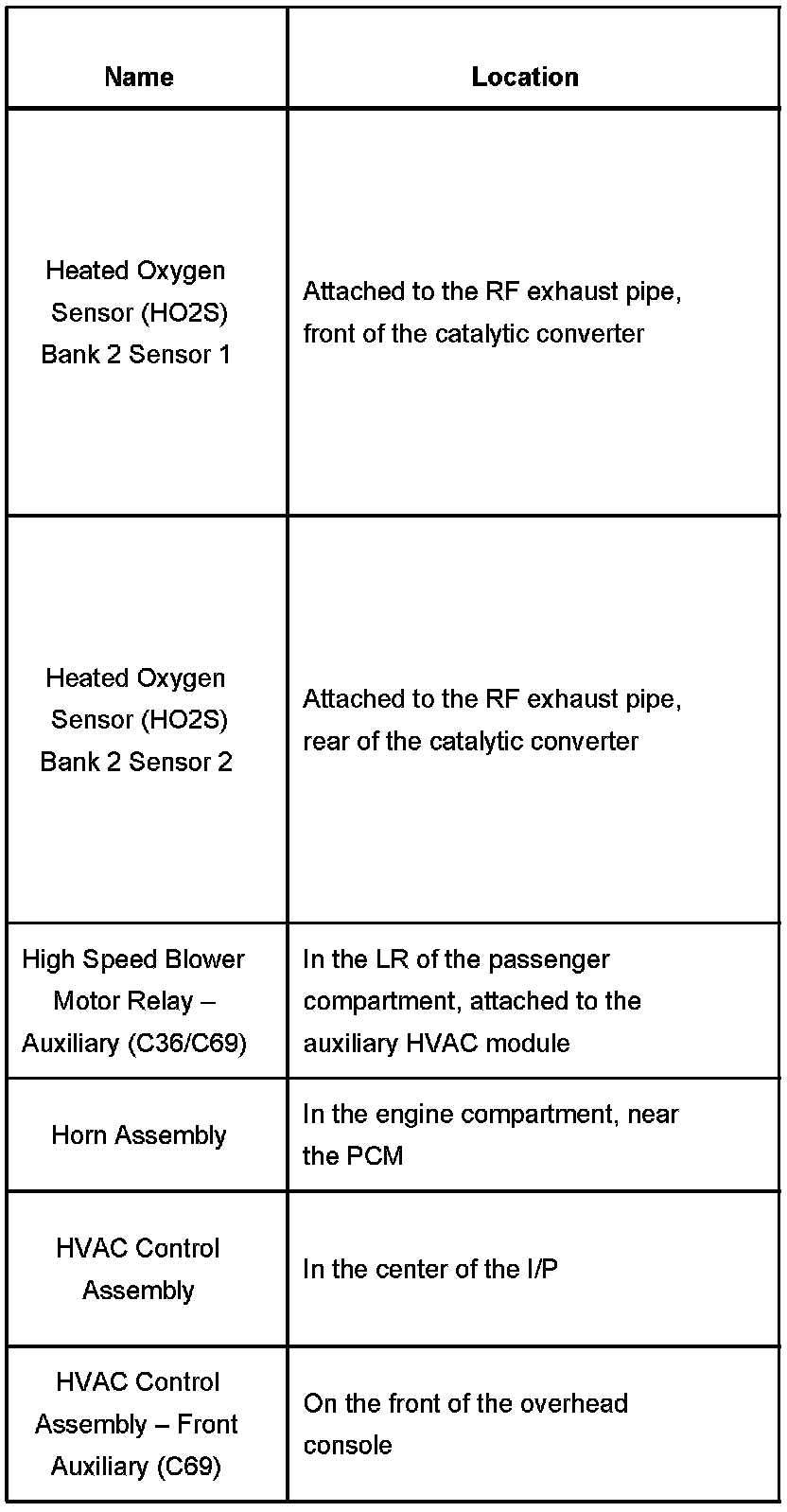

Ge - He:
Head - Heat:
He - HV:
HV - Ig:
Ig - In:
Inf - Ins:
In - Lo:
Ma - Mi:
Mi - Pa:

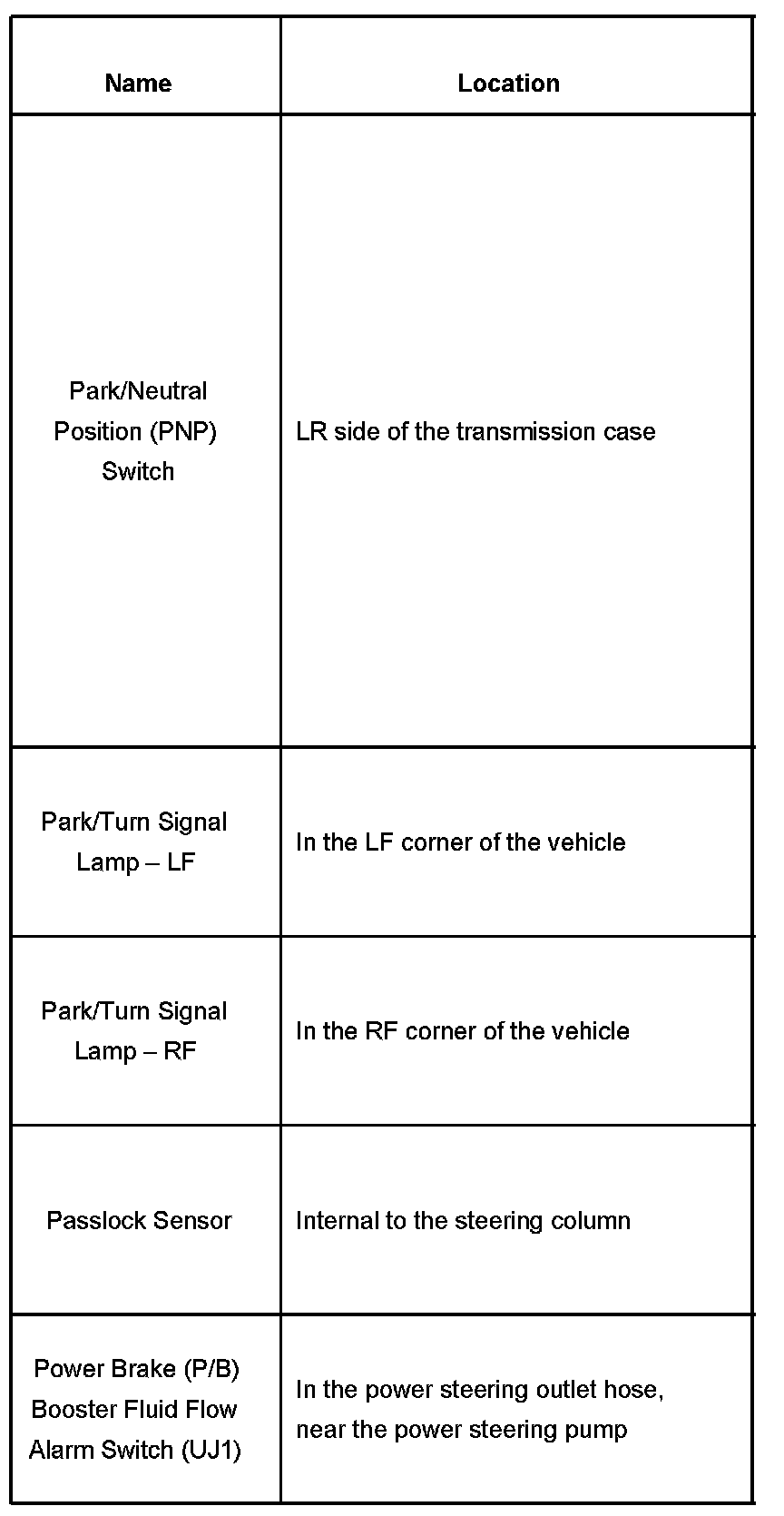

Pa - Po:

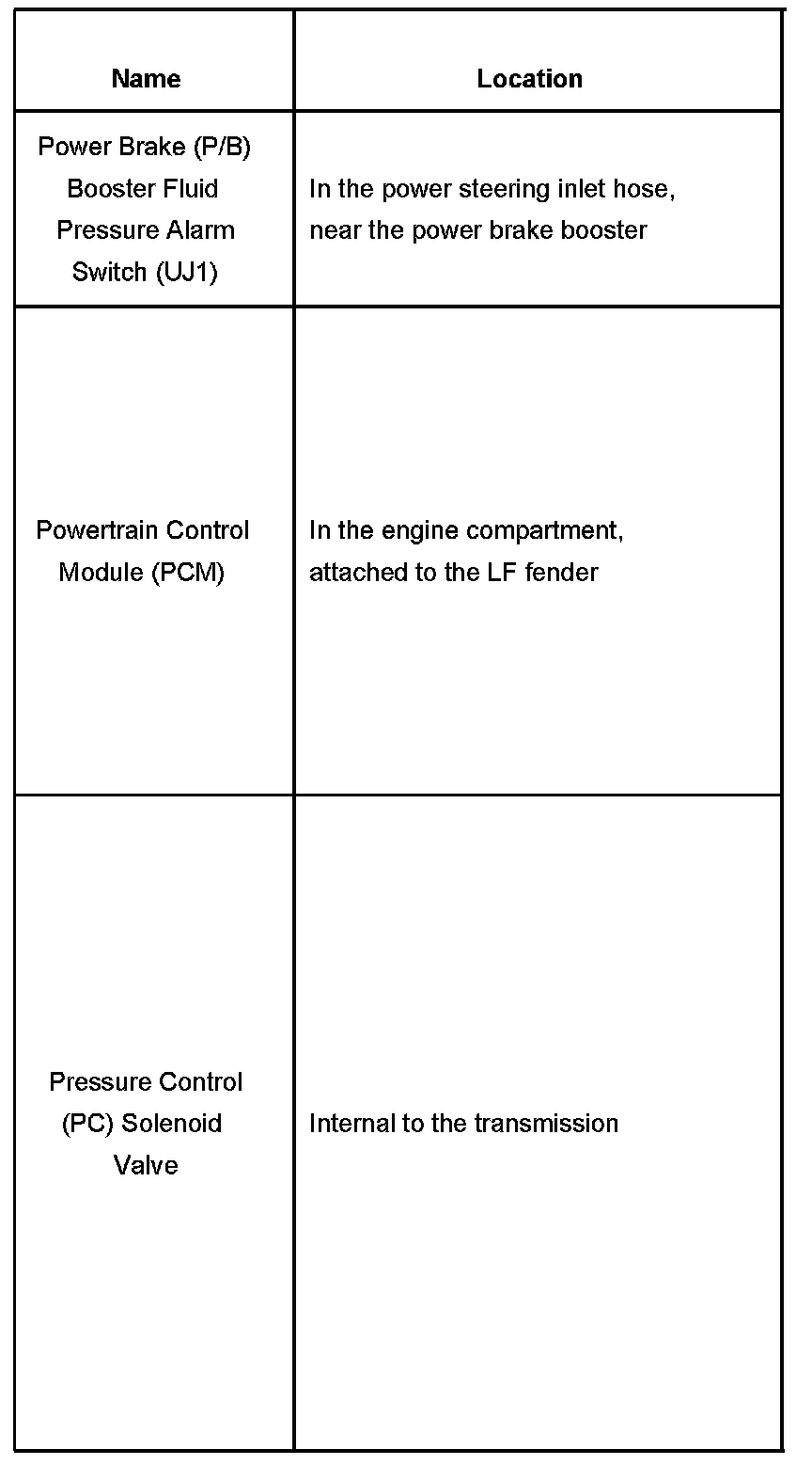

Po - Pr:

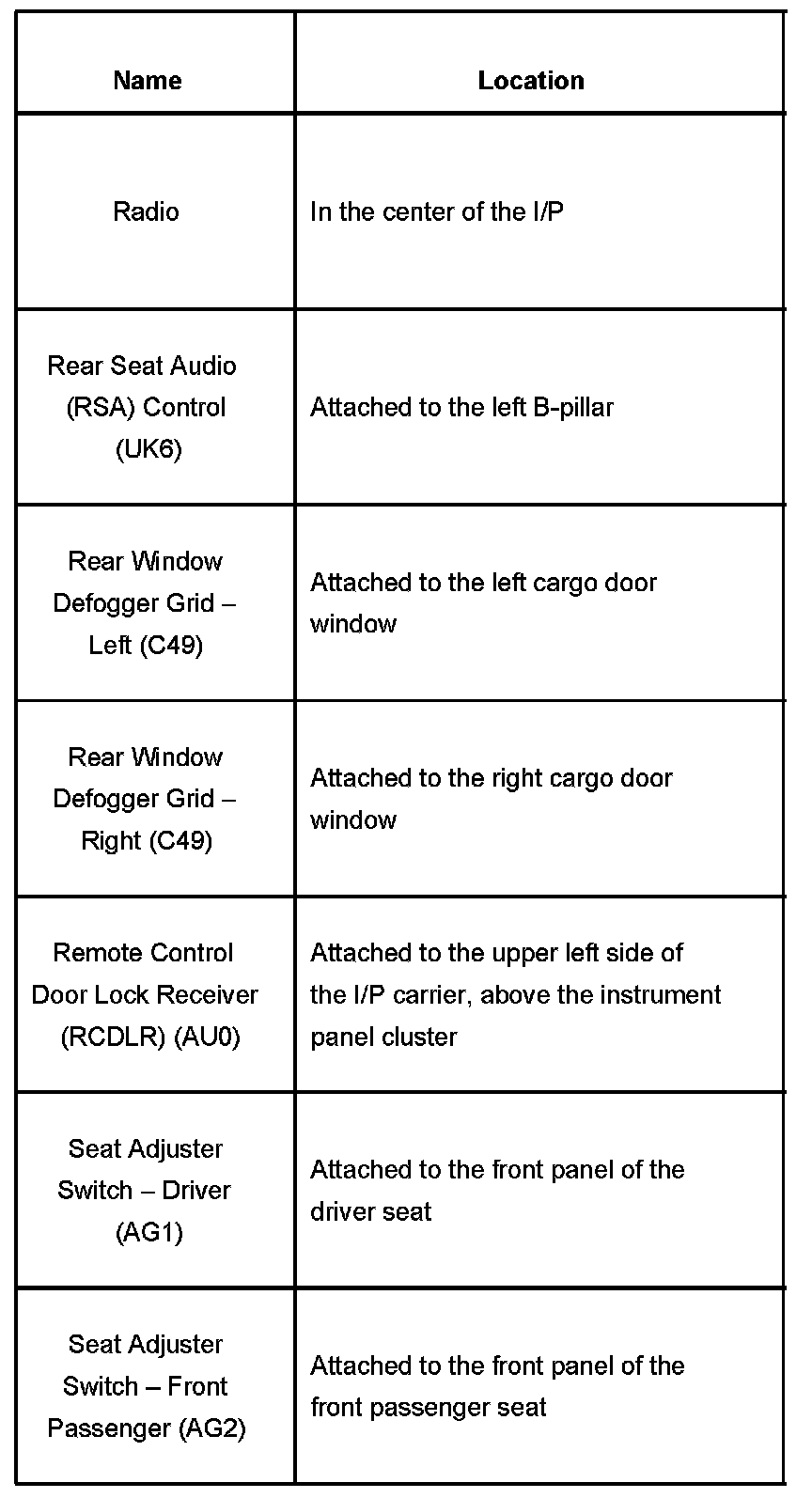

Ra - Se:
Se - Sp:

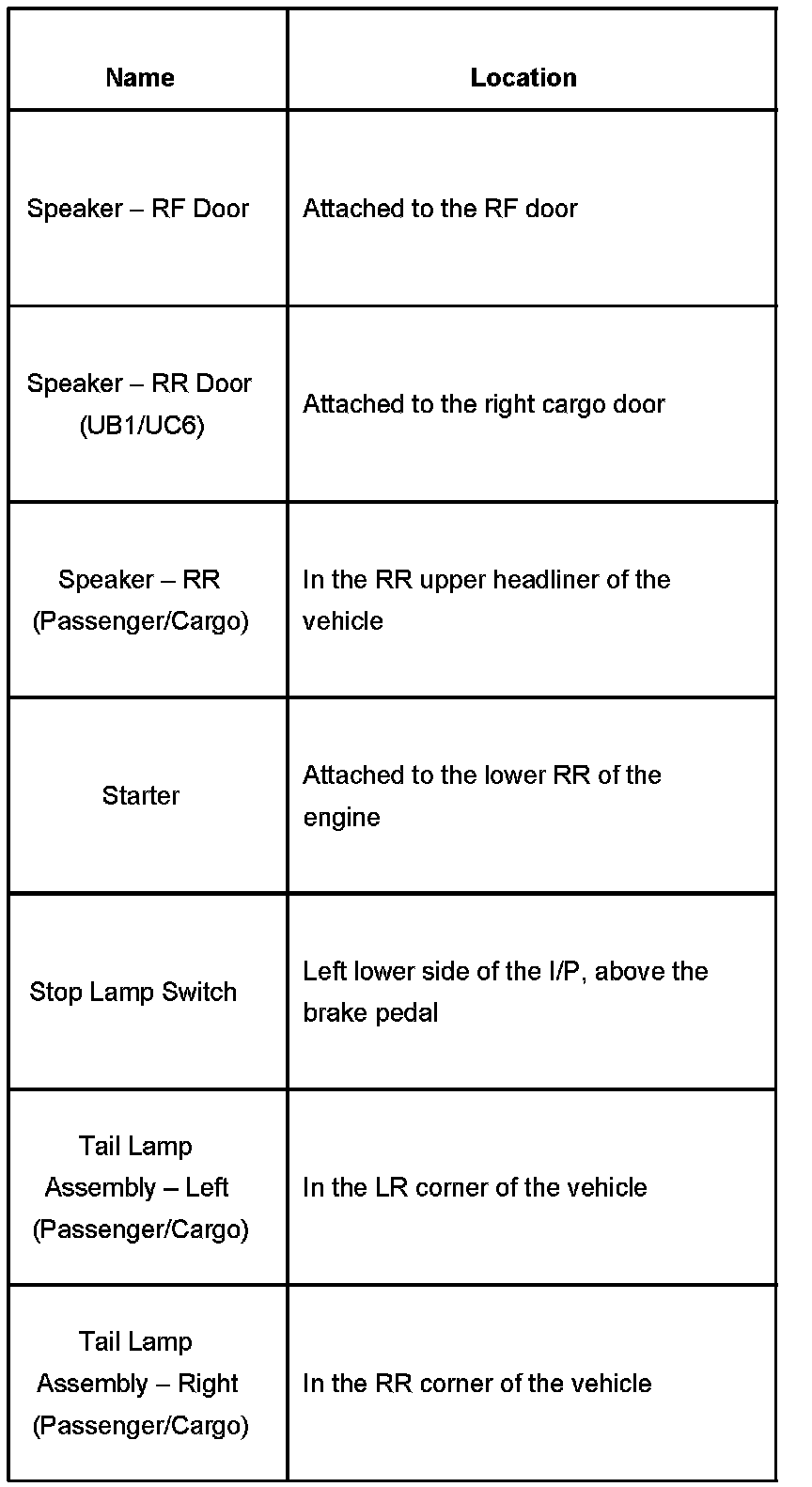

Sp - Ta:
Ta - To:
To - Un:
Va - Wh:
Wh - Wi:
