2003 Chevrolet Express 1/2 Ton Van V6-4.3L VIN XFACTORY OEM SERVICE PROCEDURE
Dome Lamp: Service and Repair
DOME LAMP REPLACEMENT
REMOVAL PROCEDURE

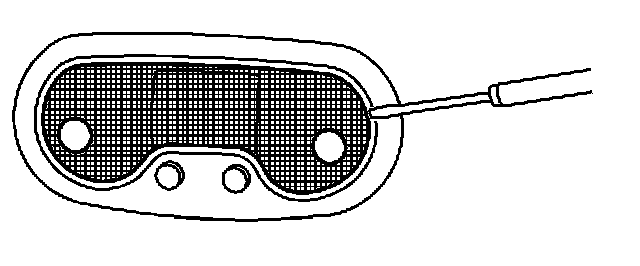

1. Using a flat bladed tool, pry the dome lamp lens open.

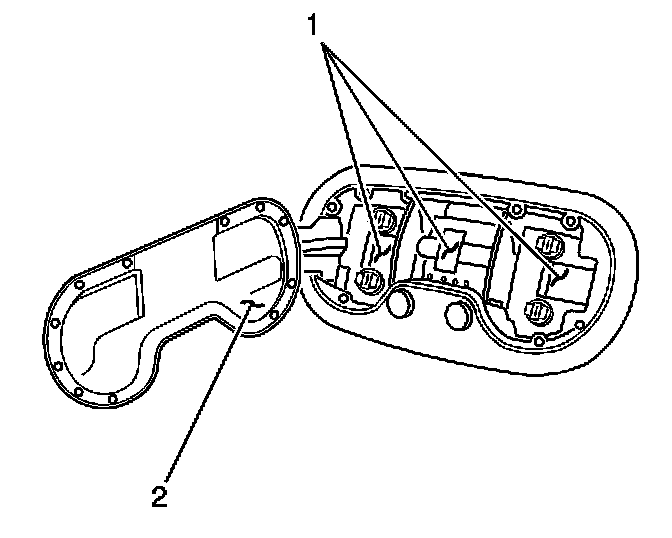

2. Remove the dome lamp lens (2) completely from the dome lamp housing.

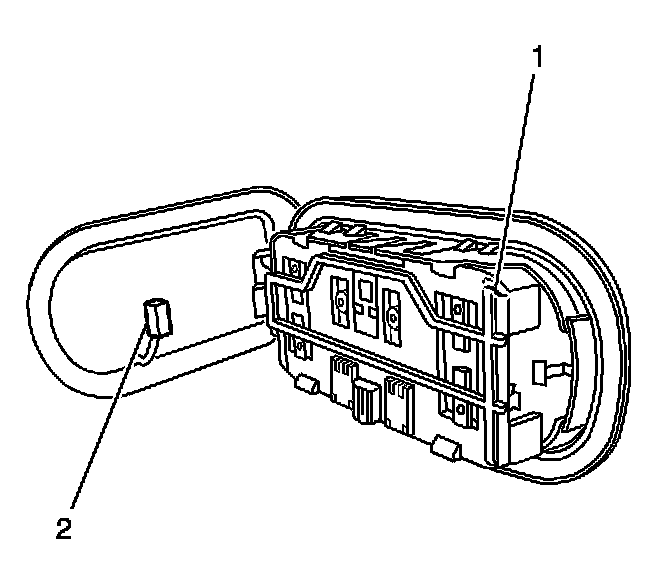

3. Partially remove the dome lamp housing (1) from the headliner.
4. Disconnect the electrical connector (2) from the dome lamp housing.
INSTALLATION PROCEDURE

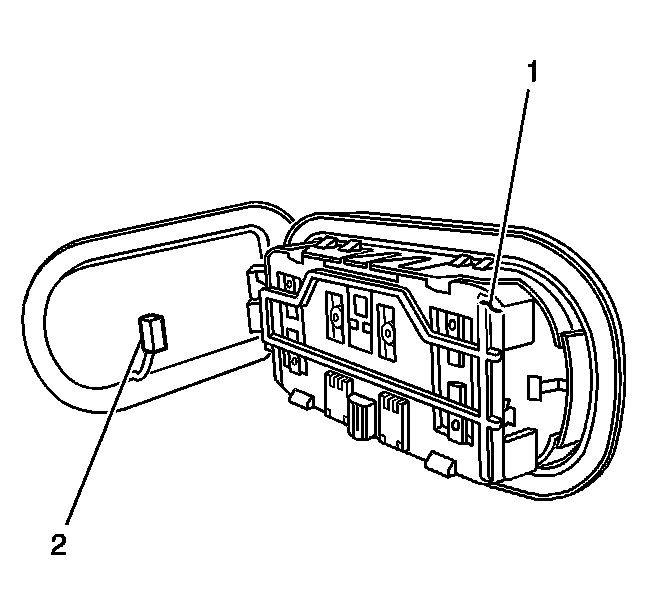

1. Partially install the dome lamp housing (1) to the headliner.
2. Connect the dome lamp electrical connector (2).

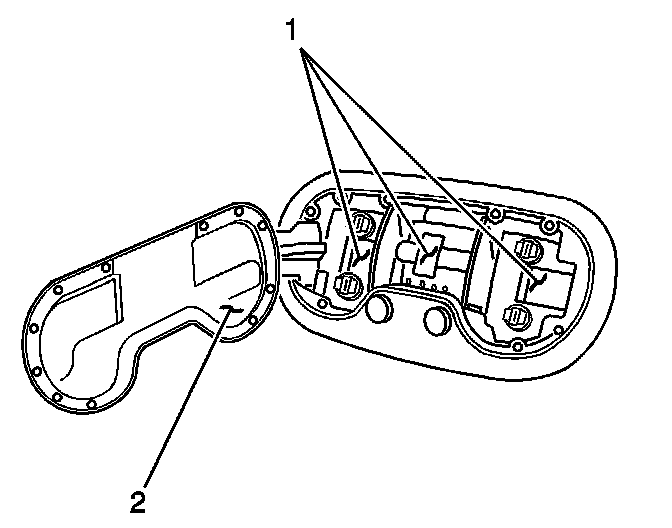

3. Install the dome lamp lens (2) to the dome lamp housing.
4. Snap the dome lamp lens (2) into the dome lamp housing.
REMOVAL PROCEDURE
1. Using a flat bladed tool, pry the dome lamp lens open.
2. Remove the dome lamp lens (2) completely from the dome lamp housing.
3. Partially remove the dome lamp housing (1) from the headliner.
4. Disconnect the electrical connector (2) from the dome lamp housing.
INSTALLATION PROCEDURE
1. Partially install the dome lamp housing (1) to the headliner.
2. Connect the dome lamp electrical connector (2).
3. Install the dome lamp lens (2) to the dome lamp housing.
4. Snap the dome lamp lens (2) into the dome lamp housing.
