2003 Chevrolet Express 1/2 Ton Van V6-4.3L VIN XFACTORY OEM SERVICE PROCEDURE
Oil Pressure Sensor: Service and Repair
Engine Oil Pressure Sensor and/or Switch Replacement
^ Tools Required
- J 41712 Oil Pressure Switch Socket
Removal Procedure
1. Remove the engine cover.
2. Disconnect the engine oil pressure gage sensor electrical connector.
3. Hold the engine oil pressure gage sensor fitting with a wrench.

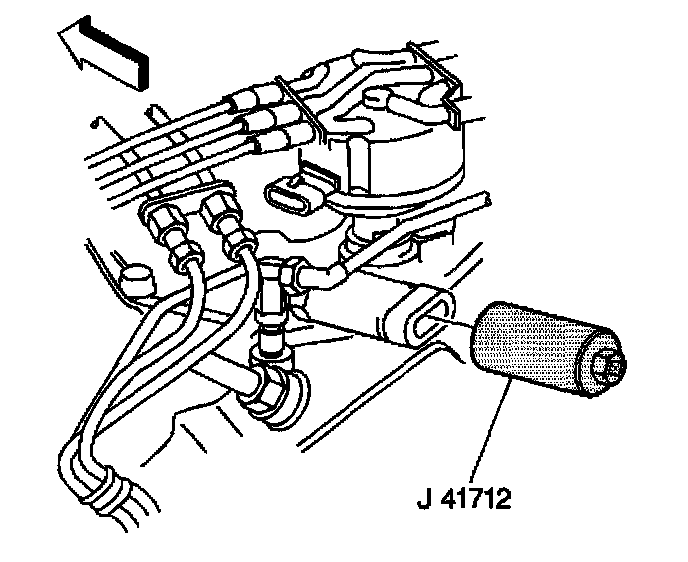

4. Remove the engine oil pressure gage sensor using J 41712.
Important: Note the alignment of the engine oil pressure gage sensor fitting prior to removal

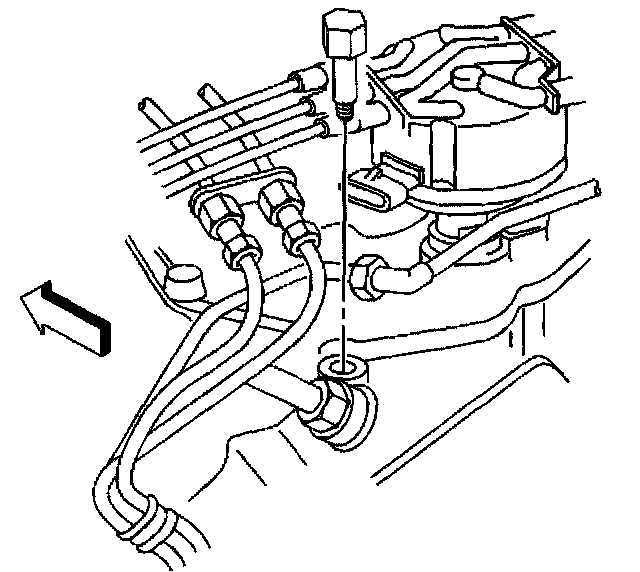

5. Remove the engine oil pressure gage sensor fitting, if necessary.
Installation Procedure
Notice: Refer to Fastener Notice in Service Precautions.

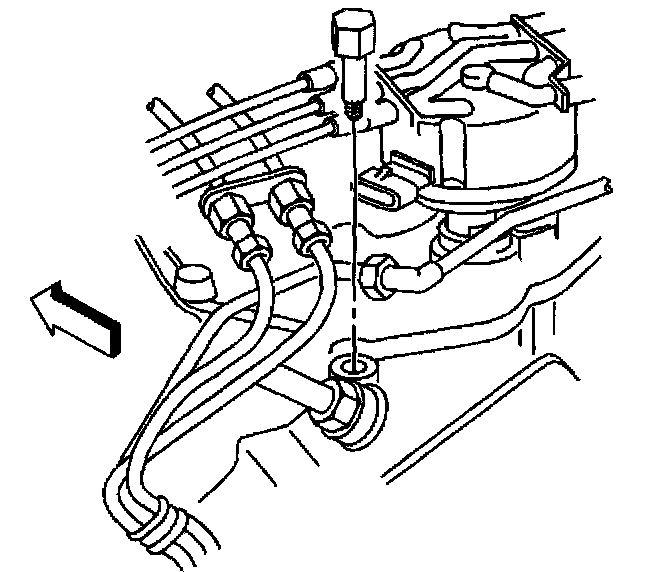

1. Install the engine oil pressure gage sensor fitting, if removed. Tighten
1.1. Tighten the engine oil pressure gage sensor fitting to 15 Nm (11 ft. lbs.).
Important: Do not loosen the sensor fitting. Do not tighten the sensor fitting more than one turn to align.
1.2. Tighten the sensor fitting until properly align.
2. Install the engine oil pressure gage sensor.
3. Hold the engine oil pressure gage sensor fitting with a wrench to prevent from turning.

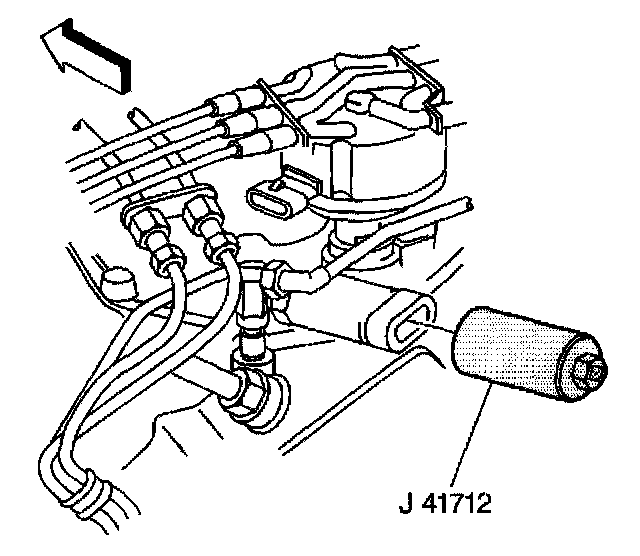

^ Using J 41712 tighten the engine oil pressure gage sensor to 30 Nm (22 ft. lbs.).
4. Connect the engine oil pressure gage sensor electrical connector.
5. Install the engine cover.
^ Tools Required
- J 41712 Oil Pressure Switch Socket
Removal Procedure
1. Remove the engine cover.
2. Disconnect the engine oil pressure gage sensor electrical connector.
3. Hold the engine oil pressure gage sensor fitting with a wrench.
4. Remove the engine oil pressure gage sensor using J 41712.
Important: Note the alignment of the engine oil pressure gage sensor fitting prior to removal
5. Remove the engine oil pressure gage sensor fitting, if necessary.
Installation Procedure
Notice: Refer to Fastener Notice in Service Precautions.
1. Install the engine oil pressure gage sensor fitting, if removed. Tighten
1.1. Tighten the engine oil pressure gage sensor fitting to 15 Nm (11 ft. lbs.).
Important: Do not loosen the sensor fitting. Do not tighten the sensor fitting more than one turn to align.
1.2. Tighten the sensor fitting until properly align.
2. Install the engine oil pressure gage sensor.
3. Hold the engine oil pressure gage sensor fitting with a wrench to prevent from turning.
^ Using J 41712 tighten the engine oil pressure gage sensor to 30 Nm (22 ft. lbs.).
4. Connect the engine oil pressure gage sensor electrical connector.
5. Install the engine cover.
