2002 Chevrolet Venture PlusFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the rear seat. Refer to SEAT REPLACEMENT - REAR .
- Remove the recliner trim cover. Refer to SEAT BACK RECLINER COVER REPLACEMENT - REAR .
- Remove the rear seat riser. Refer to SEAT RISER REPLACEMENT - REAR .

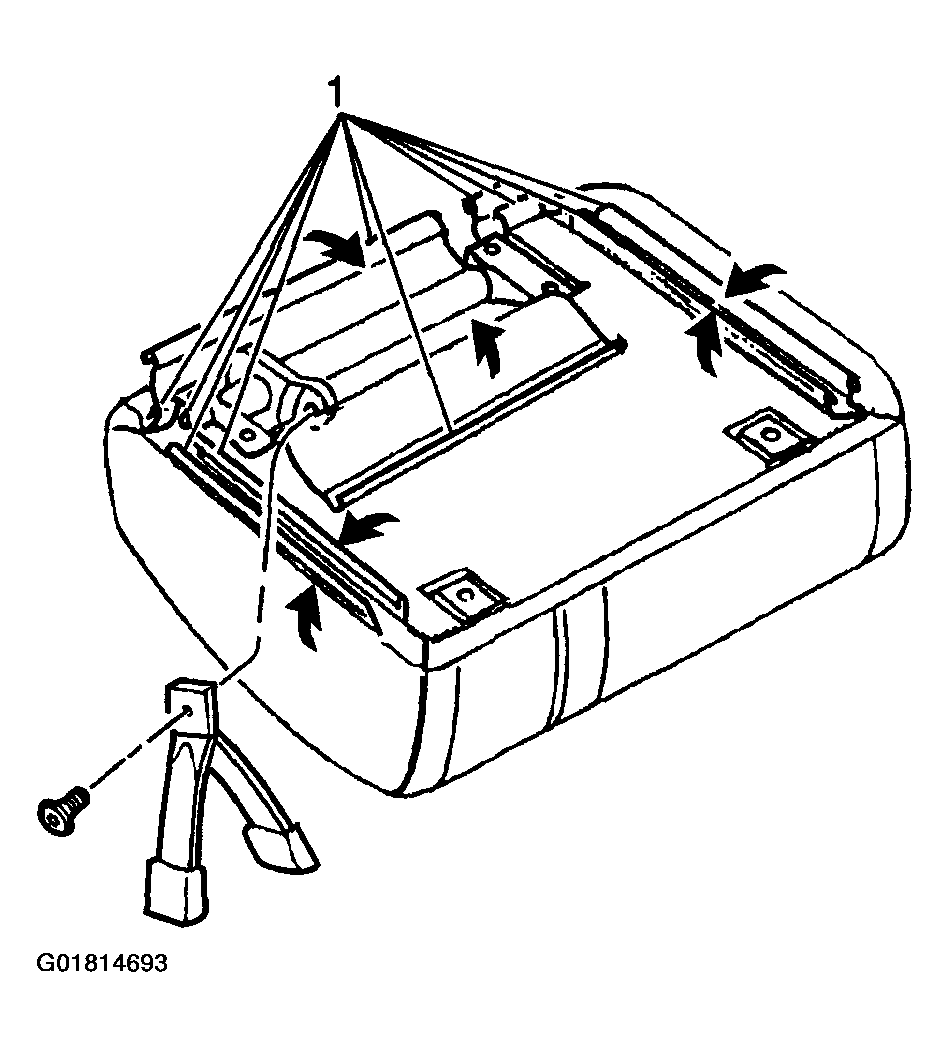

- Remove the seat cushion cover retainers (1) from the bottom of the seat frame.
- Remove the bolts securing the center buckle belts from the seat cushion frame.
- Remove the center buckle belts from the seat.
