2018 Buick Regal BaseFACTORY OEM SERVICE PROCEDURE

Instrument Panel Rear Components

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
GM5164064Courtesy of GENERAL MOTORS COMPANY

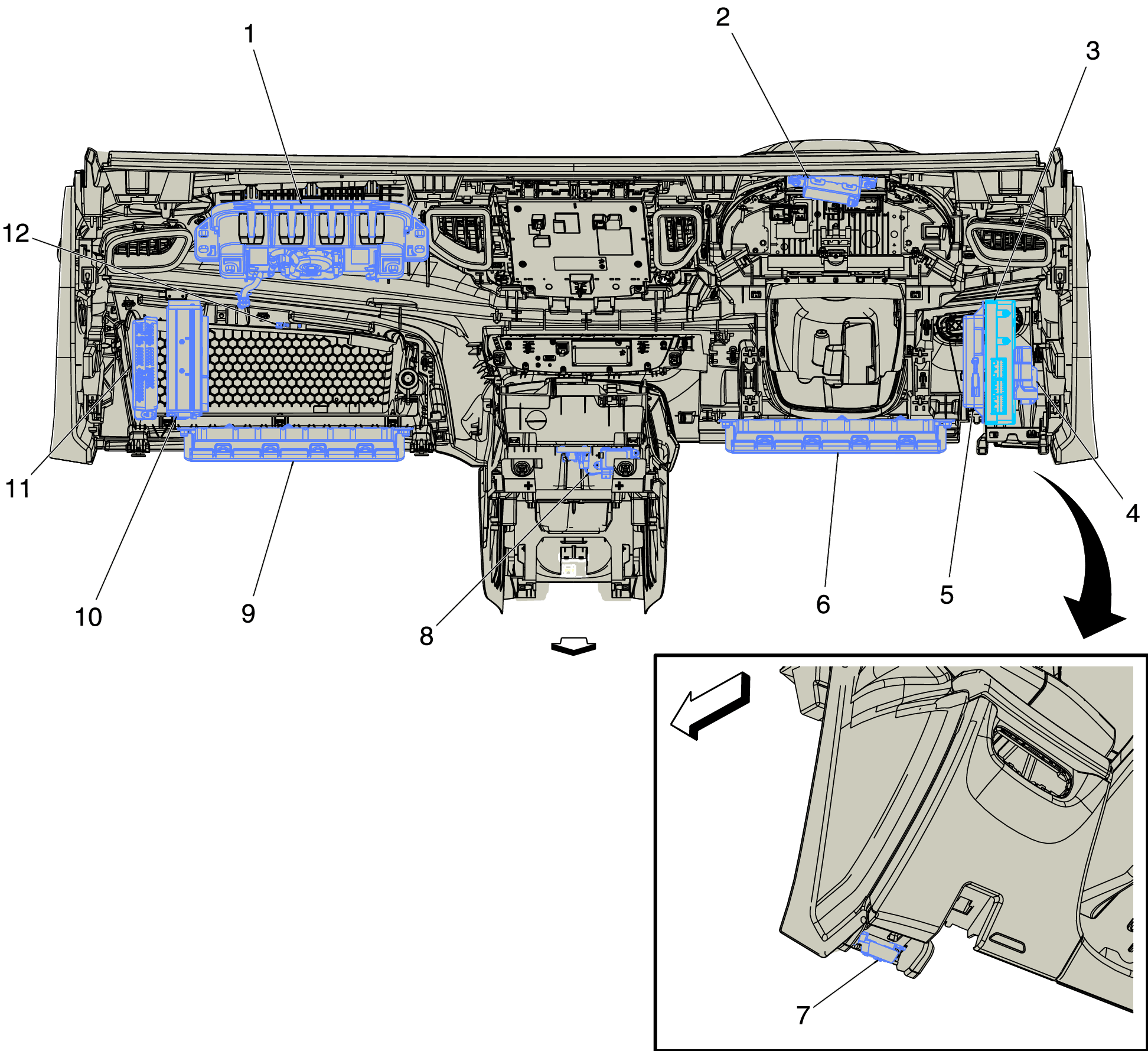

Instrument Panel Rear Components

Component Name Callout
F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 , or F101 Passenger Instrument Panel Air Bag X2 1
P43 Collision Alert Indicators (UEU-UV6) P43 Collision Alert Indicators (-UV6) 2
K73 Telematics Communication Interface Control Module K73 Telematics Communication Interface Control Module X1 (I30) 3
K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2 4
C3 Telematics Communication Interface Control Module Battery C3 Telematics Communication Interface Control Module Battery 5
F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver 6
X84 Data Link Connector X84 Data Link Connector 7
K89 Immobilizer Control Module K89 Immobilizer Control Module 8
F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger 9
A11 Radio A11 Radio X11 (IOT/IOS) , or A11 Radio X3 (IOS/IOT) , or A11 Radio X4 (IOR/IOH) , or A11 Radio X4 (IOT/IOS) , or A11 Radio X5 (IOR) , or A11 Radio X6 (IOS/IOT) , or A11 Radio X7 (IOB/IOR) , or A11 Radio X8 (IOR) 10
K74 Human Machine Interface Control Module 11
E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp 12
