2018 Buick Regal BaseFACTORY OEM SERVICE PROCEDURE

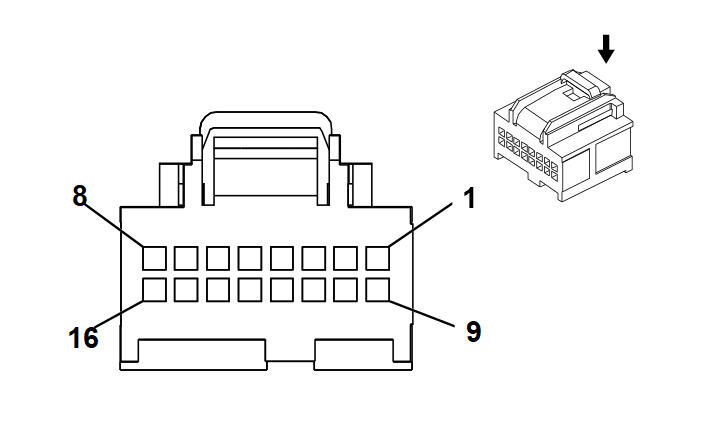

K56 Serial Data Gateway Module X1
WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-64B (LT BU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| I | Not Required | J-35616-64B (LT BU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | RD/GY | 1740 | Secondary Fused Battery Positive Voltage 17 | I | - |
| 2 | - | - | - | Not Occupied | - | - |
| 3 | - | BU/GN | 1304 | High Speed GMLAN Serial Data [+] 9 | I | - |
| 4 | - | WH/GN | 1305 | High Speed GMLAN Serial Data [-] 9 | I | - |
| 5 | - | - | - | Not Occupied | - | - |
| 6 | - | BK/WH | 1651 | Ground 16 | I | - |
| 7 | - | BU | 2500 | High Speed GMLAN Serial Data [+] 1 | I | - |
| 8 | - | WH | 2501 | High Speed GMLAN Serial Data [-] 1 | I | - |
| 9 | - | - | - | Not Occupied | - | - |
| 10 | - | WH/BU | 5986 | Serial Data Communication Enable | I | - |
| 11 | - | BU/GN | 1304 | High Speed GMLAN Serial Data [+] 9 | I | - |
| 12 | - | WH/GN | 1305 | High Speed GMLAN Serial Data [-] 9 | I | - |
| 13 | - | BU/GN | 1304 | High Speed GMLAN Serial Data [+] 9 | I | - |
| 14 | - | WH/GN | 1305 | High Speed GMLAN Serial Data [-] 9 | I | - |
| 15 | - | GN | 5060 | Low Speed GMLAN Serial Data | I | - |
| 16 | - | - | - | Not Occupied | - | - |
