2016 Buick Cascada BaseFACTORY OEM SERVICE PROCEDURE

Installation Procedure

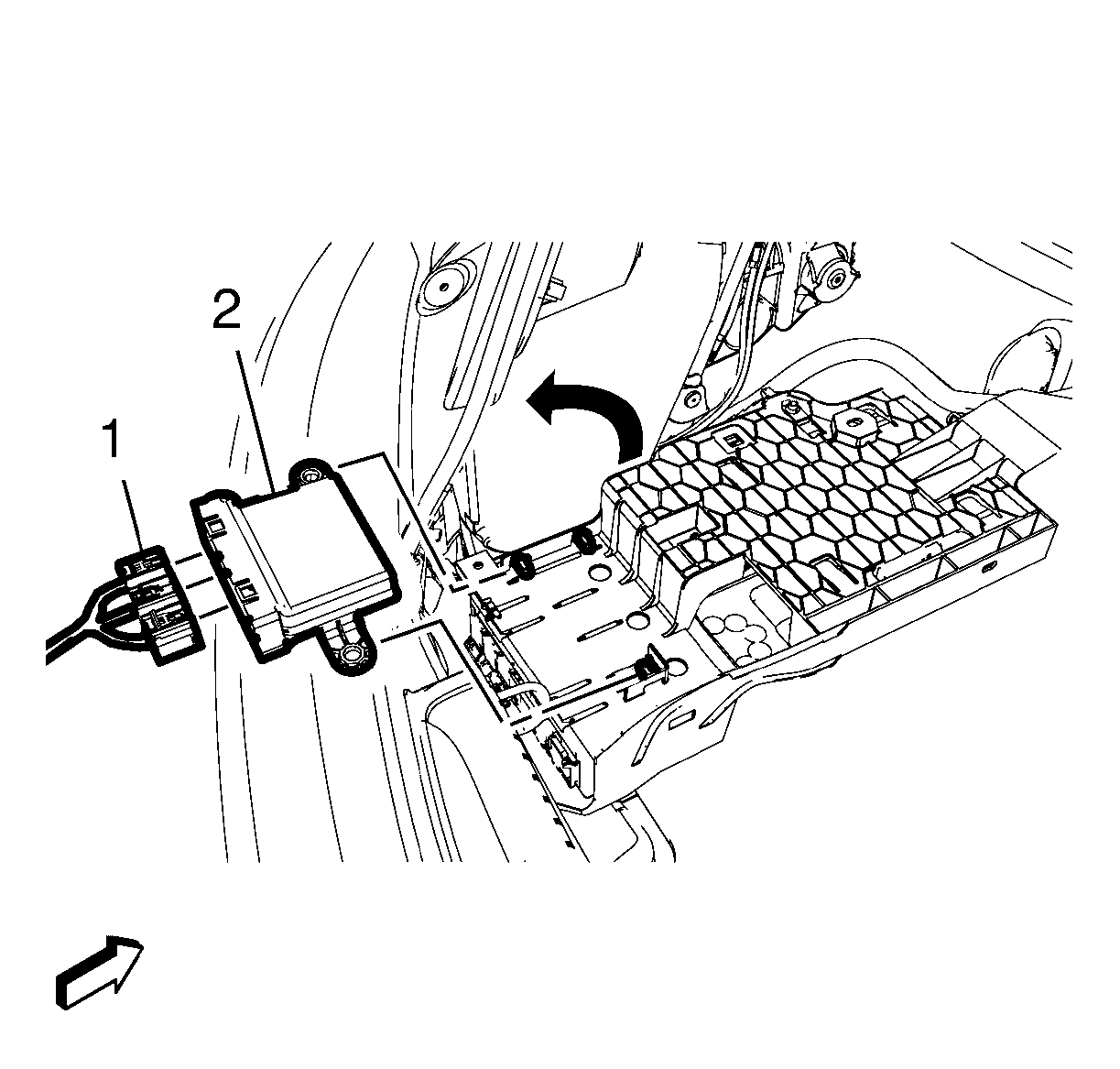

Fig 1: Front And Rear Object Alarm Module

Courtesy of GENERAL MOTORS COMPANY

Clip in the front and rear object alarm module (2) to the 3 fuse block brackets.
Turn the fuse block bracket (2) up to the fixing point.
Connect the 3 wiring harness plugs (1).

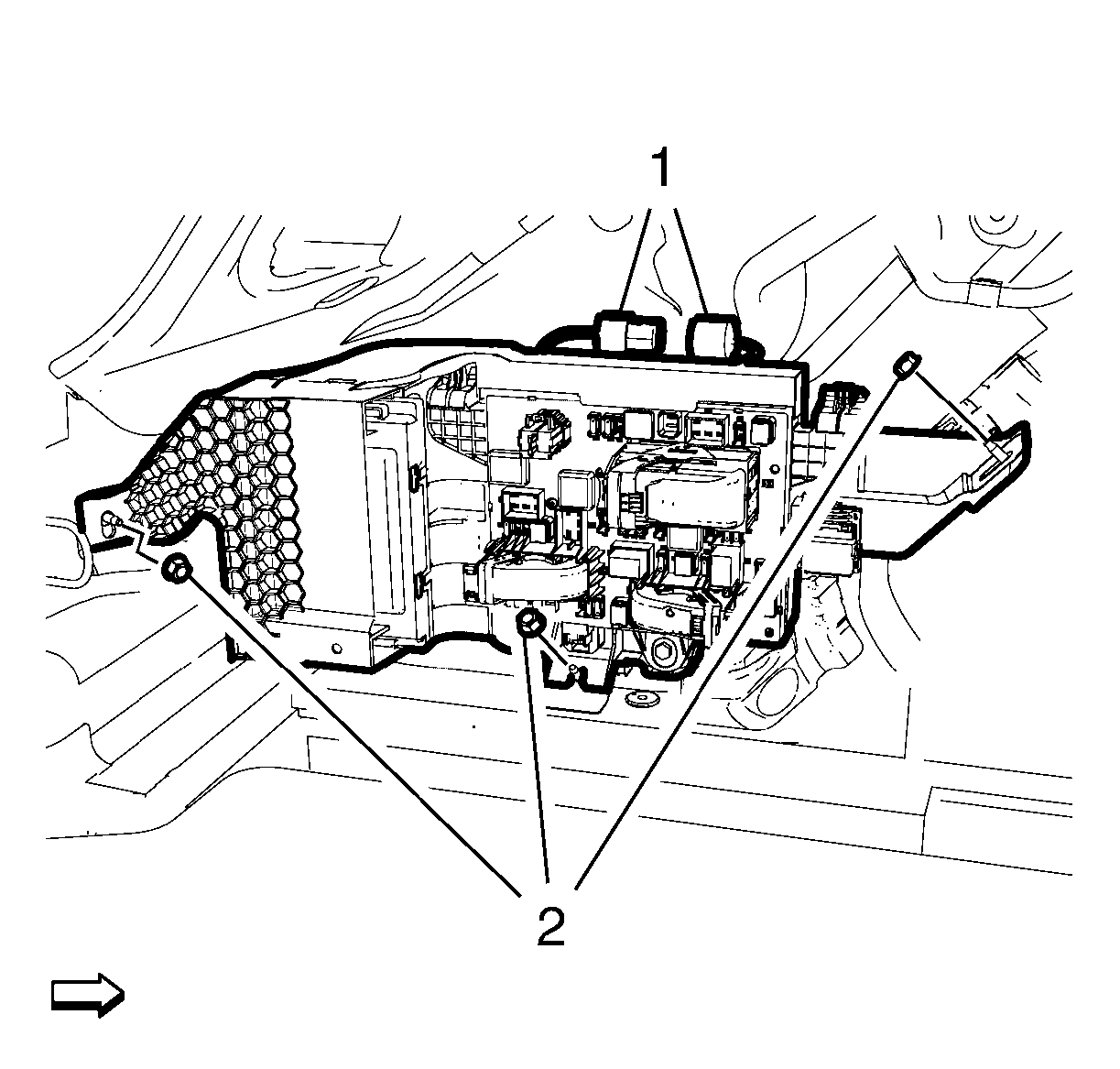

Fig 2: Fuse Block Bracket Nuts And Electrical Connectors

Courtesy of GENERAL MOTORS COMPANY
