2007 Buick Rainier AWD L6-4.2L
Connector Views
2007 Buick Rainier AWD L6-4.2LSECTION Connector Views
Powertrain Control Module Connector End Views

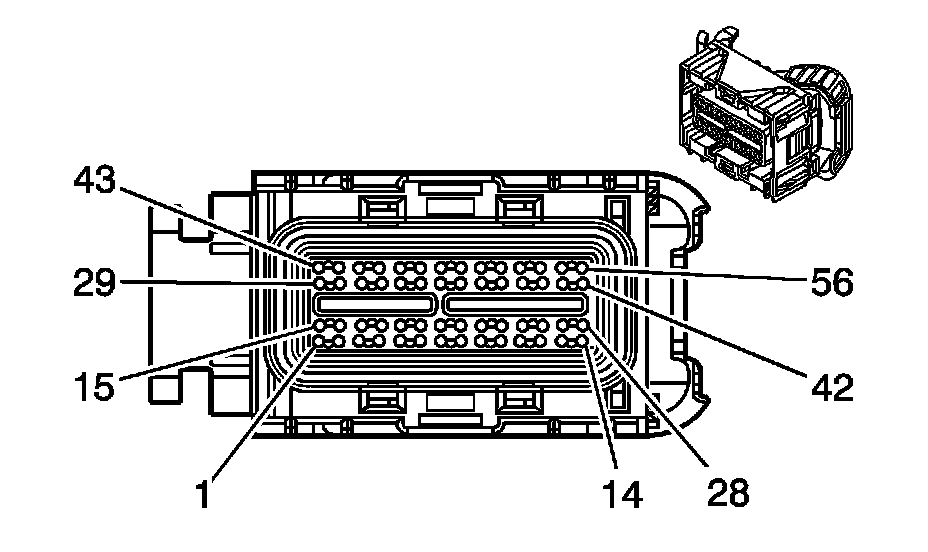

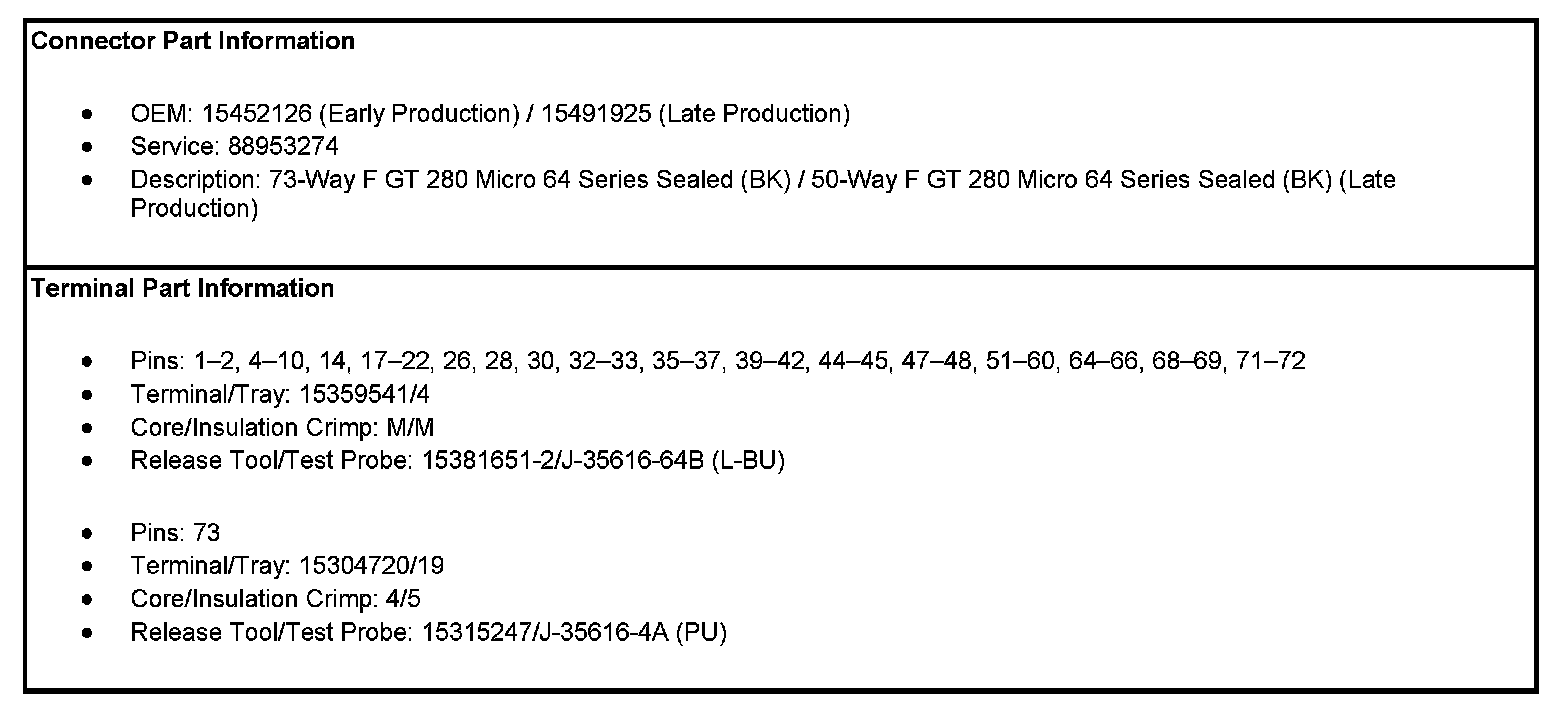

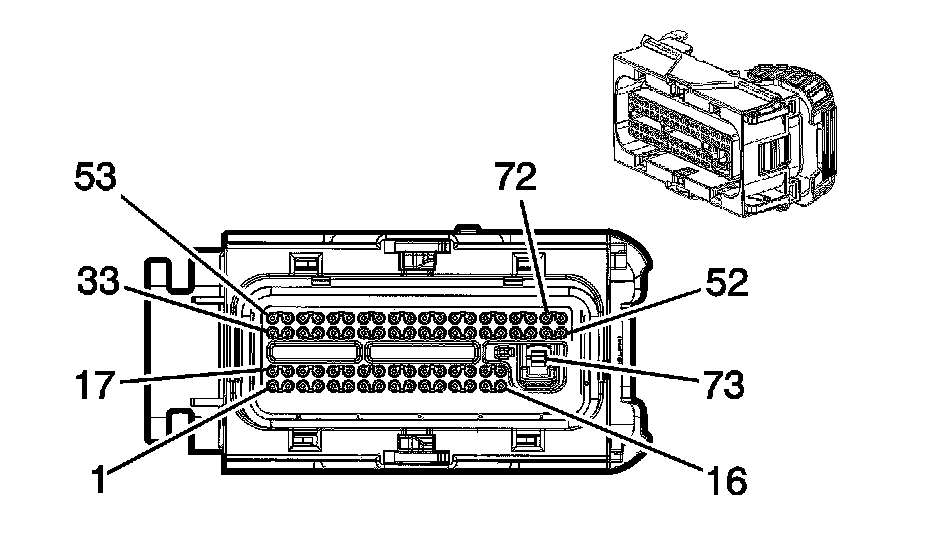

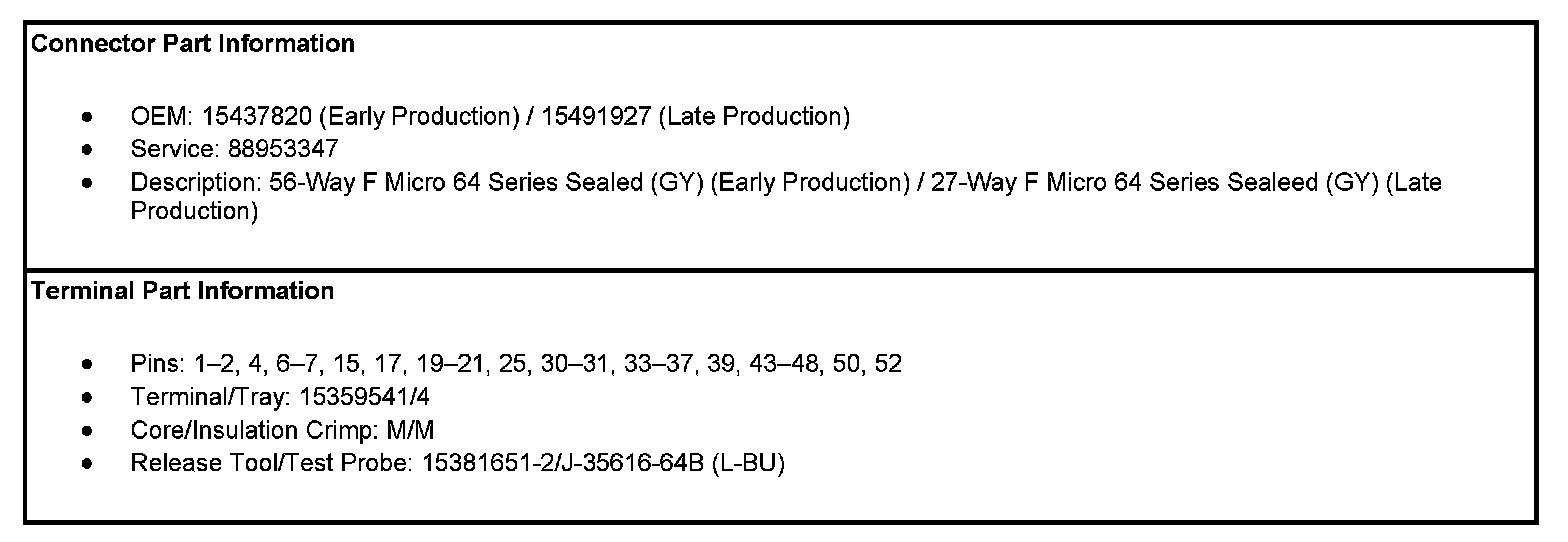

Powertrain Control Module (PCM) C1

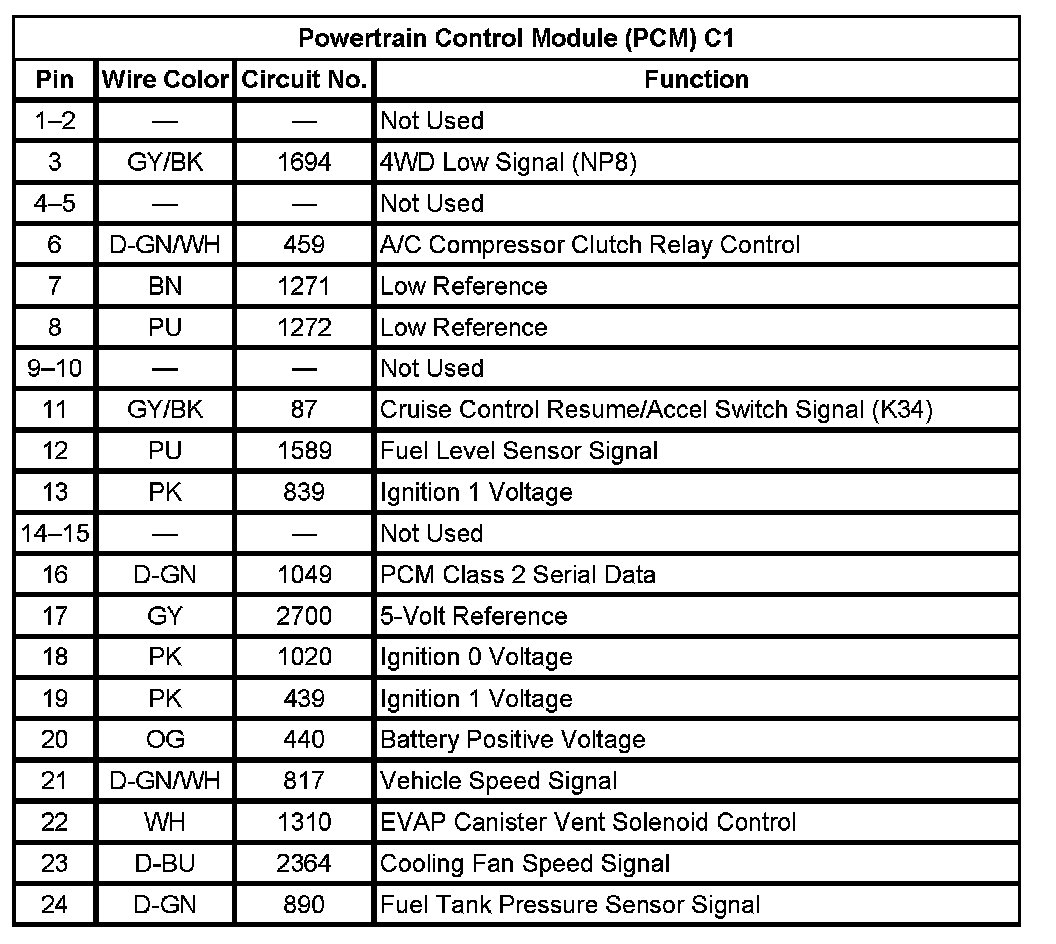

Powertrain Control Module (PCM) C1 (Pin 1 To 24):

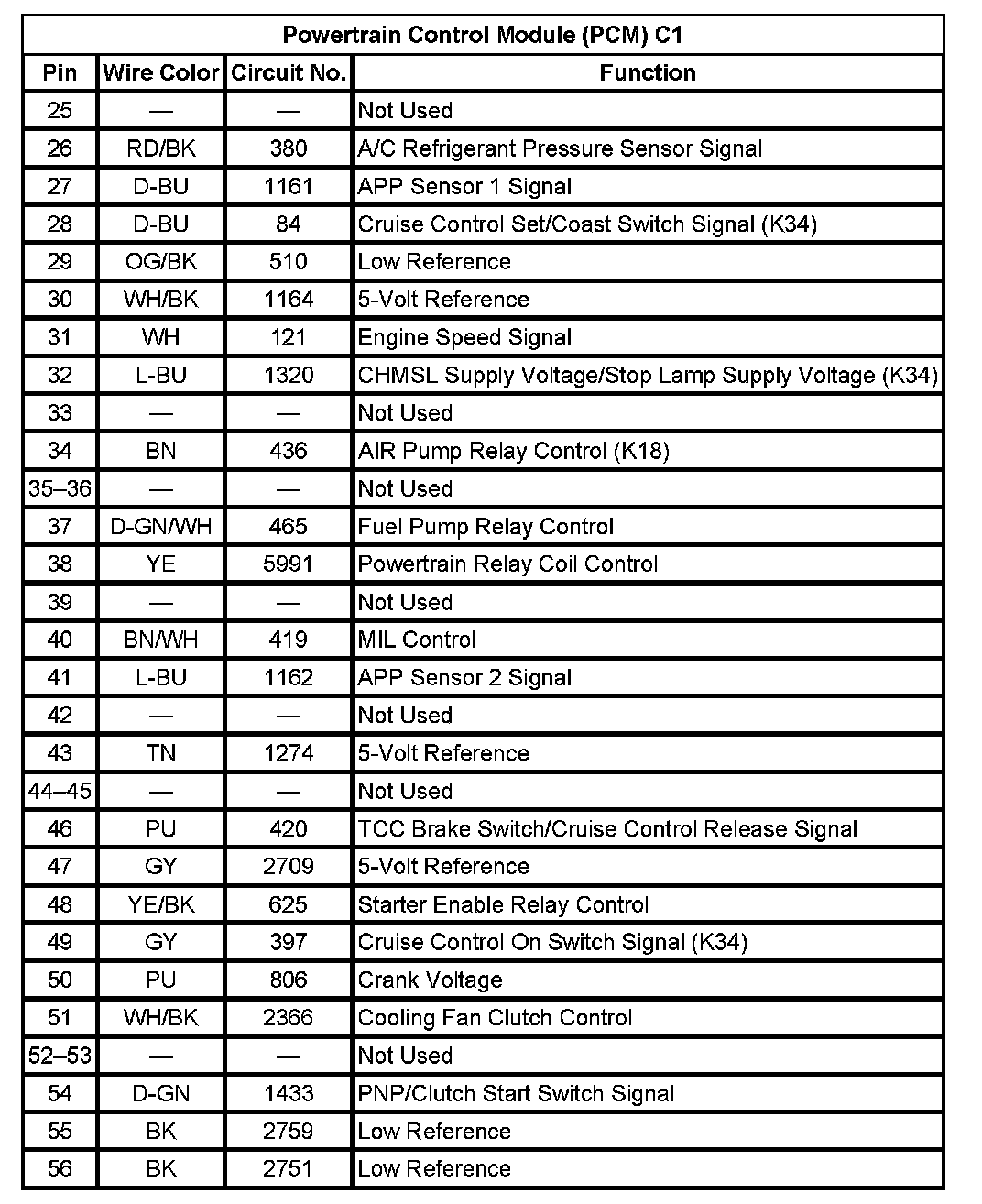

Powertrain Control Module (PCM) C1 (Pin 25 To 56):

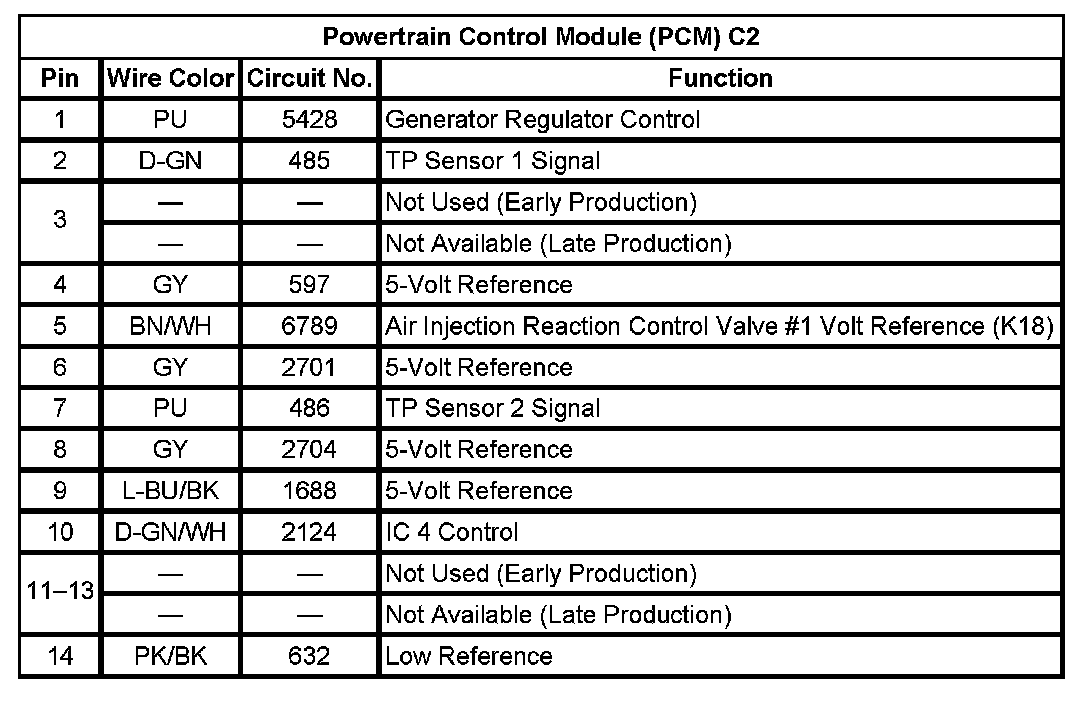

Powertrain Control Module (PCM) C2
Powertrain Control Module (PCM) C2 (Pin 1 To 14):

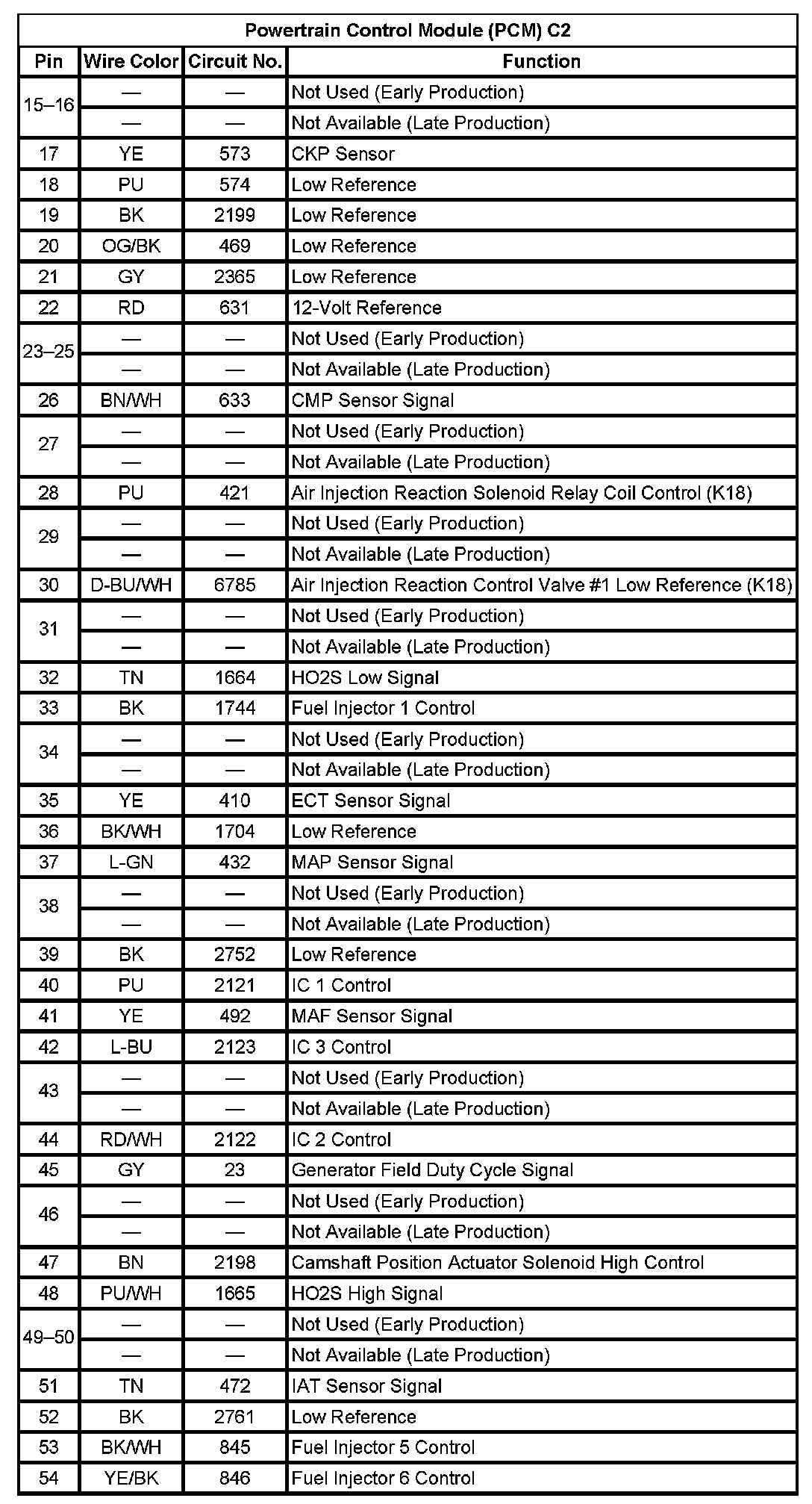

Powertrain Control Module (PCM) C2 (Pin 15 To 54):

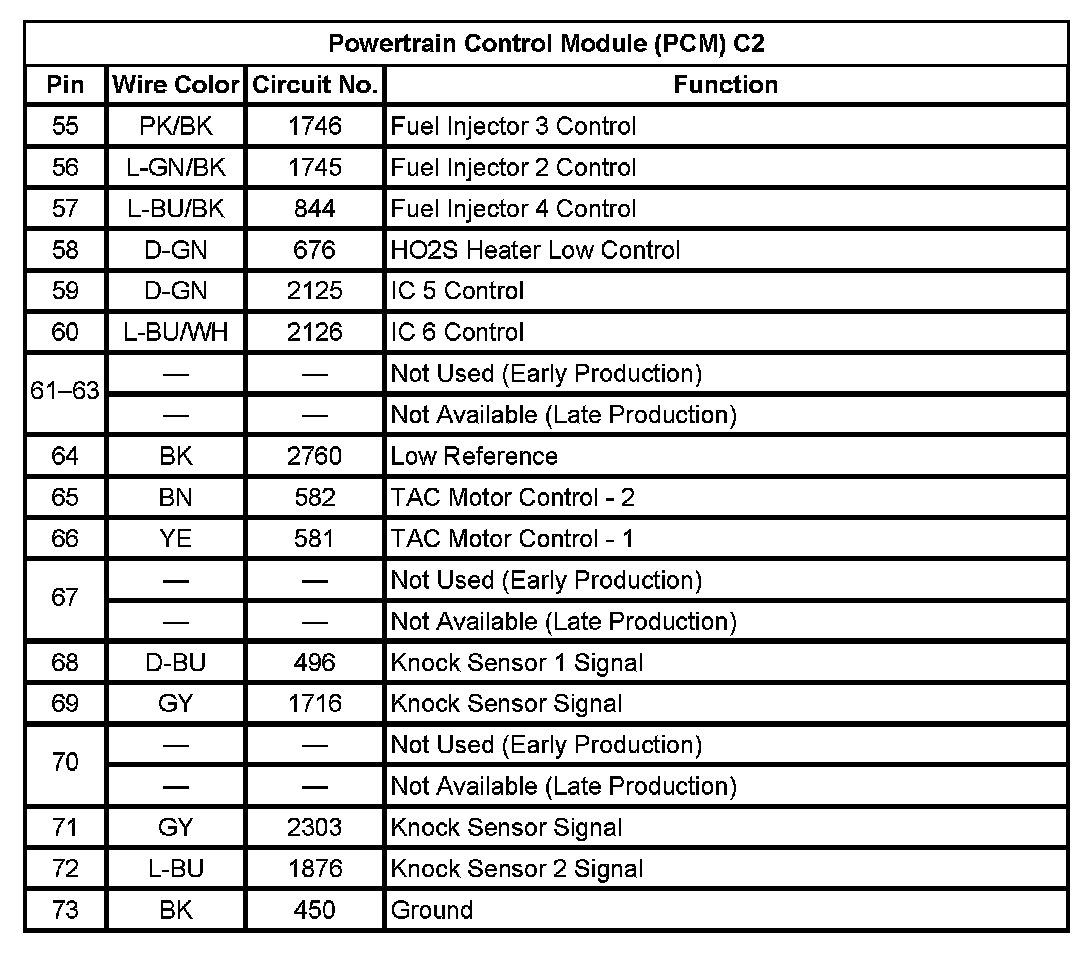

Powertrain Control Module (PCM) C2 (Pin 55 To 73):

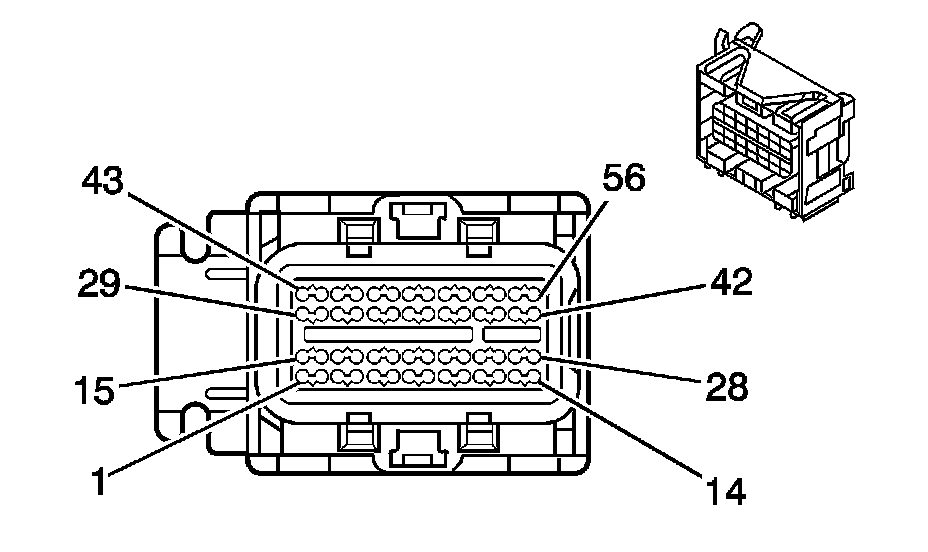

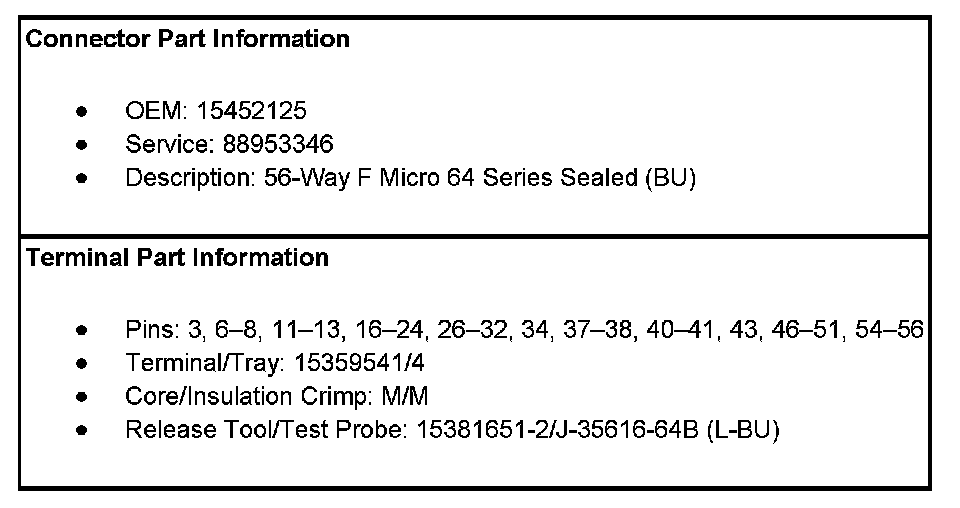

Powertrain Control Module (PCM) C3

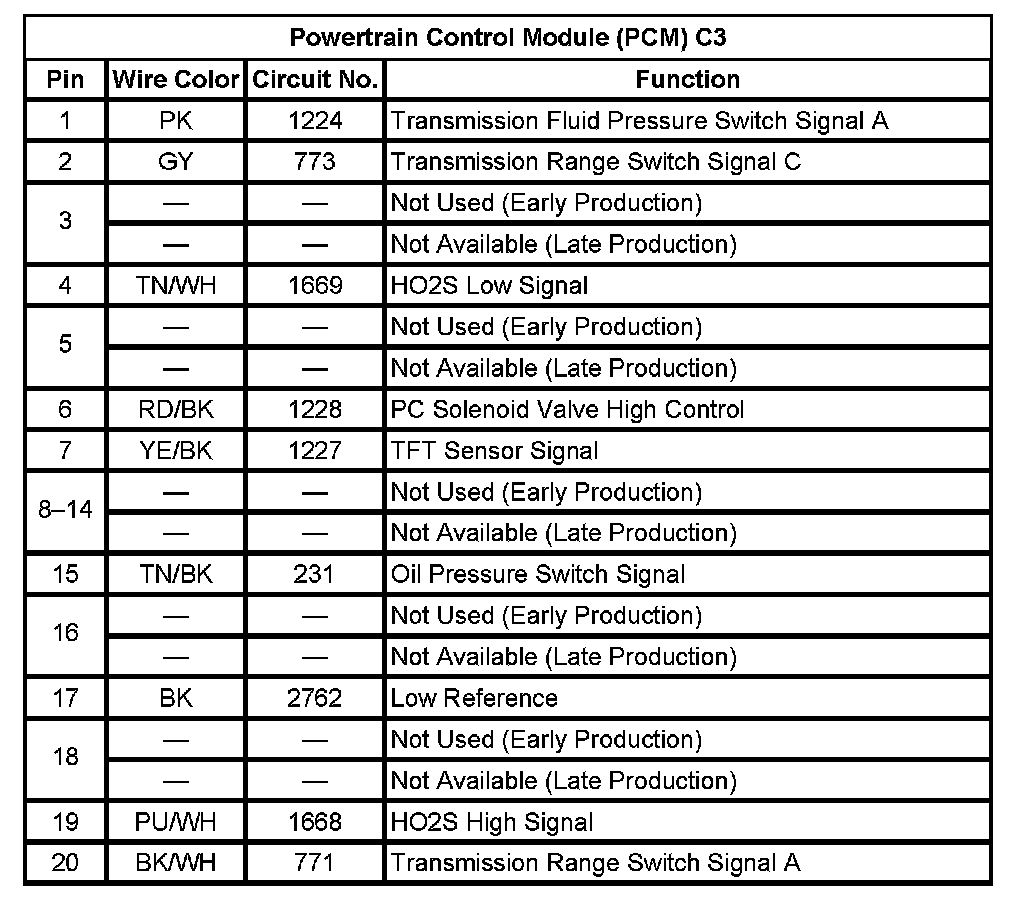

Powertrain Control Module (PCM) C3 (Pin 1 To 20):

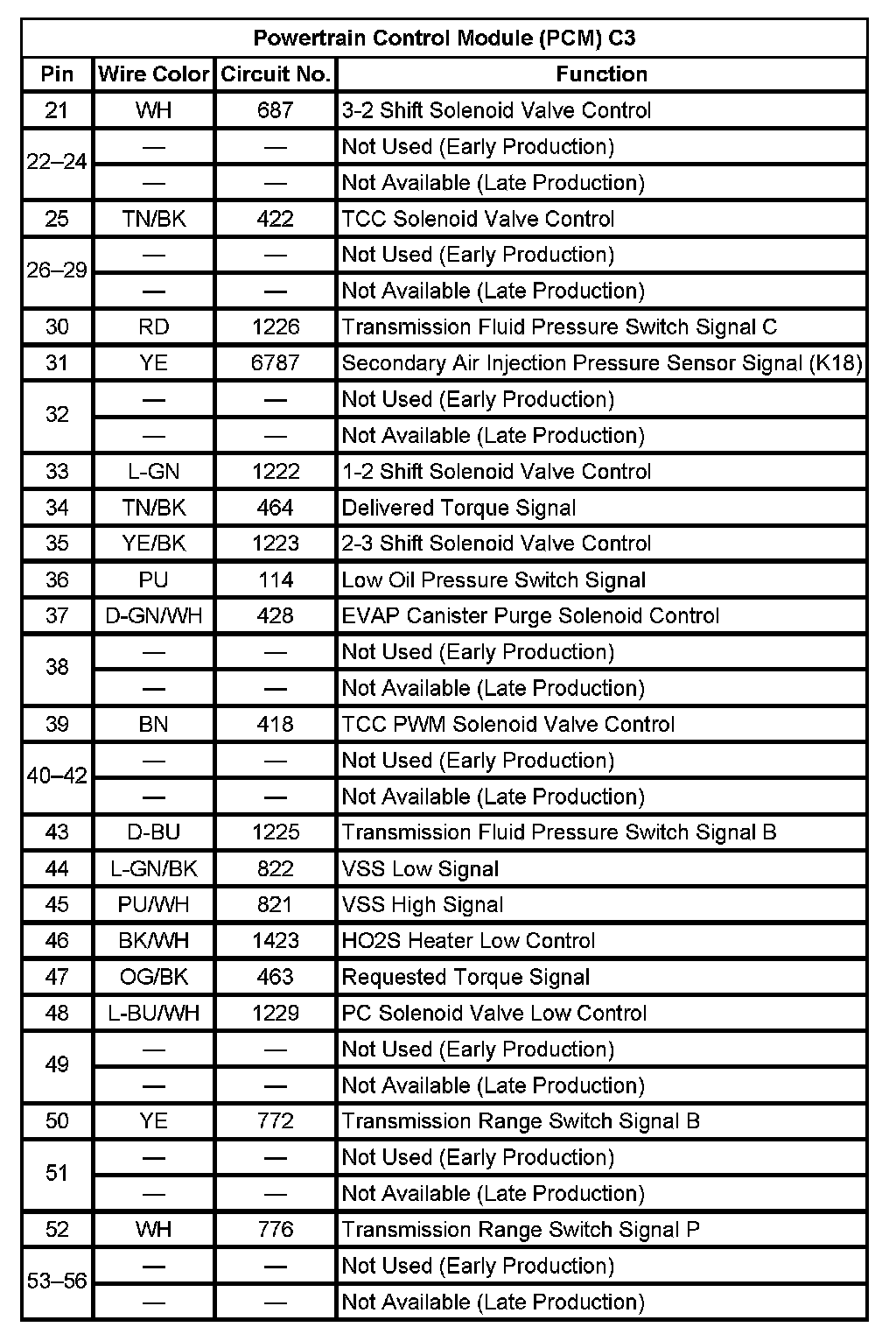

Powertrain Control Module (PCM) C3 (Pin 21 To 56):
