2005 Buick Allure (CANADA) V6-3.6L
Battery Current Sensor: Service and Repair
2005 Buick Allure (CANADA) V6-3.6LSECTION Service and Repair
BATTERY CURRENT SENSOR REPLACEMENT
REMOVAL PROCEDURE

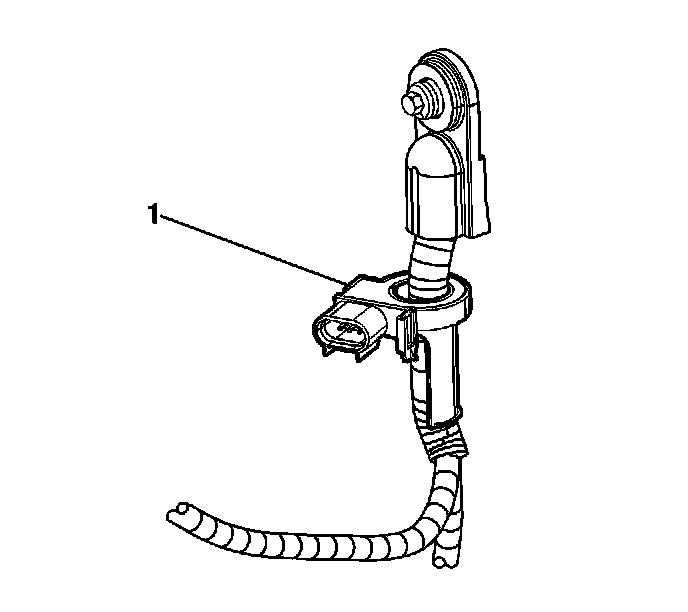

1. Disconnect the instrument panel (I/P) harness electrical connector (1) from the battery current sensor.
2. Remove the negative battery cable.
3. Cut the tie straps and electrical tape attaching the battery current sensor to the battery cable.
4. Squeeze the negative battery cable branches together.
5. Slide the battery current sensor (1) off of the negative battery cable.
IMPORTANT: Note the position of the battery current sensor prior to removal.
INSTALLATION PROCEDURE
1. Slide the NEW battery current sensor (1) up onto the negative battery cable.
IMPORTANT: Ensure that the tape tab is pointing away from the battery prior to installation.
2. Using NEW tie straps and electrical tape, attach the battery current sensor to the negative battery cable.
3. Install the negative battery cable.
4. Connect the I/P harness electrical connector (1) to the battery current sensor.
