2005 Buick Allure (CANADA) V6-3.6L
Timing Cover
2005 Buick Allure (CANADA) V6-3.6LSECTION Timing Cover

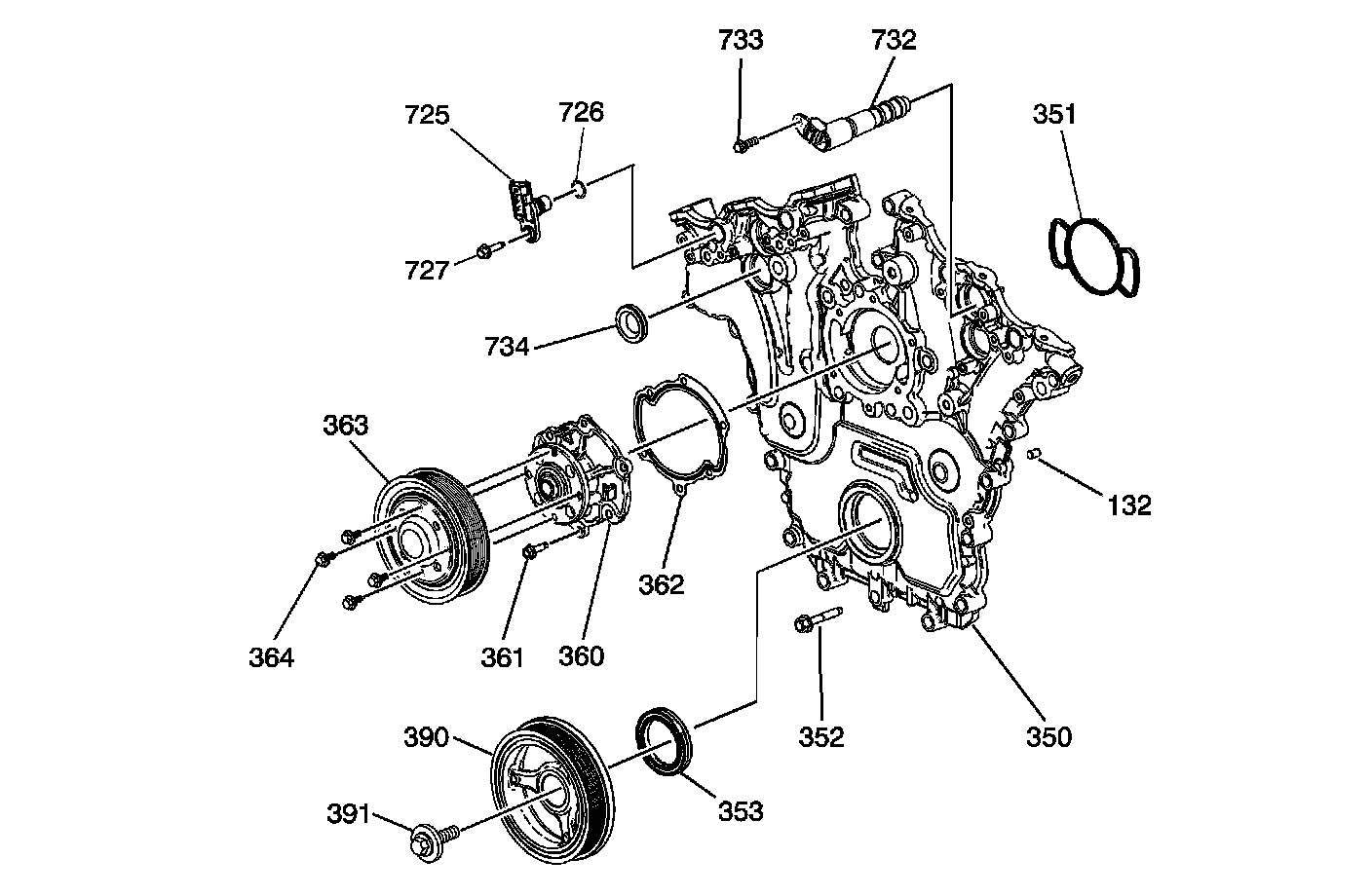

Engine Front Cover
Engine Front Cover:
132 - Engine Front Cover Locating Pin
350 - Engine Front Cover
351 - Engine Front Cover Gasket
352 - Engine Front Cover Bolt
353 - Engine Front Cover Seal
360 - Water Pump Assembly
361 - Water Pump Bolt
362 - Water Pump Gasket
363 - Water Pump Pulley
390 - Crankshaft Balancer
391 - Crankshaft Balancer Bolt
364 - Water Pump Pulley Bolt
725 - Camshaft Position Sensor
726 - Camshaft Position Sensor O-ring
727 - Camshaft Position Sensor Bolt
732 - Camshaft Position Actuator Solenoid Valve
733 - Camshaft Position Actuator Solenoid Valve Bolt
734 - Camshaft Position Actuator Solenoid Valve Seal
