2007 BMW 760LiFACTORY OEM SERVICE PROCEDURE

11 00 ... Overview (N73)

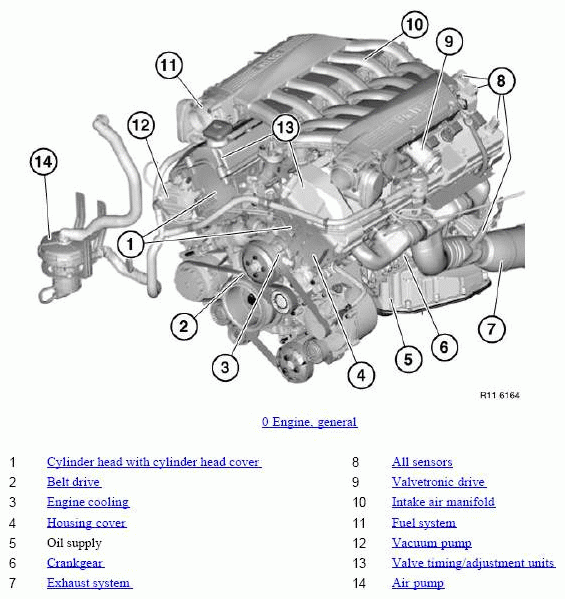

Fig 1: Identifying Engine Components Location
G04773536Courtesy of BMW OF NORTH AMERICA, INC.
  1. Engine, general. See 11 00 050 Removing and Installing Engine (N73)
  2. Cylinder head with cylinder head cover. See 11 12 ... Overview of Cylinder Head (N73)
  3. Belt drive. See 11 28 ... Overview of Belt Drive (N73)
  4. Engine cooling. See 11 51 ... Overview of Cooling System (N73)
  5. Housing cover. See 11 14 ... Overview of Housing Cover (N73)
  6. Oil supply
  7. Crankgear. See 11 21 ... Overview of Crankgear (N73)
  8. Exhaust system. See 00 EXHAUST SYSTEM, COMPLETE
  9. All sensors
  10. Valvetronic drive. See 11 37 ... Overview of Valvetronic (N73)
  11. Intake air manifold. See 11 61 050 Removing and Installing Intake Air Manifold (N73)
  12. Fuel system. See 13 00... OVERVIEW OF FUEL SYSTEM (N73)
  13. Vacuum pump. See 11 66 000 Removing and Installing/Replacing Vacuum Pump (N73)
  14. Valve timing/adjustment units. See 1 36 ... Overview of adjustment units/valve timing (N73)
  15. Air pump. See 11 72 194 Removing and Installing/Replacing Left Secondary Pipe (N73)
