Control Module Identification
2006 BMW X3 AutomaticSECTION Control Module Identification
It is important to know how to properly identify DME control modules prior to programming. The control modules are identified by:
- BMW Part number.
- BMW Hardware number.
- Bosch Hardware number.
These numbers are displayed in the following locations:

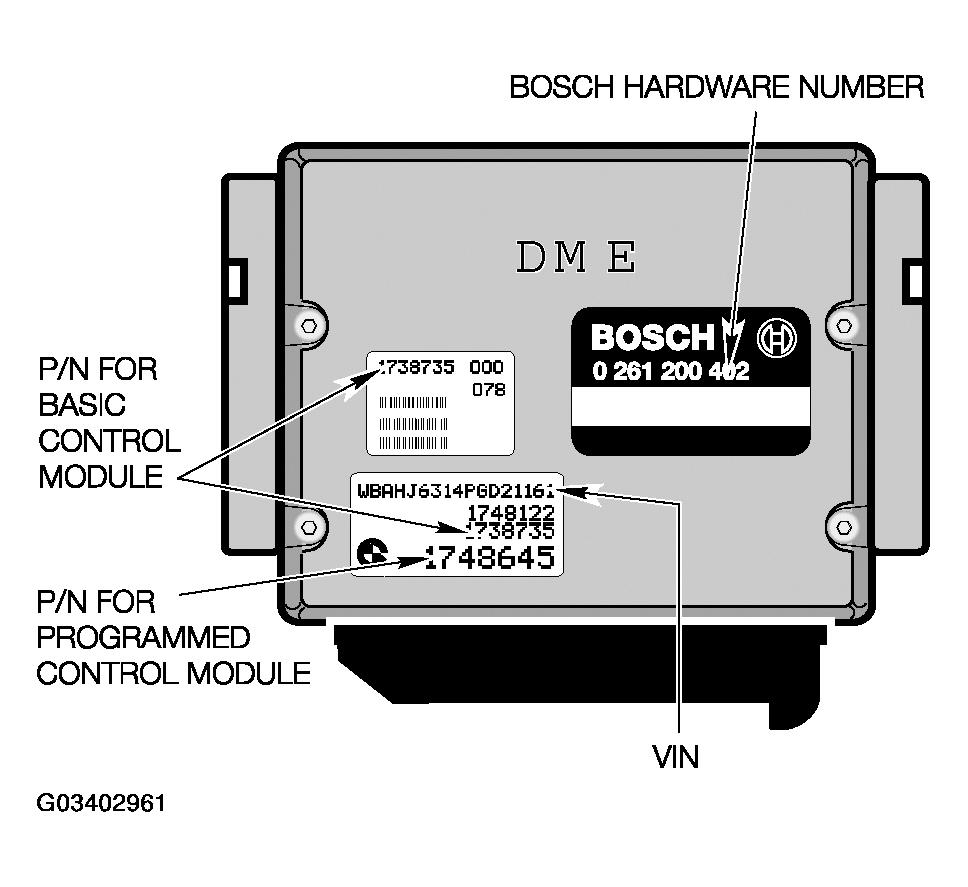

- Control module ID label.
- Control module ID display using the Diagnostic program.
