61 35 795 Removing And Installing (Replacing) Control Unit For Adaptive Headlight
Necessary Preliminary Tasks:
- Remove safety information module. Refer to 65 77 700 REMOVING AND INSTALLING (REPLACING) SAFETY INFORMATION MODULE .

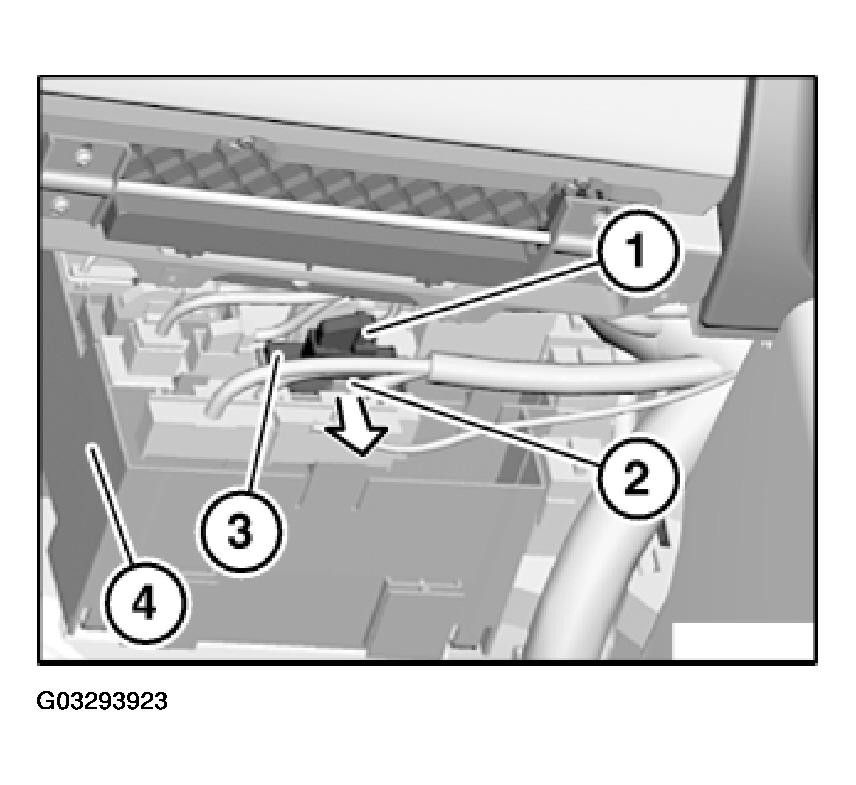

Unfasten plug connection (1) and disconnect.
Unlock catch (2) in direction of arrow.
Pull control unit for adaptive headlight (3) out of equipment carrier (4) and remove.
Replacement:
Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
