61 35 080 Removing And Installing (Replacing) Control Unit For Left Or Right Seat Adjustment (Front Seat)
The following SM variants are affected:
- SM BA/M.
- SM BA/M-HK.
In the event of a repair, some cables are laid a little tauter.
Necessary Preliminary Tasks:
- Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .

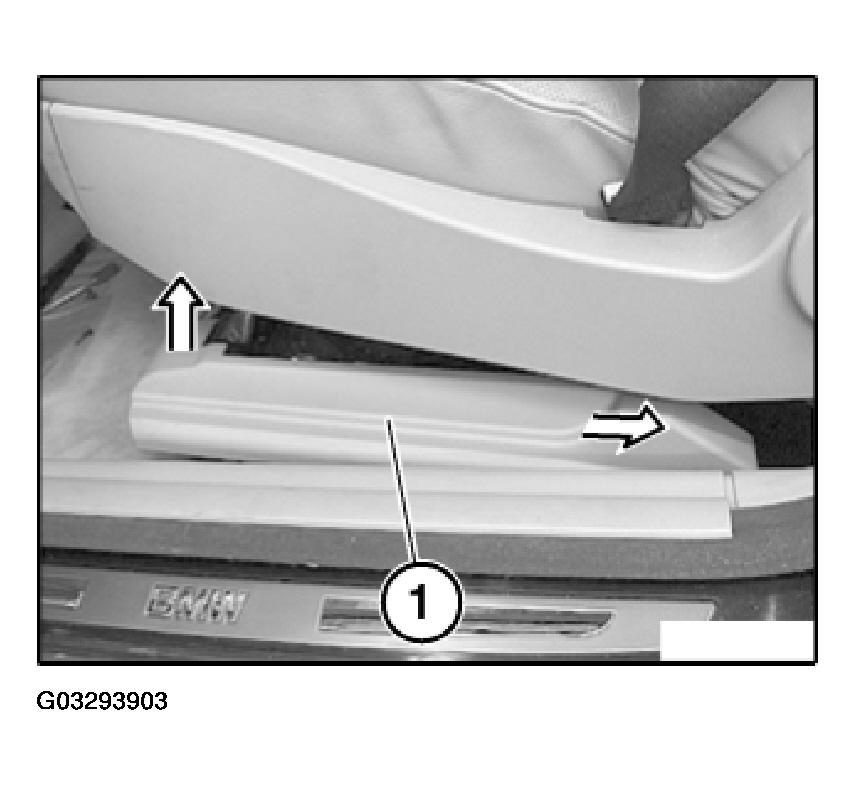

Unclip trim in upper rail at front (1) in direction of arrow and remove.

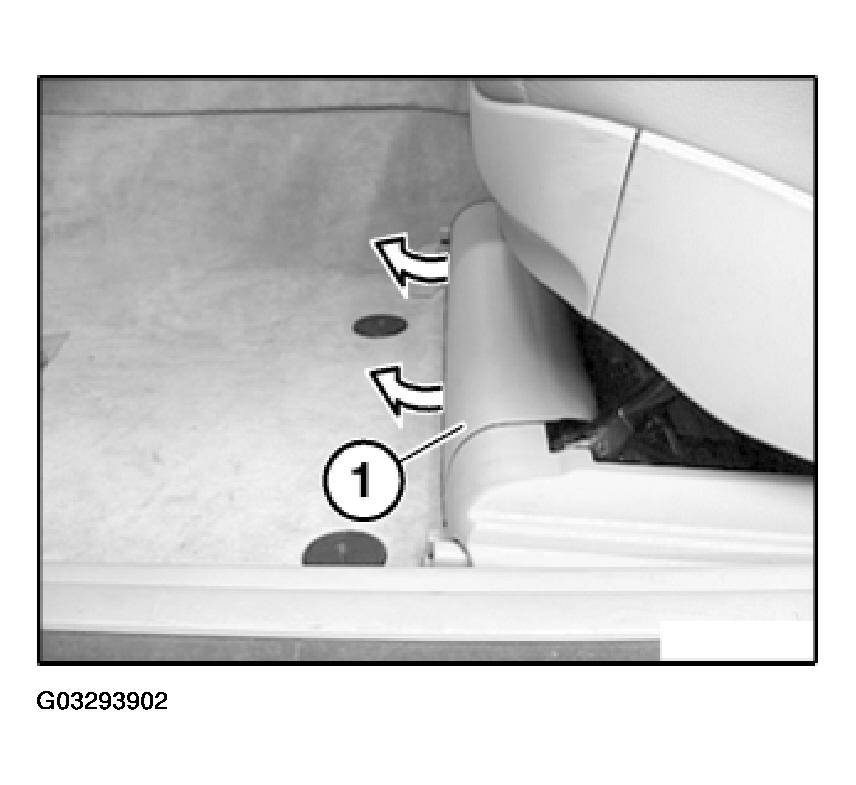

Unclip trim in upper rail on outside (1) towards top, feed out towards rear and remove.
