61 35 001 Removing And Installing (Replacing) Trailer Module
Necessary Preliminary Tasks:
- Disconnect battery negative lead. Refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
- Remove flap in right luggage compartment wheel arch trim. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

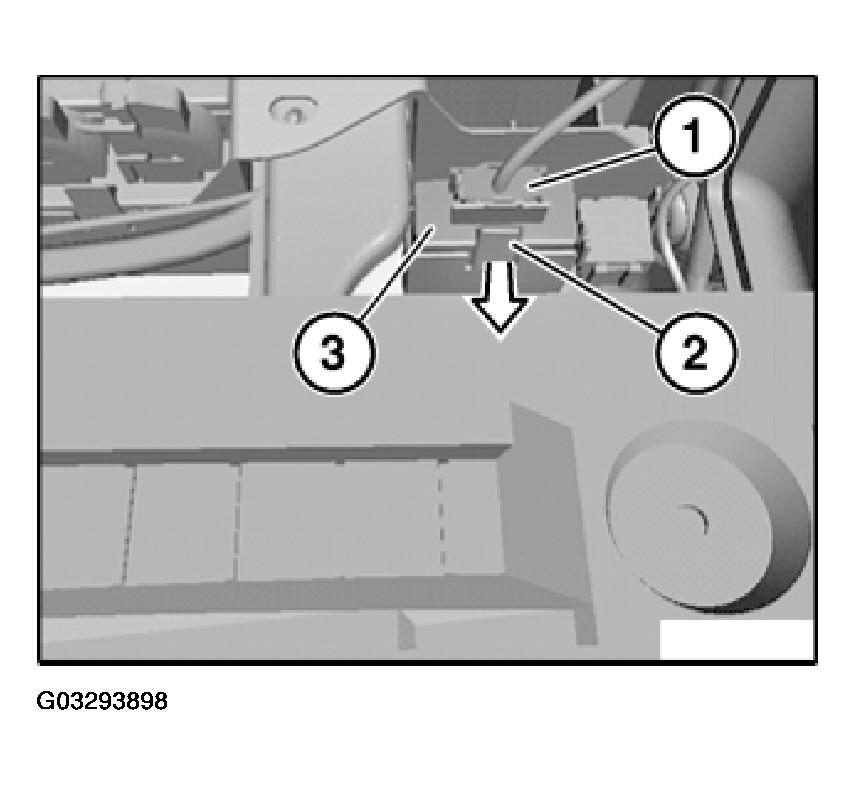

Disconnect plug connection (1).
Unlock catch (2) in direction of arrow and pull out trailer module (3) towards top.
Replacement:

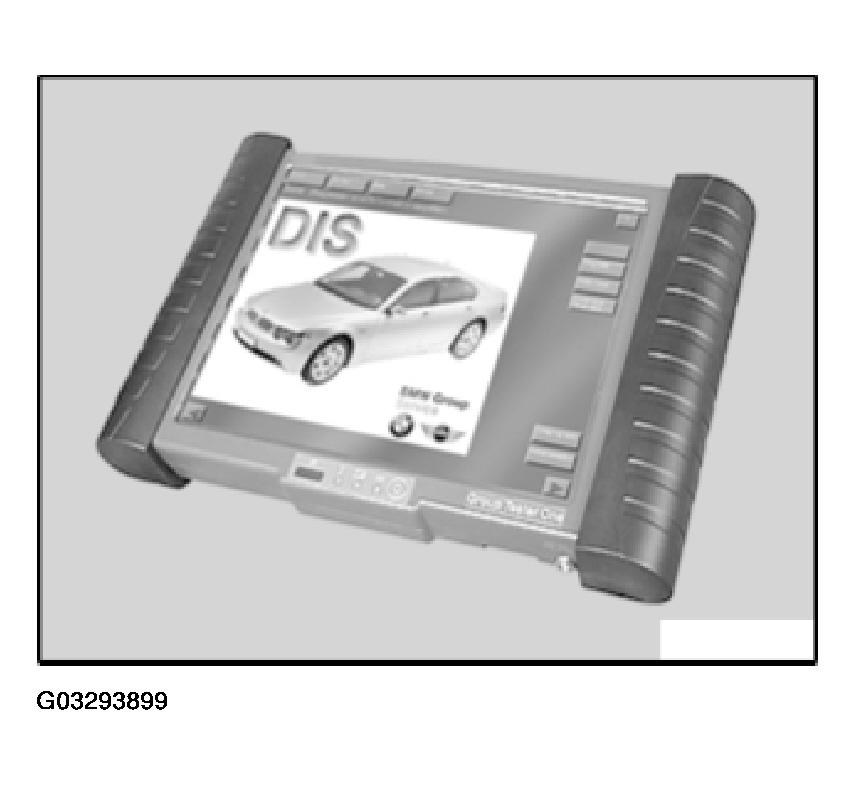

Carry out coding/programming.
Observe following IDC specifications:
- Programming.
- Coding.
- Car & Key Memory.
- CD "CIP".
